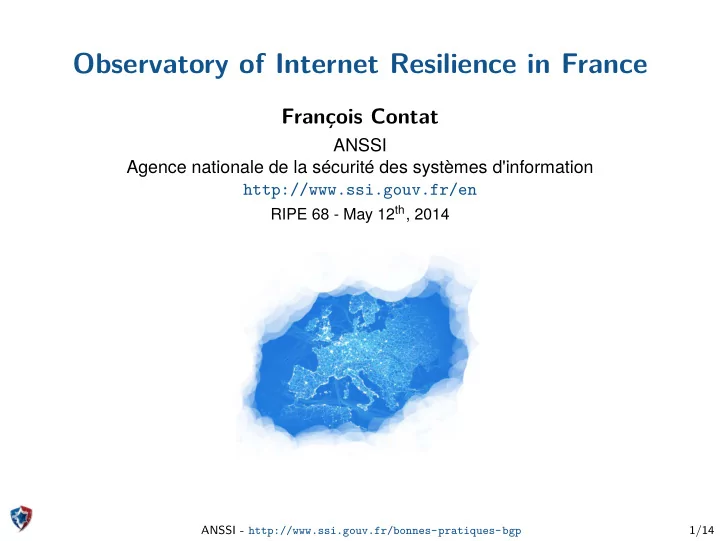

Observatory of Internet Resilience in France Franois Contat ANSSI Agence nationale de la scurit des systmes d'information http://www.ssi.gouv.fr/en RIPE 68 - May 12 th , 2014 ANSSI - http://www.ssi.gouv.fr/bonnes-pratiques-bgp 1/14

SLIDE 1

Observatory of Internet Resilience in France

François Contat

ANSSI Agence nationale de la sécurité des systèmes d'information http://www.ssi.gouv.fr/en

RIPE 68 - May 12th, 2014

ANSSI - http://www.ssi.gouv.fr/bonnes-pratiques-bgp 1/14

SLIDE 2

ANSSI and Observatory

. Created on July 7th 2009, the ANSSI is the national cyberdefence agency. Main missions are:

Prevention
Defence of information systems

Internet resilience is one of its priority. In 2011, The Observatory of Internet resilience in France is created. Publications:

Two reports of Internet status in France
BGP BCP

http://www.ssi.gouv.fr/en/

ANSSI - http://www.ssi.gouv.fr/bonnes-pratiques-bgp 2/14

SLIDE 3

BGP Best Current Operational Practices

SLIDE 4

Why?

Motivations

BGP BCPs present in multiple documents
No single reference document
No adjustment depending on BGP interconnection type:
Transit
Peering
Customer

ANSSI - http://www.ssi.gouv.fr/bonnes-pratiques-bgp 4/14

SLIDE 5

Who?

ANSSI

Pierre Lorinquer (main author)
Observatory Team (G. Valadon, M. Feuillet, F. Contat)

Operators

Association Kazar
France-IX
Jaguar Network
Neo Telecoms
Orange
RENATER
SFR

ANSSI - http://www.ssi.gouv.fr/bonnes-pratiques-bgp 5/14

SLIDE 6

How?

First step: internal work

Classify BGP interconnections and define AS relationships
Draft a first recommendations list

Second step: collaborative work

Propose the recommendations list
Debate the importance of each recommendation

Third step: publication

Implement Operators comments
Publish on October 1st, 2013

ANSSI - http://www.ssi.gouv.fr/bonnes-pratiques-bgp 6/14

SLIDE 7

BGP Best Current Operational Practices Document

SLIDE 8

Structure

Definitions

Interconnection types
As relationships

Recommendations levels Recommendations

Description
Examples

ANSSI - http://www.ssi.gouv.fr/bonnes-pratiques-bgp 8/14

SLIDE 9

Definitions

Interconnection types

Direct interconnection
IXP Peering
IXP Route-server
Multihop

AS relationships

Transit / Customer (leaf)
Transit / Small transit
Peering

ANSSI - http://www.ssi.gouv.fr/bonnes-pratiques-bgp 9/14

SLIDE 10

Definitions

Interconnection types

Direct interconnection
IXP Peering
IXP Route-server
Multihop

AS relationships

Transit / Customer (leaf)
Transit / Small transit
Peering

ANSSI - http://www.ssi.gouv.fr/bonnes-pratiques-bgp 9/14

SLIDE 11

Definitions

Interconnection types

Direct interconnection
IXP Peering
IXP Route-server
Multihop

AS relationships

Transit / Customer (leaf)
Transit / Small transit
Peering

Internet Exchange Point ANSSI - http://www.ssi.gouv.fr/bonnes-pratiques-bgp 9/14

SLIDE 12

Definitions

Interconnection types

Direct interconnection
IXP Peering
IXP Route-server
Multihop

AS relationships

Transit / Customer (leaf)
Transit / Small transit
Peering

transit AS « small transit » AS ANSSI - http://www.ssi.gouv.fr/bonnes-pratiques-bgp 9/14

SLIDE 13

Recommendations

AS relationship dependant

TCP-Authentication
AS-PATH filtering
Prefixes filtering (route objects)
Max-prefix
Private AS removing

General recommendations

Martians filtering
Bogons filtering
Default route filtering
Log
Graceful restart

ANSSI - http://www.ssi.gouv.fr/bonnes-pratiques-bgp 10/14

SLIDE 14

Recommendation example

BCP name AS relationship Recommendation level Remarks Prefixes filtering allocated to peer Transit / Customer (leaf) Transit side: Systematic filtering for « leaf » AS. Customer side: - Transit / small Transit Transit side: Customer side: - Peering

ANSSI - http://www.ssi.gouv.fr/bonnes-pratiques-bgp 11/14

SLIDE 15

Recommendation implementation

Routers configurations

Each recommendation has configuration sample
Configuration examples for:

Operating system Version SR-OS (Alcatel-Lucent) 10.0r5 IOS (Cisco) 15.2(4)S Junos (Juniper) 11.4R3.7 OpenBGPD (OpenBSD) 5.3

Cisco, Juniper made by ANSSI
Alcatel and openBGPd configuration given by Operators

ANSSI - http://www.ssi.gouv.fr/bonnes-pratiques-bgp 12/14

SLIDE 16

Conclusion

How did it work?

Got feedbacks from French nog members
Minors errors hilighted by readers after publication

The next report

Translate the document in English
Propose new recommendations (ex: GTSM)
Propose route object/ROA declaration
Review old and new recommendations with operators
Keep or remove
Change recommendation level
Update configuration examples (IOS XE/XR, etc.)
…

ANSSI - http://www.ssi.gouv.fr/bonnes-pratiques-bgp 13/14

SLIDE 17

Questions?

ANSSI - http://www.ssi.gouv.fr/bonnes-pratiques-bgp 14/14
