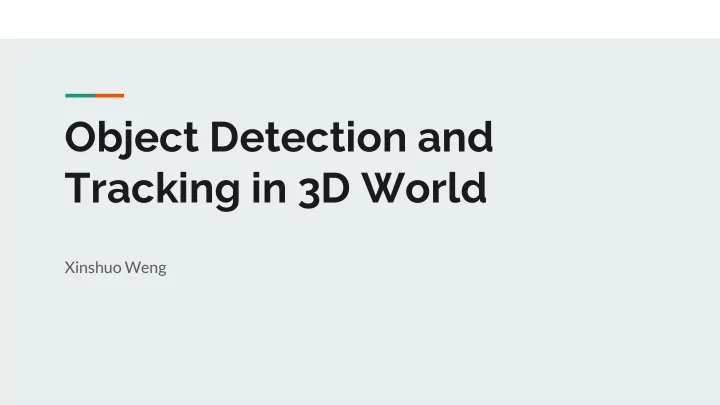

Object Detection and Tracking in 3D World

Xinshuo Weng

slide-2
SLIDE 2

3D Object Detection

slide-3
SLIDE 3

Goal

slide-4
SLIDE 4

Goal

  • Inputs:

○ LiDAR point cloud

slide-5
SLIDE 5

Goal

  • Inputs:

○ LiDAR point cloud ○ Monocular Images

slide-6
SLIDE 6

Goal

  • Inputs:

○ LiDAR point cloud ○ Monocular Images ○ Stereo images

Left Right

slide-7
SLIDE 7

Goal

  • Inputs:

○ LiDAR point cloud ○ Monocular Images ○ Stereo images ○ Or fusion

slide-8
SLIDE 8

Goal

  • Inputs:

○ LiDAR point cloud ○ Monocular Images ○ Stereo images ○ Or fusion

  • Outputs:

○ Eight corners ○ Four corners + height ○ Size (l,w,h) + center (x,y,z) + heading (𝜾)

slide-9
SLIDE 9

3D Object Detection from LiDAR Point Cloud

Shi et al, “PointRCNN: 3D Object Proposal Generation and Detection from Point Cloud”, CVPR, 2019.

slide-10
SLIDE 10

3D Object Detection from Monocular Images

Mousavian et al, “3D Bounding Box Estimation Using Deep Learning and Geometry”, CVPR, 2017.

  • Goal: estimate 7 DoF parameters
  • Leverage the 2D-3D bounding box consistency constraint

○ Provide 4 constraints

slide-11
SLIDE 11

3D Object Detection from Monocular Images

Mousavian et al, “3D Bounding Box Estimation Using Deep Learning and Geometry”, CVPR, 2017.

  • Goal: estimate 7 DoF parameters
  • Leverage the 2D-3D bounding box consistency constraint

○ Provide 4 constraints ○ Need at least another three

slide-12
SLIDE 12

3D Object Detection from Stereo Images

Li et al, “Stereo R-CNN based 3D Object Detection for Autonomous Driving”, CVPR, 2019.

slide-13
SLIDE 13

3D Object Detection from Stereo Images

Li et al, “Stereo R-CNN based 3D Object Detection for Autonomous Driving”, CVPR, 2019.

Size (l, w, h) 2D bounding box (x, y, z, 𝜾)

slide-14
SLIDE 14

3D Object Detection from Stereo Images

Li et al, “Stereo R-CNN based 3D Object Detection for Autonomous Driving”, CVPR, 2019.

Matching loss

slide-15
SLIDE 15

3D Object Detection from Images and LiDAR

Qi et al, “Frustum PointNets for 3D Object Detection from RGB-D Data”, CVPR, 2018.

slide-16
SLIDE 16
  • Accepted to autonomous driving workshop in ICCV 2019
  • Motivation: to bridge the performance gap between LiDAR and camera for 3D object detection
  • KITTI dataset leaderboard:

Our Recent Work on Monocular 3D Object Detection

LiDAR-based 3D detection Monocular 3D detection

  • X. Weng and K. Kitani, “Monocular 3D Object Detection with Pseudo-LiDAR Point Cloud”, ICCVW, 2019.
slide-17
SLIDE 17

Our Recent Work on Monocular 3D Object Detection

  • X. Weng and K. Kitani, “Monocular 3D Object Detection with Pseudo-LiDAR Point Cloud”, ICCVW, 2019.
slide-18
SLIDE 18

Our Recent Work on Monocular 3D Object Detection

  • Contributions:

○ Pseudo-LiDAR framework ○ Two observations: ■ Long tail ■ Local misalignment

  • X. Weng and K. Kitani, “Monocular 3D Object Detection with Pseudo-LiDAR Point Cloud”, ICCVW, 2019.
slide-19
SLIDE 19

Our Recent Work on Monocular 3D Object Detection

  • Contributions:

○ Pseudo-LiDAR framework ○ Two observations: ■ Long tail – instance mask proposal ■ Local misalignment

  • X. Weng and K. Kitani, “Monocular 3D Object Detection with Pseudo-LiDAR Point Cloud”, ICCVW, 2019.
slide-20
SLIDE 20

Our Recent Work on Monocular 3D Object Detection

  • X. Weng and K. Kitani, “Monocular 3D Object Detection with Pseudo-LiDAR Point Cloud”, ICCVW, 2019.
  • Contributions:

○ Pseudo-LiDAR framework ○ Two observations: ■ Long tail – instance mask proposal ■ Local misalignment – bounding box consistency loss (BBCL) and optimization (BBCO)

slide-21
SLIDE 21

Our Recent Work on Monocular 3D Object Detection

  • X. Weng and K. Kitani, “Monocular 3D Object Detection with Pseudo-LiDAR Point Cloud”, ICCVW, 2019.
  • Inputs are monocular images only
  • Current 1st position on both KITTI 3D detection / bird’s eye view detection leaderboard among

monocular methods

slide-22
SLIDE 22

Our Recent Work on Monocular 3D Object Detection

[6] R. Urtasun et al (University of Toronto). Monocular 3D Object Detection for Autonomous Driving. CVPR 2016. [30] J. Kosecka (George Mason Unibrtsity). 3D Bounding Box Estimation Using Deep Learning and Geometry. CVPR 2017. [58] Z. Chen (Wuhan University) et al. Multi-Level Fusion based 3D Object Detection from Monocular Images. CVPR 2018.

  • X. Weng and K. Kitani, “Monocular 3D Object Detection with Pseudo-LiDAR Point Cloud”, ICCVW, 2019.
slide-23
SLIDE 23

3D Multi-Object Tracking

slide-24
SLIDE 24

Goal

slide-25
SLIDE 25

Goal

  • Inputs:

○ LiDAR point cloud ○ Monocular Image ○ Stereo image, add video ○ Or fusion

  • Outputs:

○ Eight corners ○ Four corners + height ○ Size + center + orientation ○ identity

slide-26
SLIDE 26

Goal

  • Inputs:

○ LiDAR point cloud ○ Monocular Image ○ Stereo image, add video ○ Or fusion

  • Outputs:

○ Eight corners ○ Four corners + height ○ Size + center + orientation ○ Identity – association problem

slide-27
SLIDE 27

Typical Multi-Object Tracking Solver

  • Tracking-by-detection pipeline
slide-28
SLIDE 28

Typical Multi-Object Tracking Solver

  • Tracking-by-detection pipeline
  • detector
slide-29
SLIDE 29

Typical Multi-Object Tracking Solver

  • Tracking-by-detection pipeline
  • detector + appearance model + motion model
slide-30
SLIDE 30

Typical Multi-Object Tracking Solver

  • Tracking-by-detection pipeline
  • detector + appearance model + motion model + data association (e.g., Hungarian algorithm)
slide-31
SLIDE 31

Typical Multi-Object Tracking (MOT) Solver

  • Tracking-by-detection pipeline
  • detector + appearance model + motion model + data association

Deep motion network Deep association network Deep appearance network

slide-32
SLIDE 32

3D MOT from LiDAR Point Cloud

Luo et al, “Fast and Furious: Real Time End-to-End 3D Detection, Tracking and Motion Forecasting with a Single Convolutional Net”, CVPR, 2018.

slide-33
SLIDE 33

3D MOT from LiDAR Point Cloud

Baser et al, “FANTrack: 3D Multi-Object Tracking with Feature Association Network”, arXiv, 2019.

SimNet AssocNet

slide-34
SLIDE 34

3D MOT from LiDAR Point Cloud

Frossard et al, “End-to-end Learning of Multi-sensor 3D Tracking by Detection”, ICRA, 2018.

slide-35
SLIDE 35

Our Recent Work on 3D Multi-Object Tracking

  • Tracking by detection

○ Detection: state-of-the-art 3D object detector ---- PointRCNN ○ Tracking: Kalman filter with 3D constant velocity model + Hungarian algorithm, no appearance model

  • X. Weng and K. Kitani, “Simple Baseline and New Evaluation Tool for 3D Multi-Object Tracking”, arXiv, 2019.
slide-36
SLIDE 36

Our Recent Work on 3D Multi-Object Tracking

  • X. Weng and K. Kitani, “Simple Baseline and New Evaluation Tool for 3D Multi-Object Tracking”, arXiv, 2019.
  • Inputs are only LiDAR point cloud only
  • Current 1st position on KITTI 3D tracking leaderboard, 2nd position on KITTI 2D tracking leaderboard among

published works

slide-37
SLIDE 37

Our Recent Work on 3D Multi-Object Tracking

  • X. Weng and K. Kitani, “Simple Baseline and New Evaluation Tool for 3D Multi-Object Tracking”, arXiv 2019.

2D tracking results on KITTI test set 3D tracking results on KITTI validation set

[1] Raquel Urtasun. End-to-End Learning of Multi-Sensor 3D Tracking by Detection. ICRA 2018. [2] Krzysztof Czarnecki. University of Waterloo. FANTrack: 3D Multi-Object Tracking with Feature Association Network. arXiv 2019. [3] Karl Granstrom, Chalmer University of Technology. Mono-Camera 3D Multi-Object Tracking Using Deep Learning Detections and PMBM Filtering. ITSC 2018. [5] K. Madhava Krishna. IIIT Hyderabad, India. Beyond Pixels: Leveraging Geometry and Shape Cues for Online Multi-Object Tracking. ICRA 2018.

slide-38
SLIDE 38

Takeaway Message

  • With proper use, conceptually simple idea can achieve an unprecedented improvement of

performance in practice
