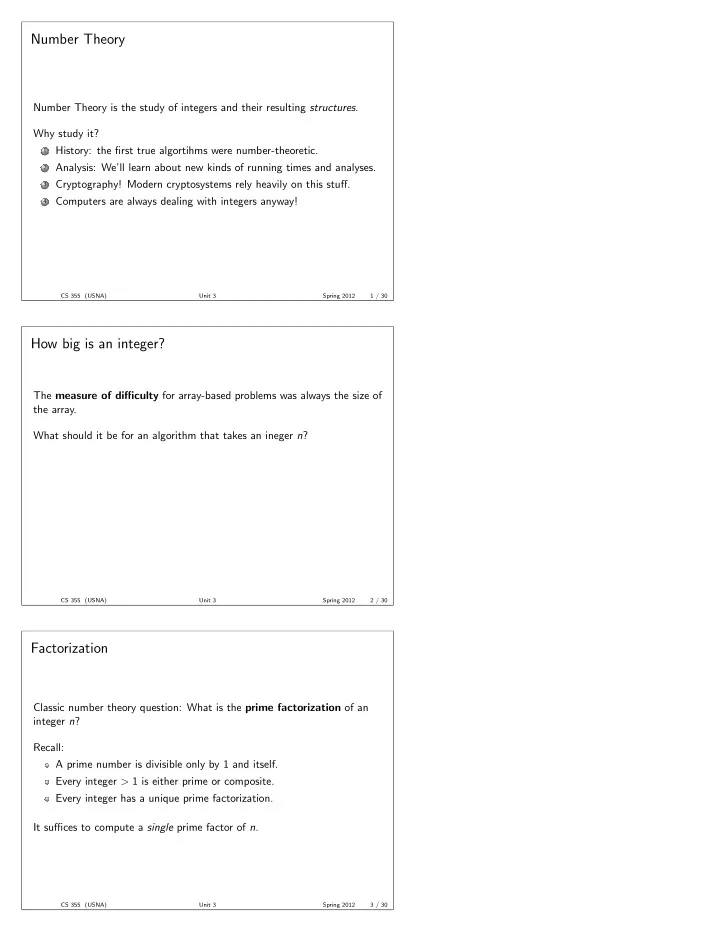

Number Theory

Number Theory is the study of integers and their resulting structures. Why study it?

1 History: the first true algortihms were number-theoretic. 2 Analysis: We’ll learn about new kinds of running times and analyses. 3 Cryptography! Modern cryptosystems rely heavily on this stuff. 4 Computers are always dealing with integers anyway! CS 355 (USNA) Unit 3 Spring 2012 1 / 30

How big is an integer?

The measure of difficulty for array-based problems was always the size of the array. What should it be for an algorithm that takes an ineger n?

CS 355 (USNA) Unit 3 Spring 2012 2 / 30

Factorization

Classic number theory question: What is the prime factorization of an integer n? Recall: A prime number is divisible only by 1 and itself. Every integer > 1 is either prime or composite. Every integer has a unique prime factorization. It suffices to compute a single prime factor of n.

CS 355 (USNA) Unit 3 Spring 2012 3 / 30

leastPrimeFactor

Input: Positive integer n Output: The smallest prime p that divides n, or "PRIME"

1

i := 2

2

while i*i <= n do

3

i f i divides n then return i

4

i := i + 1

5

return "PRIME"

CS 355 (USNA) Unit 3 Spring 2012 4 / 30

Polynomial Time

The actual running time, in terms of the size s ∈ Θ(log n) of n, is Θ(2s/2).

Definition

An algorithm runs in polynomial time if its worst-case cost is O(nc) for some constant c. Why do we care? The following is sort of an algorithmic “Moore’s Law”:

Cobham-Edmonds Thesis

An algorithm for a computational problem can be feasibly solved on a computer only if it is polynomial time. So our integer factorization algorithm is actually really slow!

CS 355 (USNA) Unit 3 Spring 2012 5 / 30

Modular Arithmetic

Division with Remainder

For any integers a and m with m > 0, there exist integers q and r with 0 ≤ r < m such that a = qm + r. We write a mod m = r. Modular arithmetic means doing all computations ”mod m”.

CS 355 (USNA) Unit 3 Spring 2012 6 / 30

Addition mod 15

+ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 2 2 3 4 5 6 7 8 9 10 11 12 13 14 1 3 3 4 5 6 7 8 9 10 11 12 13 14 1 2 4 4 5 6 7 8 9 10 11 12 13 14 1 2 3 5 5 6 7 8 9 10 11 12 13 14 1 2 3 4 6 6 7 8 9 10 11 12 13 14 1 2 3 4 5 7 7 8 9 10 11 12 13 14 1 2 3 4 5 6 8 8 9 10 11 12 13 14 1 2 3 4 5 6 7 9 9 10 11 12 13 14 1 2 3 4 5 6 7 8 10 10 11 12 13 14 1 2 3 4 5 6 7 8 9 11 11 12 13 14 1 2 3 4 5 6 7 8 9 10 12 12 13 14 1 2 3 4 5 6 7 8 9 10 11 13 13 14 1 2 3 4 5 6 7 8 9 10 11 12 14 14 1 2 3 4 5 6 7 8 9 10 11 12 13

CS 355 (USNA) Unit 3 Spring 2012 7 / 30

Modular Addition

This theorem is the key for efficient computation:

Theorem

For any integers a, b, m with m > 0, (a + b) mod m = (a mod m) + (b mod m) mod m Subtraction can be defined in terms of addition: a − b is just a + (−b) −b is the number that adds to b to give 0 mod m For 0 < b < m, −b mod m = m − b

CS 355 (USNA) Unit 3 Spring 2012 8 / 30

Multiplication mod 15

× 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 2 2 4 6 8 10 12 14 1 3 5 7 9 11 13 3 3 6 9 12 3 6 9 12 3 6 9 12 4 4 8 12 1 5 9 13 2 6 10 14 3 7 11 5 5 10 5 10 5 10 5 10 5 10 6 6 12 3 9 6 12 3 9 6 12 3 9 7 7 14 6 13 5 12 4 11 3 10 2 9 1 8 8 8 1 9 2 10 3 11 4 12 5 13 6 14 7 9 9 3 12 6 9 3 12 6 9 3 12 6 10 10 5 10 5 10 5 10 5 10 5 11 11 7 3 14 10 6 2 13 9 5 1 12 8 4 12 12 9 6 3 12 9 6 3 12 9 6 3 13 13 11 9 7 5 3 1 14 12 10 8 6 4 2 14 14 13 12 11 10 9 8 7 6 5 4 3 2 1

CS 355 (USNA) Unit 3 Spring 2012 9 / 30

Modular Multiplication

There’s a similar (and similarly useful!) theorem to addition:

Theorem

For any integers a, b, m with m > 0, (ab) mod m = (a mod m)(b mod m) mod m What about modular division? We can view division as multiplication: a/b = a · b−1. b−1 is the number that multiplies with b to give 1 mod m Does the reciprocal (multiplicative inverse) always exist?

CS 355 (USNA) Unit 3 Spring 2012 10 / 30

Modular Inverses

Look back at the table for multiplication mod 15. A number has an inverse if there is a 1 in its row or column.

CS 355 (USNA) Unit 3 Spring 2012 11 / 30

Multiplication mod 13

× 1 2 3 4 5 6 7 8 9 10 11 12 1 1 2 3 4 5 6 7 8 9 10 11 12 2 2 4 6 8 10 12 1 3 5 7 9 11 3 3 6 9 12 2 5 8 11 1 4 7 10 4 4 8 12 3 7 11 2 6 10 1 5 9 5 5 10 2 7 12 4 9 1 6 11 3 8 6 6 12 5 11 4 10 3 9 2 8 1 7 7 7 1 8 2 9 3 10 4 11 5 12 6 8 8 3 11 6 1 9 4 12 7 2 10 5 9 9 5 1 10 6 2 11 7 3 12 8 4 10 10 7 4 1 11 8 5 2 12 9 6 3 11 11 9 7 5 3 1 12 10 8 6 4 2 12 12 11 10 9 8 7 6 5 4 3 2 1

See all the inverses?

CS 355 (USNA) Unit 3 Spring 2012 12 / 30

Totient function

This function has a first name; it’s Euler.

Definition

The Euler totient function, written ϕ(n), is the number of integers less than n that don’t have any common factors with n. Of course, this is also the number of invertible integers mod n. When n is prime, ϕ(n) = n − 1. What about ϕ(15)?

CS 355 (USNA) Unit 3 Spring 2012 13 / 30

Modular Exponentiation

This is the most important operation for cryptography! Example: Compute 32013 mod 5.

CS 355 (USNA) Unit 3 Spring 2012 14 / 30

Computing GCD’s

The greatest common divisor (GCD) of two integers is the largest number which divides them both evenly. Euclid’s algorithm (c. 300 B.C.!) finds it:

GCD (Euclidean algorithm)

Input: Integers a and b Output: g, the gcd of a and b

1

i f b = 0 then return a

2

e l s e return GCD(b, a mod b) Correctness relies on two facts: gcd(a, 0) = a gcd(a, b) = gcd(b, a mod b)

CS 355 (USNA) Unit 3 Spring 2012 15 / 30

Analysis of Euclidean Algorithm

CS 355 (USNA) Unit 3 Spring 2012 16 / 30

Worst-case of Euclidean Algorithm

Definition

The Fibonacci numbers are defined recursively by: f0 = 0 f1 = 1 fn = fn−2 + fn−1 for n ≥ 2 The worst-case of Euclid’s algorithm is computing gcd(fn, fn−1).

CS 355 (USNA) Unit 3 Spring 2012 17 / 30

Extended Euclidean Algorithm

Computing gcd(a, m) tells us whether a−1 mod m exists. This algorithm computes it:

Extended Euclidean Algorithm

Input: Integers a and b Output: Integers g, s, and t such that g = GCD(a,b) and as + bt = g.

1

i f b = 0 then return (a, 1, 0)

2

e l s e

3

(q, r) := DivisionWithRemainder (a,b)

4

(g, s0 , t0) := XGCD(b, r)

5

return (g, t0 , s0 - t0*q)

6

end i f Notice: bt = g mod a. So if the gcd is 1, this finds the multiplicative inverse!

CS 355 (USNA) Unit 3 Spring 2012 18 / 30

Cryptography

Basic setup:

1 Alice has a message M that she wants to send to Bob. 2 She encrypts M into another message E which is gibberish to anyone

except Bob, and sends E to Bob.

3 Bob decrypts E to get back the original message M from Alice.

Generally, M and E are just big numbers of a fixed size. So the full message must be encoded into bits, then split into blocks which are encrypted separately.

A B C D E F G H I J K L M 1 2 3 4 5 6 7 8 9 10 11 12 N O P Q R S T U V W X Y Z 13 14 15 16 17 18 19 20 21 22 23 24 25

CS 355 (USNA) Unit 3 Spring 2012 19 / 30

Example of blocking

message = (261, 400) 400 0110010000 10000 16 P 01100 12 L 261 0100000101 00101 5 E 01000 8 H

CS 355 (USNA) Unit 3 Spring 2012 20 / 30

Public Key Encryption

Traditionally, cryptography required Alice and Bob to have a pre-shared key, secret to only them. Along came the internet, and suddenly we want to communicate with people/businesses/sites we haven’t met before. The solution is public-key cryptography:

1 Bob has two keys: a public key and a private key 2 The public key is used for encryption and is published publicly 3 The private key is used for decryption and is a secret only Bob knows. CS 355 (USNA) Unit 3 Spring 2012 21 / 30

RSA

RSA public key: A pair of integers (e, n) RSA private key: A pair of integers (d, n) The n’s are the same!

RSA Encryption

The message M should satisfy 2 ≤ M < n E = Me mod n

RSA Decryption

M = E d mod n

CS 355 (USNA) Unit 3 Spring 2012 22 / 30

RSA Example

Alice wants to send the message “HELP” to Bob. Bob’s public key: (e, n) = (37, 8633) Bob’s private key: (d, n) = (685, 8633)

Encryption

“HELP” → (261, 400) → (261e mod n, 400e mod n) → (5096, 1385)

Decryption

(5096, 1385) → (5096d mod n, 1385d mod n) → (261, 400) → “HELP”

CS 355 (USNA) Unit 3 Spring 2012 23 / 30

RSA Key Generation

We need d, e, n to satisfy (Md)e = M mod n for any M. Solution:

1 Choose 2 big primes p and q such that n = pq has more than k bits

(to encrypt k-bit messages).

2 Choose e such that 2 ≤ e < (p − 1)(q − 1) and

gcd((p − 1)(q − 1), e) = 1.

3 Compute d = e−1 mod n with the Extended GCD algorithm CS 355 (USNA) Unit 3 Spring 2012 24 / 30

RSA Analysis

We want to know how much the following cost: Generating a public/private key pair Encrypting or decrypting with the proper keys Decrypting without the private key What would it take for this to be a secure cryptosystem?

CS 355 (USNA) Unit 3 Spring 2012 25 / 30

Primality Testing

RSA key generation requires computing random primes. Good news: Primes are everywhere! In particular, about 1 in every k integers with k bits is prime. Bad news: Testing for primality seems difficult. We need to be able to do this faster than factorization!

CS 355 (USNA) Unit 3 Spring 2012 26 / 30

Miller-Rabin Test

Input: Positive integer n Output: "PRIME" if n is prime, otherwise "COMPOSITE" (probably)

1

a := random integer in [2..n-2]

2

d := n-1

3

k := 0

4

while d i s even do

5

d := d / 2

6

k := k + 1

7

end while

8

x := a^d mod n

9

i f x^2 mod n = 1 then return "PRIME"

10

f o r r from 1 to k-1 do

11

x := x^2 mod n

12

i f x = 1 then return "COMPOSITE"

13

i f x = n-1 then return "PRIME"

14

end f o r

15

return "COMPOSITE"

CS 355 (USNA) Unit 3 Spring 2012 27 / 30

Cost analysis for k-bit encryption

The main capabilities we need are: Generating random primes Computing XGCDs Modular exponentiation The cost of key generation is O(k4) The cost of encryption and decryption are O(k3).

CS 355 (USNA) Unit 3 Spring 2012 28 / 30

Security of RSA

We need to assert, without proof, that:

1 The only way to decrypt a message is to have the private key (d, n). 2 The only way to get the private key is to first compute ϕ(n). 3 The only way to compute ϕ(n) is to factor n. 4 There is no algorithm for factoring a number that is the product of

two large primes in polynomial-time. If all this is true, then as the key length k grows, the cost of factoring will always outpace the cost of encrypting/decrypting with the proper keys.

CS 355 (USNA) Unit 3 Spring 2012 29 / 30

Summary

We acquired the following number-theoretic tools: Modular arithmetic (addition, multiplication, division, powering) GCDs and XGCDs with the Euclidean algorithm Primality testing (fast) and factorization (slow) All these pieces are used in implementing and analyzing RSA.
