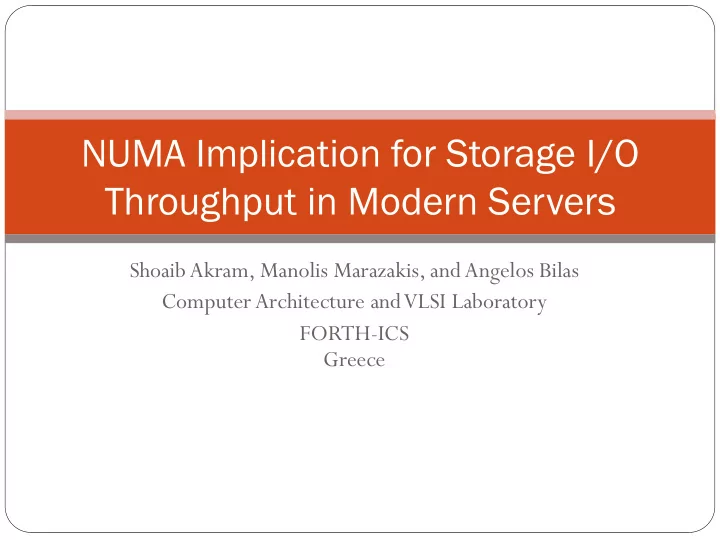

NUMA Implication for Storage I/O Throughput in Modern Servers Shoaib Akram, Manolis Marazakis, and Angelos Bilas Computer Architecture and VLSI Laboratory FORTH-ICS Greece Outline Introduction Motivation Previous Work


slide-1
SLIDE 1

Shoaib Akram, Manolis Marazakis, and Angelos Bilas Computer Architecture and VLSI Laboratory FORTH-ICS Greece

NUMA Implication for Storage I/O Throughput in Modern Servers

slide-2
SLIDE 2

Outline

— Introduction — Motivation — Previous Work — The “Affinity” Space Exploration — Evaluation Methodology — Results — Conclusions

slide-3
SLIDE 3

Introduction

— The number of processors on a single motherboard is increasing. — Each processor has faster access to local memory compared to

remote memory leading to the well-known NUMA problem.

— Much effort in the past is devoted to NUMA-aware memory

management and scheduling.

— There is a similar “non-uniform latency of access” relation

between processors and I/O devices.

— In this work, we quantify the combined impact of non-uniform

latency in accessing memory and I/O devices.

slide-4
SLIDE 4

Motivation-Trends in I/O Subsystems

— Storage-related features:

— Fast point-to-point

interconnects.

— Multiple storage controllers. — Arrays of storage devices with

high bandwwidth.

— Result:

— Storage bandwidth is catching

up with memory bandwidth.

— Today, NUMA affinity is a

problem for the entire system.

— The anatomy of a modern server

machine with 2 NUMA domains.

slide-5
SLIDE 5

Motivation-Trends in Processor Technology and Applications

— Throughput of typical workloads in today’s data-

centres measured for 16 cores and projected to many cores.

0 ¡ 50 ¡ 100 ¡ 150 ¡ 200 ¡ 250 ¡ 16 ¡ 32 ¡ 64 ¡ 128 ¡ 256 ¡ 512 ¡ 1024 ¡ 2048 ¡ 4096 ¡ GB/s ¡ Number ¡of ¡Cores ¡ Backend ¡ Data ¡Stores ¡ OLTP ¡

Growth ¡of ¡Cores ¡

slide-6
SLIDE 6

Motivation-Trends in Processor Technology and Applications

— Today:

— Low device throughput. — High per I/O cycle overhead. — Low server utilization in data-

centres.

— Throughput of typical workloads in today’s data-

centres measured for 16 cores and projected to many cores.

0 ¡ 50 ¡ 100 ¡ 150 ¡ 200 ¡ 250 ¡ 16 ¡ 32 ¡ 64 ¡ 128 ¡ 256 ¡ 512 ¡ 1024 ¡ 2048 ¡ 4096 ¡ GB/s ¡ Number ¡of ¡Cores ¡ Backend ¡ Data ¡Stores ¡ OLTP ¡

Growth ¡of ¡Cores ¡

slide-7
SLIDE 7

Motivation-Trends in Processor Technology and Applications

— Today:

— Low device throughput. — High per I/O cycle overhead. — Low server utilization in data-

centres.

— Throughput of typical workloads in today’s data-

centres measured for 16 cores and projected to many cores.

0 ¡ 50 ¡ 100 ¡ 150 ¡ 200 ¡ 250 ¡ 16 ¡ 32 ¡ 64 ¡ 128 ¡ 256 ¡ 512 ¡ 1024 ¡ 2048 ¡ 4096 ¡ GB/s ¡ Number ¡of ¡Cores ¡ Backend ¡ Data ¡Stores ¡ OLTP ¡

Growth ¡of ¡Cores ¡

— In Future:

— Many GB/s of device throughput. — Low per I/O cycle overhead as

system stacks improve.

— High server utilization in data-

centres through server consolidation etc.

slide-8
SLIDE 8

Previous Work

— Multiprocessors

— Multicore Processors

slide-9
SLIDE 9

The “Affinity” Space Exploration

— The movement of data on

any I/O access:

slide-10
SLIDE 10

The “Affinity” Space Exploration

— The movement of data on

any I/O access:

— to/from the application

buffer from/to the kernel buffer.

Memory Copy

slide-11
SLIDE 11

The “Affinity” Space Exploration

— The movement of data on

any I/O access:

— to/from the application

buffer from/to the kernel buffer.

— to/from the kernel buffer

from/to the I/O device.

Memory Copy DMA Transfer

slide-12
SLIDE 12

The “Affinity” Space Exploration

— The movement of data on any

I/O access:

— to/from the application

buffer from/to the kernel buffer.

— to/from the kernel buffer

from/to the I/O device.

— Application and kernel

buffers could be located in different NUMA domains.

— Kernel buffers and I/O

devices could be located in different NUMA domains.

Memory Copy DMA Transfer

slide-13
SLIDE 13

The “Affinity” Space Exploration

— The axis of the space are:

— Transfer between I/O devices

and kernel buffers.

— Copy from kernel buffer to

the application buffer.

Transfer (TR) Copy (CP) Configuration

Local (L) Local (L) TRLCPL Local (L) Remote (R) TRLCPR Remote (R) Local (L) TRRCPL Remote (R) Remote (R) TRRCPR

Example Scenarios

TRLCPR TRRCPR TRLCPL

slide-14
SLIDE 14

NUMA Memory Allocation

— How application buffers are allocated?

— The domain in which the process is executing. — The numactl utility allows pinning application processes and the

memory buffers on a particular domain.

— How kernel buffers are allocated?

— Kernel buffer allocation can not be controlled using namactl. — I/O buffers in the kernel are shared by all contexts performing

I/O in the kernel.

— How to “maximize possibility of keeping kernel buffers in a

particular socket?”

— Start each experiment with a clean buffer cache. — Large DRAM/Socket compared to application datasets.

slide-15
SLIDE 15

Evaluation Methodology

Total Storage Throughput=6 GB/s 2 Storage Controllers=3 GB/s 2 Storage Controllers=3 GB/s

24 GT/s 12 GB/s 12 GB/s

Total Memory Bandwidth=24 GB/s SSD Read Throughput=250 MB/s 12 SSDS=3 GB/s SSD Read Throughput=250 MB/s 12 SSDS=3 GB/s

— Bandwidth characterization of evaluation testbed.

slide-16
SLIDE 16

Benchmarks, Applications and Datasets

— Benchmarks and Applications

— zmIO: in-house microbenchmark. — fsmark: a filesystem stress benchmarks. — stream: a streaming workload. — psearchy: a file indexing application (part of MOSBENCH). — IOR: application checkpointing.

— Workload Configuration and Datasets

— Four software RAID Level 0 devices, each on top of 6 SSDS and 1

storage controller.

— One workload instance per RAID device. — Datasets consist of large files, parameters that result in high

concurrency, high read/write throughput and stressing

  • f system stack.
slide-17
SLIDE 17

Evaluation Metrics

— Problem with high-level application metrics:

— Not possible to map actual volume of data transmitted. — Not possible to look at indiviual components of complex

software stacks.

— It is important to look at indiviual components of

execution time(user, system, idle, and iowait).

— Cycles per I/O

— Physical cycles consumed by the application during the

execution time divided by the number of I/O operations.

— Can be used as an efficiency metric. — Can be converted to energy per I/O.

slide-18
SLIDE 18

Results – mem_stress and zmIO

— Remote memory accesses:

— Memory throughput drops by

  • ne half.

— The degradation starts from

  • ne instance of mem_stress.

— Remote transfers:

— Device throughput drops by

  • ne half.

— The throughput is same for one

instance.

— Contention is a possible culprit

for two and more instances.

1 2 3 4 5 6 7 1 2 3 4 5 6 7 8

GB/s Number of Instances

zmIO

TRLCPL TRRCPR 2 4 6 8 10 12 14 16 1 2 3 4 5 6

GB/s Number of Instances

mem_stress

Local Remote

Round-robin assignments of instances to RAID devices.

slide-19
SLIDE 19

Results – fsmark and psearchy

— fsmark is filesystem

intensive:

— Remote transfers result in

40% higher system time.

— 130% increase in iowait

time.

— psearchy is both filesystem

and I/O intensive:

— 57% increase in system

time.

— 70% increase in iowait

time.

1000 2000 3000 4000 5000 6000 7000 8000 9000

TRLCPL TRRCPR TRRCPL TRLCPR

Cycles per I/O Sector

Configuration fsmark iowait system

1000 2000 3000 4000 5000 6000 7000 TRLCPL TRRCPR TRRCPL TRLCPR Cycles per I/O Sector

Configuration

psearchy

iowait system

slide-20
SLIDE 20

Results - IOR

— IOR is both read and write

intensive benchmark.

— 15% decrease in read

throughput due to remote transfers and memory copies.

— 20% decrease in write

throughput due to remote transfers and copies.

1000 2000 3000 4000 5000 6000 7000 8000 TRLCPL TRRCPR TRRCPL TRLCPR

MB/s Configuration

IOR

Read Write

slide-21
SLIDE 21

Results - stream

— 24 SSDs are divided into

two domains.

— Each set of 12 SSDs are

connected to two controllers.

— Ideally, symmetric

throughput is expected.

— Remote transfers result in a

27% drop in throughput of

  • ne of the sets.

50 100 150 200 250

TRLCPL TRRCPR TRRCPL TRLCPR

MB/s

Configuration

stream

Set A Set B

slide-22
SLIDE 22

Conclusions

— A mix of synthetic benchmarks and applications show the

potential of NUMA affinity to hurt I/O throughput.

— Future systems will have increased heterogeneity, more domains

and high bandwidths.

— Today, NUMA affinity is not a problem for cores within a single

processor socket. Future processors with 100s of cores will have domains within a processor chip.

— The range of performance degradation is important. Different

server configurations and runtime libraries result in throughput within a range.

— Partitioning of the system stacks based on sockets will become

necessary.
