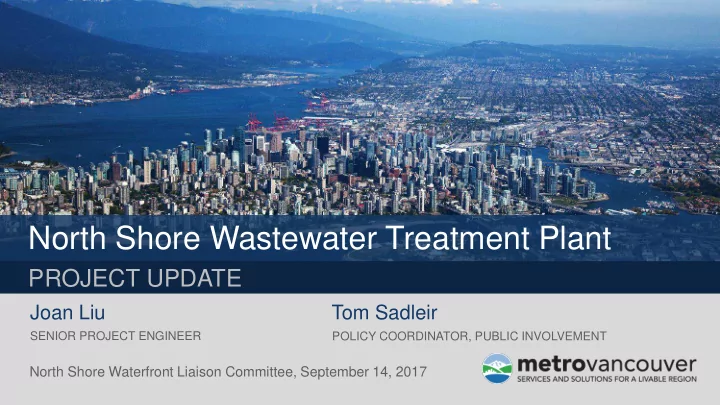

North Shore Wastewater Treatment Plant

PROJECT UPDATE

Joan Liu

SENIOR PROJECT ENGINEER

Tom Sadleir

POLICY COORDINATOR, PUBLIC INVOLVEMENT

North Shore Waterfront Liaison Committee, September 14, 2017

North Shore Waterfront Liaison Committee October 22,2015

Lions Gate Secondary Wastewater Treatment Plant

PROJECT UPDATE

Andrea Winkler, Program Manager, Public Involvement Paul Dufault, P.Eng., Project Manager

3

Regulatory Driven

• Integrated Liquid Waste and

Resource Management Plan - 2011

• Wastewater Systems Effluent

Regulations – 2012

• Secondary Treatment by

December 31, 2020

4

North Shore Wastewater Treatment Program

3 Components: mponents:

• North Shore WWTP
• New Conveyance

(Pump Station + Pipes)

• Decommissioning of existing

LGWWTP

5

• Acciona Infrastructure Canada
• Operating in Canada since 2001
• Head Office in Vancouver
• 9 Major Infrastructure Projects in

Canada including 5 P3 Projects worth

• ver $ 4.3 Billion
• Acciona Agua S.A.
• Design, Build, Finance and Operation
• f Water and Wastewater Plants
• Over 300 WWTPs
• 35 P3 Type water sector projects

ADApT Consortium

6

7

Remediation

8

Stone Column

9

NSWWTP Project Schedule

10

Conveyance

11

Pump Station

12

Pipes

13

Request for Qualification

• The purpose is to invite interested parties to submit responses

indicating their interest in, and qualifications for the Project.

• Based on the responses a shortlist of up to 3 Proponents will

be invited to participate in the Request for Proposals stage

Closing

Aug 17

2017

14

Request for Proposals

• Shortlisted Respondents from the RFQ stage will be invited to submit

proposals that will include technical and financial aspects of the project.

• RFP Process is to include collaborative discussion relating to technical and

commercial matters.

• The objective is to select the Preferred Proponent who may be offered the
• pportunity to enter in to the Project Agreement

Sep 27

2017

Activity

NSWWTP Design Build Finance RFP NSWWTP Design Build Secondary Effluent NSWWTP Commissioning and Handover Conveyance Indicative Design Property Acquisition Conveyance Design Build RFQ Conveyance Design Build RFP Pump Station Design/Construction Pipeline Design/Construction Conveyance System Commissioning Decommissioning Existing Lions Gate WWTP

2020 2021 2016 2017 2018 2019 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3

Overall Program Schedule

Consultation and Communications

North Shore Wastewater Treatment Plant Metro Vancouver activity since October 2015

• Dec 2015 Education Workshop
• Feb 2016 Norgate Open House – Project Update
• Dec 2016 Newsletter – Project Update
• Apr 2017 Letters to First Nations

Lions Gate Public Advisory Committee – Phase 2

• 6 meetings to April 2017 (plant design and opportunities; tour of US facility;

construction mitigation, traffic management)

Consultation and Communications

North Shore Wastewater Treatment Plant (continued) April 2017: Project Agreement with ACCIONA

• ACCIONA assumes responsibility for communications planning,

community relations, consultation ACCIONA

• Introduced at final LGPAC meeting
• May 18, 2017 Open House – Public Impact Mitigation Plan
• June 21, 2017 Open House – DNV Development Permit process
• Pre-construction activity notification
• Ongoing communications

18

Pump Station + Pipes

Questions
