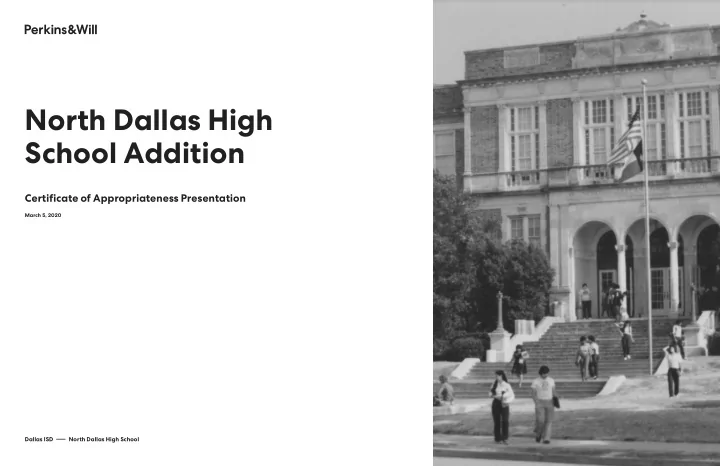

North Dallas High School Addition Certifjcate of Appropriateness Presentation March 5, 2020 Dallas ISD North Dallas High School It is time for a breathe of fresh air. As part of Phase 3 projects of the DISD 2015 Bond Program, North
Certifjcate of Appropriateness Presentation
March 5, 2020
Dallas ISD ― North Dallas High School
As part of Phase 3 projects of the DISD 2015 Bond Program, North Dallas High School is being renovated and expanded to elevate student offerings increase safety and security, and bring it in line with current District standards with a new athletics and storm shelter addition.
2
01 History of North Dallas High School 02 Scope of Work for Certifjcation of Approval
Site and Zoning 3 Demolition Scope 3
03 Addition and Design Concept
Design Concepts
3
Material Palette
3
Building Elevations
3
Fenestration Diagrams
3
Building Plans and Section
3
04 Contextual Appropriateness
Exterior Views 3 Rooftop Equipment Visibility 3
3
Scans of original hand drawings of 1920’s exterior elevations
History
North Dallas High School was built in 1920 in the Romanesque Revival style that was very popular for educational buildings constructed during this period. By 1922, Dallas had four high
time, the school was so far outside of the city that it was almost considered to be “in the woods.” Situated on a cornfjeld, 794 students enrolled for the fjrst year, most of them transfers from Dallas High School (Crozier Tech). North Dallas High School graudated many notable people including Tex Avery, creator
Dallas-based El Fenix Restaurants. There have been several renovations to North Dallas High School since 1920 — an addition for a boys gymnasium and a physical education facility on the backside of the original building was completed in 1957; in 1971 the entire building was air-conditioned. Some renovation work was completed in the building 1977. An addition to the north-east side (McKinney Avenue side) was completed in 1985 as well as additional parking added on the Cole Avenue side. This addition was designed by Frank L. Meier, a Dallas architect and graduate of the class of ‘55, and it matches the red brick used in the original
project and he remains in possession of lttner’s original 1920 specifjcations.
North Dallas High School
100 Years : 1921 to 2019
Nearing its Centennial year in existence, North Dallas High School has served many generations of Dallas ISD students.
1 2 3 6
1: Current photo of the primary entry along Haskell Avenue 2: Photo from 1923 North Dallas High School yearbook 3: Original drawings by William B. Ittner 4: Historic Ordinance Designation -Protected Landscape 5: Historic Ordinance Designation -Original Building and Protected Facade 6: Historic Ordinance Designation - Existing Addition 7: Existing Athletic Fields 8: Typical classroom in North Dallas High School 9: Lunch room seating area on lower level 10: Student-painted murals in corridor to honor notable NDHS alumnus and Warner Bros animator, “Tex” Avery
Past Additions and Renovations
Two signifjcant additions were completed in the 1950’s and 1980’s that extended the footprint of the North Dallas High School north towards Cole Park. In addition, various interior renovations were completed to facilitate the every changing needs of students. Throughout each phase of these improvements to the facility, the original exterior construction from 1920 has remained largely unchanged with the except of non-historic metal windows. Intent of Current Planned Renovations The current scope of work approved by Dallas ISD as part of their 2015 Bond Program will work to clean the exterior facade, replace sealant joints as part of ongoing maintenance to the facade, replace the fjnal remaining original wood and/or steel windows with new metal windows (if required for exterior envelope integrity), and renovate/reconfjgure portions of the building’s interior to meet current District Standards and programming needs.
Existing Conditions
Overview
4 5 6 7 10 9 8 7
Scans of original hand drawings of 1920’s exterior elevations
Contents
Site and Zoning Demolition Scope
9
Historic Designations
Addition and Existing Building Scale: 1” = 60’-0”
30 60 120
STORM SHELTER AND ATHLETICS ADDITION EXISTING BUILDING (SUBMITTED UNDER SEPARATE CA APPLICATION) EXISTING BUILDING (SUBMITTED UNDER SEPARATE CA APPLICATION) EXISTING BUILDING (SUBMITTED UNDER SEPARATE CA APPLICATION) EXISTING BUILDING (SUBMITTED UNDER SEPARATE CA APPLICATION) EXISTING 1 STORY ADDITION TO BE DEMOLISHED AND NEW 1 STORY STRUCTURETO BE BUILT IN PLACE SCOPE OF THIS CA APPLICATION SCOPE SUBMITTED UNDER SEPARATE Extent of Protections to Historic Structures
PROTECTED FACADES
Per Section 4.1 and “Exhibit B” of Ordinance #24652, the
these protected facades. Additions to the existing building are permitted within the new construction scope of work area.
STORM SHELTER AND ATHLETICS ADDITION STORM SHELTER AND ATHLETICS ADDITION
10
Items Requested for Certifjcate of Appropriateness
Inventory of Work
1. Demolish 1 story non-historic addition and temporary structures. 2. Construct new addition. 3. Regrade and reconfjgure existing sports fjeld. 4. Install new landscape and trees as required by City of Dallas as part of Planned Development District #193. 5. Reconfjgure and/or replace existing chain link fencing around sports fjelds as required by sport to refmect new fjeld confjgurations. Construct new dugouts at reconfjgured baseball and softball fjelds per District Standards. 6. Construct new metal fence along south edge of sports fjeld.
New Construction and Addition
1. Renovate and expand athletics with a new 1500-seat competition gym, locker rooms, weight room, training rooms, and associated
2. Construct a storm shelter.
11
Scope of Work
Site Plan, Zoning and Demolition Scale: 1” = 120’-0”
60 120 240
Proposed Site Conditions
1 2 2 2 9 10 9 3 6 9 5 7 4
Proposed Site Demolition
1 1920’s Original Building 2 Historic Facade 3 Historic Landscape 4 New Storm Shelter and Athletics Addition 5 New Athletic Fields 6 New Building Sign 7 Previous Additions 8 Existing Athletic Fields 9 Existing Surface Parking 10 Existing Annex Building Site Demolition Scope Demolition Scope Outside of Project Scope
1 2 2 9 10 9 8 7 9 2 3 12
1 2 9 7
Demolition Scope
Preserving History
Aerial view of demolition scope. The proposed addition provides a link from the existing recreation zones to the athletic fjelds while providing new facilities and enhancing the sense of space for the community. 5 5 13
Scans of original hand drawings of 1920’s exterior elevations
Contents
Design Concepts Material Palette Building Elevations Fenestration Diagrams Building Plans and Section
15
Design Concepts
Space Planning and Massing Scale: 1” = 60’-0”
30 60 120
EXISTING BUILDING (SUBMITTED UNDER SEPARATE CA APPLICATION)
When confjguring the new addition we looked to the existing historic architecture to provide planning, context, and design inspiration for the new addition. The strong sense of symmetry engendered by the original layout of the school’s corridors informed the overal building width and position. Where possible we carried these lines through the site to allow the addition to continue to inform the campus growth.
STORM SHELTER & ATHLETICS ADDITION
EXTENTS OF STORM SHELTER
16
Level 01
Lunchroom and Auxiliary Gym Scale: 1” = 50’-0”
Existing Floor Area 89,051 SF 1 Lunch Room 2 Kichen, Back-of-House 3 Mechanical Room 4 Rifme Range - Converted to Weight Room 5 Auxillary Gym/ Mat Room 6 Art Room 7 Training Room 8 Band Room 9 Weight Room 10 Lobby
4 8 6 6 7 5 1 9 2 3
25 50 100
McKinney Ave Cole Ave
10
EXTENTS OF STORM SHELTER
17
25 50 100
Level 02
Piano Nobile Scale: 1” = 50’-0”
Existing Floor Area 48,640 SF 1 Logia and Entry 2 Auditorium 3 Stage 4 Dance Hall 5 Theatre Classroom 6 Classroom 7 Reception Offjce 8 NDHS Administration
4 8 6 6 7 5 1 2 3
McKinney Ave Cole Ave
EXTENTS OF STORM SHELTER
18
25 50 100
Level 03
Library and Classrooms Scale: 1” = 50’-0”
Existing Floor Area 41,240 SF 1 Library 2 Library Lounge 3 Auditorium Balcony 4 Vestibule Overlook 5 Science Lab 6 Classroom
4 6 6 5 1 2 3
McKinney Ave Cole Ave
EXTENTS OF STORM SHELTER
19
T/O PARAPET 149' - 9" LEVEL 01 - ATHLETICS 101' - 6" T/O PARAPET - GYM 139' - 6"
Building Section
North-South Building Section
Scale: 1/32” = 1’-0”
0 4 16 32 64
Schema 1 Legend ATHLETICS CIRCULATION CLASSROOM FINE ARTS FOOD SERVICE SERVICE/STORAGE/SUPPORT VERTICAL CIRCULATION
1 Library 2 Stage 3 Auditorium Balcony 4 Dance 5 Cafeteria 6 Mechanical 7 Auxillary Gym & Weight Room 8 Gym 9 Lobby
1 3 2 4 9 8 5 6 7
EXTENTS OF STORM SHELTER
20
Zan Holmes Middle School - DISD New Carrollton ISD Gym - CMU Block Storm Shelter Baylor Scott White Hospital - Precast Panels
PRECEDENT IMAGES
Inspiration from Uptown and Downtown Dallas
Woodrow Wilson High School - Approved by Landmark Commission Lancaster ISD High School - Precast Storm Shelter Booker T Washington High School- Approved by Landmark Commission
21
East Elevation
EXISTING FACE BRICK EXISTING CAST STONE ALUMINUM CURTAIN WALL GLAZING BRICK SET IN PRECAST ARCHITECTURAL CONCRETE PANEL STORM SHELTER AND ATHLETICS ADDITION EXISTING HIGH SCHOOL
Material Palette
New Addition
New Because of the Old
The existing 1920’s high school was designed in the Romanesque Revival style, characteristics of which include detailed arches and contrasting masonry. Although the North Dallas High School’s facade is rather symmetrical, this style’s strong emphasis
and west elevations. The strong masonry contrast and the playful asymmetry of the existing building together with the programmatic requirements for a storm shelter has informed the design direction of the new addition: the building seeks to highlight by contrast the existing structure while subtly referring back to the original building’s unique design features. To meet the requirements of ICC 500 Storm Shelters, the new addition requires a structurally signifjcant envelope with minimal openings. To meet the budgetary limitations of the project, precast architectural concrete panels serve as the building structure, exterior and interior facades, and storm shelter envelope as a single comprehensive solution. The precast architectural panels give the overall massing depth and dynamism similar to the variation naturally found in brick, while the joint patterns reference the width and asymmetry of the original projecting bays. The shifting curtain wall volume
fjelds to the south) signals the main point of entry to the new gymnasium and becomes a backdrop to the new fjelds. 22
NORTH ELEVATION - ADDITION NORTH ELEVATION - EXISTING WEST ELEVATION - EXISTING WEST ELEVATION - ADDITION SOUTH ELEVATION - EXISTING
Fenestration
Addition Concept
55’-0”
54’-3”
50’-3” GROUND LEVEL 0’-0” 55’-0” 42’-6” 28’-5” GYM LEVEL 1’-6” 55’-0” 28’-5” GYM LEVEL 1’-6”
Maintaining Horizontal Continuity
The cast stone cornice lines provide strong continuouis datum lines around the existing building elevations. These datums have been referenced in the major additions to the school and have infmuenced the proposed addition material joint placement as
the existing building’s prominent elevations. The height of the addition has been set by the programmatic requirments of the gymnasium space which means that it will differ in height from the remainder of the building so we have proposed variations in he brick color along the datum line established by the existing windows to establish a relationship between the new and old portions of the building. 23
Material Palette
Existing Brick Blend
BRICK BLEND OF EXISTING BUILDING STREET VIEW FROM MCKINNEY AVE
24
Material Palette
Proposed Brick Blend
Continuity with the Past
The new Stack Bond Brick Coursing is a deliberate departure from the existing Flemish Bond as a way of differentiating the addition while respecting the historical features of the existing 1922
renderings on the following pages, this will allow the building to pay homage to the past without mimicking it, and while still keeping an eye toward the future.
A B C D
A - Light Color 1 C - Dark Color 1 B - Light Color 2
50% A + 50% B Blend for Upper Courses 50% C+ 50% D Blend for Lower Courses
D - Dark Color 2
25
Building Elevations
New Addition
East Elevation West Elevation
26
27
North Elevation South Elevation
28
Contents
Exterior Views
29
Scans of original hand drawings of 1920’s exterior elevations
Exterior Views
EAST FACADE - Signage Option 1
View from McKinney Ave
31
Exterior Views
EAST FACADE - Signage Option 2
View from McKinney Ave
32
Exterior Views
EAST FACADE - Signage Option 3
View from McKinney Ave
33
View of North Facade, East Entry
NORTH FACADE
34
View of Addition from North
NORTH FACADE
35
View of Addition from Cole Ave
NORTH AND WEST FACADES
36
View from Cole Ave
WEST FACADE
37
Street Section
Visibility of new mechanical equipment on the existing building is of primary concern from the athletic fjelds to the north and the R.O.W. approaches from the north due to the gentle topographic slope from the north to the south. McKinney Ave and Cole Ave are the two one-way streets which bound the site to the east and west of the site; both are approxamity 38 feet wide with street parking on either side. Haskell Ave, which bounds the site to the south is signifjcntly lower in elevation than the fjeld or approach to the school from the north and is therefore visibility of rooftop mechanical equipment is of lesser concern. Where needed, mechanical screening will be provided.
Rooftop Equipment
Visibility
Section BB Section AA McKinney Ave New Athletic Fields 320’ New Football Fileds New Softfall Fields Existing Surface Parking Cole Ave H a s k e l l A v e BB AA E x i s t i n g Church Building McKinney Ave 38’ Wide 265’
NEW ADDITION 3 STORY MAIN HIGH SCHOOL BUILDING
38
