SLIDE 1

NARI

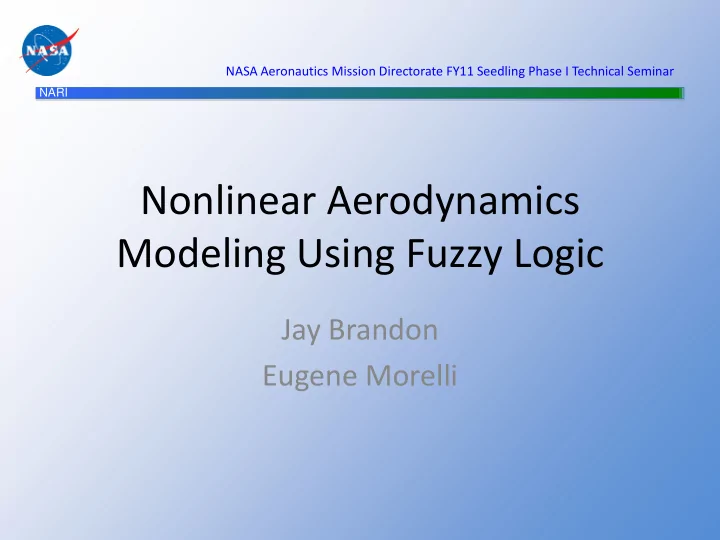

Nonlinear Aerodynamics Modeling Using Fuzzy Logic

Jay Brandon Eugene Morelli

NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar

SLIDE 2

NARI

Outline

Background
Innovations
Fuzzy Logic Technical Approach
Flight Test Data
Result Examples
Next Steps
Closing Remarks

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 2

SLIDE 3

NARIFlight Dynamics Analysis Process June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 3

Aerodynamic Analysis (Static & Dynamic)

Wind Tunnel
CFD

Sim Model Build Control Law Design Flight Dynamics Analysis

Wind-tunnel < 6 DOF
Wind-tunnel free-flight
Simulation
Flight test

“Learn to Fly”

Open-loop Analysis

Self Modeling Adaptive Control

SLIDE 4

NARI

Aerodynamic Models

Aerodynamic Models

– Model of physics so that design and analysis can be undertaken – Based on data

CFD, Wind tunnel, Flight, …

– Linear representations

Cx = Cx0 + Cxαα + Cxββ + Cxδδ + …
Cx|(α=x)= Cx0|(α=x) + Cxα|(α=x) Δα + Cxβ|(α=x) Δβ + Cxδ|(α=x) Δδ + …

– Nonlinear representations

Cx = f(α, β, δ, …)
System Identification

– Determination of structure of model

Parameter Identification

– Determination of parameter values within the structure of the model

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 4

SLIDE 5

NARI

Phase I Innovations

Nonlinear Aerodynamic System Identification

– No model structure specification required – Large flight envelope with single model

Flight Test Techniques for Rich Data Content

– Multi-axes inputs over large range of flight conditions – Piloted adaptation of similar orthogonal input techniques

Blending of Data from Different Sources

– Ship research data acquisition system – iPad internal sensors for inertial data and GPS

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 5

SLIDE 6

NARI

Fuzzy Logic System ID

Modeling Challenges Due to Nonlinear Effects

– Separated flow – Large amplitude motion of vehicle or control effectors – Interactions – Unsteady, time-dependent aerodynamics

Fuzzy Modeling Characteristics

– No a-priori or interactive model definition required – Fuzzy cells constructed to identify relationships between input data and output data – Single model across wide range of state variable variations

Relatively New Application for Fuzzy Logic

– Widely used in controls applications

Good for use in areas where there is a lack of quantitative data regarding

input-output relations

– Synergistic with other parameter ID technologies

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 6

SLIDE 7

NARI

Fuzzy Logic Approaches

Fuzzy Sets

– Membership functions – Weighting factors – If-then rules

Similar to human

decision-making process

Predicted outputs tend to

be piece-wise continuous

Used extensively in

controls applications

Fuzzy Internal Functions

– Membership functions – Internal functions – Fuzzy cells

Multiple internal

functions create the “fuzziness”

Predicted outputs are

smooth

7

SLIDE 8

NARI

Fuzzy System ID Process

8

Pre-Processing

Force & Moment
Data Consistency
Corrections

Select Regression Variables

Normalize
Partition

Training Testing

Compute MF’s

Calculate Internal Function Coefficients for All Fuzzy Cells

Evaluate Fit : OK?

Calculate Model (with all data) Stop [α, β, δ, ω, M, …]

k i k i i i

x p x p p P + + + = ...

1 1

( )

2 1

ˆ

∑

=

− =

m j j j

y y SSE

) 2 ( ) 1 (

2 2 2 2 Required min 2

+ > + > > Ns R Ns R R R R

test test test trn

[ ] [ ]

∑ ∑

= =

=

n i j k i k j i j i n i i j k i k j i j i j

x A x A x A P x A x A x A y

1 , , 2 2 , 1 1 1 , , 2 2 , 1 1

) ( )... ( ) ( ) ( )... ( ) ( ˆ

No Yes Membership Functions

0.2 0.4 0.6 0.8 1 0.2 0.4 0.6 0.8 1

x A(x)

MF 1 MF 2

SLIDE 9

NARI

Large flight envelope
Well instrumented
α/β on boom
Inertial and controls
TM real-time data support

9

Flight Test Data

SLIDE 10

NARI

Portable “Data Systems”

Nx, Ny, Nz
p, q, r
Course, Speed, Altitude
Attitude Angle Estimates

10

SLIDE 11

NARI

Blending Example

11

2340 2350 2360 2370 2380 2390 2400

200
100

100 Data Flight #10; Maneuver:Left Spin; Card:5.1 Prate, dps Blend AHARS 2340 2350 2360 2370 2380 2390 2400

20

20 40 60 Qrate, dps 2340 2350 2360 2370 2380 2390 2400

100
50

50 Rrate, dps Time, sec

SLIDE 12

NARI

Maneuver Design

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 12

SLIDE 13

NARI 13

Fuzzy Decel Video (DF9C4)

SLIDE 14

NARI

Parameter Map Examples

14

10 20 30

20
15
10
5

5 10 15

α β

10 20 30

25
20
15
10
5

5 10

α δe

10

10 20

25
20
15
10
5

5 10 15 20 25

δa δr

SLIDE 15

NARI

Fuzzy Model Fit

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 15

50 100 150

0.25
0.2
0.15
0.1
0.05

0.05 0.1 0.15 0.2 Cm Time, sec Flight Model, R2 = 0.9649

10

10 20 30 40

0.2

0.2 0.4 0.6 0.8 1 1.2 1.4 CNormal

α, deg

Flight Model, R2 = 0.9963

SLIDE 16

NARI

Linearized Model Results

Large envelope

model with one maneuver

Includes post-

stall stability

Correlates well

with traditional maneuver and analysis for static stability

Very test-

efficient

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 16

5

5 10 15 20 25 30 35

0.04
0.02

Cmα, per deg DF9C4

5

5 10 15 20 25 30 35

0.03
0.02
0.01

Cmδe, per deg

5

5 10 15 20 25 30 35 2 4 x 10

3

Cmα-dot, per deg/sec

5

5 10 15 20 25 30 35

20
10

Cmqhat

α, deg

Fuzzy LESQ

SLIDE 17

NARI

Distribution of Results

Briefings

– RD – FRSD – SFW (Mike Rogers – results kicked off simulation study) – Navy P-8 team – Test Pilot School Briefing

Publications

– Proposed Paper, SETP conference in September, 2012 – AIAA papers and journals and NASA reports as results are analyzed

Research

– Applications in simulation and in wind tunnel testing

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 17

SLIDE 18

NARI Next Steps – Phase II Proposal

Refine fuzzy logic system identification algorithms

– Fuzzy cell filtering – Error bounds calculations

Develop real-time maneuver input guidance algorithms and displays

– Guidance for maneuver inputs – Ensure that required data actually obtained over envelope of interest – Ensure that data is of sufficient richness to result in model of desired fidelity

Improved Airplane Instrumentation
Real-time streaming to cockpit
Engine parameters
Repairs and calibrations
Advance the processes to provide results in near real time

– Verify / validate model inflight and obtain more data if needed – Develop preliminary aerodynamic model of envelope of interest before landing

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 18

SLIDE 19

NARI

Closing Remarks

Results from Phase I

– Potential for substantial savings in test time and cost – Rapidly available and high fidelity models can improve flight safety

Phase II Project Outcomes

– Assurance of data richness and content – Aero models available onboard airplane near realtime – Model validation inflight – Enabler for self-learning and autonomous health monitoring vehicles

June 5-7, 2012 NASA Aeronautics Mission Directorate FY11 Seedling Phase I Technical Seminar 19
