[ADD PRESENTATION TITLE: INSERT TAB > HEADER & FOOTER > NOTES AND HANDOUTS] 4/7/2017 1

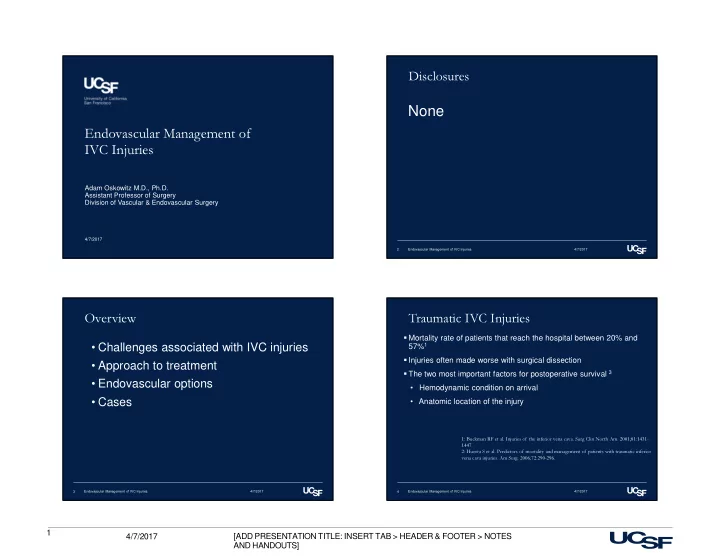

Endovascular Management of IVC Injuries

4/7/2017

Adam Oskowitz M.D., Ph.D. Assistant Professor of Surgery Division of Vascular & Endovascular Surgery

Disclosures

None

4/7/2017 Endovascular Management of IVC Injuries 2

Overview

• Challenges associated with IVC injuries
• Approach to treatment
• Endovascular options
• Cases

4/7/2017 Endovascular Management of IVC Injuries 3

Traumatic IVC Injuries

Mortality rate of patients that reach the hospital between 20% and 57%1 Injuries often made worse with surgical dissection The two most important factors for postoperative survival 3

• Hemodynamic condition on arrival
• Anatomic location of the injury

4/7/2017 Endovascular Management of IVC Injuries 4

1: Buckman RF et al. Injuries of the inferior vena cava. Surg Clin North Am. 2001;81:1431- 1447. 2: Huerta S et al. Predictors of mortality and management of patients with traumatic inferior vena cava injuries. Am Surg. 2006;72:290-296.

[ADD PRESENTATION TITLE: INSERT TAB > HEADER & FOOTER > NOTES AND HANDOUTS] 4/7/2017 2

Anatomic Considerations

(1) Infrarenal: 23% Mortality (2) Suprarenal: 75% Mortality (3) Retrohepatic: 66% Mortality

4/7/2017 Endovascular Management of IVC Injuries 5

Iatrogenic IVC Injuries

Rare Events Study looking at 231 attempts at filter retrieval over 10 years1

• Only 2 IVC injuries resulting in bleeding

‒ Both were treated with venoplasty alone ‒ Both occurred with advanced retrieval techniques

4/7/2017 Endovascular Management of IVC Injuries 6

Endovascular Treatment

Management goals of patients with IVC injuries1

• Minimize duration of shock
• Rapid control of active hemorrhage

The main advantages of the endovascular approach 2

• Speed
• Remote access
• Minimal additional trauma

4/7/2017 Endovascular Management of IVC Injuries 7

1: Huerta S, Bui TD, Nguyen TH, et al. Predictors of mortality and management of patients with traumatic inferior vena cava injuries. Am

• Surg. 2006;72:290-296.

2: Piffaretti G et al. Traumatic IVC Injury and Repair: The Endovascular

• Alternative. Endovascular Today. Nov 2013

Diagnosis

CT

• Active extravasation
• Hematoma
• Defined contrast gradient in IVC can signify an AVF

Venography

• Often difficult to visualize actually defect

IVUS

• Often more useful than venography

4/7/2017 Endovascular Management of IVC Injuries 8

[ADD PRESENTATION TITLE: INSERT TAB > HEADER & FOOTER > NOTES AND HANDOUTS] 4/7/2017 3

Question

• A. Injury at the level of the renal veins
• B. Injury at the level of the hepatic veins
• C. Hemodynamic instability
• D. IVC filter in place that can NOT be removed
• E. All of the above

F. None of the above

4/7/2017 Endovascular Management of IVC Injuries 9

Which of the following represents an absolute contraindication to endovascular repair of an IVC Injury

3% 16% 28% 19% 9% 25%

Minimally Invasive Treatment Options

Medical Therapy Venoplasty

• Restoring favorable pressure dynamics can result in injury

resolution Placement of a Covered Stent

• Thoracic endograft
• Aortic cuff
• NO off the shelf venous specific devices available

Fenestrated Grafts

• Case report for retro-hepatic injuries

4/7/2017 Endovascular Management of IVC Injuries 10

Case One

28 year old man presenting after a motorcycle collision

• Arrived with stable vital signs
• Mild abdominal and flank pain
• CT scan identified IVC injury

4/7/2017 Endovascular Management of IVC Injuries 11 4/7/2017 Endovascular Management of IVC Injuries 12

[ADD PRESENTATION TITLE: INSERT TAB > HEADER & FOOTER > NOTES AND HANDOUTS] 4/7/2017 4

4/7/2017 Endovascular Management of IVC Injuries 13 4/7/2017 Endovascular Management of IVC Injuries 14

Two week follow-up

4/7/2017 Endovascular Management of IVC Injuries 15

Case 2

19 year old female pedestrian vs auto Multiple traumatic injuries including grade 4 liver laceration Head trauma Fluid responsive hemodynamic changes Suprahepatic IVC dissection and pseudoaneurysm identified on CT

4/7/2017 Endovascular Management of IVC Injuries 16

[ADD PRESENTATION TITLE: INSERT TAB > HEADER & FOOTER > NOTES AND HANDOUTS] 4/7/2017 5

4/7/2017 Endovascular Management of IVC Injuries 17 4/7/2017 Endovascular Management of IVC Injuries 18 4/7/2017 Endovascular Management of IVC Injuries 19

2 weeks later

4/7/2017 Endovascular Management of IVC Injuries 20

[ADD PRESENTATION TITLE: INSERT TAB > HEADER & FOOTER > NOTES AND HANDOUTS] 4/7/2017 6

4/7/2017 Endovascular Management of IVC Injuries 21

Case 3 Endovascular Management

IVC filter retrieval Advanced methods employed

4/7/2017 Endovascular Management of IVC Injuries 22 4/7/2017 Endovascular Management of IVC Injuries 23 4/7/2017 Endovascular Management of IVC Injuries 24

[ADD PRESENTATION TITLE: INSERT TAB > HEADER & FOOTER > NOTES AND HANDOUTS] 4/7/2017 7

Endovascular Management

After filter manipulated BP suddenly dropped to 54/30

4/7/2017 Endovascular Management of IVC Injuries 25 4/7/2017 Endovascular Management of IVC Injuries 26

Endovascular Management

Cava was not in continuity Transfemoral and transjugular balloon control achieved Wire from above snared from below Attempted Aortic cuff x 2 Ultimately repaired with 10cm thoracic endograft

4/7/2017 Endovascular Management of IVC Injuries 27 4/7/2017 Endovascular Management of IVC Injuries 28

[ADD PRESENTATION TITLE: INSERT TAB > HEADER & FOOTER > NOTES AND HANDOUTS] 4/7/2017 8

4/7/2017 Endovascular Management of IVC Injuries 29 4/7/2017 Presentation Title and/or Sub Brand Name Here 30 4/7/2017 Endovascular Management of IVC Injuries 31

Available device options

No large diameter covered stents FDA approved for venous use Aortic Cuffs

• Available in 3.3 cm length and longer

Thoracic Devices

• Three major manufacturers make endografts that are ~10cm in

length

4/7/2017 Endovascular Management of IVC Injuries 32

[ADD PRESENTATION TITLE: INSERT TAB > HEADER & FOOTER > NOTES AND HANDOUTS] 4/7/2017 9

Case 4

52 y/o with multiple prior abdominal surgeries undergoing routine lap cholecystecomy.

4/7/2017 Endovascular Management of IVC Injuries 33 4/7/2017 Presentation Title and/or Sub Brand Name Here 34

Case 4

Massive Intra-op bleeding IVC repaired Nephrectomy Significant bloody output from intrabdominal drain on POD 2

4/7/2017 Endovascular Management of IVC Injuries 35 4/7/2017 Endovascular Management of IVC Injuries 36

[ADD PRESENTATION TITLE: INSERT TAB > HEADER & FOOTER > NOTES AND HANDOUTS] 4/7/2017 10

4/7/2017 Endovascular Management of IVC Injuries 37 4/7/2017 Endovascular Management of IVC Injuries 38 4/7/2017 Endovascular Management of IVC Injuries 39 4/7/2017 Endovascular Management of IVC Injuries 40

[ADD PRESENTATION TITLE: INSERT TAB > HEADER & FOOTER > NOTES AND HANDOUTS] 4/7/2017 11

4/7/2017 Endovascular Management of IVC Injuries 41

Fenestrated Repair

62 y/o man identified to have retro-hepatic caval injury after traffic accident Hemodynamically Unstable on Hospital Day 2 Fenestrated Repair attempted

• Graft modified on back table
• Deployed from below
• Hepatic veins marked with wires from above
• Completed in 2002!

4/7/2017 Endovascular Management of IVC Injuries 42 4/7/2017 Endovascular Management of IVC Injuries 43 4/7/2017 Endovascular Management of IVC Injuries 44

[ADD PRESENTATION TITLE: INSERT TAB > HEADER & FOOTER > NOTES AND HANDOUTS] 4/7/2017 12

Question

• A. Injury at the level of the renal veins
• B. Injury at the level of the hepatic veins
• C. Hemodynamic instability
• D. IVC filter in place that can NOT be removed
• E. All of the above

F. None of the above Which of the following is an absolute contraindication to endovascular repair of an IVC Injury

4/7/2017 Endovascular Management of IVC Injuries 45
