SLIDE 1
NonLinear Model Predictive Control
Given:
System: Cost function: where:
Calculate:
Initial state: U that minimizes J(X,U)

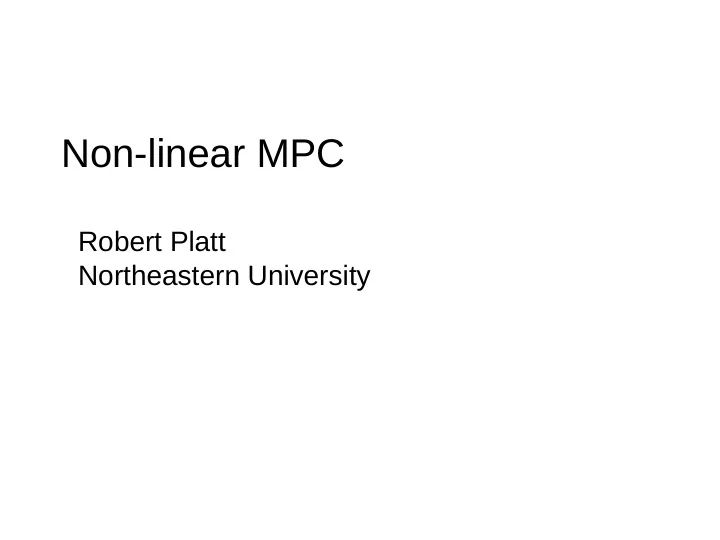

Non-linear MPC Robert Platt Northeastern University NonLinear Model - - PowerPoint PPT Presentation
Non-linear MPC Robert Platt Northeastern University NonLinear Model - - PowerPoint PPT Presentation
Non-linear MPC Robert Platt Northeastern University NonLinear Model Predictive Control Given: System: Cost function: where: Initial state: Calculate: U that minimizes J( X,U ) NonLinear Model Predictive Control Given: System: Cost
SLIDE 2
SLIDE 3
NonLinear Model Predictive Control
Given:
System: Cost function: where:
Calculate:
Initial state: U that minimizes J(X,U)
SLIDE 4
NonLinear Model Predictive Control
Given:
System: Cost function: where:
Calculate:
Initial state: U that minimizes J(X,U)
SLIDE 5
Minimize: Subject to:
NonLinear Model Predictive Control
But, this is a nonlinear constraint – so how do we solve it now?
SLIDE 6
LTV (linear time varying) problem
Given: a nonlinear system: A quadratic cost fn A nominal trajectory: Find: a controller that works nearby nominal trajectory
SLIDE 7
Idea: time varying linear system
Linear Time Invariant (LTI): Linear Time Variant (LTV):
Notice time time dependence – each time step is linearized differently
SLIDE 8
Linear Time Varying LQR (LTV)
Similar first order taylor series expansion as before:
SLIDE 9
Linear Time Varying LQR (LTV)
Similar first order taylor series expansion as before: Solution: solve LQR for this TV system: Resulting controller is linearized about nominal trajectory:
SLIDE 10
Linear Time Varying LQR (LTV)
Similar first order taylor series expansion as before: Solution: solve LQR for this TV system: Resulting controller is linearized about nominal trajectory:
Key points: – point linearized about changes on each time step – nominal trajectory does not even need to be feasible! – you DO NEED to know what time step you’re at throughout
SLIDE 11
Question
Think about cart-pole We have shown that you can use linearize LQR about an arbitrary trajectory. Can you just linearize about the current operating point on each time step?
SLIDE 12
Back to nonlinear control problem...
Minimize: Subject to: LTV LQR only works if you have a nominal trajectory How do you get the nominal trajectory???
SLIDE 13
Iterative LQR
Key observation: If: you start with a bad nominal trajectory, run LTV LQR linearized about it, and then integrate forward the resulting locally optimal policy… Then: the resulting trajectory will be better (lower cost) than the nominal trajectory you started with
SLIDE 14
Iterative LQR
SLIDE 15
Iterative LQR
SLIDE 16
Iterative LQR
SLIDE 17
Iterative LQR
Why is this not zero? When can we skip these terms?
SLIDE 18
Iterative LQR
Why is this not zero? When can we skip these terms? How does this fix problem?
SLIDE 19
Iterative LQR
SLIDE 20
Iterative LQR
SLIDE 21
Iterative LQR
iLQR works well in the MPC context – stabilization to the trajectory will handle most small deviations from nominal – can iterate the process to handle larger deviations
