A Safe Autonomous Vehicle Trajectory Domain Specific Modeling Language For Non-Expert Development M A T T B U N T I N G , Y E G E T A Z E L E K E , K E N N O N M C K E E V E R , J O N A T H A N S P R I N K L E U N I V E R S I T Y O F A


slide-1
SLIDE 1

M A T T B U N T I N G , Y E G E T A Z E L E K E , K E N N O N M C K E E V E R , J O N A T H A N S P R I N K L E U N I V E R S I T Y O F A R I Z O N A

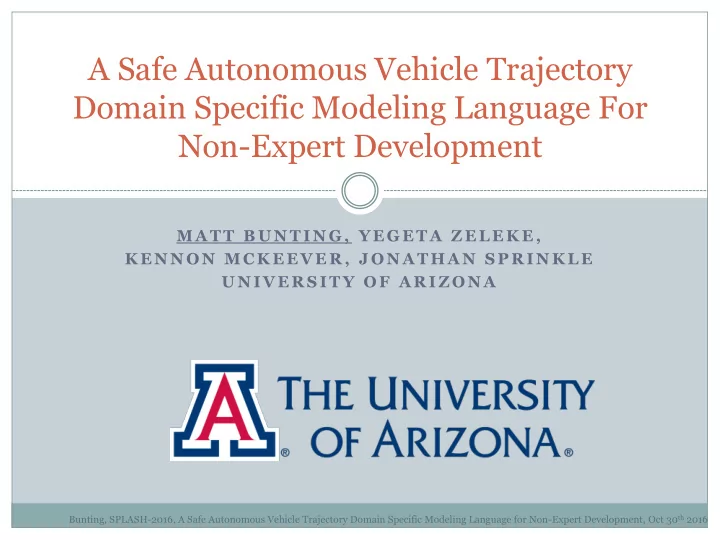

A Safe Autonomous Vehicle Trajectory Domain Specific Modeling Language For Non-Expert Development

Bunting, SPLASH-2016, A Safe Autonomous Vehicle Trajectory Domain Specific Modeling Language for Non-Expert Development, Oct 30th 2016

slide-2
SLIDE 2

Domain

 Allow elementary students to program AV  Programs consist of an ordered set of primitive

motions, i.e. a path

 No unsafe paths should be executed

slide-3
SLIDE 3

Path Location

slide-4
SLIDE 4

Domain Safety

 Controllers from prior work used for motions  Paths should be structurally unambiguous  Paths should not drive outside of the grid  Paths should start and stop on user defined

waypoints

slide-5
SLIDE 5

Metamodel

 WebGME

slide-6
SLIDE 6

Model

slide-7
SLIDE 7

Verification

 Algorithms developed to check model behavior  Constraint violations displayed to the user

slide-8
SLIDE 8

Demonstration

slide-9
SLIDE 9

Implementation

 Students worked in groups to design paths on paper  Groups transferred paths to the modeling language  Some groups needed no instruction  Students used verification feedback to correct

models

slide-10
SLIDE 10

Demo Day

 Manually drove car to start location  Ran generated files without reviewing, known to be

safe

slide-11
SLIDE 11

Future Work

 Automation  Implement reactive modeling and LTL verification  Examine properties of automatic dynamic constraint

verification

slide-12
SLIDE 12

Questions
