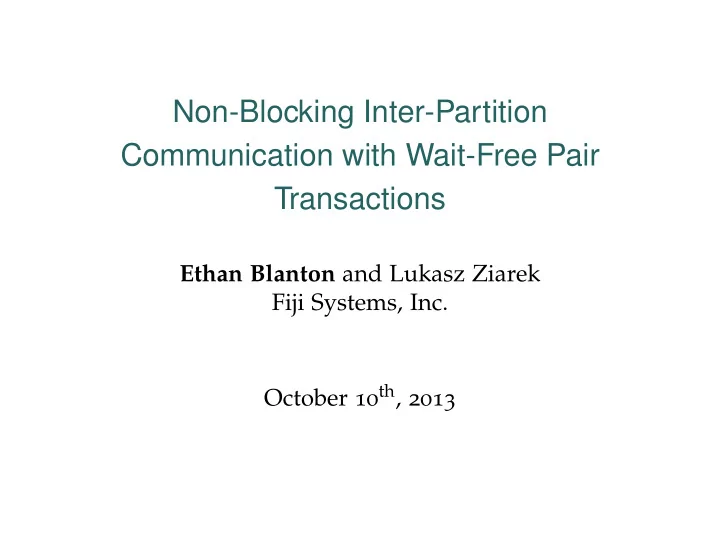

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions

Ethan Blanton and Lukasz Ziarek Fiji Systems, Inc. October 10th, 2013

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions WFPT Overview

Wait-Free Pair Transactions

A communication mechanism that is: Lightweight Transactional Non-blocking One-way Safe “Natural”

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 2

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions WFPT Overview

WFPTs Cont’d

WFPTs are a shared-memory mechanism. Transactions are explicit: Writers commit Readers update Referential integrity is guaranteed. Access to transaction fields requires no application changes.

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 3

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Motivation

Motivation

Real-time systems may contain tasks of differing priority. Communication among such tasks must bound priority inversion. Traditional solutions for this are: Priority Inheritance Protocol Priority Ceiling Protocol Asynchrony (not easy in Java!) The scene is complicated by tasks of differing criticality.

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 4

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Motivation

Mixed-Criticality Systems

The Fiji Multi-VM allows multiple independent Java VMs to execute, isolated in time and space. This complicates safe, low-overhead communication. WFPTs are ideal for crossing VM partitions!

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 5

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Semantics

Wait-Free Pair Transaction Semantics

WFPT objects provide two contexts, reader and writer. Both contexts: Never block Never lose coherence Have O(1) access to transaction fields Writers: Can commit their changes Never share changes without committing Readers: Can update to the writer’s committed changes Never share their changes

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 6

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Semantics

Java Language WFPT Semantics

WFPT objects subclass WaitFreePairTransaction Static fields are not subject to WFPT semantics. Static fields are not shared between partitions for inter-partition WFPT. WFPT object field accesses behave like “regular” objects. The commit and update operations are provided by final methods on WaitFreePairTransaction.

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 7

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Logical Structure

WFPT Object Model

WFPT Objects don’t use the “normal” Fiji VM Java object model WFPT object fields are replicated four times.

These replicas are named by mutable indexes W, F, U, and R. Each index has a different role in the transaction. The replica at W is currently being written by the writer.

F will receive the writer’s next commit. U will become the read index on the next update. R is currently being read by the reader. An update flag indicates whether there has been a commit since the last update. A tracking structure is used for each WFPT object to store WFPT state and facilitate transactions.

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 8

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Logical Structure

WFPT Replicas

W R U F Modifiable Readable Modifiable Readable Modifiable Writer Reader

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 9

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Commit

Commit

1

Copy the contents of the replica at W to the replica at F.

2

Atomically swap the indexes U and F while setting the update flag. Note that this operation modifies only the replica at F (before the swap) and affects only the indexes F and U.

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 10

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Commit

Replica State Prior to Commit

00 01 10 11

Flag W Index F Index U Index R Index Unused Replica Array

• bj A
• bj B
• bj C
• bj D

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 11

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Commit

Replica State After Commit Phase I

00 01 10 11

Flag W Index F Index U Index R Index Unused Replica Array

• bj A
• bj B
• bj C
• bj D
• bj A

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 12

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Commit

Replica State After Commit Phase II

1 00 10 01 11

Flag W Index F Index U Index R Index Unused Replica Array

• bj A
• bj C
• bj D
• bj A

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 13

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Update

Update

1

Check the update flag, return if clear.

2

Atomically swap the indexes U and R while clearing the update flag. Note that this operation modifies no replicas, and affects only the indexes U and R.

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 14

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Update

Replica State Prior to Update

1 00 01 10 11

Flag W Index F Index U Index R Index Unused Replica Array

• bj A
• bj B
• bj C
• bj D

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 15

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Update

Replica State After Update

00 01 11 10

Flag W Index F Index U Index R Index Unused Replica Array

• bj A
• bj B
• bj C
• bj D

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 16

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Complexity

Complexity

For the higher priority context on a WFPT: update runs in O(1) time. commit runs in time proportional to the size of the object. All operations are completely independent of the other context’s state. For the lower-priority context on a WFPT: Transaction complexity remains the same. Field accesses are completely independent of the other context’s state. Transactions may be affected by the other context.

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 17

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Safety

Safety and Correctness

The safety and correctness of WFPT transactions are predicated upon: The replica at U is never modified. The writer only reads or modifies W and F. The reader only reads or modifies R.

F and U are swapped only when all of the following are

true:

The update flag is set,

F contains the newest commit, and U contains the most recent previous commit, if it exists.

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 18

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Safety

Safety and Correctness, cont’d

Thus: Neither context can “see” the other context’s current replica. The reader is always guaranteed to update to either:

The most recent commit, or The immediately previous commit.

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 19

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions WFPT Implementation Details

Implementation Overview

WFPT involves changes to both the runtime and compiler. Compiler: Four new classes Almost entirely self-contained

< 500 lines

Runtime: WFPT objects replaced with WFPTProxy tracking objects One new exception Trivial change to newInstance()

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 20

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions WFPT Implementation Details

Compiler Changes

Tracking structure allocation at new time Method lookasides Cast replacements to hide WFPTProxy Access barriers to perform context lookups

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 21

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions WFPT Implementation Details

Proxy Objects

The proxy object contains four items: One word for index values and update flag Array of four WFPT objects Reader context object Writer context object The context objects are entirely uninteresting.

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 22

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions WFPT Implementation Details

Index Field

All four index values and the update flag are packed into a single 32-bit word: 32

F U R u W

8 16 24 Index updates are then performed by strong CAS.

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 23

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Inter-partition Communication

Inter-partition Communication

Some restrictions must be levied for inter-partition WFPT: IP-WFPT objects must be negotiated a priori and are allocated in “immortal” memory. Reference fields are forbidden. WFPT object structure must be identical in size and layout across partitions. Concurrent access to IP-WFPT objects does not guarantee coherency within a partition.

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 24

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Overhead

WFPT Overhead

Worst-case micro-benchmarks: public synchronized void set(int value) { this.value = value; } public void set(int value) { this.value = value; }

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 25

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Overhead

Micro-benchmark Results

Configuration ARM LEON3 Monitors 123 5107 WFPT 260 6557 WFPT w/ Commit 653 14107

All values are in nanoseconds.

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 26

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Multi-VM Communication

Multi-VM jPapaBench

jPapaBench consists of three major modules:

Autopilot Simulator Fly-by-Wire (FBW)

We placed the FBW module in its own VM. Communication between VMs is via three WFPT objects.

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 27

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions Multi-VM Communication

Stabilization Release Durations

1 10 100 1000 10000 100000 50 100 150 200 250 300 350 Number of releases Release duration (µs) Plain Java Multi-VM

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 28

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions

Conclusions

WFPT is a viable mechanism for both inter- and intra-partition communication. Optimization for elision of context checks is wanted for performance, to bring overheads closer to monitors. Inter-partition WFPT is viable in a Multi-VM, but safety requires restrictions that should be carefully examined.

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions 29

Introduction WFPT Details Transactions Implementation Evaluation and Results Conclusions

Questions?

Non-Blocking Inter-Partition Communication with Wait-Free Pair Transactions

Ethan Blanton and Lukasz Ziarek Fiji Systems, Inc.

http://fiji-systems.com/academia/
