New Technology: Saudi Aramco High Pressure Air Assist System (HPAAS) for Upgrading Existing Flares to Smokeless Combustion 2009 ZEECO, INC. World Flaring 2009 ZEECO, INC. Source:: US Government Accountability Office World Flaring

slide-1
SLIDE 1

 2009 ZEECO, INC.

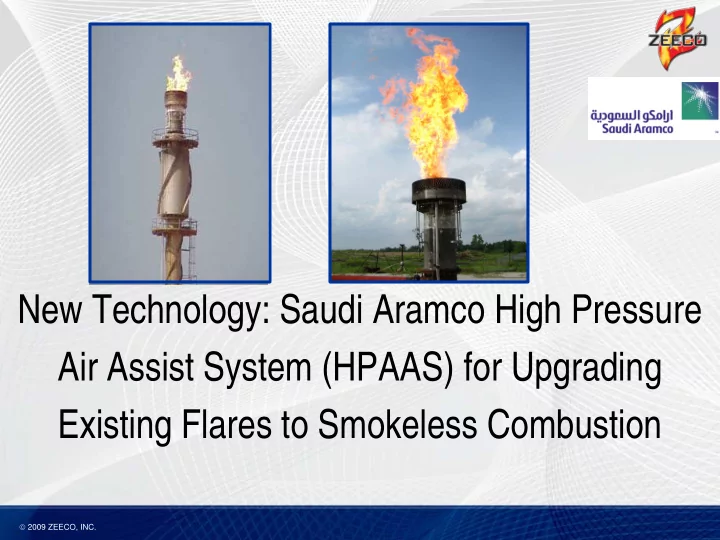

New Technology: Saudi Aramco High Pressure Air Assist System (HPAAS) for Upgrading Existing Flares to Smokeless Combustion

slide-2
SLIDE 2

 2009 ZEECO, INC.

Source:: US Government Accountability Office

World Flaring

slide-3
SLIDE 3

 2009 ZEECO, INC.

Source:: US Government Accountability Office

World Flaring

Source: A Twelve Year Record of National and Global Gas Flaring Volumes Estimated Using Satellite Data Final Report to the World Bank - May 30, 2007

slide-4
SLIDE 4

 2009 ZEECO, INC.

Utility Flares

slide-5
SLIDE 5

 2009 ZEECO, INC.

  • Low Exit Velocity leads to:

 Smoke  Flame Pulldown  Shorter Tip Life  Higher Radiation Levels

 Flame Lean  Higher Flame Emissive Value

Utility Flares - Drawbacks

slide-6
SLIDE 6

 2009 ZEECO, INC.

Utility Flares – Smoke

slide-7
SLIDE 7

 2009 ZEECO, INC.

Utility Flares – Smoke

Poor Public Perception

slide-8
SLIDE 8

 2009 ZEECO, INC.

Utility Flares – Flame Pulldown

Crack due to heat

WIND WIND

slide-9
SLIDE 9

 2009 ZEECO, INC.

Utility Flares – Higher Radiation Levels

WIND

HIGH EXIT VELOCITY FLAME LOW EXIT VELOCITY FLAME

WIND

slide-10
SLIDE 10

 2009 ZEECO, INC.

  • Hundreds of flare systems in operation.
  • Most Aramco systems are utility flares

Solution Needed for Saudi Aramco’s Utility Flares

slide-11
SLIDE 11

 2009 ZEECO, INC.

  • Criteria for ideal solution:

 Easy retrofit to existing flares with minimal installation

time

 Robust design  Low installation and capital cost  Low utility costs for operation

Solution Needed for Saudi Aramco’s Utility Flares

slide-12
SLIDE 12

 2009 ZEECO, INC.

  • Analysis of Existing Technology

 Steam-Assisted Flares  High-Pressure Sonic Flares  Low-Pressure Air Assisted Flares

Solution Needed for Saudi Aramco’s Utility Flares

slide-13
SLIDE 13

 2009 ZEECO, INC.

Existing Technology: Steam Assist

slide-14
SLIDE 14

 2009 ZEECO, INC.

  • Inject steam into combustion zone
  • Steam entrains surrounding air
  • Smokeless Operation
  • Minimal Flame Pulldown
  • Low Radiation
  • DRAWBACKS:

 No Steam Available  Expensive Water

Existing Technology: Steam Assist

slide-15
SLIDE 15

 2009 ZEECO, INC.

Existing Technology: HP Sonic Flare

slide-16
SLIDE 16

 2009 ZEECO, INC.

  • Use the pressure in the flare gas to achieve a high exit

velocity

  • High velocity flare gas entrains surrounding air
  • Smokeless Operation
  • Minimal Flame Pulldown
  • Low Radiation
  • DRAWBACKS:

Most Saudi Aramco facilities were designed with low pressure relief systems

Existing Technology: HP Sonic Flare

slide-17
SLIDE 17

 2009 ZEECO, INC.

Existing Technology: Low Pressure Air Assist

GAS PLENUM AIR PLENUM

slide-18
SLIDE 18

 2009 ZEECO, INC.

  • Use a low-pressure blower to inject

additional combustion air

  • Assist air entrains some air from the

surroundings

  • Smokeless Operation
  • Minimal Flame Pulldown
  • Low Radiation
  • DRAWBACKS:

Poor retrofit for existing flares because the air duct is so large.

Loss of cooling air exponentially reduces service life of flare tip.

Existing Technology: Low Pressure Air Assist

GAS RISER AIR DUCT AIR BLOWER

slide-19
SLIDE 19

 2009 ZEECO, INC.

  • High Pressure Air Assist System
  • Developed and tested at Saudi

Aramco’s facilities

  • Invented by Mazen Mashour of

Saudi Aramco

  • Patented Technology

Saudi Aramco Solution: HPAAS

slide-20
SLIDE 20

 2009 ZEECO, INC.

Saudi Aramco Solution: HPAAS

Compressed Air Buffer Tank Air Control System

slide-21
SLIDE 21

 2009 ZEECO, INC.

HPAAS Animation

slide-22
SLIDE 22

 2009 ZEECO, INC.

HPAAS Flare Tip Components

High Pressure Air Line Air Injection Manifold Windshield Flare Tip Barrel

slide-23
SLIDE 23

 2009 ZEECO, INC.

  • Quick and Easy Retrofit
  • Robust Design
  • Minor Impact to Existing Flare

Structures

HPAAS Advantages

slide-24
SLIDE 24

 2009 ZEECO, INC.

  • Flare tip bolts in place
  • 3” or 4” air supply line added to flare stack
  • Air compressor can ship as a modular unit
  • Average installation time

3 DAYS

HPAAS Advantages: Quick and Easy Retrofit

slide-25
SLIDE 25

 2009 ZEECO, INC.

Low-Pressure Air Assist Flare Design HPAAS Flare Design

HPAAS Advantages: Robust Design

Flare tip damage due to loss of cooling air. HPAAS tip can be operated for long periods

  • f time with NO cooling air.
slide-26
SLIDE 26

 2009 ZEECO, INC.

HPAAS Advantages: Minor Impact to Existing Flare Structure

Low-Pressure Air Assist Flare Design HPAAS Flare Design Air Duct Flare Gas Riser Air Line

To Air Supply

New Guy Wires and Foundations

slide-27
SLIDE 27

 2009 ZEECO, INC.

  • Gold Medal at 2006 Saudi Inventors Convention
  • Excellent Achievement Award from the

Malaysian Association of Research Scientists in 2006

  • Gold Award and 2nd Place Overall at Geneva's

34th International Inventors' Conference in 2006

  • Winner of 2007 Arab Thought Foundation’s

Innovation Award

HPAAS Awards

slide-28
SLIDE 28

 2009 ZEECO, INC.

  • Upgrade Twenty-nine (29) Flare Systems in the Saudi

Aramco Southern Area Development

 HPAAS Smokeless Flare System Upgrades  CFD Modeling  Combustion Testing  New Flare Pilots  New FFG Ignition Systems  Retractable Thermocouples

Zeeco Southern Area Smokeless Upgrade Project

slide-29
SLIDE 29

 2009 ZEECO, INC.

  • Key Design Parameters Provided by Saudi Aramco

HPAAS Design Verification

slide-30
SLIDE 30

 2009 ZEECO, INC.

Testing & CFD Modeling – Supersonic Nozzles

Mach Number

slide-31
SLIDE 31

 2009 ZEECO, INC.

CFD Modeling – Cold Flow Modeling for System Layout

slide-32
SLIDE 32

 2009 ZEECO, INC.

CFD Modeling – Combustion Model

Without HPAAS Air Assist With HPAAS Air Assist

slide-33
SLIDE 33

 2009 ZEECO, INC.

Full-Scale Combustion Testing

slide-34
SLIDE 34

 2009 ZEECO, INC.

Full-Scale Combustion Testing

Without HPAAS Air Assist With HPAAS Air Assist

slide-35
SLIDE 35

 2009 ZEECO, INC.

Full-Scale Combustion Testing

Without HPAAS Air Assist With HPAAS Air Assist

slide-36
SLIDE 36

 2009 ZEECO, INC.

Full-Scale Combustion Testing: Video

slide-37
SLIDE 37

 2009 ZEECO, INC.

Field Success!!!

Without HPAAS Air Assist With HPAAS Air Assist

slide-38
SLIDE 38

 2009 ZEECO, INC.

Field Success!!!

Without HPAAS Air Assist With HPAAS Air Assist

slide-39
SLIDE 39

 2009 ZEECO, INC.

Future of HPAAS: Saudi Aramco Licensee Agreement

slide-40
SLIDE 40

 2009 ZEECO, INC.

Future of HPAAS: Zeeco Al-Rushaid Middle East Ltd.

slide-41
SLIDE 41

 2009 ZEECO, INC.

Future of HPAAS: Advantages of HPAAS

  • Easy retrofit to existing flares with short installation time
  • Robust design
  • Adaptable to range of conditions
  • Minor impact to existing flare structures
  • Low installation and capital costs
  • Low operating costs
slide-42
SLIDE 42

 2009 ZEECO, INC.

Future of HPAAS: Applications for HPAAS

  • Retrofits to existing flare

systems anywhere

  • New Installations

 Middle East  Russia  Africa  South America  Canada

  • Offshore Platforms / FPSO
slide-43
SLIDE 43

 2009 ZEECO, INC.

Contact Information

  • Zeeco USA Headquarters / Zeeco Al-Rushaid Middle East

– Greg Seefeldt

  • Zeeco Houston – Scott Reed
  • Zeeco Europe – Nigel Palfreeman
slide-44
SLIDE 44

 2009 ZEECO, INC.

Thank You IFRF!!!

  • Questions???
slide-45
SLIDE 45

 2009 ZEECO, INC.  2009 ZEECO, INC.
