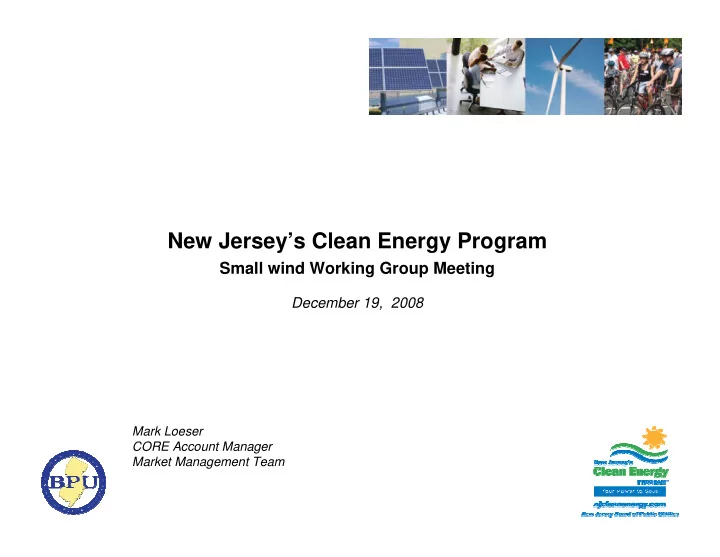

New Jersey’s Clean Energy Program

Small wind Working Group Meeting

December 19, 2008

Mark Loeser CORE Account Manager Market Management Team

Today – 59 MW PV solar

• 3450 installs

– 3 MW Biomass – 2.7 MW Wind Tomorrow

• 1,500 MW Solar
• 3,000 MW Offshore Wind
• 200 MW Onshore Wind
• 900 MW Biomass

Renewable Resources

• Wind:
• Shore, highlands
• Sustained winds of 11 mph
• Solar:
• Output ~1200 kWh AC
• Biomass
• 25% composed of organic &

urban residues (food wastes)

Government Activism

• “20/20” RPS plan
• 20% GHG legislation
• Energy Master Plan
• BPU commitment
• RGGI

New Jersey Profile

New Jersey’s Solution

Conservation Efficiency Renewables No Investment Behavior Change Lower Investment with Near Term ROI Higher Investment with Longer term ROI

Customer Energy Management Hierarchy

2009 Renewable Energy Program The Renewable Energy Program will continue to support solar electricity, small wind, sustainable biomass equipment, and fuel cells.

• On-site behind the meter still capped at 2 MW, but these rules are

being reviewed

• Community Renewables (one large system for multiple building) rules

are being developed

• Rebates for small solar systems (probably < 50kW)
• Financial incentives for wind and biomass projects will stay the same.
• The SREC program (non-rebated projects) will continue to be

promoted

• SREC securitization and Utility Company solar loan programs are

being developed

• The required wind resource (>11mph) is

along the shore and highlands.

• Best example of installed project is at

ACUA, similar interest building among utility authorities at Union Beach, Cape May and other coastal municipalities

• Small wind projects have run into home

rule issues; model ordinance adopted by Ocean Gate and other municipalities.

• $7.5 million in 2009 funds set aside for

wind

2009 Renewable Energy Program - Wind Market

• Wind Program Incentive is calculated using the Expected

Performance Based Buy-down (EPBB).

• Expected performance based on turbine output for:

– Specific turbine – Specific site wind resource at the desired hub height

• The EPBB is designed to produce higher rebates for projects that

maximize power production

• More closely calibrates with goals defined in the Renewable

Portfolio Standard (RPS) and the Energy Master Plan (EMP). 2009 Renewable Energy Program - EPBB

• EPBB Incentive levels
• This is different than the previous wind incentive level which was calculated
• n the capacity of the system.
• Factors included in calculating annual input

– Cube of the wind speed – Swept area – Air density – Wind shear – Turbulence intensity

2009 Renewable Energy Program - EPBB

$0.50 / Annual kWh 16,000-750,000 kWh $3.20 / Annual kWh 1-16,000 kWh Incentive Level Annual Estimated Production

• Wind turbine manufacturers accepted by the program:
• If a wind turbine is not presently accepted by the program the following

information must be provided

– Power curve based on one year of actual energy production data – Third party certification form the manufacturer based on the power curve

2009 Renewable Energy Program - EPBB

– SWWP – Bergey – Jake – Proven – Ventera – Enertech – Northern Power systems – Wind Energy Systems – Fuhrlander – Gaia – Entegrity – Vestas – Scirocco – PGE – Endurance – ARE

To apply to the program applicant must complete a pre-application for guidance purposes

• Obtaining local average annual wind speed

– Wind maps for no charge are available at:

• http://firstlook.3tiergroup.com/
• http://www.awstruewind.com/maps/united-states.cfm/region/46688
• http://eosweb.larc.nasa.gov
• A wind resource site assessment may be performed even though the

average wind speed can be determined from the wind maps

• Site assessments are performed by;

– Certified site assessor evaluates topography and site characteristics to give a more accurate evaluation – Engineering firm performs detailed site assessments including wind speed analysis based on anemometer readings – Anemometers from Anemometer Loan Partners

2009 Renewable Energy Program - EPBB

Mark Loeser at mark.loeser@csgrp.com Phone 732-218-4430

If you have any questions about New Jersey’s Clean Energy Programs, please feel free to contact:
