Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary Neural Networks - I Henrik I Christensen Robotics & Intelligent Machines @ GT Georgia Institute of Technology, Atlanta, GA 30332-0280

slide-1

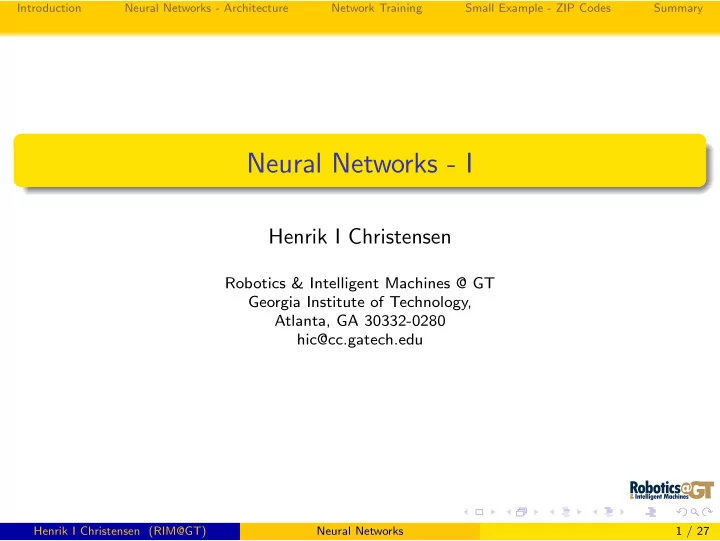

SLIDE 1

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Neural Networks - I

Henrik I Christensen

Robotics & Intelligent Machines @ GT Georgia Institute of Technology, Atlanta, GA 30332-0280 hic@cc.gatech.edu

Henrik I Christensen (RIM@GT) Neural Networks 1 / 27

slide-2
SLIDE 2

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Outline

1

Introduction

2

Neural Networks - Architecture

3

Network Training

4

Small Example - ZIP Codes

5

Summary

Henrik I Christensen (RIM@GT) Neural Networks 2 / 27

slide-3
SLIDE 3

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Introduction

Initial motivation for design from modelling of neural systems Perceptrons emerged about same time as we started to have real neural data Studies of functional specialization in the brain

Henrik I Christensen (RIM@GT) Neural Networks 3 / 27

slide-4
SLIDE 4

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Neurons - the motivation

Henrik I Christensen (RIM@GT) Neural Networks 4 / 27

slide-5
SLIDE 5

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Neural Code Example

Henrik I Christensen (RIM@GT) Neural Networks 5 / 27

slide-6
SLIDE 6

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Outline

Outline of ANN architecture Formulation of the criteria function Optimization of weights Example from image analysis Next time: Bayesian Neural Networks

Henrik I Christensen (RIM@GT) Neural Networks 6 / 27

slide-7
SLIDE 7

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Outline

1

Introduction

2

Neural Networks - Architecture

3

Network Training

4

Small Example - ZIP Codes

5

Summary

Henrik I Christensen (RIM@GT) Neural Networks 7 / 27

slide-8
SLIDE 8

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Data Process w. Two-Layer Neural Network

wTx h(.) wTz σ(x) Henrik I Christensen (RIM@GT) Neural Networks 8 / 27

slide-9
SLIDE 9

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Neural Net Architecture as a Graph

x0 x1 xD z0 z1 zM y1 yK w(1)

MD

w(2)

KM

w(2)

10

hidden units inputs

  • utputs

Henrik I Christensen (RIM@GT) Neural Networks 9 / 27

slide-10
SLIDE 10

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Neural Network Equations

Consider an input layer aj =

D

  • i=0

w(1)

ji xi

where wj0 and x0 represent the bias weight / term The activation, aj, is mapped by an activation function zj = h(aj) which typically is a Sigmoid or tanh The output is considered the hidden activations Output unit activations are computed, similarly ak =

M

  • j=0

w(2)

kj zj

Henrik I Christensen (RIM@GT) Neural Networks 10 / 27

slide-11
SLIDE 11

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Neural Networks - A few more details

The full system is then yk(x, w) = σ  

M

  • j=0

w(2)

kj h

D

  • i=0

w(1)

ji xi

  The information is flowing “forward” through the system Naming is sometimes complicated!

3-layer network single-hidden-layer network two-layer network (input/output)

Henrik I Christensen (RIM@GT) Neural Networks 11 / 27

slide-12
SLIDE 12

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Outline

1

Introduction

2

Neural Networks - Architecture

3

Network Training

4

Small Example - ZIP Codes

5

Summary

Henrik I Christensen (RIM@GT) Neural Networks 12 / 27

slide-13
SLIDE 13

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Training Neural Networks

For optimization we consider the error function: E(w) =

N

  • n=1

||y(xn, w) − tn||2 The optimization is similar to earlier searches Objective ∇E(w) = 0 Due to non-linearity closed form solution is a challenge Newton-Raphson type solutions are possible ∆w = −H−1∇Ew Often an iterated solution is realistic w(τ+1) = w(τ) − η∇E(w(τ))

Henrik I Christensen (RIM@GT) Neural Networks 13 / 27

slide-14
SLIDE 14

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Error Backpropagation

Consider the error composed of parts E(w) =

N

  • n=1

En(w) Considering errors by parts we get yk =

  • i

wkixi with the error En = 1 2

  • k

(ynk − tnk)2 the associated gradient is ∂En ∂wji = (ynj − tnj)xni

Henrik I Christensen (RIM@GT) Neural Networks 14 / 27

slide-15
SLIDE 15

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Computing gradients

Given aj =

  • i

wjizi and zj = h(aj) The gradient is (using chain rule) ∂En ∂wji = ∂En ∂aj ∂aj ∂wji We already know ∂En ∂aj = (yk − tj) = δj and ∂aj ∂wji = zi

Henrik I Christensen (RIM@GT) Neural Networks 15 / 27

slide-16
SLIDE 16

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Updating of weights

Updating backwards in the systems

zi zj δj δk δ1 wji wkj

Error Propagation δj = h′(aj)

  • k

wkjδk

Henrik I Christensen (RIM@GT) Neural Networks 16 / 27

slide-17
SLIDE 17

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Update Algorithm

1 Enter a training sample xn, propagate and compare to expected value

tn, y(xn)

2 Evaluate δk at all outputs 3 Backpropagate δ to correct hidden unit weights 4 Evaluate derivatives to correct input level weights Henrik I Christensen (RIM@GT) Neural Networks 17 / 27

slide-18
SLIDE 18

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Issues related to training of networks

The Sigmoid is “linear” at 0 so random values around 0 is a good start. Be aware that training a network too much could result in over fitting There can be multiple hidden layers

Henrik I Christensen (RIM@GT) Neural Networks 18 / 27

slide-19
SLIDE 19

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Outline

1

Introduction

2

Neural Networks - Architecture

3

Network Training

4

Small Example - ZIP Codes

5

Summary

Henrik I Christensen (RIM@GT) Neural Networks 19 / 27

slide-20
SLIDE 20

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Small Example

From (Le Cun 1989) on state of the art of ANN’s for recognition Recognition of handwritten characters has been widely studied Still considered an important benchmark for new recognition methods

Henrik I Christensen (RIM@GT) Neural Networks 20 / 27

slide-21
SLIDE 21

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

ZIP code data

Data normalized to 16x16 pixels 320 digits in training set and 160 digits in test set

Henrik I Christensen (RIM@GT) Neural Networks 21 / 27

slide-22
SLIDE 22

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Different types of networks

No hidden layer - pure 1 level regression 1 hidden layer with 12 hidden units - fully connected 2 hidden layers and local connectivity 2 hidden layers, locally connected and weight sharing 2 hidden layers, locally connected and 2 level weight sharing

Henrik I Christensen (RIM@GT) Neural Networks 22 / 27

slide-23
SLIDE 23

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Example - Net Architectures

Henrik I Christensen (RIM@GT) Neural Networks 23 / 27

slide-24
SLIDE 24

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Example Results

Henrik I Christensen (RIM@GT) Neural Networks 24 / 27

slide-25
SLIDE 25

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Example - Summary

Careful design of network architectures is important Neural Networks offer a rich variety of solutions Later results have shown improved performance with SVN’s

Henrik I Christensen (RIM@GT) Neural Networks 25 / 27

slide-26
SLIDE 26

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Outline

1

Introduction

2

Neural Networks - Architecture

3

Network Training

4

Small Example - ZIP Codes

5

Summary

Henrik I Christensen (RIM@GT) Neural Networks 26 / 27

slide-27
SLIDE 27

Introduction Neural Networks - Architecture Network Training Small Example - ZIP Codes Summary

Summary

Neural networks are general approximators Useful both for regression and discrimination Some would term them - “self-parameterized lookup tables” There is a rich community engaged in design of systems Rich variety of optimization techniques

Henrik I Christensen (RIM@GT) Neural Networks 27 / 27
