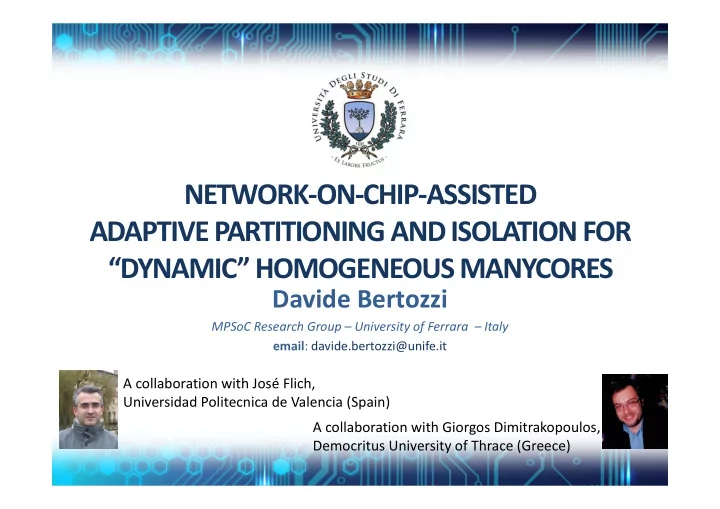

NETWORKONCHIPASSISTED ADAPTIVE PARTITIONING AND ISOLATION FOR DYNAMIC HOMOGENEOUS MANYCORES Davide Bertozzi MPSoC Research Group University of Ferrara Italy email : davide.bertozzi@unife.it A collaboration with Jos
MPSoC Research Group – University of Ferrara – Italy email: davide.bertozzi@unife.it
A collaboration with José Flich, Universidad Politecnica de Valencia (Spain) A collaboration with Giorgos Dimitrakopoulos, Democritus University of Thrace (Greece)
Aggregation of ECUs Multimedia Home Gateways
IoT Platforms
Host multi‐core heterog. processor General Purpose Programmable Accelerator Hardware accelerators High‐ Speed I/O DMA engine Top‐level NoC
DRAM memory controller
Graphics
Reconfigurable fabric
Proliferation of more or less programmable computing acceleration resources. Dark silicon will be harnessed through specialization.
Highest GOPS/W General‐ Purpose Computing (SMPs) Coarse‐grain parallelism Throughput Computing (GPGPUs) Massive HW multithreading for data‐parallelism HW IPs Programmable and customizable accelerators Parallel threads heavily dependent on local data content
The accelerator store Specialization and Parallelism are THE design paradigm for embedded SoCs
GOPS/Watt
Multi‐Programmed Mixed‐Criticality Workload Parallel Hardware Platforms
Host Processor Running processes
Programmable Manycore Accelerator
Multiple applications may concurrently require to offload computation to a manycore accelerator, each application being unaware of the existence of the others
HOW TO SHARE THE ACCELERATOR? High‐end GPGPUs the same full‐fledged HW solutions proposed in high‐end GPGPUs won’t be affordable in low‐power SoCS! Leverage fine‐grained temporal multiplexing, relying on dedicated hardware support for fast and lightweight context switching!
Host Processor Running processes
Programmable Manycore Accelerator
Multiple applications may concurrently require to offload computation to a manycore accelerator, each application being unaware of the existence of the others
HOW TO SHARE THE ACCELERATOR? Common sense Overly long waiting times. Latency‐critical requests may have to resort to host execution. Use a coarser form of accelerator time‐sharing: execute offload requests in a run‐to‐completion, first‐come first‐served manner
Host Processor Running processes
Programmable Manycore Accelerator
Multiple applications may concurrently require to offload computation to a manycore accelerator, each application being unaware of the existence of the others
HOW TO SHARE THE ACCELERATOR? HPC Embedded applications exhibit a limited amount of data parallelism, alternated with task‐level parallelism. Performance is likely to saturate as core allocation grows. To shorten time‐to‐completion, use up all of the available cores!
Host Processor Running processes
Programmable Manycore Accelerator
OK, I got it: SPATIAL‐DIVISION MULTIPLEXING (SDM) is the solution!
Current accelerator architectures are at odds with SDM Partition just the cores? Or also the memory? Should match program parallelism to execution environment Software‐only solutions cannot provide complete isolation Designing SDM for Predictability? For Security? For both? SDM is trivial. Where is the challenge?
Much more than a concept: a design philosophy!
Davide Bertozzi MPSoC Research Group
1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9
NORM ALIZED SPEEDUP #CLUSTERS
IDEAL FAST ROD Convert DetectUniScaleResize Distance GaussianBlur ComputeKeypoints rBrief
Image Processing benchmarks run on a gem5‐based General‐Purpose Many‐Core Platform simulator to emphasize the computation speedup, minimizing communication and memory access effects: ideal crossbar and 1 cycle memory access latency With some exceptions, the trend is confirmed: real applications cannot exploit the whole parallelism provided by hardware! Relying on Space‐Division Multiplexing approach we relinquish the maximum parallelism but:
Davide Bertozzi MPSoC Research Group
A batch of applications (8 requests for each app, 9 apps in total) is run and evaluated with several memory configurations by using the SDM and the coarse‐grain TDM approaches.
SDM overtakes TDM, providing speedups on the whole execution by 35% in the best case (i.e., full knowledge of incoming request pattern) and by 19% with random scheduling of acceleration requests.
SDM: L2 partitioning, best schedule SDM: L2 partitioning, random schedule SDM: global L2, best schedule SDM: global L2, random schedule
Memory partitioning helps smooth out NUMA effects
……as the NoC paths are shared between nodes assigned to different applications. ……even for smart allocation schemes! It might be a good idea to prevent traffic from different applications from mixing. Or not? At least for better composability and analyzability.
Smart task allocation cannot guarantee the isolation property. You need NoC support for that!
For irregular topologies as well
Can we design a routing mechanism that finds a packet’s way to destination by interpreting such routing restrictions?
Routing logic is assisted by a 26-bit configuration register per switch:
Switch
(Xcurr,Ycurr)
LBDR logic: 1‐ compute the target quadrant NORTH‐EAST QUADRANT Destination FORBIDDEN! 2‐ Take North if at next hop I can turn east 3‐ Take East if at next hop I can turn north 4‐ Go East...provided the East port is connected!
More flexible than algorithmic routing: it supports different routing algorithms and (not all) irregular 2D mesh topologies More scalable than routing tables: the configuration register stays the same regardless the network size Lower coverage than routing tables (~80%)
Additional benefits:
LBDR configuration bits
There is a mismatch between partition shapes and the underlying routing algorithm... .....and in fact another routing algorithm works for the same partition shapes!
TWO POSSIBLE SOLUTIONS:
Out‐of‐reach!
Not all network traffic is headed to switches inside the partition. Global traffic to memory controllers and/or unpartitioned L2 should be supported!
Underlying philosophy: There is ONE GLOBAL ROUTING ALGORITHM ‐ for intra‐partition messages ‐ as well as for global traffic The routing algorithm is unmodifid
Local Cx bits Global Cx bits
Provide two sets of LBDR bits, differing
….but you start «invading» other partitions!
E.g., different instances of the Segment‐based Routing (SR) strategy applied on a partition‐basis Global traffic support is not straightforward any more, since the global routing function is not necessarily deadlock‐free any more!
~2X INCREASE IN COMPLEXITY OF THE LBDR ROUTING MECHANISM! MOREOVER, YOU HAVE VIRTUAL CHANNELS!
Two virtual channels to separate local from global traffic
Each virtual channel has its own routing algorithm What about Isolation?
VC0 traffic (local) suffers from link‐level interference with VC1 traffic (global). Can be solved by using 2 networks! VC1 traffic is a mix of global traffic originating from different partitions. Can be solved only through temporal isolation!
PhaseNoC, a collaboration with Giorgos Dimitrakopoulos, Demokritus University of Thrace (Greece)
A domain is defined as an individual VC—or a group of VCs—serving one (or more) partition flow(s). The various domains will never “compete” with each other to gain access to any network resource. There is no information leak whatsoever across the domains
Global traffic flows from domains can propagate concurrently and in complete isolation, despite sharing the same hardware infrastructure, by means of a VC-level TDM.
PhaseNoC, a collaboration with Giorgos Dimitrakopoulos, Demokritus University of Thrace (Greece) Latency Optimization. The phases are coordinated into optimally scheduled interlocked propagating waves, which ensure that in‐flight packets of all domains experience the minimum possible latency The topology structure limits the number of domains under perfect schedule Perfect schedule If D ≤ 2(P+1)
Davide Bertozzi MPSoC Research Group
When an application offloads computation to a programmable manycore accelerator, a resource manager should take care of mapping it onto the available resources.
performing solution!
Assumption: 2 applications are already mapped on the accelerator resources If a third application requests 6 cores to offload computation , what is the best mapping option?
Sometimes the answer is: a 5‐core mapping!
Davide Bertozzi MPSoC Research Group
200000 400000 600000 800000 1000000 1200000 1400000 1600000
1I 2I 3I 3L 4I 4L 4T 4Q 5L 5V 5S 5Y 5F 5X 5G 6L 6G 6R 7G 8R 9Q 10Q
EXECUTION TIME [CYCLES] #CLUSTERS PER PARTITION – PARTITION SHAPE
PARTITION SHAPES MAKE THE DIFFERENCE! The speedups are significantly shape-dependent…so another challenge arises for the resource manager: sometimes mapping an application on less resources but better arranged gives more benefits than leveraging more computational units!
Runtime modifications of the routing algorithm may be needed in order to enable/maximize/adapt/prolong utilization of accelerator resources
SCENARIO: GLOBAL ROUTING
ALGORITHM Global reconfiguration
function to enable allocation of Application 2
SCENARIO: PER‐PARTITION
ROUTING ALGORITHM Runtime adaptation of the partition routing algorithm for performance optimization, or for fault‐tolerance
function co‐exist in the network.
combination!
Channel Dependency Graph (CDG)
Example with SR routing 1 2 3
1x‐ 0x+ 2y‐ 1y+ 3x‐ 2x+ 3y‐ 0y+ CDG
for
XY 0x+ 1x‐ 2x+ 3x‐ 1y+ 0y+ 3y‐ 2y‐ xy CDG
For
YX 0y+ 2y‐ 1y+ 3y‐ yx 2x+ 0x+ 3x‐ 1x‐
+
1x‐ 0y+ 2x+ 3y‐ xy xy yx yx
TRANSIENT CONFIGURATION
DEADLOCK!
MPSoC Research Group, ENDIF Department, University of Ferrara , via Saragat 1, 44122, Ferrara, ITALY
reconfiguring its routing function.
MPSoC Research Group, ENDIF Department, University of Ferrara , via Saragat 1, 44122, Ferrara, ITALY
Old messages New messages OSR prevents this from happening by removing old dependencies and adding new ones in a controlled way Deadlock would require old packets following new packets and vice versa
new token
new Special epoch transition rules enforce that no old packet can follow a token
MPSoC Research Group, ENDIF Department, University of Ferrara , via Saragat 1, 44122, Ferrara, ITALY
3 6 9 12 15 36 39 36 33 33 30 30 27 24 21 18 39 42 42 45 45 48 48 51 54 75 72 69 66 63 60 57 Scrolling up phase Scrolling down phase
If OLD CDG is acyclic, each input port of each switch will receive a token exactly once.
Total Reconfiguration Time 75 cycles
MPSoC Research Group, ENDIF Department, University of Ferrara , via Saragat 1, 44122, Ferrara, ITALY
100 200 300 400 500 600 OSR-Lite OSR-Lite_opt_inorder OSR-Lite_opt
Maximum latency (cycles)
Execution Time (cycles)
Reconfiguration transient in an 8x8 chip multiprocessor Fully Transparent Reconfiguration Baseline OSR Intermediate
P P P P P P P P P P P P P P P P R R R R R R R R R R R R R R R R P P P P P P P P P P P P P P P P R R R R R R R R R R R R R R R R P P P P P P P P P P P P P P P P R R R R R R R R R R R R R R R R P P P P P P P P P P P P P P P P R R R R R R R R R R R R R R R R P P P P P P P P P P P P P P P P R R R R R R R R R R R R R R R R P P P P P P P P P P P P P P P P R R R R R R R R R R R R R R R R P P P P P P P P P P P P P P P P R R R R R R R R R R R R R R R R P P P P P P P P P P P P P P P P R R R R R R R R R R R R R R R R P P P P P P P P P P P P P P P P R R R R R R R R R R R R R R R R P P P P P P P P P P P P P P P P R R R R R R R R R R R R R R R R P P P P P P P P P P P P P P P P R R R R R R R R R R R R R R R R P P P P P P P P P P P P P P P P R R R R R R R R R R R R R R R R P P P P P P P P P P P P P P P P R R R R R R R R R R R R R R R R P P P P P P P P P P P P P P P P R R R R R R R R R R R R R R R R P P P P P P P P P P P P P P P P R R R R R R R R R R R R R R R R P P P P P P P P P P P P P P P P R R R R R R R R R R R R R R R R
So far:
some form of partitioning…
Next step:
MPSoC Research Group, ENDIF Department, University of Ferrara , via Saragat 1, 44122, Ferrara, ITALY
Mode‐base partitions Asynchronous partitions Partition Reshaping
Robert Hilbrich and J. Reinier van Kampenhout, “Partitioning and Task Transfer on NoC‐based Many‐Core Processors in the Avionics Domain”, ADA Deutschland 2011
Davide Bertozzi MPSoC Research Group
OUT‐OF‐ORDER DELIVERY DEADLOCK
Existing Partition Current S ↦ D path Extended Partition New S ↦ D path
No guarantee that packet following red path reaches the destination before the one following the green path:
topology is established
All possible paths
Running on 3 cores
NoC Reconfig. Running on 4 cores
Scheduling of actions in time plays a critical role!
DEADLOCK‐FREE but INEFFICIENT X DEADLOCK‐ and OoO‐PRONE
OSR mechanism again needed to provide: a separation token between old and new packets thus avoiding out‐of‐order delivery deadlock freedom
Pause
HYPERVISOR RESOURCE MANAGER
Virtualization as a means of simplifying programming Master the reconfiguration hooks exposed by the hardware for energy‐efficient platform‐management
Dynamic repartitioning
A B B C A D
ZzZ
Delivering efficient support for resource sharing (TDM, SDM, mix)… …and adaptive resource sharing for workload adaptivity Workload‐ adaptive power management while meeting application requirements Programmers should be allowed to specify hardware platform‐agnostic execution requirements (perf. targets, quality‐of‐service, reliability, or security) Programmers do not need to adapt their applications to the host system hardware, but just to the abstracted environment provided inside each VM.
Platform state
MPSoC Research Group, ENDIF Department, University of Ferrara , via Saragat 1, 44122, Ferrara, ITALY
– Different degrees of isolation
– Challenges the resource management policy
– Runtime modification of the routing function – Adaptive partition size and shape
