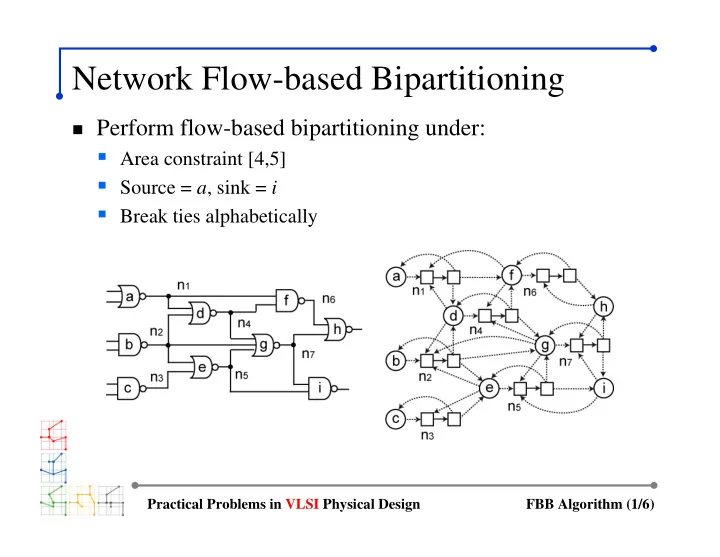

Network Flow-based Bipartitioning Perform flow-based bipartitioning under: Area constraint [4,5] Source = a , sink = i Break ties alphabetically Practical Problems in VLSI Physical Design FBB Algorithm (1/6) First Max-Flow and Its

SLIDE 1

Practical Problems in VLSI Physical Design FBB Algorithm (1/6)

Perform flow-based bipartitioning under:

Area constraint [4,5] Source = a, sink = i Break ties alphabetically

Network Flow-based Bipartitioning

SLIDE 2

Practical Problems in VLSI Physical Design FBB Algorithm (2/6)

First Max-Flow and Its Cut

SLIDE 3

Practical Problems in VLSI Physical Design FBB Algorithm (3/6)

First Node Merging

SLIDE 4

Practical Problems in VLSI Physical Design FBB Algorithm (4/6)

Second Max-Flow and Its Cut

SLIDE 5

Practical Problems in VLSI Physical Design FBB Algorithm (5/6)

Second Node Merging

SLIDE 6

Practical Problems in VLSI Physical Design FBB Algorithm (6/6)
