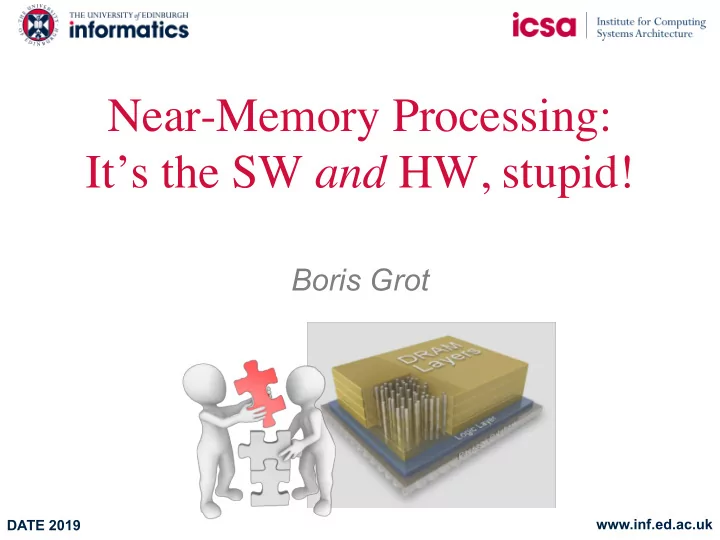

Near-Memory Processing: It’s the SW and HW, stupid!

Boris Grot

Where do we go from here?

The End is Near Here!

An exponential is ending…

10%, 20%, .. improvement in performance

• f component X won’t get you far

– No new transistors – Fixed power ceiling

Emerging technologies are either incremental (e.g., Intel’s Xpoint Memory)

• r cover niche areas (e.g., quantum)

3

The Way Forward: Vertical Integration

Software/hardware co-design for high efficiency and programmability

Is this always a good idea?

No!

Need high volume for cost-efficiency Need large perf/Watt gains to be worth the effort

4

This Talk

Vertical integration for in-memory data analytics

5

Data Analytics Takes Center Stage

User data grows exponentially

– Need to monetize data

In-memory data operators

– Poor locality – Low computational requirement – Highly parallel

7

Data Analytics Takes Center Stage

User data grows exponentially

– Need to monetize data

In-memory data operators

– Poor locality – Low computational requirement – Highly parallel

Data movement

– High energy cost – High BW requirement

8

Data movement bottlenecks data analytics

Cost of Moving Data

10

Data access much more expensive than arithmetic operation

DRAM CPU

Memory access 640 pJ Fixed point Add 0.1 pJ

DRAM BW Bottleneck

11

24 GB/s off-chip BW

Memory Array Memory Array Row Buffer

100’s of GB/s internally

DRAM CPU

Internal DRAM BW presents big opportunity

Logic inside DRAM? Not a Good Idea

Fabrication processes not compatible

– DRAM is optimized for density – Logic is irregular, wire-intensive

In-memory logic failed in the 90s

– DRAM is cost-sensitive

12

DRAM

Memory Array Memory Array Logic

Must exploit DRAM in a non-disruptive manner

Near-Memory Processing (NMP)

3D logic/DRAM stack

– Exposes internal BW to processing elements – But constrains logic layer’s area/power envelope

13

Exploit the bandwidth without data movement

640 pJ 24 GB/s 150 pJ 128 GB/s Logic DRAM CPU

How to Best Exploit DRAM BW?

DRAM internals optimized for density DRAM accesses must activate rows

– Single access activates KBs of data – Activations dominate access latency & energy

Can’t utilize internal BW with random access

– Need to maintain many open rows – Complex bookkeeping logic

14

DRAM

Need sequential access to utilize DRAM BW

NMP HW-Algorithm Co-Design

Algorithms: Must have sequential access

– Even if we perform more work

Hardware: Must leverage data parallelism

– On a tight area/power budget

15

HW-algorithm co-design necessary to make best use of NMP

Example data operator: Join

Iterates over a pair of tables to find matching keys Major operation in data analytics

16

Q: SELECT ... FROM A, B WHERE A.Key = B.Key

Join A B Result

C F A D B E A G Z C M E A C E

Baseline: CPU Hash Join

Best performing algorithm in CPU-centric systems Performed in two phases: Partition & Probe

1. Partition generates cache sized partitions 2. Probe builds and queries cache resident hash tables

17

Partition

C F A D B E A D C E F B

Probe

H(x)

E F B E F B

Optimized for random accesses to cached data

NMP Hash Join

18

To DRAM

NMP DRAM C D F E A B C F A D B E H(X)

Goal: maximum MLP

• Limited by bookkeeping logic

19

NMP DRAM C D F E A B C F A D B E H(X) &C &F

C F F C

Poor row buffer utilization

To DRAM

NMP Hash Join

NMP Hash Join

20

To DRAM

NMP DRAM C D F E A B C F A D B E H(X) &A &D

Random accesses are inefficient and under-utilize internal BW

Eliminate Random Access?

Insight: use Sort Join

– Performs mostly sequential accesses – But has higher algorithmic complexity

Trade algorithmic complexity for desirable access pattern

21

O(n) random accesses O(n log n) sequential acesses

H(x)

C F A D D C A F A C D F D F C A

Utilizing internal DRAM BW compensates for increased cost

Hash join Sort join

NMP Sort Join: Sequential Accesses

22

base base NMP DRAM A C E G B D F H

To DRAM

Drop OoO logic

• Reduces area/power of NMP

Add stream buffer

• Simple logic utilizes BW

NMP Sort Join: Sequential Accesses

23

base base NMP DRAM 2 1 3 A C E G 2 1 3 B D F H

To DRAM

&A &B

NMP Sort Join: Sequential Accesses

24

NMP DRAM base &A base &B 2 1 3 A C E G 2 1 3 B D F H

&A + 0 &A + 1

To DRAM

&B + 0 &B + 1

Good row buffer utilization

NMP Sort Join: Sequential Accesses

25

base &A base &B NMP DRAM 2 1 3 A C E G 2 1 3 B D F H

&A + 0 &A + 1 &B + 0 &B + 1

To DRAM

3 3 4 4 1 2 1 2

&A + 0 &A + 1 &B + 0 &B + 1

NMP Sort Join: Sequential Accesses

26

NMP DRAM base &A base &B 3 2 4 A C E G 3 2 4 B D F H

To DRAM

&A + 1 &B + 1

1 1

Sequential access moves bottleneck to compute

NMP Sort Join: Compute

27

base &A base &B NMP DRAM 3 1 2 4

To DRAM

3 1 2 4 A C E G B D F H

Use area/power budget for SIMD

General purpose SIMD keeps up with memory BW

Partitioning Phase

Partitioning basics:

– Each partition contains buckets of objects – For a given object, target bucket determined using a hash – The order of objects within each bucket is irrelevant à buckets are unordered

Insight: the order in which tuples are written into a bucket in the target partition is irrelevant

28

Partitioning phase: tuples are permutable

Partitioning Phase

Leverage tuple’s permutability property Turn partition’s random accesses sequential

– Enable use of SIMD during partition

29

Mondrian

Algorithm + hardware co-design for near-memory processing of data analytics NMP Algorithms

– Use sequential memory accesses – Avoid random memory accesses – Target partitioning and compute phases

NMP Harware

– High memory parallelism using simple SIMD hardware – Exploit sequential memory accesses

30

Big data operators:

– Scan – Join – Group By – Sort

Memory subsystem:

• 4 HMC stacks

– 20 GB/s external BW – 128 GB/s internal BW

Simulated systems:

• CPU-centric: ARM Cortex-A57

– 16 cores – 3-wide,128-entry ROB @ 2GHz

• NMP: Mobile ARM core

– 16 cores per stack – 3-wide, 48-entry ROB @ 1GHz

• Mondrian: SIMD in-order

– 16 cores per stack – 1024-bit SIMD @ 1GHz

Methodology

31

Flexus cycle accurate simulator [Wenisch’06]

Evaluation: Performance

32

1 10 100 Scan Sort Group by Join

Speedup (log scale) Operator

NMP Mondrian

Evaluation: Performance

33

1 10 100 Scan Sort Group by Join

Speedup (log scale) Operator

NMP Mondrian

Mondrian achieves superior BW utilization

Evaluation: Performance

34

1 10 100 Scan Sort Group by Join

Speedup (log scale) Operator

NMP Mondrian

NMP can’t utilize memory BW with random accesses

Evaluation: Performance

35

1 10 100 Scan Sort Group by Join

Speedup (log scale) Operator

NMP Mondrian

Mondrian BW utilization compensates for extra log(n) work

Summary

End of technology scaling à must think vertical

– Software + hardware co-design

Big data analytics are a critical workload

– Large datasets, little locality à memory bottleneck!

Moving compute near memory improves performance

– But need to conform to DRAM constraints

Mondrian is algorithm-hardware NMP for analytics

– Adapt algorithms/HW to DRAM constraints – Sequential rather than random memory access – Simple hardware to exploit memory bandwidth

36

inf.ed.ac.uk/bgrot

Thank you!

Questions?

37

Mondrian Energy Efficiency

38

1 10 100

Scan Sort Group by Join Efficiency Improvement (performance/energy) Operator NMP-OoO Mondrian
