MYRRHA Technology Development for the realisation of ADS in EU: Current Status & Prospects for Realisation H. At Abderrahim, P. Baeten, D. De Bruyn On behalf of the MYRRHA & FP7 CDT Teams H. At Abderrahim, Workshop on Applications

slide-1
SLIDE 1
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

1/27

MYRRHA

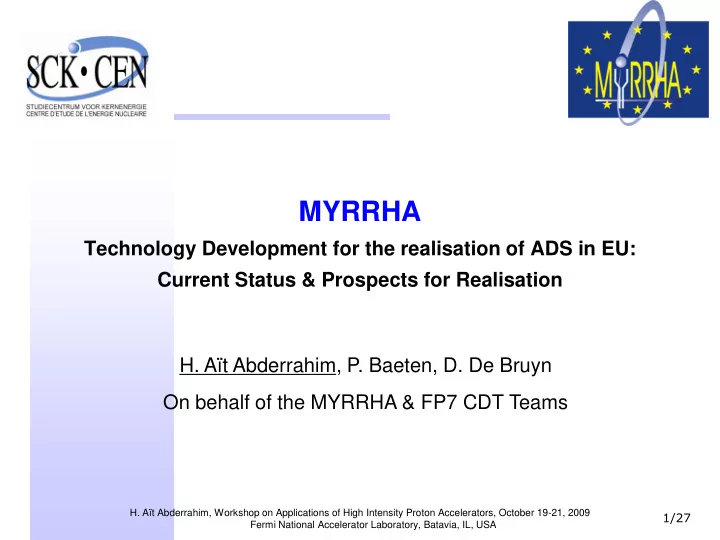

Technology Development for the realisation of ADS in EU: Current Status & Prospects for Realisation

  • H. Aït Abderrahim, P. Baeten, D. De Bruyn

On behalf of the MYRRHA & FP7 CDT Teams

slide-2
SLIDE 2
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

2/27

Outline

  • Genesis of the idea of ADS at SCK•CEN
  • International reviewing
  • Design evolution
  • Components of present design
  • Towards implementation
  • Conclusions
slide-3
SLIDE 3
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

3/27

Genesis of MYRRHA project and its evolution

Post BR2 ADONIS Transmutation Non Energy Applications MYRRHA Project (1998-2004) XT-ADS in EUROTRANS Gen.IV LFR 1994-96 1994-96 1995 1994 RI 1995 H2 2002 GIF from 2005 present MYRRHA Project

slide-4
SLIDE 4
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

4/27

  • 2001: International Strategic Guidance Committee
  • 2002: International Technical Guidance Committee
  • 2003: Review by Russian Lead Reactor Technology Experts

(ISTC#2552p project)

  • 2005: Conclusions of the European Commission FP5 Project PDS-XADS

(2001-2004)

  • 2006: European Commission FP6 Project EUROTRANS (2005-2009):

Conclusions of Review and Justification of the main options of XT-ADS starting from MYRRHA

  • 2007: International Assessment Meeting of the Advanced Nuclear

Systems Institute

  • 2008: European Commission FP7 Project Central Design Team (CDT) at

Mol for MYRRHA detailed design

  • 2009: OECD/NEA MIRT (MYRRHA International Review Team) on

request of Belgian Gov. in view of decision for funding

MYRRHA international reviewing

slide-5
SLIDE 5
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

5/27

MYRRHA design evolution

5

Draft 2 2005 XT-ADS 2006-2009 XT-ADS-HF end 2009 FASTEF 2012 LINAC 350MeV LINAC 600MeV LINAC 600MeV Subcritical design

  • ptimisation

and critical

  • peration

High power density core Low power density core Low power density core Low core power 52MW Low core power 57MW High core power 85MW Neutron flux 1015n/cm²s (>0.75MeV) Neutron flux 7.1014n/cm²s (>0.75MeV) Neutron flux 1015n/cm²s (>0.75MeV)

Safety ‘ULOF’

slide-6
SLIDE 6
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

6/27

MYRRHA/FASTEF objectives

  • To be operated as a flexible fast spectrum irradiation facility working

in subcritical and critical mode allowing for:

  • fuel developments for innovative reactor systems;
  • material developments for GEN IV systems;
  • material developments for fusion reactors;
  • commercial services
  • efficient transmutation of MA requesting

high fast flux intensity (Φ>0.75MeV = 1015 n.cm-2.s-1);

  • To demonstrate the ADS full concept by coupling the three

components (accelerator, spallation target and sub-critical reactor) at reasonable power level scalable to an industrial demonstrator;

  • To contribute to the demonstration of LBE technology and to

demonstrate the critical mode operation of a heavy liquid metal cooled reactor as an alternative technology to SFR

slide-7
SLIDE 7
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

7/27

Core performances

7

Parameter (unit) XT-ADS HF

Core power MWth 85 Active core average power density W/cm3 246 Fast flux above 0.75 MeV n/cm2.s 1015 Inlet temperature °C 270 Coolant DT °C 130 LBE Velocity (fuel rod) m/s 1.72 LBE Velocity (spacer-grid) m/s 2.50 Temperature at clad surface °C 496 Maximum linear power W/cm 372 Pressure drop mb 1066

slide-8
SLIDE 8
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

8/27

  • keff≈0.95
  • 30-35 % MOX fuel
  • Core height 60 cm x Ø 100 cm
  • 70 MWth

Subcritical core

IPS Spallation Target Fuel Assemblies

8

slide-9
SLIDE 9
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

9/27

Flexible Irradiation facility

9

SiC/He SiC/He TFI TFI TFI T91/He T91/He T91/He T91/He T91/LBE T91/LBE MA MA

slide-10
SLIDE 10
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

10/27

Inner vessel Cover Core structure Inner vessel Cover Core structure Spallation loop Inner vessel Cover Core structure Spallation loop Heat exchangers Inner vessel Cover Core structure Spallation loop Heat exchangers Pumps Inner vessel Cover Core structure Spallation loop Heat exchangers Pumps Diaphragm Inner vessel Cover Core structure Spallation loop Heat exchangers Pumps Diaphragm Fuel storage Inner vessel Cover Core structure Spallation loop Heat exchangers Pumps Diaphragm Fuel storage Fuel manipulators Inner vessel Cover Core structure Spallation loop Heat exchangers Pumps Diaphragm Fuel storage Fuel manipulators Guard vessel

MYRRHA Layout

10

slide-11
SLIDE 11
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

11/27

Confirmation of design choices

Confirmations of design choices within FP6 IP-EUROTRANS by European Partners (2006-2009) (AREVA, ANSALDO, EA, FZK, CEA, CNRS and others)

  • Core specifications
  • General specifications of primary system
  • In-vessel fuel handling from beneath the core

11

slide-12
SLIDE 12
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

12/27

Spallation target & loop design

  • accept megawatt proton beam
  • 600 MeV, 2.5-3 mA  ~1-1.2 MW heat
  • fit into central hole in core

(3 fuel hexagons removed)

  • compact target
  • off-axis geometry
  • match MYRRHA purpose as experimental irradiation machine
  • flexible remote handling
  • survive (lifetime)

12

 Windowless design and off-centre spallation loop

slide-13
SLIDE 13
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

13/27

The spallation target zone Feeding system FS1 FS2 FS3

Windowless Target Flow

13

slide-14
SLIDE 14
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

14/27

Passive secondary and tertiary cooling system

14

slide-15
SLIDE 15
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

15/27

Decay heat removal system

15

  • Decay heat removal (DHR) through

secondary loops

  • 2 independent loops
  • redundancy (each loop has 100% capability

– min. sized for 3% continuous power)

  • passive operation (natural convection in

primary, secondary and tertiary loop)

  • Ultimate DHR through RVCS (natural

convection)

slide-16
SLIDE 16
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

16/27

  • Ion source & LEBT
  • 50 keV
  • MEBT
  • ...
  • 352 MHz SPOKE LINAC
  • Earth level
  • linac level (about -5m)
  • target level (about -30m)
  • Beam dump

casemate

  • ...
  • ...
  • 704 MHz ELIPTICAL LINAC 0.5
  • 704 MHz ELIPTICAL LINAC 0.65
  • 90

M eV

  • 20

M eV

  • 60

M eV

16

LINAC Layout

slide-17
SLIDE 17
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

17/27

Safety criteria

  • Fuel (MOX): no melting
  • T < 2707°C for fresh fuel
  • T < 2673°C for 100 MWd/kg burnup
  • Cladding (T91):
  • steady state

embrittlement  200-300°C  T  500-550°C  corrosion

  • transient

no creep rupture  T < 800°C for max. 30 min

  • Coolant (LBE): no freezing  T > 138°C

17

slide-18
SLIDE 18
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

18/27

Safety improvements in XT-ADS

  • Unprotected events addressed by improvement of

natural convection

  • core hydraulic resistance reduced
  • level difference between core and PHX increased (1,2 m  2 m)
  • Boiling water HX instead of pressurized water HX to

mitigate tube rupture consequences

  • Ultimate DHR by RVCS system

18

slide-19
SLIDE 19
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

19/27

Maximum clad temperature during a ULOF

300 400 500 600 700 800 900 1000 1100 200 400 600 800 1000 1200 1400 1600 time (s)

T (°C)

MYRRHA_Draft2 XT-ADS

19

slide-20
SLIDE 20
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

20/27

O.T.L. concludes positive on the feasibility

In Service Inspection with US & In-vessel Repair

20

slide-21
SLIDE 21
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

21/27

O.T.L. concludes positive on the feasibility

Ex-vessel remote handling

21

slide-22
SLIDE 22
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

22/27

Main topics for design

  • ptimisation & detailing

(2009 – 2011)

  • Nuclear island
  • Reactor cover/plug & containment
  • In-vessel fuel storage
  • In vessel fuel manipulators
  • US camera visualisation
  • Inspection & repair manipulators
  • Fuel procurement & qualification
  • Balance of plant
slide-23
SLIDE 23
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

23/27

Why MYRRHA at SCKCEN ?

1962

BR2

Fast Neutron Material Testing Reactor (fission) Fuel testing For LWR & GEN II/GEN III Irradiation Services:

  • Medical RI
  • Silicium doping
  • Others

Very Fast Neutron Material Testing Reactor (fission + fusion) Fuel testing For LFR GEN IV ADS-Demo + P&T testing

(Partitioning & Transmutation)

Irradiation Services:

  • Medical RI
  • Silicium doping
  • Others

LFR GEN IV technology demonstration

2020

MYRRHA

slide-24
SLIDE 24
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

24/27

Project schedule

2009-2011 Detailed Engineering Design 2017 Components assembly

  • n site

2014-2016 Construction

  • f components

& Civil Works 2012-2013 Techn.specs Call for Tenders & Awards 2018-2019 Commissioning

slide-25
SLIDE 25
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

25/27

MYRRHA: Investment budget (in €2009)

INVESTMENT ≈ 960 M€

40 M€/Y

(Prov. 8 M€/y for dismanting)

slide-26
SLIDE 26
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

26/27

MYRRHA: Source of funds

Belgium 40%

(hot for the moment)

France Germany Italy Spain EU

& beyond (USA, ROK,…)

20%

Building Equipment Engineering in-kind in-cash FP7 EII debt

slide-27
SLIDE 27
  • H. Aït Abderrahim, Workshop on Applications of High Intensity Proton Accelerators, October 19-21, 2009

Fermi National Accelerator Laboratory, Batavia, IL, USA

27/27

with MYRRHA we will reach

Science towards Sustainability

Conclusion
