Multimodal Transit Transfer Center (MTTC) Feasibility Study / Concept Design Design Workshop February 7, 2020 Agenda Introductions Project Status Update Public Survey Findings Site Selection Process Preferred MTTC Site

slide-1
SLIDE 1

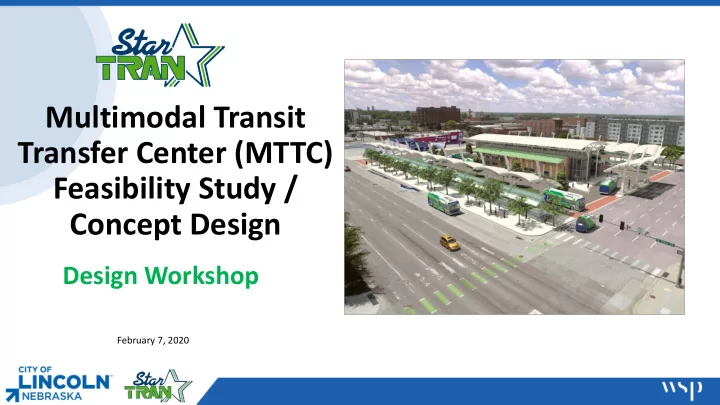

Multimodal Transit Transfer Center (MTTC) Feasibility Study / Concept Design

Design Workshop

February 7, 2020

slide-2
SLIDE 2

Agenda

  • Introductions
  • Project Status Update
  • Public Survey Findings
  • Site Selection Process
  • Preferred MTTC Site
  • Functional Needs Assessment
  • MTTC Design Workshop
  • Next Steps
slide-3
SLIDE 3

Agenda

  • Introductions
  • Project Status Update
  • Public Survey Findings
  • Site Selection Process
  • Preferred MTTC Site
  • Functional Needs Assessment
  • MTTC Design Workshop
  • Next Steps
slide-4
SLIDE 4

MTTC Project Schedule

October

  • Project

Kickoff

  • Existing

Conditions

November

  • Advisory #1
  • Public

Engagement

  • Site

Alternatives

December

  • Site

Assessment Screening

January

  • Site

Selection

  • Conceptual

Layout

February

  • Advisory #2
  • Concept

Refinement

  • Preferred

Site Plan

March

  • Advisory #3
  • Public

Engagement

  • Draft Plan

April

  • Plan

Revisions

  • Final Plan
slide-5
SLIDE 5

Agenda

  • Introductions
  • Project Status Update
  • Public Survey Findings
  • Site Selection Process
  • Preferred MTTC Site
  • Functional Needs Assessment
  • MTTC Design Workshop
  • Next Steps
slide-6
SLIDE 6

Final Survey Results Summary

  • 595 Surveys Taken
  • Question Types:
  • Goal Ranking
  • Amenity Prioritization
  • Trip Purpose
  • Origin / Destination
  • Demographic
slide-7
SLIDE 7

Survey Participant Profile

6% 14% 19% 36% 19% 6%

What is your age?

20 and below 21-29 30-35 36-50 51-65 66 and above

84% 7% 3% 2%

What is your ethnicity?

AfricanAmerican Asian Caucasian Choose not to answer Latino Hispanic Two or more races 14% 23% 31% 18% 2% 12%

What is your household income?

Less than $25,000 $25,000-50,000 $50,000-100,000 $100,000-200,000 More than $200,000 Choose not to answer

19% 16% 4% 23% 38%

How often do you use public transit?

5 or more days a week 2-4 days a week Once a week A few times a month I dont use transit

slide-8
SLIDE 8

Introduction and Goal Priority

slide-9
SLIDE 9

Project Goal Prioritization

Top Ranked Priorities: 1.Improve Efficiency 2.Equitable Access 3.Improve Safety

1 1.5 2 2.5 3 3.5 4 4.5 5

Average Study Goal Ranking

Average Rank

slide-10
SLIDE 10

Transit Center Passenger Amenity Budgeting

slide-11
SLIDE 11

7% 5% 16% 20% 13% 6% 6% 14% 13% Transit Amenities: Budget Allocation Bicycle Storage Bike Scooter Rental Covered Boarding Platform Indoor Waiting Area Lighting Retail Accommodations Remaining Funds (Not used) Seating Technology Amenities

Amenities Budget Result

MTTC Amenity Prioritization:

  • 1. Indoor Waiting
  • 2. Covered Boarding Platform
  • 3. Seating
  • 4. Lighting
  • 5. Technology Amenities
slide-12
SLIDE 12

Travel Patterns

slide-13
SLIDE 13

Clusters of Destinations:

  • UNL
  • Capital area
  • Lancaster Government

Buildings

  • Gold’s Transfer Location

Travel Patterns

slide-14
SLIDE 14

Agenda

  • Introductions
  • Project Status Update
  • Public Survey Findings
  • Site Selection Process
  • Preferred MTTC Site
  • Functional Needs Assessment
  • MTTC Design Workshop
  • Next Steps
slide-15
SLIDE 15

 In the Downtown Area  Accommodate Route Movements  Accommodate Program Needs  Multi-Modal Connectivity  Suitability & Feasibility  Social & Economic Benefits

Ranking Screening

Site Selection Methodology

slide-16
SLIDE 16

Prerequisites

  • Located in the Downtown Area
  • Must accommodate route movement &

bus sizes

  • Site must accommodate program needs

(both operations site components and building functions)

  • Environmental restrictions (floodplain)
  • Historic restrictions
  • Location does not add operational cost

to fixed route network

slide-17
SLIDE 17

Selection Criteria

Multi-m odal Connectivity

Bicycle Infrastructure Vehicular Accessibility (rideshare, kiss-n-ride) Public Parking Availability Pedestrian Connectivity Public Transit Connections

Suitability & Feasibility

Legal Condition (Easem ents, Liens, or Deed Restrictions) Site Preparation Issue (such as physical encum brance, ownership, environm ental) Block Size and Geometry Site Visibility Maintains existing routing and operational scale Transit Operational & Future Growth Needs

Social & Econom ic Benefit

Align with City of Lincoln Downtown Master Plan Developm ent Potential Prom ote Econom ic Developm ent in Downtown Area Proximity to Compatible Uses and Amenities Proxim ity to Ridership Origins / Destinations

slide-18
SLIDE 18

Site Alternatives Screening and Ranking

  • 17 Totals Sites
  • 7 Sites Passed

Prerequisite Screening

  • Remaining Sites Scored

and Ranked

slide-19
SLIDE 19

Block 69 Block 63

Top Rated MTTC Sites

slide-20
SLIDE 20

Agenda

  • Introductions
  • Project Status Update
  • Public Survey Findings
  • Site Selection Process
  • Preferred MTTC Site
  • Functional Needs Assessment
  • MTTC Design Workshop
  • Next Steps
slide-21
SLIDE 21

Block 63 - Pershing

Top Ranked Site:

  • Size to accommodate

transit needs

  • Under City ownership
  • Proximity to employment
  • 11,000 jobs within ½ mile
  • Opportunity for joint

development with Library

  • Connectivity to N Street

Cycle Track

slide-22
SLIDE 22

Block 63

slide-23
SLIDE 23

Block - 63

16th Street N Street M Street Centennial Mall

One Way One Way Two Way One Way Two Way

slide-24
SLIDE 24

Block 69 – On M St./ 9th to 10th

Second Rated Site:

  • Centrally Located
  • Connectivity to N St. Cycle

Track

  • Proximity to Population and

Employment

  • Minimal adjustment to

StarTran Routes

  • Under City Ownership

(Mostly)

slide-25
SLIDE 25

Block 69

slide-26
SLIDE 26

Block - 69

10th Street N Street M Street 9th Street

One Way One Way One Way One Way

slide-27
SLIDE 27

Current Level of Service – AM Peak

slide-28
SLIDE 28

Current Level of Service – PM Peak

slide-29
SLIDE 29

Agenda

  • Introductions
  • Project Status Update
  • Public Survey Findings
  • Site Selection Process
  • Preferred MTTC Site
  • Functional Needs Assessment
  • MTTC Design Workshop
  • Next Steps
slide-30
SLIDE 30

Program Requirements

Exterior Transit (Bus) # StarTran fixed route bus bays (incl. UNL) 18 Paratransit bus bays 2 Intercity bus bays 1 BRT Bus Bays 2 Layover bays 2

  • Functional Needs Assessment completed with stakeholder input
  • Program will be test fit onto the preferred site to establish feasibility
  • Bus bays sized for 35’ local bus, 27’ paratransit and 40’ BRT

Exterior Transit (Support) # StarTran service vehicle space 1 StarTran Staff Space 20 StarTran Supervisor Space 1 Security Vehicle Space 1 Shift Change Van Space 1

slide-31
SLIDE 31

Program Requirements

Exterior Non-Transit (inter-modal) Number Parking 350 Sf/space Bicycle Racks 20 Bicycle Lockers 8 Scooter-Share Spaces 20 Dockless Bike-Share Spaces 20 Bikeshare Dock 10 Car-Share (Zipcar) 4 C/AV 4 Electric Vehicle Charging Station 4 Rideshare/Taxi/Kiss-and-Ride 4

slide-32
SLIDE 32

Program Requirements

Exterior Non-Transit (misc) Number Public Gathering Space 1 Trash / Recycling Enclosure 1 Generator 1 Exterior Maintenance Storage 1 Dedicated Artwork Location 1 Bioswale / Rainwater processing 1 Smoking Area 1 Green Space / Park Space 1

slide-33
SLIDE 33

Program Requirements

Interior Building Area Sf Passenger Services / Waiting 1,000 StarTran Administrative 3,500 StarTran Bus Operators 1,300 Building Services 1,200 TOD – Retail/Residential/Parking ???

slide-34
SLIDE 34

Agenda

  • Introductions
  • Project Status Update
  • Public Survey Findings
  • Site Selection Process
  • Preferred MTTC Site
  • Functional Needs Assessment
  • MTTC Design Workshop
  • Next Steps
slide-35
SLIDE 35

Block - 63

16th Street N Street M Street Centennial Mall

One Way One Way Two Way One Way Two Way

slide-36
SLIDE 36

BLOCK 63 OPTION A

slide-37
SLIDE 37

BLOCK 63 OPTION B

slide-38
SLIDE 38

BLOCK 63 OPTION C

slide-39
SLIDE 39

BLOCK 63 OPTION D

slide-40
SLIDE 40

Block - 69

10th Street N Street M Street 9th Street

One Way One Way One Way One Way

slide-41
SLIDE 41

BLOCK 69 OPTION B

slide-42
SLIDE 42

BLOCK 69 OPTION C

slide-43
SLIDE 43

BLOCK 69 OPTION D

slide-44
SLIDE 44

Agenda

  • Introductions
  • Project Status Update
  • Public Survey Findings
  • Site Selection Process
  • Preferred MTTC Site
  • Functional Needs Assessment
  • MTTC Design Workshop
  • Next Steps
slide-45
SLIDE 45

Next Steps

  • Select Preferred Site
  • Refine Conceptual Layout
  • Public Engagement
  • Cost Estimation and Benefit

Cost Analysis

  • Final Plan
