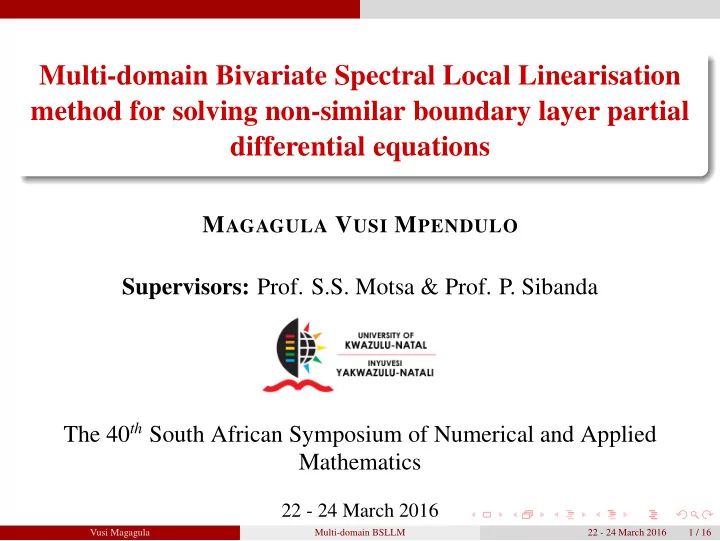

Multi-domain Bivariate Spectral Local Linearisation method for solving non-similar boundary layer partial differential equations

MAGAGULA VUSI MPENDULO Supervisors: Prof. S.S. Motsa & Prof. P. Sibanda The 40th South African Symposium of Numerical and Applied Mathematics

22 - 24 March 2016

Vusi Magagula Multi-domain BSLLM 22 - 24 March 2016 1 / 16

Overview

1

AIM

2

SOLUTION PROCEDURE

3

RESULTS AND DISCUSSION

4

CONCLUSION & FUTURE RESEARCH DIRECTION

5

REFERENCES

Vusi Magagula Multi-domain BSLLM 22 - 24 March 2016 2 / 16

AIM

Aim & Objectives

Aim

To present an extension of the Bivariate Spectral Local Linearisation Method (BSLLM)[1] for solving non-similar nonlinear PDEs over large time intervals. BSLLM uses Chebyshev-Gauss-Lobbatto points (see [3, 4]) Drawback of BSLLM - accuracy deteriorates over large time intervals. New approach termed - Multi-domain Bivariate Spectral Local Linearisation Method (MD-BSLLM)

Objectives

Solve non-linear non-similar boundary layer equations over a large time domain using the MD-BSLLM. Validate the results using a series solution approach.

Vusi Magagula Multi-domain BSLLM 22 - 24 March 2016 3 / 16

SOLUTION PROCEDURE

Solution Method

The solution approach involves Domain decomposition linearisation and decoupling bivariate interpolation. pseudo-spectral approximation

Vusi Magagula Multi-domain BSLLM 22 - 24 March 2016 4 / 16

SOLUTION PROCEDURE

Numerical Experiment

∂3f ∂η3 + 1 4(n + 3)f ∂2f ∂η2 − 1 2(n + 1) ∂f ∂η 2 + ζ ∂2f ∂η2 + (1 − w)g + wh = 1 4(1 − n)ζ ∂f ∂η ∂2f ∂ζ∂η − ∂2f ∂η2 ∂f ∂ζ

• ,

(1) 1 Pr ∂2g ∂η2 + 1 4(n + 3)f ∂g ∂η + ζ ∂g ∂η = 1 4(1 − n)ζ ∂f ∂η ∂g ∂ζ − ∂g ∂η ∂f ∂ζ

• ,

(2) 1 Sc ∂2h ∂η2 + 1 4(n + 3)f ∂h ∂η + ζ ∂h ∂η = 1 4(1 − n)ζ ∂f ∂η ∂h ∂ζ − ∂h ∂η ∂f ∂ζ

• ,

(3) subject to f(ζ, 0) = 0, ∂f ∂η (ζ, 0) = 0, g(ζ, 0) = h(ζ, 0) = 1, ∂f ∂η (ζ, ∞) = g(ζ, ∞) = h(ζ, ∞) = 0. Formulated and Solved by Hussain et.al. [2] using finite-difference based Keller-box technique Results were validated using Series Solutions, for small and large ζ

Vusi Magagula Multi-domain BSLLM 22 - 24 March 2016 5 / 16

SOLUTION PROCEDURE

Domain Decomposition

ζ0 ζ1 ζ2 ζ3 ζl−1 ζl ζp−1 ζp Γ1 Γ2 Γ3 Γl Γp ζl−1 ζl ζ(l) ζ(l)

1

ζ(l)

2

ζ(l)

s−1

ζ(l)

s

Figure: Multi-domain Grid The patching condition requires that f (l)(η, ζl−1) = f (l−1)(η, ζl−1), η ∈ [a, b], (4) where f (l)(η, ζ) denotes the solution of equation (2) at each sub-interval Γl

Vusi Magagula Multi-domain BSLLM 22 - 24 March 2016 6 / 16

SOLUTION PROCEDURE

Linearisation and Decoupling

The PDEs are linearised using the quasi-linearisation method.

an iterative procedure based on the Taylor-series expansion about the previous estimates of the solution.

Applying the quasi-linearisation method on one function at a time, results in three decoupled linear PDEs. In each sub-interval [ζl−1, ζl], these decoupled linear PDEs can be solved iteratively in a sequential manner until the desired solution is obtained. β0,r ∂3f (l)

r+1

∂η3 + β1,r ∂2f (l)

r+1

∂η2 + β2,r ∂f (l)

r+1

∂η + β3,rf (l)

r+1 + β4,r

∂f (l)

r+1

∂ξ + β5,r ∂f ′(l)

r+1

∂ξ = R(l)

f,r,

(5) σ1,r ∂2g(l)

r+1

∂η2 + σ2,r ∂g(l)

r+1

∂η + σ3,rg(l)

r+1 + σ4,r

∂g(l)

r+1

∂ξ = R(l)

g,r,

(6) ω1,r ∂2h(l)

r+1

∂η2 + ω2,r ∂h(l)

r+1

∂η + ω3,rh(l)

r+1 + ω4,r

∂h(l)

r+1

∂ξ = R(l)

h,r,

(7)

Vusi Magagula Multi-domain BSLLM 22 - 24 March 2016 7 / 16

SOLUTION PROCEDURE

Pseudo-spectral Approximation

Assume that the solution at each sub-interval Γl, denoted by f (l)(η, ζ), can be approximated by a bivariate Lagrange interpolation polynomial of the form f (l)(η, ζ) ≈

Nx

• i=0

Nt

• j=0

f (l)(ηi, ζj)Li(η)Lj(ζ). (8) Transpiration parameter derivative values are computed at the grid points (ηi, ζj): ∂f (l) ∂ζ

• (ηi,ζj)

=

• 2

ζl − ζl−1 Nt

• v=0

djvf (l)(ηj, ζv) =

• 2

ζl − ζl−1 Nt

• v=0

djvF(l)

v

(9) The nth order space derivative is defined as ∂nf (l) ∂ηn

• (ηi,ζj)

= 2 η∞ n

Nx

• ρ=0

Dn

iρf (l)(ηρ, ζj) =

2 η∞ n DnF(l)

j ,

j = 0, 1, 2, . . . , Nt, (10) where the vector F(l)

j

is defined as F(l)

j

= [f (l)(η0, ζj), f (l)(η1, ζj), . . . , f (l)(ηNx, ζj)]T. (11)

Vusi Magagula Multi-domain BSLLM 22 - 24 March 2016 8 / 16

SOLUTION PROCEDURE

Pseudo-spectral Approximation

Substituting equations (9) and (10) into equation (5), we get

• β

β β0,rD3 + β β β1,rD2 + β β β2,rD + β β β3,r

• F(l)

r+1,j + β

β β4,r

Nt

• v=0

djvF(l)

r+1,v + β

β β5,r

Nt

• v=0

djvDF(l)

r+1,v = R(l) f,r,

(12) for j = 0, 1, 2, . . . , Nt. The patching condition requires that f (l)

r+1(ηi, ζ(l−1,j)) = f (l−1) r+1 (ηi, ζ(l−1,j)),

η ∈ [a, b], (13) The initial unsteady solution of equation (5) when ζ = 0 corresponds to t = tNt = −1. Equation (12) is evaluated for j = 0, 1, · · · , Nt − 1

• β

β β0,rD3 + β β β1,rD2 + β β β2,rD + β β β3,r

• F(l)

r+1,j + β

β β4,r

Nt−1

• v=0

djvF(l)

r+1,v + β

β β5,r

Nt−1

• v=0

djvDF(l)

r+1,v = R

R R(l)

1,j, (14)

and R R R(l)

1,j = R(l) f,r − β

β β4,rdjNtF(l)

Nt − β

β β5,rdjNtDF(l)

Nt .

Vusi Magagula Multi-domain BSLLM 22 - 24 March 2016 9 / 16

SOLUTION PROCEDURE

Imposing boundary conditions for j = 0, 1, · · · , Nt − 1, equation (14) can be expressed as the following Nt(Nx + 1) × Nt(Nx + 1) matrix system      A0,0 A0,1 · · · A0,Nt−1 A1,0 A1,1 · · · A1,Nt−1 . . . . . . ... . . . ANt−1,0 ANt−1,1 · · · ANt−1,Nt−1            F(l) F(l)

1

. . . F(l)

Nt−1

      =       R R R(l)

1,0

R R R(l)

1,1

. . . R R R(l)

1,Nt−1

      , (15) where Ai,i = β β β0,rD3 + β β β1,rD2 + β β β2,rD + β β β3,rI + β β β4,rdiiI + β β β5,rdiiD (16) Ai,j = β β β4,rdijI + β β β5,rdijD, when i = j, (17)

Vusi Magagula Multi-domain BSLLM 22 - 24 March 2016 10 / 16

RESULTS AND DISCUSSION

Results

Comparison of Multi-domain bivariate spectral local linearisation solution for the skin friction against the series solution for large ζ. MD-BSLLM Series Solution for large ζ ζ f ′′(0, ζ) f ′′(0, ζ) 5 0.3088214 0.3088214 10 0.1547399 0.1547399 15 0.1031717 0.1031717 20 0.0773803 0.0773803 25 0.0619045 0.0619045 30 0.0515872 0.0515872 35 0.0442176 0.0442176 40 0.0386905 0.0386905

Table: Nx = 60, Nt = 5, p = 20

Vusi Magagula Multi-domain BSLLM 22 - 24 March 2016 11 / 16

RESULTS AND DISCUSSION

Results

Comparison of Multi-domain bivariate spectral local linearisation solution for the Sherwood number against the series solution for large ζ MD-BSLLM Series Solution for large ζ ζ −h′(0, ζ) −h′(0, ζ) 5 3.0018658 3.0018658 10 6.0002332 6.0002332 15 9.0000691 9.0000691 20 12.0000292 12.0000292 25 15.0000149 15.0000149 30 18.0000086 18.0000086 35 21.0000054 21.0000054 40 24.0000036 24.0000036

Table: Nx = 60, Nt = 5, p = 20

Vusi Magagula Multi-domain BSLLM 22 - 24 March 2016 12 / 16

RESULTS AND DISCUSSION

Results

Comparison of Multi-domain bivariate spectral local linearisation solution for the Nusselt number against the series solution for large ζ MD-BSLLM Series Solution for large ζ ζ −g′(0, ζ) −g′(0, ζ) 5 3.5018961 3.5018961 10 7.0002370 7.0002370 15 10.5000702 10.5000702 20 14.0000296 14.0000296 25 17.5000152 17.5000152 30 21.0000088 21.0000088 35 24.5000055 24.5000055 40 28.0000037 28.0000037

Table: Nx = 60, Nt = 5, P = 20

Vusi Magagula Multi-domain BSLLM 22 - 24 March 2016 13 / 16

CONCLUSION & FUTURE RESEARCH DIRECTION

Conclusion

The MD-BSLLM method can be used to solve non-linear non-similar boundary layer equations over a large time domain. We were able to validate the results using a series solution approach.

Future Research Direction

Solve different types of NPDEs arising from Physics, Mathematical Biology, etc.
