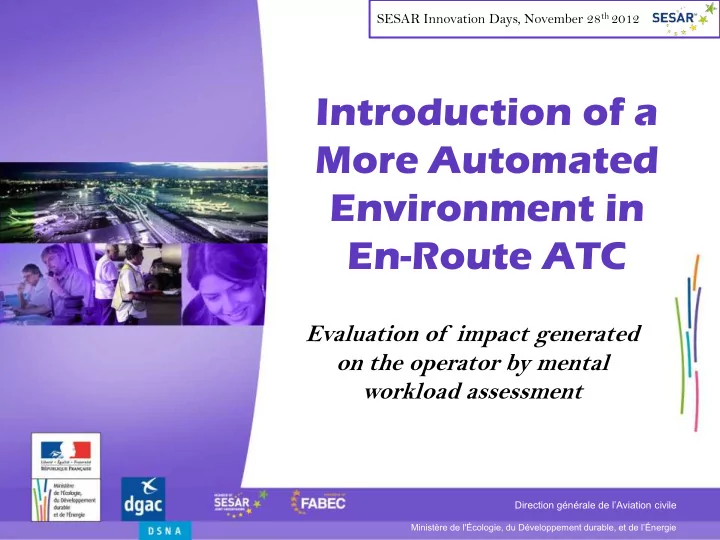

Introduction of a More Automated Environment in En-Route ATC

Evaluation of impact generated

• n the operator by mental

workload assessment

SESAR Innovation Days, November 28th 2012

Ministère de l'Écologie, du Développement durable, et de l’Énergie

Direction Générale de l’Aviation Civile

SESAR AR PR PROJ OJET ET AN AND TH THE STU TUDY DY PR PRESENTED ENTED

Results Conclusion Data analysis Introduction Contents Experiment SESAR project

1

Ministère de l'Écologie, du Développement durable, et de l’Énergie

Direction Générale de l’Aviation Civile

Final objective:

Development of an operational concept in the 4DTRAD environment Environment including CPDLC for 4D clearances To resume: Introduction of a partial automation of the ATC task

Resolution of a part of conflicts by an automated system

Concept of SESAR W.P.4.7.2:

Including two complementary services in ATC working situation:

The TC-SA service: De-conflicting service The CD aid service: Conflict identification

Make easier the detection and resolution of conflicts for controllers

SESAR AR W.P. P.4. 4.7.2: 7.2: OB OBJEC ECTIVE TIVE AN AND D CON ONCE CEPT PT

Results Conclusion Data analysis Introduction Contents Experiment SESAR project

2

Ministère de l'Écologie, du Développement durable, et de l’Énergie

Direction Générale de l’Aviation Civile

IN INTR TRODU ODUCTION CTION

Pre-requisites:

• 1. Define the way to integrate these “solutions” to the ATC

working environment:

Integrate conflict aid services to the working situation

Define the HMI (Human Machine Interface) that could be used

• 2. Determine which parameters make possible the evaluation
• f the impact generated on the controllers:

The level of Mental Workload

Results Conclusion Data analysis Introduction Contents Experiment SESAR project

3

Ministère de l'Écologie, du Développement durable, et de l’Énergie

Direction Générale de l’Aviation Civile

Presentation of the experiment carried out and first results deducted:

Air Traffic Control situation built: working position and air traffic samples

used Experiment conditions evaluated Participants Experiment principle Data recorded and analyzed First results achieved

CON ONTENTS TENTS OF OF TH THE TA TALK LK

Results Conclusion Data analysis Introduction Contents Experiment SESAR project

Objective: Assess mental workload felt by ATCo when working with conflict aid services

4

Ministère de l'Écologie, du Développement durable, et de l’Énergie

Direction Générale de l’Aviation Civile

5

Working position chosen:

All electronic => The controllers has to give information to the interface about his/her actions Built by the R&D service of the French civil aviation Composed of 2 main parts: An upper part: The radar screen A lower part: A Wacom pen display

AI AIR TRA TRAFFIC FIC CON ONTR TROL OL SIT ITUA UATI TION ON BU BUIL ILT T FOR OR TH THE EXPE PERIME IMENT NT

Results Conclusion Data analysis Introduction Contents Experiment SESAR project

Including conflict aid services in the working position:

Dedicated study Solutions chosen:

• 1. TC-SA: Conflicts automatically resolved => A green clock on the label of aircraft

constrained by speed adjustment

• 2. CD aid: Residual conflicts detected appear in a timetable

Ministère de l'Écologie, du Développement durable, et de l’Énergie

Direction Générale de l’Aviation Civile

Air Traffic sector

Reflecting a futuristic air traffic control situation Use of a generic sector

Futuristic rules and procedures applied (business trajectories)

AI AIR TRA TRAFFIC FIC CON ONTR TROL OL SIT ITUA UATI TION ON BU BUIL ILT T FOR OR TH THE EXPE PERIME IMENT NT

Results Conclusion Data analysis Introduction Contents Experiment SESAR project

6

Ministère de l'Écologie, du Développement durable, et de l’Énergie

Direction Générale de l’Aviation Civile

4 experiment conditions:

Assess the impact of each service aid, independently and coupled

Conditions and air traffic samples order crossed between participants Played with “equivalent” air traffic samples

EXPE PERIMENTATI IMENTATION ON COND ONDIT ITIONS IONS EVALUA ALUATED TED

Results Conclusion Data analysis Introduction Contents Experiment SESAR project

Condition 1 Reference Condition 2 TC-SA only Condition 3 CD aid only Condition 4 TC-SA+CD aid

7

Ministère de l'Écologie, du Développement durable, et de l’Énergie

Direction Générale de l’Aviation Civile

8

12 European and qualified Air Traffic Controllers:

8 French ATCo coming from different French control centers 2 ATCo from MUAC, Maastricht 2 ATCo from Skyguide, Switzerland

PA PARTI TICIP IPANTS ANTS OF OF TH THE EXPE PERIMENT RIMENT

Results Conclusion Data analysis Introduction Contents SESAR project Experiment

All participants previously had a significant training (2 weeks) on HMI used, air traffic sector and ATC simulations

Ministère de l'Écologie, du Développement durable, et de l’Énergie

Direction Générale de l’Aviation Civile

9

For each experiment conditions Manage a two-hours air traffic sample:

Binomial of Air Traffic Controllers: TC & PC

After one hour, role switching: TC  PC

EXPE PERIMENT IMENT PR PRIN INCIP CIPLE LE

Results Conclusion Data analysis Introduction Contents Experiment SESAR project

Ministère de l'Écologie, du Développement durable, et de l’Énergie

Direction Générale de l’Aviation Civile

10

Three kinds of parameters have been recorded to assess mental workload felt by participants

Performance assessment: Radio frequency data

Number of clearances and radio occupancy Subjective assessment: ISA assessment scale and AIM questionnaire Evaluation of mental workload felt (from 1 to 4), each 5 minutes periods Questionnaire to assess the impact of automation on mental workload Objective assessment: Eye-tracker data Number and duration of eye fixations Pupil diameter data

DAT ATA A RECORD ORDED ED AN AND AN ANAL ALYSI YSIS S CAR ARRIED IED OU OUT

Results Conclusion Data analysis Introduction Contents Experiment SESAR project

Ministère de l'Écologie, du Développement durable, et de l’Énergie

Direction Générale de l’Aviation Civile

11

Three consistent mental workload evaluations:

Radio activity (number of clearances and radio occupancy) lower with conflict aid services Especially for TC-SA and TC-SA and CD aid conditions Subjective assessment shows a higher level of mental workload felt for reference condition Lower levels are observed for TC-SA and TC-SA and CD aid conditions Eye-tracking data Number of eye fixations on conflict aircraft is higher for the reference condition The average duration of eye fixations on conflict aircraft is lower for CD aid and TC-SA + CD aid conditions The maximum of pupil diameter during eye fixations on conflict aircraft is lower for TC-SA and TC-SA + CD aid services

FIR IRST T RESULTS ULTS AC ACHIE IEVED VED

Results Conclusion Data analysis Introduction Contents Experiment SESAR project

The TC-SA and TC-SA + CD aid conditions seem to be the most mental workload efficient

The average number of clearances per experimental condition The average occupancy of radio frequency per experimental condition (seconds)

ddddddddddddddd

The score of AIM questionnaire defined for each experimental condition The average value of ISA scale for each experimental condition The average number of eye fixations on conflict aircraft according to experimental condition The average duration of eye fixations on conflict aircraft according to experimental condition The average maximum value of pupil diameter during eye fixations according to experimental condition

Ministère de l'Écologie, du Développement durable, et de l’Énergie

Direction Générale de l’Aviation Civile

Mental workload felt by Air traffic Controllers is lower with the use of conflict aid services:

Especially for the TC-SA and TC-SA + CD aid services

Consistent results have been obtained with several approaches

Perspective of this project:

Proposing a new version of the CD aid service

CON ONCLUSION CLUSION

Results Conclusion Data analysis Introduction Contents Experiment SESAR project

12

Ministère de l'Écologie, du Développement durable, et de l’Énergie

Direction générale de l’Aviation civile

Thank you for your attention!

SESAR Innovation Days, November 28th 2012

Your questions?
