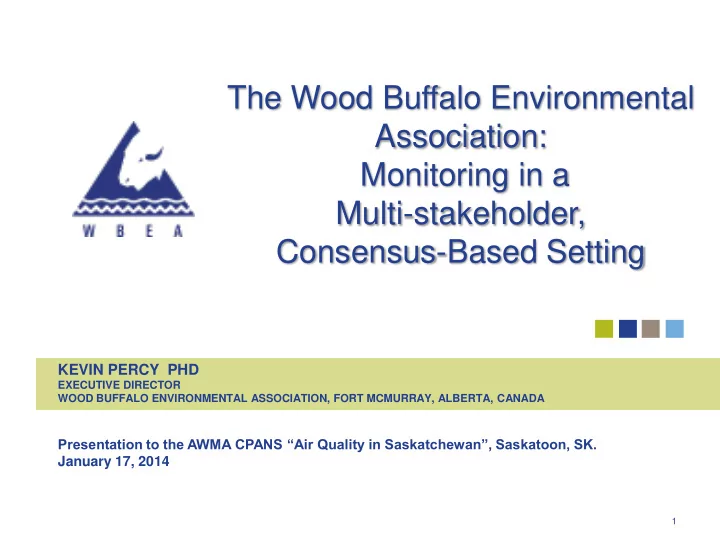

The Wood Buffalo Environmental Association: Monitoring in a Multi-stakeholder, Consensus-Based Setting

KEVIN PERCY PHD

EXECUTIVE DIRECTOR WOOD BUFFALO ENVIRONMENTAL ASSOCIATION, FORT MCMURRAY, ALBERTA, CANADA

Presentation to the AWMA CPANS “Air Quality in Saskatchewan”, Saskatoon, SK. January 17, 2014

1

slide-2
SLIDE 2

2

CAPP (2013)

Canada’s Oil Sand Deposits

slide-3
SLIDE 3

Bitumen Extraction Technologies

Drilling 80% of reserves Mining 20% of reserves Drilling 80% of reserves

Upgrading Upgrading

Mining 20% of reserves

3

slide-4
SLIDE 4

4 4

Unique Mix of Emission Sources

NASA/MODIS May 16, 2011

Off road diesel Fixed and fugitive Forest fires Re-suspended Dust On-road

4

slide-5
SLIDE 5

Athabasca Oil Sands Emissions (t/d)

Source Type NOx SO2 PM2.5 Stacks 211.41 361.25 13.37 Plant Fugitives

  • Mine Fleet

75.03 1.88 2.86 Mine Face

  • Tailings Areas
  • Non-industrial

23.56 0.76 1.86 Total 310.00 363.89 18.09 Frontier Project Environmental Impact Assessment (2011)

5

slide-6
SLIDE 6

Wood Buffalo Environmental Association

Our Mission: “WBEA monitors air quality and air quality related environmental impacts to generate accurate and transparent information which enables stakeholders to make informed decisions”

  • Multi-stakeholder
  • Consensus-based
  • Objective
  • Not-for-profit

Members Open House May 16

slide-7
SLIDE 7

WBEA Membership

Aboriginal Fort McKay First Nations Fort McKay Métis Local 63 Fort McMurray Métis Local 1935 Fort McMurray First Nation 468 Chipewyan Prairie Dene First Nation Christina River Dene Nation Council Environmental Fort McMurray Environmental Association Pembina Institute for Appropriate Development Government Alberta Environment and SRD Alberta Health Services Alberta Health and Wellness Energy Resources Conservation Board Environment Canada Health Canada Parks Canada Regional Municipality of Wood Buffalo Saskatchewan Environment Industry Members Athabasca Oil Corp. Brion Energy Corp. Canadian Natural Resources Ltd. ConocoPhillips Canada Cenovus Energy Inc. Devon Canada Corp.. Finning Canada Hammerstone Corp. Husky Energy Imperial Oil MEG Energy Corp. Nexen Inc. Shell Canada Energy Inc. Statoil Canada Ltd. Suncor Energy Sunshine Oil Sands Syncrude Canada Ltd. Teck Resources Ltd. Total E&P Canada Ltd. Williams Energy

7

* 3 New Membership Applications received

slide-8
SLIDE 8

WBEA Governance

8

slide-9
SLIDE 9

WBEA Science Team

  • WBEA Members

– Considerable in-kind contribution

  • Traditional Knowledge
  • Universities = 10
  • Institutes = 4
  • Private Contractors = 7
  • Government Agencies = 2
  • Science Advisors = 4
  • Ex-officio science advisory board = 5

9

9

Science Team: 40 scientists from Canada, U.S., Europe (>3,500 peer-reveiwed publications)

slide-10
SLIDE 10

Functional Operations Structure

10

WBEA Board WBEA Governance Committee Executive Director

  • Dr. Kevin Percy

AATC/TEEM Program Manager Network Supervisor

Air Technicians (8)

Technical Specialists (2) Field Biologists (2) Hemp Program Manager HEMP Technician Lead Scientist Atmospheric Chemist Science Advisors TEK Data Systems and Management (3) Business Manager (vacant) Human Resources Accounting (2) Office Administration- FOC/Safety Office Reception Aquatics Monitoring Program Manager Data Systems/Management Executive Assistant Communications (2)

slide-11
SLIDE 11

11

WBEA Facilities

Field Operations Centre Main Office “On site” specialists, technicians, support staff

slide-12
SLIDE 12

WBEA Multi-stakeholder Model

  • We measure, evaluate and communicate (two way)
  • We reach agreement by consensus
  • We share knowledge amongst Members
  • A stakeholder concerns, science-balanced process
  • We build monitoring systems that work for everyone
  • This has led to practical, positive change in environmental

management!!

12

Driver cabin Sampling platform Sampling modules Muffler Flange connecting to the body Exhaust pipe Sampling port Thermocouple Sample transfer line

slide-13
SLIDE 13

Air Monitoring Stations

16 Ambient Monitoring Stations 1 Mobile Station

13

4 Portable Stations 241 Parameters Measured

slide-14
SLIDE 14

14

Ambient Air Monitoring

Continuous SO2, NOx, NH3, PM2.5, O3, H2S/TRS, THC, CH4/NMHC, CO, meteorology 2 tall met. towers Time Integrated PM10, metals, PAH, VOC Passives (SO2, NO2, O3, NH3, HNO3) Specialized PFGC (TRS, VOC, HC) Electronic nose Dicot for PM Trace SO2, NOx, NH3 Ambient ion monitoring 241 parameters/86 for compliance Technical Projects Automated precipitation sampler Passive validation Solar-powered denuders

slide-15
SLIDE 15

15

Air Monitoring Network Vignette

  • Air Monitoring Network vignette available on wbea.org
slide-16
SLIDE 16

Percy (2013)

20 40 60 80 100 120 140 160 180 200 Mildred Lake (AMS 2) Mannix (AMS 5) Lower Camp (AMS 11) Fort McKay South (AMS 13) Albian Muskeg River (AMS 16) CNRL Horizon (AMS 15) Millennium Mine (AMS 12) Buffalo Viewpoint (AMS 4) Fort McKay (AMS 1) Patricia McInnes (AMS 6) Anzac (AMS 14) Athabasca Valley (AMS 7) Fort Chipewyan (AMS 8) SO2 (ppb) maximum 99th percentile 90th percentile 1-hour objective (172 ppb)

  • ----------------------industry stations-------------------------- ------community stations------

Sulphur Dioxide - 2012

slide-17
SLIDE 17

50 100 150 200

Millennium Mine (AMS 12) Albian Muskeg River (AMS 16) Fort McKay South (AMS 13) CNRL Horizon (AMS 15) Athabasca Valley (AMS 7) Fort McKay (AMS 1) Patricia McInnes (AMS 6) Anzac (AMS 14) Fort Chipewyan (AMS 8)

NO2 (ppb) maximum 99th percentile 90th percentile

  • -----------industry stations------------ --------community stations--------

1-hour NO2 objective (159 ppb)

Nitrogen Dioxide - 2012

slide-18
SLIDE 18

Total Reduced Sulphur/ Hydrogen Sulphide - 2012

18

82 58 12 4 3 3 4 2 2 10 20 30 40 50 60 70 80 90 100

Mannix (AMS 5) Mildred Lake (AMS 2) Lower Camp (AMS 11) CNRL Horizon (AMS 15) Millennium Mine (AMS 12) Barge Landing (AMS 9) Fort McKay South (AMS 13) Buffalo Viewpoint (AMS 4) Fort McKay (AMS 1) Athabasca Valley (AMS 7) Patricia McInnes (AMS 6) Anzac (AMS 14)

TRS/H2S (ppb) maximum 99th percentile 95th percentile 90th percentile

1-hour H2S objective (10 ppb)

  • ----------------industry stations------------------- -community stations-
slide-19
SLIDE 19

New Measurement Technologies

19

slide-20
SLIDE 20

Focused Monitoring: Conklin Air Quality 2012 (6 months)

20

slide-21
SLIDE 21

Specialized Measurements: 2010 MOU With Environment Canada

Hg in ambient air

Dry and wet PAC AMS 5, 11, 13 Speciated/TGM Hg and Hourly BTEX Percy et al. (2012)

slide-22
SLIDE 22

Data Systems and Data Management

22

slide-23
SLIDE 23

WBEA DATA QC and QA

  • WBEA QAP for daily QC, instrument calibration
  • EC NAPS SOP for PAH and VOV
  • US EPA FRM for other parameters
  • Annual, independent third part network audit
  • Expert US/Canada Network Review 2012
  • AATC monthly review of internal QC report

23

slide-24
SLIDE 24

WBEA Standard Operating Protocols

24

WBEA’s SOPs are documented and now publically available at www.wbea.org

slide-25
SLIDE 25

WBEA Systems Development

25

slide-26
SLIDE 26

Terrestrial Effects Monitoring

26

Status, Changes, and Trends in Indicators and Endpoints

slide-27
SLIDE 27

Forest Health Network

27

See Forest Health Survey Phase 1: Field Sample Collection, on YouTube

slide-28
SLIDE 28

Measuring Uncertainty in Passive Data

28

Fraczek (2013)

slide-29
SLIDE 29

29

Integration of Inputs With Responses: Linking cause-effect for decisions

29

30 m tower

Solar panels

Stand, Long- Term, Regionally Representative (6 yrs.) Stand Edges, early warning, Local (3 yrs.)

slide-30
SLIDE 30

Measurement of Forest Health Indicators, Endpoints, Values

30

slide-31
SLIDE 31

Peatland Monitoring

31

Photos: Vile et al.

slide-32
SLIDE 32

Sulphur Deposition (kg/ha/year)

32

(no background) (with background)

Davies (2012)

slide-33
SLIDE 33

Traditional Environmental Knowledge

  • Berry Health Project 2010-2013

– Quality and condition of blueberries, cranberries

  • food quality and contaminants

– Twinned traditional knowledge - western science

33

slide-34
SLIDE 34

Human Exposure Monitoring

34

slide-35
SLIDE 35

Odour Speciation and the Community Odour Monitoring Project

35

Electronic Nose Fort McKay Reduced sulphur and VOCs Fort McKay WBEA App for In Place Reporting by Community Odor Project Volunteers See www.wbea.org Training “Nasal Rangers”

slide-36
SLIDE 36

HEMP – Community Odour Monitoring Program

36

slide-37
SLIDE 37

Integrating Air and Land Systems

Apportionment of Complex Multiple Source Emissions and Deposition for Ecological Effects Assessment By Receptor Modeling

37

slide-38
SLIDE 38

WBEA Source Emissions Monitoring

Why “Real World” emission factors ?

  • The “real” contribution from source types to

air emissions mass/chemical footprint

  • source type attribution in receptor modeling

for pollutant mitigation

38

Dust Haulers Stacks

slide-39
SLIDE 39
  • 1. Measuring and Mapping Trace

Element, S, and N Concentrations

359 sites visited by helicopter in 2008 Two lichen species sampled

39

slide-40
SLIDE 40
  • 2. Defining Patterns in Receptors

Distance from Mines (km)

20 40 60 80 100 120 140 160

Concentration (ug/g)

10 20 30 40 Ni V r2 = 0.780 (Third Order) r2 = 0.767 (Third Order) Landis et al. (2011)

40

slide-41
SLIDE 41
  • 3. Confirming Source Contribution:

Chemical Fingerprints in Sources and Sinks

1.960 2.000 2.040 2.080 2.120 2.160 0.800 0.820 0.840 0.860 0.880 0.900 208Pb/206Pb 207Pb/206Pb

Source Samples

Processed Oil Sand Oil Sand Tailings Sand

2008 Lichens (121 Sites)

1.960 2.000 2.040 2.080 2.120 2.160 0.800 0.820 0.840 0.860 0.880 0.900 207Pb/206Pb 208 Pb/206 Pb

Tailings Sand

Oil Sand

Processed Graney et al. (2011)

41

slide-42
SLIDE 42
  • 4. Defining Source Contribution to

Lichens at the Landscape Level?

Oil Sand & Processed 15% Fugitive Tailing Sand 19% Combustion 23% Haul Road & Limestone 15% General Anthropogenic 15% Mn/Biochemistry 7% Unexplained 6% Other 28%

Landis et al. (2012)

Positive Matrix Factorization attributed 94% of variability in 42 trace elements, S, N at 121 lichen sites in the AOS Supported by S, N, O, Pb, Hg stable isotope tracer studies

  • n fate of emissions

42

slide-43
SLIDE 43

Open Communication

  • f

Data and Results

43

slide-44
SLIDE 44

WBEA Air Quality Data Are Transparent and Timely

Free App

slide-45
SLIDE 45

45a

Printed and Electronic Materials

slide-46
SLIDE 46

WBEA Engagement and Outreach

Federal/Provincial Ministers 2012/2013 Royal Agricultural Winter Fair, Toronto School visits Regional Science Fair

slide-47
SLIDE 47

Dissemination of Peer-Reviewed Science

"...a model of what monitoring should do - thorough and sensitive enough that the information can be used to improve environmental management “ D. Schindler

International Symposium May 2011

slide-48
SLIDE 48

Special Oil Sands Issue

48

slide-49
SLIDE 49

WBEA Is Now Funded Under and Contributing to JOSM

49

  • Ambient Air
  • Source Emissions Measurement
  • Deposition Measurement
  • Forest/Peatland Monitoring
  • In Discussions on a Component of JOSM Water Monitoring
slide-50
SLIDE 50

Some Closing Thoughts

  • The multistakeholder,

consensus-based approach is challenging, but worthwhile

  • The WBEA experience

has been positive

  • A consensus based

balance of monitoring that meets stakeholder needs, while being scientifically robust can be achieved.

50

slide-51
SLIDE 51

Some Closing Thoughts

  • Every air network design is

unique as defined by compliance, ambient and/or investigative requirements

  • Stakeholder input is

important in defining these requirements

  • Open and transparent data

access is important for network credibility

51

slide-52
SLIDE 52

52

Thank You!
