Advanced Energy Monitoring for the New Smart Grid Michel Kamel, Ph.D. CEO MelRok AEE October 17 th 2013 C OMPLEXITY & U NCERTAINTY REQUIRE I NFORMATION REAL TIME, ACCURATE, DETAILED Data vs Knowledge Multiple routes: Highways vs

slide-1
SLIDE 1

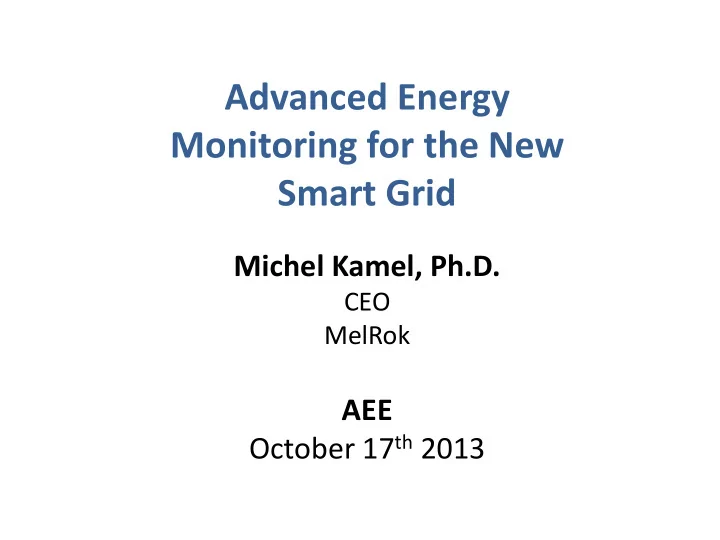

Advanced Energy Monitoring for the New Smart Grid

Michel Kamel, Ph.D.

CEO MelRok

AEE October 17th 2013

slide-2
SLIDE 2

COMPLEXITY UNCERTAINTY

REQUIRE

&

INFORMATION

REAL TIME, ACCURATE, DETAILED

slide-3
SLIDE 3

Data vs Knowledge

  • Multiple routes: Highways vs side streets
  • Time of day: Traffic conditions
  • Time of year: Road closures
  • Accidents
  • Weather conditions
  • Car’s conditions
  • Etc.
slide-4
SLIDE 4

Have DATA

B A

slide-5
SLIDE 5

Need The Best Plan

B A

slide-6
SLIDE 6

MANAGING ENERGY USAGE AND COST REQUIRES THE SAME TYPE OF GUIDANCE

slide-7
SLIDE 7

THE SMART GRID & ENVIRONMENTAL REGULATIONS INTRODUCE NEW COMPLEXITIES AND UNCERTAINTIES TO ENERGY MANAGEMENT

slide-8
SLIDE 8

Why A Smart Grid

  • Current power grid grew in patches from its early days

– Generations and distribution added as needed

  • Large scale power outages in last decade demonstrated vulnerability

– Cascading failures (domino effect) – Lack of communications between sub stations and utilities

  • Increasing threats to national security

– Physical damage & cyber attacks can cause massive outages

  • Changing nature of power sources

– Wind, solar represent a variable power source – uncertain supply

  • Changing nature of power loads

– PCs, LEDs, PV inverters, etc. introduce harmonics into the grid – Harmonics increases the stress on grid components and affect accuracy of meters

slide-9
SLIDE 9

Reducing Emissions

Coal Power Plants Solar Wind Geothermal Hydro Natural Gas Increased Energy Efficiency

+

slide-10
SLIDE 10

Utility Companies’ Problem

20% Difference

$0 $20 $40 $60 $80 $100 $120 $140

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

Low Demand Energy Emergency

4 x Increase

Blue = Regular Demand Red = High Demand Usage (‘000s MWhr) Price ($/MW)

Utilities’ Problem:

  • Variable Demand
  • Variable Cost

Hour of the Day

slide-11
SLIDE 11

Renewables Make It Worse

From: California Energy Commission

With more renewables deployed, demand on grid decreases during the day and increases off hours

Increase variations in demand during a single day, between seasons and geographic regions

slide-12
SLIDE 12

Smart Grid Helps Utilities

MelRoK Confidential

Conventional Meter Smart Meter

> 40 Million Replaced + 60 Million Planned

slide-13
SLIDE 13

Smart Grid Helps Utilities

MelRoK Confidential

Conventional Meter Smart Meter Flat Rate TOU

slide-14
SLIDE 14

Utilities’ Solution: TOU, ADR, …

Conventional Meter Smart Meter Flat Rate TOU Demand Response Variable Rate

slide-15
SLIDE 15

Impact on Managers/Owners

  • Variable pricing: TOU, ADR, Peak Demand, etc.
  • More complex rates
  • Emission reduction requirements
  • Demand response requirements
  • Need for price management
  • Need for carbon management

Bottom Line: Need New Energy Management Practices to Avoid Increased Energy Costs

slide-16
SLIDE 16

Resulting Uncertainties & Complexities

  • Time variable pricing
  • Complex rate structures
  • Variations in energy demand
  • Emission reduction requirements
  • Demand response requirements
  • Weather uncertainty
  • Variations in building activity
  • Multiple improvement options
  • Supply uncertainties: renewables
slide-17
SLIDE 17

Protecting the Bottom Line

The Equation for Managing Energy Costs Has Changed Energy Cost ($)

=

Energy Usage (kWhr)

slide-18
SLIDE 18

The Challenge

MANAGING ENERGY COSTS IS NO LONGER JUST ABOUT HOW MUCH ENERGY IS USED

slide-19
SLIDE 19

The Challenge

IT IS ABOUT HOW MUCH, HOW FAST AND WHEN ENERGY IS USED

slide-20
SLIDE 20

WHAT’S NEEDED: REAL TIME DETAILED ACCURATE ENERGY INFORMATION & CONTROL AT UNPRECEDENTED LEVELS

slide-21
SLIDE 21

Meter Meter Meter

Ethernet Interface

Data Logger Acquisition Software Data Storage Visualization Software

Legacy Systems Not Suitable

  • Complex & Expensive
  • Failure prone
  • Disconnected systems
  • Islanded from the Grid
slide-22
SLIDE 22

Lots of Data Little Information

At Best, Legacy Systems Provide …

slide-23
SLIDE 23

The Mission of Advanced Energy Monitoring Systems

From Complex Systems

slide-24
SLIDE 24

The Mission of Advanced Energy Monitoring Systems

From Complex Systems … to Data

slide-25
SLIDE 25

The Mission of Advanced Energy Monitoring Systems

From Complex Systems … to Data, Information

slide-26
SLIDE 26

The Mission of Advanced Energy Monitoring Systems

From Complex Systems … to Data, Information, Knowledge

slide-27
SLIDE 27

The Mission of Advanced Energy Monitoring Systems

From Complex Systems … to Data, Information, Knowledge,

& Savings

slide-28
SLIDE 28

The Mission of Advanced Energy Monitoring Systems

From Complex Systems … to Data, Information, Knowledge,

& Savings

Continuously and In Real Time

slide-29
SLIDE 29

Specifications of Advanced Metering

Low Cost

  • Real time
  • Holistic & high definition
  • Grid connected
  • Interoperable with existing meters & BAS
  • User defined metrics
  • Built-in analytics and alerts
  • On-demand reports
  • Drill down & roll up visibility
  • Push & pull functionality
  • Self-managed
  • Open protocol
  • Scalable & Secure
  • Networked
  • Initiate Demand Management
slide-30
SLIDE 30

Case Study: UCI Advanced Metering

100+ Buildings

  • Main Switch Board
  • HVAC
  • Lighting
  • Plug Load
  • Weather
  • Chilled Water
  • Gas
  • Environmental
  • Other
slide-31
SLIDE 31

UCI Advanced Metering Benefits

  • Energy efficiency metrics
  • Guides commissioning efforts
  • Guides energy upgrades decisions
  • Verifies energy investments
  • Renewable integration
  • Energy cost allocation
  • Fault detection
  • Peak demand detection
  • Modeling of smart and micro grids
  • Benchmarking
slide-32
SLIDE 32

UCI Advanced Metering Benefits

Smart CCx although a larger initial investment provides for greater long term savings as well as strategic analysis, monitoring, and savings that can not be accomplished with traditional MBCx

$(200,000.00) $- $200,000.00 $400,000.00 $600,000.00 $800,000.00 $1,000,000.00 $1,200,000.00 $1,400,000.00 1 2 3 4 5 6 7 8 9 10 11

Cumulative Cash Flow MBCx vs. SMART CCx

Smart CCx Cumulative Cash Flow Smart CCx Net Savings MBCx Cumulative Cash Flow MBCx Net Savings

slide-33
SLIDE 33

UCI Advanced Metering Technology

Multiple Systems Integrated Into One

slide-34
SLIDE 34

UCI Advanced Metering Technology

  • 24 channel meter
  • Meter Network Interface
  • Acquisition Software
  • Data logger
  • Ethernet Communication Module
  • 500 MHz CPU w/Linux OS

Multiple Systems Integrated Into One

slide-35
SLIDE 35

Embedded Interoperability

  • 24 channel meter
  • Meter Network Interface
  • Acquisition Software
  • Data logger
  • Ethernet Communication Module
  • 500 MHz CPU w/Linux OS
  • Custom Applications

+

  • Bacnet/IP
  • Modbus/IP
  • SNMP
  • Other software libraries
slide-36
SLIDE 36

Embedded ADR Client

  • 24 channel meter
  • Meter Network Interface
  • Acquisition Software
  • Data logger
  • Ethernet Communication Module
  • 500 MHz CPU w/Linux OS
  • Custom Applications
  • Bacnet/IP, Modbus/IP, SNMP communication

+

Demand Response Application Server (DRAS) Client

+

slide-37
SLIDE 37

Embedded Streaming Data Server

  • 24 channel meter
  • Meter Network Interface
  • Acquisition Software
  • Data logger
  • Ethernet Communication Module
  • 500 MHz CPU w/Linux OS
  • Custom Applications
  • Bacnet/IP, Modbus/IP, SNMP communication
  • DRAS Client

Streaming Data Server

+

slide-38
SLIDE 38

High Definition Metering

Plug Loads Data Centers Lighting Motor Control Center HVAC Systems Main Switch Board

slide-39
SLIDE 39

Holistic Picture

Plug Loads Data Centers Lighting Motor Control Center HVAC Systems

Ethernet Bacnet/IP Modbus/IP SNMP Other

Pulse Counters BAS Workstation Power / Water / Gas Meters Environmental & Other Sensors Main Switch Board

slide-40
SLIDE 40

Real Time Information

Grid Weather Other Plug Loads Data Centers Lighting Motor Control Center HVAC Systems

Ethernet Bacnet/IP Modbus/IP SNMP Other

Pulse Counters BAS Workstation Power / Water / Gas Meters Environmental & Other Sensors Main Switch Board

slide-41
SLIDE 41

Campus Wide

slide-42
SLIDE 42

Sample Installation

3P, 4W, 480/277 Main Incomer, 3000AT / 3000AF

VP 1 480D 100AF TBG 480D 225AF HDPR 480D 400AF EHLP1 480Y 225AF EHDPB 480D 1200AF HDPB 480D 400AF [HDP2] Future T.I. HDP1 480Y 225AF Space [HLP4] Future T.I.

1 EMB-1210, 480/277, Rm B-218 2 EMB-1210, 208/120, Rm 1013 2 6 3 EMB-1210, 480/277, Rm 1013 4 EMB-1210, 480/277, Rm 2009 3 4 5 5 6 EMB-1210, 480/277, Rm 3009 EMB-1210, 208/120, Rm 3009

EHLP2 480Y 225AF ET3 ET1 EHDPR 480D 400AF HLP3 480Y 400AF HLP2 480Y 400AF HLP1 480Y 400AF T2 DP2 T3 DP3 T1 DP1 EDP3 EDP1

1 1 1 1 7 7 7 EMB-2410, 480 Delta, Roof 3 4 5

MelRoK Corporation – Gross Hall Installation – June 1st 2011

slide-43
SLIDE 43

BENEFITS OF ADVANCED MONITORING

slide-44
SLIDE 44

Baseline Creation

slide-45
SLIDE 45

Benchmarking

Key Performance Indicator

  • 1. Baseline Electric Energy Use Index

^

  • 2. Peak Electrical Energy Use Index

^

  • 3. Gas Energy Use Index

^

  • 4. Heating Gas Efficiency Consistency

^

  • 5. Cooling Energy Efficiency Consistency

^

  • 6. Simultaneous Heating and Cooling

^

  • 7. Nightime Power Index

^

  • 8. Weekend Power Index

^

  • 9. EMS Scheduling

^

  • 10. Full Time Loading

^ p EnergiScore 47.6%

slide-46
SLIDE 46

Benchmarking

slide-47
SLIDE 47

Identify Wasted Energy

slide-48
SLIDE 48

TOU Management

HOURS WITH HIGHEST ENERGY RATE

TIME OF USAGE PRICING COMING JANUARY 2014 TO ALL BUSINESSES NEAR YOU

SHIFT LOAD TO HOURS WITH LOWER RATE

slide-49
SLIDE 49

ADR Management

slide-50
SLIDE 50

ADR Management

  • Calculate ADR Baseline
slide-51
SLIDE 51

ADR Management

  • Set ADR Target
slide-52
SLIDE 52

ADR Management

  • Measure ADR Performance
slide-53
SLIDE 53

Peak Demand Management

  • Resonating Systems
slide-54
SLIDE 54

Peak Demand Management

  • Excessive Peaks

15-minute excessive usage = $2,520 Penalty

slide-55
SLIDE 55

Performance Verification

  • Lighting Retrofit
slide-56
SLIDE 56

Performance Verification

  • Total Building Output
slide-57
SLIDE 57

Performance Verification

  • Net Metering Overlay
slide-58
SLIDE 58

Performance Verification

  • On Site Generation (Solar)
slide-59
SLIDE 59

Custom Metrics

  • % Generated by On Site Solar as a function of time of day
slide-60
SLIDE 60

Custom Metrics

  • % Generated by On Site Solar as a function of time of day
slide-61
SLIDE 61

Energy Demand Forecasting

slide-62
SLIDE 62

Demand Drill Down

slide-63
SLIDE 63

Demand Drill Down

slide-64
SLIDE 64

Demand Drill Down

slide-65
SLIDE 65

Demand Drill Down

slide-66
SLIDE 66

Demand Drill Down

slide-67
SLIDE 67

Anomaly Detection

slide-68
SLIDE 68

ROI Calculations BEFORE AFTER

ROI CALCULATIONS ON 30 KW SOLAR INSTALLATION

slide-69
SLIDE 69

Energy Cost Allocation

Summary of Energy Usage Billed Energy Usage Billed Energy Costs Power 14,910,737 kWhr $1,376,127 Gas 32,837 therms $23,977 Total Energy $1,400,104 2.22 $/ft2 Total Current Energy Costs (Gas and Electric) Carbon Footprint Electrical Energy Carbon Footprint Gas Energy Carbon Footprint Total Energy Carbon Footprint 10,114 17,818,710 4,453,251 22,271,961 Equivalent lb of CO2 Metric Tons of CO2 8,092 2,022

slide-70
SLIDE 70

Occupant Engagement

slide-71
SLIDE 71

Capacity Planning

  • Count of Circuits that are at each capacity level: Red, Yellow & Green
slide-72
SLIDE 72

Capacity Planning

  • Count of Circuits that are at each capacity level: Red, Yellow & Green
slide-73
SLIDE 73

On Demand Reports

slide-74
SLIDE 74

Managing Energy Costs

IT IS ABOUT HOW MUCH, HOW FAST AND WHEN ENERGY IS USED

slide-75
SLIDE 75

Michel Kamel, Ph.D.

CEO MelRok, LLC 1300 S. Bristol St. Santa Ana, CA 92704 mkamel@melrok.com O: (855) Melrok1 ext. 101
