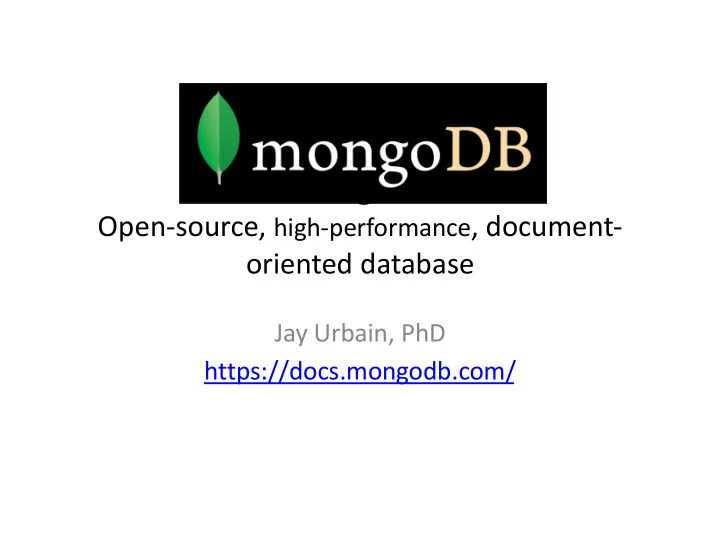

MongoDB Open-source, high-performance , document- oriented database - - PowerPoint PPT Presentation

MongoDB

Open-source, high-performance, document-

• riented database

Jay Urbain, PhD https://docs.mongodb.com/

Modern Databases

• Non-relational data stores (“NoSQL”)

– Key/value – Horizontal scalability, no table joins – Hive, Dynamo, Big Table, CouchDB, Redis, MongoDB,…

• Next generation OLAP (OnLine Analytical Processing)

– Dimensional data model – Column store – Vertica, Aster, Greenplum

• RDBMS OLTP (OnLine Transaction Processing)

– Relational model – Transaction oriented – Oracle, MySQL, PostgreSQL

Database Market

NoSQL

Non-relational Database Characteristics

• No joins, no complex transactions => horizontally scalable

architectures.

• Transactions at the individual table row or document level
• Flexible data models => schema on read
• Many are not using SQL for queries, e.g., JSON objects
• Many are moving to support some level of SQL
• Improved ways to develop applications? Depends…

Non-relational Data Models

• Key/Value – MemCache, Amazon Dynamo
• Tabular – Google Big Table, Impala
• Document oriented – MongoDB, CouchDB, other JSON stores

Relational vs. non-Relational

BASE (Basically Available, Soft State, Eventual consistency) analysis of NoSQL. ACID (Atomicity, Consistency, Isolation, and Durability) versus BASE. CAP theorem – get 2 of 3: consistency, availability, partition tolerance

Deciding Factors

• Use case
• Transactional support
• Ad hoc query
• Analytical processing
• Reliability
• Maintainability
• Ease of Use
• Scalability
• Cost

Document oriented database

• Document-oriented databases (DOD) are designed for

storing, retrieving and managing document-oriented information (semi-structured data).

• Popular with web applications.
• DODs are one of the main categories of NoSQL databases.
• DODs are a subclass of the key-value store NoSQL database.
• In a key-value store, the data is considered to be opaque to

the database.

• A DOD relies on the internal structure of the document in
• rder to extract metadata that the database engine uses for

further optimization.

Document oriented database

• Document databases contrast with traditional relational

database (RDB).

• RDBs store data in separate tables that are defined a priori,

and a single object may be spread across several tables.

• DODs store all information for a given object in a single

instance in the database, and every stored object can be different from every other.

• Eliminates the need for object-relational mapping while

loading data into the database.

MongoDB History humongous

• Most popular document oriented database.
• Designed and developed by founders of Doubleclick, ShopWiki, GILT

group, etc.

• GOAL: create high performance, fully consistent, horizontally scalable

general purpose data store.

• MongoDB uses JSON-like documents with schemata.
• Coding started fall 2007
• Open Source – AGPL, written in C++
• First production site March 2008
• Current version: ~3.6.9 / 2018

MongoDB

• MongoDB is a distributed database at its core, so high availability,

horizontal scaling, and geographic distribution are built in and easy to use.

– MongoDB scales horizontally using sharding. – MongoDB can run over multiple servers, balancing the load or duplicating data to keep the system up and running in case of hardware failure.

• Stores data in flexible, JSON-like documents, meaning fields can vary from

document to document and the data structure can be changed over time.

• The document model maps to the objects in your application code,

making data easy to work with. No object-relational mapping.

• Ad hoc queries, indexing, and real time aggregation provide ways to

access and analyze your data

• Field, range query, and regular expression searches.
• Fields in a MongoDB document can be indexed with primary and

secondary indices.

• File storage

JSON-style Documents represented as BSON

binary-encoded serialization of JSON-like documents

Flexible Schemas

Replication

Auto-sharding

Uses Cases

• Good use cases

– Scaling out – Caching – The Web – High volume – Simple data models

• Bad use cases

– Highly transactional – Ad-hoc business intelligences – Problems that require SQL – Complex relational data models

MongoDB Basics

• A collection is like a relational table.
• Collections contain documents.
• A document within a collection is like a record (row) within a

table.

• Each document has an _id that is unique across all documents

within a collection.

JSON Documents

• Rich data models
• Seamlessly map to native programming language types
• Flexible for dynamic data
• Better data locality

Javascript Post - API

Find posts by author - API

Last ten posts - API

RESTful Queries in MongoDB

• The mongo model update function takes three arguments:

– query – JSON object of matching properties to identify the document to update – data – JSON object specifying the properties to update – callback – function that is called with the number of modified documents

• The data to update is retrieved from the request body, which

is used to pass in larger chunks of data, often stored as a single JSON object.

RESTful Queries in MongoDB

• The JSON object passed in corresponds to the Mongo database

schema defining the project documents and includes only the model properties to modify.

• Example: we can use curl to update a specific property, e.g.,

numberofsaves, in a specific project's data: $ curl -i -X PUT -H 'Content-Type: application/json' -d '{"numberofsaves": "272"}' http://localhost:3001/api/v1/projects/5593c8792fee421039c0afe6

• It sends a PUT request with JSON content to the project update

endpoint.

RESTful Queries in MongoDB

• The –i requests that the headers are included in the output.
• The –X specifies the HTTP method.
• The -d argument specifies the request body or data containing

the JSON object with the properties to modify.

• The routing URL includes the version number and ends with

the mongo database id of the project to update.

• Curl prints the following response to this request:

HTTP/1.1 202 Accepted Content-Type: text/plain; charset=utf-8 Content-Length: 8

Add a new record

Python: tasks_results = mongo.db.tasks _id = tasks_results.insert(task_)

Javascript:

Delete a record

Demo MongoDB curl commands if time tasks_results = mongo.db.tasks result = tasks_results.delete_one({"id": str(task_id)}) Javascript: Python:

JSON Serialization

json_util provides two helper methods: dumps and loads, that wrap the native JSON methods and provide explicit BSON conversion to and from JSON.

json_util – Tools for using Python’s json module with BSON documents

Example usage (serialization): >>> from bson import Binary, Code >>> from bson.json_util import dumps >>> dumps([{'foo': [1, 2]}, ... {'bar': {'hello': 'world'}}, ... {'code': Code("function x() { return 1; }", {})}, ... {'bin': Binary(b"")}]) '[{"foo": [1, 2]}, {"bar": {"hello": "world"}}, {"code": {"$code": "function x() { return 1; }", "$scope": {}}}, {"bin": {"$binary": "AQIDBA==", "$type": "00"}}]'

json_util – Tools for using Python’s json module with BSON documents

Example usage (deserialization): >>> from bson.json_util import loads >>> loads('[{"foo": [1, 2]}, {"bar": {"hello": "world"}}, {"code": {"$scope": {}, "$code": "function x() { return 1; }"}}, {"bin": {"$type": "80", "$binary": "AQIDBA=="}}]') [{u'foo': [1, 2]}, {u'bar': {u'hello': u'world'}}, {u'code': Code('function x() { return 1; }', {})}, {u'bin': Binary('...', 128)}]
