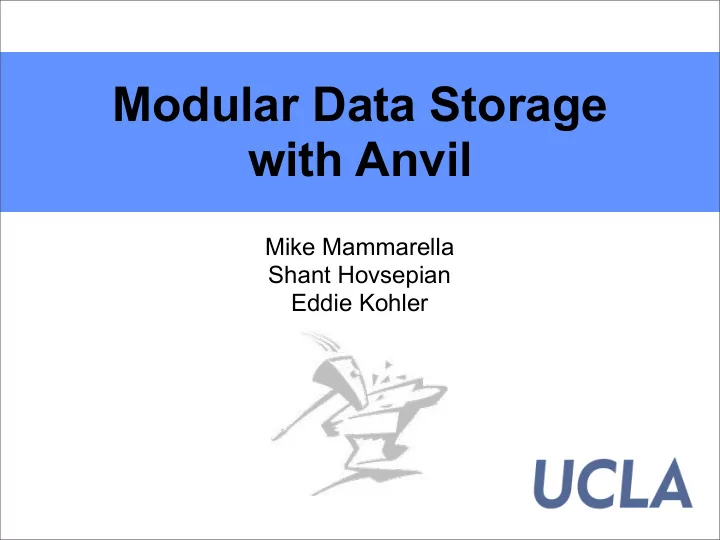

Modular Data Storage with Anvil

Mike Mammarella Shant Hovsepian Eddie Kohler

slide-2
SLIDE 2

Motivation

  • Data storage and databases drive modern

applications

  • Facebook, Twitter, Google Mail, system logs, even Firefox
  • Yet hand-built data stores can outperform by 100x! [Boncz]
  • Changing the layout of stored data can substantially

improve performance

  • Recent systems implement custom storage engines
  • Custom storage engines are hard to write
  • Reason: Must be consistent, fast for both reads and writes
  • What if you want to experiment with a new layout?

2

slide-3
SLIDE 3

The Question

Can we give applications

3

a simple and efficient modular framework, supporting a wide variety of different data layouts, enabling better performance?

slide-4
SLIDE 4

The Question

Can we give applications

3

a simple and efficient modular framework, supporting a wide variety of different data layouts, enabling better performance? Yes we can!

slide-5
SLIDE 5

Anvil

  • Fine-grained modules called dTables
  • Composable to build complex data stores from simple parts
  • Easy to implement new dTables to store specialized data
  • Isolates all writing to dedicated writable dTables
  • Many data storage layouts only add or change read-only

dTables, which are significantly easier to implement

  • Good disk access characteristics come as well
  • Unifying dTables combine write- and read-optimized dTables

4

slide-6
SLIDE 6

Contributions

  • Fine-grained, modular dTable design
  • Core dTables
  • Overlay dTable, Managed dTable, Exception dTable
  • Anvil implementation
  • Shows that such a system can be fast

5

slide-7
SLIDE 7

dTables

  • Key/value store
  • Keys are integers, floats, strings, or blobs
  • Values are byte arrays
  • Iterators support in-order traversal
  • Most are read-only

6

slide-8
SLIDE 8

dTables

  • Key/value store
  • Keys are integers, floats, strings, or blobs
  • Values are byte arrays
  • Iterators support in-order traversal
  • Most are read-only

6

blob lookup(key k) bool insert(key k, blob v) bool remove(key k) iter iterator() key key() blob value() bool valid() bool next() dTable iterator Slightly simplified, but not much!

slide-9
SLIDE 9

dTables

  • Key/value store
  • Keys are integers, floats, strings, or blobs
  • Values are byte arrays
  • Iterators support in-order traversal
  • Most are read-only

6

key key() blob value() bool valid() bool next() dTable iterator Slightly simplified, but not much! blob lookup(key k) bool insert(key k, blob v) bool remove(key k) iter iterator()

slide-10
SLIDE 10

dTable Layering

  • Applications (and frontends) use the dTable interface
  • But so do other dTables!
  • Transform data
  • Add indices
  • Construct complex functionality from simple pieces

7

slide-11
SLIDE 11

dTable Layering

  • Applications (and frontends) use the dTable interface
  • But so do other dTables!
  • Transform data
  • Add indices
  • Construct complex functionality from simple pieces

7

dTable lookup() lookup() lookup()

slide-12
SLIDE 12

dTable Layering

  • Applications (and frontends) use the dTable interface
  • But so do other dTables!
  • Transform data
  • Add indices
  • Construct complex functionality from simple pieces

7

dTable dTable lookup() lookup() lookup() iterator() iterator()

slide-13
SLIDE 13

dTable Layering

  • Applications (and frontends) use the dTable interface
  • But so do other dTables!
  • Transform data
  • Add indices
  • Construct complex functionality from simple pieces

7

dTable dTable lookup() lookup() lookup() iterator() iterator() wrap iter iter

slide-14
SLIDE 14

An Application-Specific Backend

8

Bloom dTable Overlay dTable Exception dTable B-tree dTable Linear dTable Managed dTable Journal dTable State Dict. dTable Array dTable

slide-15
SLIDE 15

An Application-Specific Backend

8

Bloom dTable Overlay dTable Exception dTable B-tree dTable Linear dTable Managed dTable Journal dTable State Dict. dTable Array dTable

slide-16
SLIDE 16

Application-Specific Data Example

9

  • Want to store the state of residence of customers
  • Identified by mostly-contiguous IDs
  • Most live in the US, but a few don’t
  • Move between states occasionally
  • Common case could be stored efficiently as an array
  • f state IDs
  • But don’t want to penalize the uncommon case
  • Want transactional semantics
slide-17
SLIDE 17

Application-Specific Data Example

9

  • Want to store the state of residence of customers
  • Identified by mostly-contiguous IDs
  • Most live in the US, but a few don’t
  • Move between states occasionally
  • Common case could be stored efficiently as an array
  • f state IDs
  • But don’t want to penalize the uncommon case
  • Want transactional semantics
  • Mostly-contiguous IDs
  • Most live in the US
  • Some live elsewhere
  • Don’t penalize them
  • Occasionally relocate
slide-18
SLIDE 18

Array dTable

10

  • Stores an array of fixed-size values
  • Keys must be contiguous integers
  • Locating data items becomes constant time
  • Can’t store some types of data
  • Read-only

Array

slide-19
SLIDE 19

Bloom dTable Overlay dTable Exception dTable B-tree dTable Linear dTable Managed dTable Journal dTable

11

Storing Common Case Data Efficiently

State Dict. dTable Array dTable

  • Mostly-contiguous IDs
  • Most live in the US
  • Some live elsewhere
  • Don’t penalize them
  • Occasionally relocate
slide-20
SLIDE 20

Bloom dTable Overlay dTable Exception dTable B-tree dTable Linear dTable Managed dTable Journal dTable

11

Storing Common Case Data Efficiently

State Dict. dTable Array dTable

  • Mostly-contiguous IDs
  • Most live in the US
  • Some live elsewhere
  • Don’t penalize them
  • Occasionally relocate
slide-21
SLIDE 21

Bloom dTable Overlay dTable Exception dTable B-tree dTable Linear dTable Managed dTable Journal dTable

11

Storing Common Case Data Efficiently

State Dict. dTable Array dTable

31 “California”

  • Mostly-contiguous IDs
  • Most live in the US
  • Some live elsewhere
  • Don’t penalize them
  • Occasionally relocate
slide-22
SLIDE 22

Bloom dTable Overlay dTable Exception dTable B-tree dTable Linear dTable Managed dTable Journal dTable

11

Storing Common Case Data Efficiently

State Dict. dTable Array dTable

31 “California”

✔ Mostly-contiguous IDs ✔ Most live in the US

  • Some live elsewhere
  • Don’t penalize them
  • Occasionally relocate
slide-23
SLIDE 23

Exception dTable

12

slide-24
SLIDE 24

Exception dTable

12

  • Many data sets mostly but not entirely conform to

some pattern that would allow more efficient storage

slide-25
SLIDE 25

Exception dTable

12

  • Many data sets mostly but not entirely conform to

some pattern that would allow more efficient storage

  • Exception dTable combines a “restricted” dTable with

an “unrestricted” dTable

  • Sentinel value in restricted dTable indicates that the

unrestricted dTable should be checked

slide-26
SLIDE 26

Exception dTable

12

  • Many data sets mostly but not entirely conform to

some pattern that would allow more efficient storage

  • Exception dTable combines a “restricted” dTable with

an “unrestricted” dTable

  • Sentinel value in restricted dTable indicates that the

unrestricted dTable should be checked

  • Simple unrestricted dTable: Linear dTable
slide-27
SLIDE 27

Bloom dTable Overlay dTable Managed dTable Journal dTable

13

Storing All Data

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable ✔ Mostly-contiguous IDs ✔ Most live in the US

  • Some live elsewhere
  • Don’t penalize them
  • Occasionally relocate
slide-28
SLIDE 28

Bloom dTable Overlay dTable Managed dTable Journal dTable

13

Storing All Data

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable ✔ Mostly-contiguous IDs ✔ Most live in the US

  • Some live elsewhere
  • Don’t penalize them
  • Occasionally relocate
slide-29
SLIDE 29

Bloom dTable Overlay dTable Managed dTable Journal dTable

13

Storing All Data

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable ✔ Mostly-contiguous IDs ✔ Most live in the US ✔ Some live elsewhere

  • Don’t penalize them
  • Occasionally relocate
slide-30
SLIDE 30

Bloom dTable Overlay dTable Managed dTable Journal dTable

13

Storing All Data

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable ✔ Mostly-contiguous IDs ✔ Most live in the US ✔ Some live elsewhere

  • Don’t penalize them
  • Occasionally relocate
slide-31
SLIDE 31

Bloom dTable Overlay dTable Managed dTable Journal dTable

13

Storing All Data

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable ✔ Mostly-contiguous IDs ✔ Most live in the US ✔ Some live elsewhere ✔ Don’t penalize them

  • Occasionally relocate
slide-32
SLIDE 32

General dTables

14

  • We’ve seen how to build a read-only data store

specialized for an application-specific layout

  • The pieces can be recombined for other layouts
  • Next section shows how to build a writable store
  • Writable store dTables are common to many layouts
  • Split data write functionality and management policies
slide-33
SLIDE 33

Writable dTables

  • Array dTable is hard to update transactionally
  • Idea: use separate writable dTables
  • Can be optimized for writing (e.g. a log)
  • Several design questions
  • Implementation of write-optimized dTable
  • Building an efficient store from write-optimized and read-only

pieces

15

slide-34
SLIDE 34

Fundamental Writable dTable

16

slide-35
SLIDE 35

Fundamental Writable dTable

16

  • Appends new/updated data to a shared journal

Journal

slide-36
SLIDE 36

Fundamental Writable dTable

16

  • Appends new/updated data to a shared journal

Journal

slide-37
SLIDE 37

Fundamental Writable dTable

16

  • Appends new/updated data to a shared journal
  • All data also cached in an AVL tree in RAM

Journal AVL tree in RAM

slide-38
SLIDE 38

Fundamental Writable dTable

16

  • Appends new/updated data to a shared journal
  • All data also cached in an AVL tree in RAM
  • Should be “digested” when it gets large

Journal AVL tree in RAM

slide-39
SLIDE 39

System Journal

17

  • Chronological order, append-only data store
  • Fast, contiguous writes on disks and other storage devices

like Flash memory

  • Data later rewritten elsewhere in batches from cache
  • Clean the system journal periodically to reclaim space
  • Data already written elsewhere can be omitted
  • Optimization: just delete it and restart if totally empty
  • Uses a transaction system described in the paper
  • Client code chooses start and end of each transaction
  • Durability optional, consistency always provided
slide-40
SLIDE 40

Bloom dTable Overlay dTable Managed dTable

18

Handling Writes

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable Journal dTable ✔ Mostly-contiguous IDs ✔ Most live in the US ✔ Some live elsewhere ✔ Don’t penalize them

  • Occasionally relocate
slide-41
SLIDE 41

Bloom dTable Overlay dTable Managed dTable

18

Handling Writes

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable Journal dTable ✔ Mostly-contiguous IDs ✔ Most live in the US ✔ Some live elsewhere ✔ Don’t penalize them

  • Occasionally relocate
slide-42
SLIDE 42

Combining dTables

19

slide-43
SLIDE 43

Combining dTables

19

  • Have: write-optimized and read-only dTables
  • Want: one dTable that gives the best of both worlds
slide-44
SLIDE 44

Combining dTables

19

Array dTable Array dTable Journal dTable

  • Have: write-optimized and read-only dTables
  • Want: one dTable that gives the best of both worlds
  • Idea: layer multiple read-only dTables together
  • Older data “lower” and newer data “higher”
  • Use a (writable) journal dTable “on top”

Time

slide-45
SLIDE 45

Combining dTables

19

Array dTable Array dTable Journal dTable lookup()

  • Have: write-optimized and read-only dTables
  • Want: one dTable that gives the best of both worlds
  • Idea: layer multiple read-only dTables together
  • Older data “lower” and newer data “higher”
  • Use a (writable) journal dTable “on top”

Time

slide-46
SLIDE 46

Combining dTables

19

Array dTable Array dTable Journal dTable lookup()

Overlay iterator order

  • Have: write-optimized and read-only dTables
  • Want: one dTable that gives the best of both worlds
  • Idea: layer multiple read-only dTables together
  • Older data “lower” and newer data “higher”
  • Use a (writable) journal dTable “on top”

Time

slide-47
SLIDE 47

Combining dTables

19

Array dTable Array dTable Journal dTable lookup()

Overlay iterator order

  • Have: write-optimized and read-only dTables
  • Want: one dTable that gives the best of both worlds
  • Idea: layer multiple read-only dTables together
  • Older data “lower” and newer data “higher”
  • Use a (writable) journal dTable “on top”

Time

slide-48
SLIDE 48

Combining dTables

19

Array dTable Array dTable Journal dTable lookup()

Overlay iterator order

create( )

  • Have: write-optimized and read-only dTables
  • Want: one dTable that gives the best of both worlds
  • Idea: layer multiple read-only dTables together
  • Older data “lower” and newer data “higher”
  • Use a (writable) journal dTable “on top”

Time

slide-49
SLIDE 49

Bloom dTable Managed dTable

20

Unified View

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable Journal dTable Overlay dTable ✔ Mostly-contiguous IDs ✔ Most live in the US ✔ Some live elsewhere ✔ Don’t penalize them

  • Occasionally relocate
slide-50
SLIDE 50

Bloom dTable Managed dTable

20

Unified View

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable Journal dTable Overlay dTable ✔ Mostly-contiguous IDs ✔ Most live in the US ✔ Some live elsewhere ✔ Don’t penalize them

  • Occasionally relocate
slide-51
SLIDE 51

Bloom dTable Managed dTable

20

Unified View

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable Journal dTable Overlay dTable ✔ Mostly-contiguous IDs ✔ Most live in the US ✔ Some live elsewhere ✔ Don’t penalize them ✔ Occasionally relocate

slide-52
SLIDE 52

Managed dTable

21

  • Need a policy for digesting journal dTables
  • Decreases overlay performance, but frees memory
  • Need a policy for combining read-only dTables
  • Restore overlay performance, consolidate data
  • Must balance these goals efficiently

Overlay dTable Journal dTable Array dTable

slide-53
SLIDE 53

Managed dTable

21

  • Need a policy for digesting journal dTables
  • Decreases overlay performance, but frees memory
  • Need a policy for combining read-only dTables
  • Restore overlay performance, consolidate data
  • Must balance these goals efficiently

Overlay dTable Array dTable Journal dTable Array dTable Array dTable

slide-54
SLIDE 54

Managed dTable

21

  • Need a policy for digesting journal dTables
  • Decreases overlay performance, but frees memory
  • Need a policy for combining read-only dTables
  • Restore overlay performance, consolidate data
  • Must balance these goals efficiently

Overlay dTable Array dTable Journal dTable Array dTable Array dTable

slide-55
SLIDE 55

Managed dTable

21

  • Need a policy for digesting journal dTables
  • Decreases overlay performance, but frees memory
  • Need a policy for combining read-only dTables
  • Restore overlay performance, consolidate data
  • Must balance these goals efficiently

Overlay dTable Array dTable Journal dTable Managed dTable Array dTable Array dTable

  • Interfaces with transaction library
  • Allows all other dTables to ignore transactions
slide-56
SLIDE 56

Bloom dTable

22

Managing Long-Term Efficiency

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable Journal dTable Overlay dTable Managed dTable

slide-57
SLIDE 57

Bloom dTable

22

Managing Long-Term Efficiency

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable Journal dTable Overlay dTable Managed dTable

slide-58
SLIDE 58

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable

Even with combining, we build up several

  • verlaid read-only

dTable subgraphs...

Bloom dTable

22

Managing Long-Term Efficiency

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable Journal dTable Overlay dTable Managed dTable

slide-59
SLIDE 59

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable

Even with combining, we build up several

  • verlaid read-only

dTable subgraphs...

Bloom dTable

22

Managing Long-Term Efficiency

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable Journal dTable Overlay dTable Managed dTable

Most of the data is probably in the older

  • nes, combined

from many others.

slide-60
SLIDE 60

Bloom dTable

23

  • Creates a Bloom filter for the keys in another dTable
  • Accelerates (most) nonexistent key lookups: O(1)!
  • Slightly slows down extant key lookups
  • Takes additional disk space in a separate file
  • Read-only
  • No need to worry about key removal
  • Creates Bloom filter bitmap during create()
  • Particularly useful under overlay dTables
slide-61
SLIDE 61

24

An Application-Specific Backend

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable Journal dTable Overlay dTable Managed dTable Bloom dTable

slide-62
SLIDE 62

24

An Application-Specific Backend

State Dict. dTable Array dTable Exception dTable Linear dTable B-tree dTable Journal dTable Overlay dTable Managed dTable Bloom dTable

slide-63
SLIDE 63

Additional dTables

  • Fixed-size
  • Unique-string
  • Empty
  • Memory
  • Cache
  • Small integer
  • Delta integer

25

Combination array/linear Deduplicates strings Always empty Not persistent Memory cache Strips leading zero bytes Stores differences

slide-64
SLIDE 64

Performance Hypothesis

26

  • Simple configuration changes can improve

performance for specialized workloads

  • Benefits of tailoring dTable configurations to data
  • Performance is good for conventional workloads
  • Replaced SQLite’s update-in-place backend with Anvil
  • Can run a TPC-C-like benchmark (DBT2)
  • Overhead of digesting and combining can be reduced

by background processing

slide-65
SLIDE 65

Evaluating dTable Modularity

27

  • Load a given dTable configuration with 4M values
  • 0.2% of them 7 bytes, others 5 bytes
  • Look up 2M random keys

?? Overlay dTable Managed dTable Journal dTable

slide-66
SLIDE 66

dTable Choice Depends On Data

28

  • Linear + B-tree vs. Array + Exception
  • Keys: contiguous or spaced 1000 apart
  • Anvil’s modularity allows us to choose the right

configuration for this data

1.0 6.8 46.8 320.4 2,192.2 15,000.0 Sparse

Linear + B-tree Array + Exception

5 10 15 20 25 30 Contiguous Lookup Time (s)

slide-67
SLIDE 67

Layered Index dTable Speeds Lookups

29

  • Linear vs. Linear + B-tree
  • Also measure time to create data store
  • Usually a good configuration choice: many lookups

will make up the create cost

0.5 1.0 1.5 2.0 2.5 3.0 Create Time (s) 10 20 30 40 50 60 70 Lookup

Linear Linear + B-tree

slide-68
SLIDE 68

Exception dTable Has Low Overhead

30

  • Linear vs. Array vs. Array + Exception
  • Plain array can store only fixed size values
  • Exception dTable is low overhead vs. array (4%

slower lookups here), but restores full functionality

0.5 1.0 1.5 2.0 2.5 3.0 Create Time (s) 10 20 30 40 50 60 70 Lookup

Linear Array Array + Exception

slide-69
SLIDE 69

How Does Read/Write Separation Perform?

Bloom dTable Overlay dTable B-tree dTable Linear dTable Managed dTable Journal dTable

  • Anvil separates reads and

writes into different dTables in our configurations

  • How does this perform

relative to an update-in- place backend?

  • Run DBT2 TPC-C with 1

warehouse for 15 minutes

  • Simple row store Anvil

configuration

  • Digesting, combining, and

system journal cleaning all set to occur frequently

slide-70
SLIDE 70

Separated Read/Write dTables Are Fast

32

  • Anvil’s durable

configuration outperforms

  • riginal durable

configuration

  • Anvil’s non-durable (but

consistent, i.e. safe) configuration outperforms

  • riginal “async” (i.e.

unsafe) configuration

1,000 2,000 3,000 4,000 5,000 6,000 7,000 8,000 9,000 Durable Non-durable Transactions Per Minute (TPM)

Original backend Anvil backend MySQL

slide-71
SLIDE 71

Better Disk Access Makes Anvil Fast

33

  • Both Anvil configurations have significantly better

disk access characteristics

  • Larger, contiguous writes, better laid out on disk
  • Can write more data in less time with faster seeks

20 40 60 80 100 Durable Non-durable Disk Utilization (%) 1.00 2.82 7.94 22.36 63.00 177.48 500.00 Durable Non-durable Average Request Size (KiB) 1.0 3.4 11.4 38.7 131.0 443.3 1,500.0 Durable Non-durable Writes/sec

Original backend Anvil backend

slide-72
SLIDE 72

Digesting and Combining

34

  • Anvil’s performance benefits don’t come for free
  • Digesting, combining, and cleaning are the price
  • These tasks can be done in the background
  • Read-only source data makes a background thread safe
  • Takes advantage of additional cores and spare I/O bandwidth
  • Bulk loading a dTable with ~1GiB of data
  • Digest every few seconds
  • 50 seconds with background digest/combine
  • 82 seconds without
slide-73
SLIDE 73

Related Work

  • Bigtable [Chang et al. ’06]
  • Some aspects of Anvil resemble Bigtable SSTables
  • Write-optimized logs, read-optimized data
  • Higher-level distribution system complimentary
  • C-Store [Stonebraker et al. ’05]
  • Data-specific optimizations and finer control of data layout
  • Abstraction-providing libraries
  • Stasis transaction framework [Sears, Brewer ’06]
  • BerkeleyDB persistent data structure library

35

slide-74
SLIDE 74

Conclusions

36

slide-75
SLIDE 75

Conclusions

36

  • Anvil provides a new way to build storage systems
  • Desired functionality can be composed from fine-grained

dTable modules

  • Simple configuration changes allow storing data in many

different useful ways

  • Easy to write new dTables for novel storage strategies
slide-76
SLIDE 76

Conclusions

36

  • Anvil provides a new way to build storage systems
  • Desired functionality can be composed from fine-grained

dTable modules

  • Simple configuration changes allow storing data in many

different useful ways

  • Easy to write new dTables for novel storage strategies
  • Still lacks some features, but they seem compatible
  • Aborting transactions, full concurrency
slide-77
SLIDE 77

Conclusions

36

  • Anvil provides a new way to build storage systems
  • Desired functionality can be composed from fine-grained

dTable modules

  • Simple configuration changes allow storing data in many

different useful ways

  • Easy to write new dTables for novel storage strategies
  • Still lacks some features, but they seem compatible
  • Aborting transactions, full concurrency
  • Performance overhead is small compared to potential

benefits for applications

  • Prototype faster than SQLite’s B-trees for TPC-C
slide-78
SLIDE 78

More info: http://read.cs.ucla.edu/anvil
