Modified Asphalts in Pavement Design Optimization of Asphalt Mixtures and Pavement Thickness with Specialty Polymers Professor Hussain Bahia University of Wisconsin-Madison Jo Joint t Tech chnical nical Commit ittee tee on Pave Pavements


slide-1
SLIDE 1

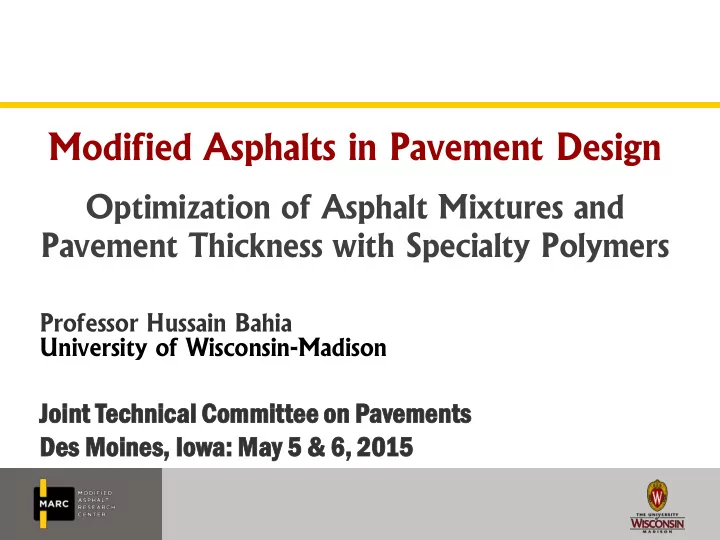

Modified Asphalts in Pavement Design

Optimization of Asphalt Mixtures and Pavement Thickness with Specialty Polymers

Professor Hussain Bahia University of Wisconsin-Madison

Jo Joint t Tech chnical nical Commit ittee tee on Pave Pavements ts Des Moines, nes, Io Iowa wa: : May ay 5 & & 6, 2015 15

slide-2
SLIDE 2

Outline

  • Asphalt Mixtures Quality and Pavement

Thickness - Past and Future

  • How Modified Asphalts has changed and will

impact the “return on investment in roads”

  • Pavement ME and its role in expediting the

change, or gain on the investment of asphalt roads.

slide-3
SLIDE 3

Pavement Design Methods

  • AASHTO 1993

– SN = a1 D1 + a2 D2 + a3 D3

  • SN= Structural Number
  • D: Thickness
  • ai : Layer coefficient ~ Modulus
  • Pavement ME – 2012--

– Mixture Dynamic Modulus : E*

  • Higher E*= Less deformation, less damage
slide-4
SLIDE 4

Asphalt Mixture Modulus Impact:

Higher E of mix = Higher ai– less thickness

AASHTO 1993

Modified Mix

Un-Modified mix

slide-5
SLIDE 5

Europe has used this concept for more than 25 Years – EME

  • “.. to reduce the consumption of non-renewable resources

(aggregates and also bitumen) by using Enrobés à Module Elevé (EME - High Modulus Asphalt mixes), since more than 25 years.

  • The thickness reduction can reach to 30 – 35%

less compared to traditional flexible pavement.

  • This technique presents an excellent solution to reduce the

use of materials while maintaining a very long service life..”

Source : ISAP 2012 – Yves Brosseaud, French Institute of Science and Technology for

Transport, Development and Networks (IFSTTAR), France

slide-6
SLIDE 6

NCAT Study – 18% thickness reduction

Kendra Peters-Davis and Dr. David H. Timm, P.E. (NCAT Report 09-03)

  • Two sections placed in 2003 designed with AASHTO 1993 to reach

terminal serviceability at 10 million ESALs have survived an impressive 30 million ESALs at the test track.

  • The sections differ with respect to binder grade—one used PG 67-

22, whereas the other used modified PG 76-22.

  • Based on calibration, the ai can be increased to 0.54.
  • Increasing the coefficient from 0.44 to 0.54 results in

approximately 18% percent thinner asphalt cross-sections.

  • Alabama DOT estimates savings of approximately $40 million per

year since implementing the revised layer coefficient.

slide-7
SLIDE 7

NCAT newsletter

  • MEPDG Predictions vs. Actual Performance
  • Performance data from the 2003 and 2006 sections at

the test track were compared with MEPDG predictions

  • Using the national calibration coefficients generally over-

predicted rutting. However, newly calibrated coefficients for the unbound layers produced acceptable rutting predictions.

  • Fatigue cracking: Grouping sections with similar

characteristics may result in better fatigue calibration results, an approach which may be helpful in analyzing data for the 2009 sections.

slide-8
SLIDE 8

M-E Pavement Design Process

Options to improve return on investment are limited: Modifying Mixtures is the best option

slide-9
SLIDE 9

Input Level 1 Input Level 2 Input Level 3 Asphalt Concrete Measured |E*|

(mixture-specific testing)

Estimated |E*|

(predicted models & lab measured binder data)

Default |E*|

(assumed |E*| & assumed binder data)

Stabilized Materials Measured MR Estimated MR Default MR Granular Materials Measured MR Estimated MR Default MR Subgrade Measured MR Estimated MR Default MR

Mixture E*- Complex Modulus

slide-10
SLIDE 10

Mixture Performance and Impact of Modifiers-

Can be measured Effectively Dynamic Modulus: E*/

Time, t  osint osin(t-   

| * |    E

i

t   

slide-11
SLIDE 11

How to Improve E* with Modifiers

  • Traditional approaches:

– Increase binder grade: PG 64-22 to PG 76-22 – Improve Aggregate gradation

  • Newly discovered approach:

– Improve Aggregate structure – Some additive improve aggregate structure by allowing better packing – Lubrication theories allow using additives to improve packing during construction

slide-12
SLIDE 12

How It Works: Optimize Aggregate Structure with Asphalt Polymers

  • The rocks are stronger than

the asphalt binder and better able to bear the traffic load

  • Certain Polymers helps

arrange the rocks to bear the traffic load

  • Increased contact points

allows better distribution of load, which leads to

  • Higher E*
  • Longer-lasting pavement

and

  • Improved rutting Resistance
slide-13
SLIDE 13

Aggregate Skeleton Characterization Using iPas-2 Software

Contact zones Contact length

slide-14
SLIDE 14

Aggregate Skeleton Characterization

Contact plane orientation (AAc), AAAc, Dc Aggregate skeleton

Load

slide-15
SLIDE 15

OxPE PE

OxPE

Dynamic Modulus (E*)-AASHTO TP79

HON HON

Dynamic Modulus Master Curves

Cer Certain tain Pol

  • lymer comb

ymer combina ination ha tion has highe s higher r st stif iffn fness ess at t high temper high temperatur ture

OxPE PE E E E+OxP +OxPE E+O +OxP xPE Cont ntrol

  • l

Cont ntrol

  • l

E E+Oxid idiz ized ed PE PE

15

slide-16
SLIDE 16

Pavement Structure Assumed

slide-17
SLIDE 17

Results of Pavement Analysis

slide-18
SLIDE 18

Rutting and Asphalt Layer Thickness

18

0.000 0.100 0.200 0.300 0.400 0.500 0.600 2 4 6 8 AC C Ruttin tting (in in) AC Thic hickne kness ss (in) (in) Control CBE Hybrid SBS Control @ h= 6 in

E E E + O + Oxidized xidized E Oxidiz xidized ed PE

slide-19
SLIDE 19

More re Benefits fits Poss ssible ble To Today: y: R Reduce ce Road Th Thickne ckness ss up to 4 to 45% when Polym ymers ers are re Se Selecte ected d Well ll

Road d Performa

  • rmance

nce Criter teria ia

  • 10-year design life
  • Average annual daily truck traffic = 4500
  • Pavement design thickness driven by

material performance

  • Road considered failed if

–Rut depth reaches 0.35 inches

  • r

–Alligator cracking reaches 25%

Pavement Thickness To Meet 10-Year Life* Inches, lower is better

Alligator Cracking at 3.3 Inches Road Thickness Percent , lower is better

*Based on AASHTO MEPDG Design Method

3.3 4.8 6.0 No Additive Traditional Additive

  • 45%

Titan Polymers 3.5 3.9 3.9 Traditional Additive Titan Polymers No Additive

  • 11%

Spec Limit 25%

Rutting Alligator Cracking

slide-20
SLIDE 20

4 i in. 6 i in. 6 i in.

Top p Laye ayer

Middle e Laye yer 2.2 in. 6 i in. 6 i in. Base Laye yer Savings gs 1.8 in.

Po Potenti ntial al Sa Savings ings in n pavement ement top p lay ayer er

Sample for illustration purposes. Roads design varies depending on local conditions.

Honey eywel well l Additiv ive Aggrega gate te Base Subsoil Average ge Road

Top p Laye ayer

Middle e Laye yer Base Laye yer Aggrega gate te Base Subsoil

Better Internal Structure Enables Thinner Road Top Layer

45% R % Reducti tion

slide-21
SLIDE 21

Technologi

  • logies

s like e Oxidiz idized ed Asp sphalt lt additiv tives es can help by by: 1) Build more roads  Pave 40% more miles by reducing road thickness, while maintaining road performance

OR OR

2) Build better roads  Extend the maintenance cycle by 5 yrs thereby reducing maintenance costs

Infrastructure dollars are extremely limited, while demands to build and improve roads continues to grow

Stretch Paving Cost with Specialty additives

Integrating New Technologies Saves Money

slide-22
SLIDE 22

Pavement Temperature, °C

  • 20

20 40 135

Other Benefits of Specialty Polymers

Better Workability, less thermal Shrinkage

Thermal Cracking Fatigue Cracking Rutting Workability (mix & compact)

ram pres essure sure 1.25 deg

SGC

slide-23
SLIDE 23

Thermal Stress Restrained Specimen Test (TSRST)

Ashal alt t Ther ermal al Crack cking ing Analy lyzer zer(ATC TCA) A)

E+OxPE PE Cont ntrol rol OxPE E

αg αl Tg

23

slide-24
SLIDE 24

Good correlation between Internal Structure Parameters and Coefficient of Thermal Expansion.

Increase in Total Proximity Length Higher Connectivity of Aggregate Skeleton Higher Resistance to Thermal Strain

Effect of Aggregate Structure on CTC

Aggregate Structure Parameters

R² = 0.90 R² = 0.97

4.50E-05 4.70E-05 4.90E-05 5.10E-05 5.30E-05 5.50E-05 5.70E-05 5.90E-05 6.10E-05 1000 2000 3000 4000 5000

αl (1/°C)

Total Proximity Length (mm/100 cm2)

Fine Coarse

24

slide-25
SLIDE 25

Workability: Measuring Required Compaction Effort Superpave Gyratory Compactor

  • Simulate field compaction with roller
  • Also simulate traffic densification

150 mm mold 150 mm mold ram pressure ram pressure 600 600 kPa kPa 1.25 deg 1.25 deg 30 gyrations 30 gyrations per minute per minute 150 mm mold 150 mm mold ram pressure ram pressure 600 600 kPa kPa 1.25 deg 1.25 deg 30 gyrations 30 gyrations per minute per minute % Gmm – Density

N- Gyrations (Roller passes) 10 100 1000

Modified Binder Base Binder

96 % Gmm 92 % Gmm

slide-26
SLIDE 26

Effect of Polymers on Compaction Effort of mixtures at 145 oC

Sample N92- 8 % air- voids N96 – 4% air- voids

% Change in compaction effort Control 36 111 Elastomer 32 100

  • 10

Plastomer 26 86

  • 23

Hybrid 24 76

  • 41
  • Titan and Hybrid can reduce compaction effort ( up to 40%)
  • Or allow wider temperature range for compaction
slide-27
SLIDE 27
  • Micromechanical Characterization Using

Imaging Analysis is Simple and Available

  • Parameters calculated:

–Number of contact zones –Contact length (area) –Contact orientation –Aggregate orientation –Aggregate skeleton

Optimization of Asphalt Mixtures

More Cost effective materials and pavements

slide-28
SLIDE 28

Titan ability to increase Contact Points ( TPL) at optimum air voids

500 1000 1500 2000 2500 3000 3500 4000 4500 5000 2.0 4.0 6.0 8.0 10.0 12.0 14.0 Total Proximity Zone Length (mm/100cm^2) Air Voids % (Va)

Not Optimum Wasted Binder filling voids

Optimum: Binder used effectively

Vmb

Vsb Vba Vb Vse Vmm Va VM A

slide-29
SLIDE 29

Optimum Bitumen and Less Rutting

  • 6
  • 5
  • 4
  • 3
  • 2
  • 1

1000 2000 3000 4000 5000 6000 7000 8000 9000 1000011000 Rut Depth, mm Loading Cycles

+Specialty Polymers

+Anti Strip

1.8 mm - 40 % reduction

slide-30
SLIDE 30

Concluding Results

  • Roads are built with mixtures, not Binders!
  • We need Modified Mixtures to impact pavement design
  • Roads’ Cracking & rutting are affected by:

– aggregate structure and bitumen Properties.

  • Road Thickness can be reduced
  • Road service life can be improved
  • There are specialty modifiers that can improve road

performance and allow more economical pavement design

  • Pavement ME is essential to all these developments
slide-31
SLIDE 31

Thank You for the Opportunity

www.uwmarc.org

Questions?

Hussain Bahia

bahia@engr.wisc.edu
