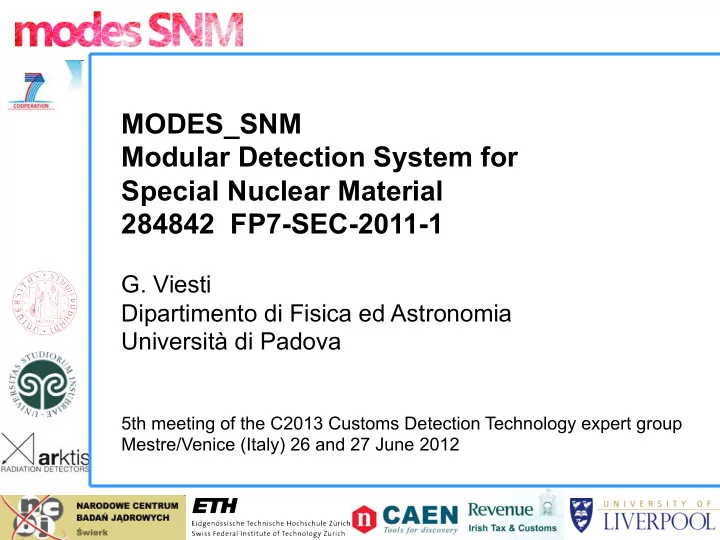

MODES_SNM Modular Detection System for Special Nuclear Material 284842 FP7-SEC-2011-1 G. Viesti Dipartimento di Fisica ed Astronomia Università di Padova 5th meeting of the C2013 Customs Detection Technology expert group Mestre/Venice (Italy) 26 and 27 June 2012

INTRODUCTION / 1 The detection and identification of radioactive sources and Special Nuclear Material (HEU and WGPu) is one of the higher priority task in the field of counter-CBRN programs. This task is certainly connected with the possibility of terrorist actions (RDD or nuclear weapons) but it has also important consequences on the public health in case of contaminated merchandises. The screening is performed normally with RADIATION PORTAL MONITORS that detect gamma ray by using high efficiency but low resolution plastic scintillator detectors (PVT) providing an alarm based on excess counts only. Similarly, 3 He based proportional counters have been used so far to detect neutrons. THE RPM represents the first level screening. In case of alarm, a second level inspection is operated by using portable systems providing gamma-ray spectroscopic information by using inorganic scintillators (NaI(Tl) or LaBr(Ce)) or even HPGe detectors. Today’s problems: 1) NORM discrimination (false alarm rate) 2) 3He crisis for the production of detectors 3) need to improve the neutron detection to search for SNM

INTRODUCTION / 2 Topic SEC-2011.1.5-1 Development of detection capabilities of difficult to detect radioactive sources and nuclear materials As underlined in the EU CBRN action plan, efficient and reliable detection of difficult-to-detect radioactive sources and nuclear materials, including masked and shielded sources, is still a challenge. The research project should look specially into solutions for the improvement of detection and enhancing the portability and mobility of detection solutions, which could among other be used also by emergency responders in the field or for the detection and location of a radiation source in large crowds. The solutions proposed should facilitate reliable and correct assessment of the detected signal for subsequent launching of appropriate response. è 1) fast relocatable solution 2) end-user oriented 3) detection and localization of sources 4) improve the detection capability of “difficult sources” 5) identification of the source MODES_SNM PROJECT IS SUPPOSED TO MEET REQUIREMENTS AND EXPECTATIONS

BASIC FACTS / NEEDS Detection of radioactive sources: False gamma-ray alarms generated by NORM Pu è Need of spectroscopic capability Detection of SNM: Pu isotopes are prolific fast neutron sources Specific gamma-ray signatures U samples: very low neutron emission Specific gamma-ray signatures HEU è Need of spectroscopic capability Need of very good capability to distinguish weak fast neutron signal from background Masked sources: Spectroscopic capability Need of detecting neutrons in a very high gamma background LEU Shielded sources: Need of very good capability to distinguish weak fast neutron signal from background Thermal neutron detection

STATE-OF-THE-ART vs MODES_SNM THE NEUTRON CASE Origin of the terrestrial neutron background: spallation reaction induced by the cosmic ray particles (typically 20 counts/s per m 2 of detector,1/E dependence) ! State-of-the art: 3He-poly assembly good efficiency from thermal to 10 MeV MODES_SNM: fast neutron detector (0.1-10 MeV) with efficiency centered in the SNM fast neutron spectrum. Terrestrial background is minimized thus enhancing the detection capability of weak fast neutron signal. Special thermal neutron detectors (without poly moderator). The measure of the fast/thermal neutron ratio will provide information about the presence of shield.

THE MODES_SNM FAST NEUTRON TECH High pressure fast neutron 4He scintillation detectors developed by ARKTIS (Zurich) Distinctive facts: 1) Good efficiency for fast neutrons and low efficiency for gamma rays 2) Neutron-gamma discrimination capability è It operates in a high gamma ray background è Possibility of energy windowing Optimization of the mechanical lay-out and the read-out of the gas scintillation cell to enhance portability New electronics front-end from CAEN

MODES_SNM GAMMA-RAY TECH GAMMA RAY DETECTORS: Xenon high pressure scintillation cells (i.e. cells using the same basic technology of the ARKTIS fast neutron detectors). Xenon exhibits outstanding properties both as a scintillation and as an ionization medium and a high absorption for gamma rays. Consequently xenon is a very interesting material for gamma ray detection and spectroscopy. Good energy resolution with an efficiency exceeding 10% for gamma energies up to 1 MeV can be achieved with high-pressure xenon scintillation cells of modest dimensions (12 cm diameter at ~60 bar). From:www.contech.com/Noble_Gas_Detectors.htm

MODES_SNM THERMAL NEUTRON TECH THERMAL NEUTRON DETECTOR: gas cells with a suitable converter of the thermal neutrons in charged particles. The goal is to detect the charged particle products in a low pressure noble gas scintillation cell (the basic ARKTIS technology) to detect the charged particles (short range) but being insensitive to fast neutrons and gamma rays. 10 B 4 C lined detector

FRONT-END ELECTRONICS HV power supplies and fast-digitizers will be designed and produced by CAEN specifically for matching the MODES_SNM requirements: 1) optimized for the read-out of the ARKTIS high pressure scintillation detectors 2) on-board Digital Pulse Processing will determine on-line the relevant event parameters (i.e. type of particle, energy … .) 3) low power consumption to provide sufficient battery life time and enhance the system portability

The MODES_SNM demonstrator The demonstrator will be a modular and scalable system divided into so- called system blocks. To enhance the mobility and flexibility, each system block weighs less than 25 kg, allowing it to be placed and removed into/onto vehicles. Block A consists of all system electronics including power supply and battery, signal processing electronics, analysis units, and the user interface. Blocks B consists of arrays of four detector modules per block, selected from the suite of gamma, fast neutron and thermal neutron radiation detector modules. Each Block A will serve several blocks type B The MODES_SNM prototype represents a type of instruments defined as PORTABLE RADIATION SCANNER by IAEA. In this context few types of operations are foreseen: 1) Mobile configuration: i.e. van mounted search 2) Stationary mode (i.e. pedestrian or road vehicle monitor even in connection with X-ray scanners) For each type of operation different Blocks B are needed and a specific Information System will be prepared.

MODES_SNM limits of detection MODES_SNM shall satisfy the IAEA requirements: Probability of detection: 90% at 95% Confidence Level with False Alarm Rate of less than 1 per hour of operation. Gamma-ray: detection capability of radioactive material, producing a dose rate of 0.05 µ Sv/h at the point of closest approach to the instrument, passing by with a speed of 0.5 m/s. This requirement shall be met in an energy range from 50 keV to 1.33 MeV (i.e. from 241 Am to 60 Co gamma rays). Single nuclide identification : identify the single nuclide in a measurement with a 60 s time window at an exposure rate from 0.05 µSv/h up to 5.0 µSv/h. Multiple nuclide identification and masking : specific tests will be prepared to verify the possibility of identifying sources with a dose rate of 0.05 µSv/h when the masking NORM radioactive material partial exposure is increased from 0.05 µSv/h to 1.0 µSv/h. Neutrons: generate a neutron alarm for a 252 Cf source emitting 1.2 × 10 4 neutrons/s and moving with a speed of 0.5 m/s (1.8 km/h) at a distance of closest approach between the source and the prototype of one meter. A neutron alarm shall not be triggered when exposed to gamma ray source producing a dose equivalent rate averaged over the face of the neutron detector of 100 µ Sv/h.

MODES_SNM USER INTERFACE The MODES_SNM system will be configured as Wi-Fi hotspot, providing access to a secure network for monitoring and operating the system by the user. EASY MODE or EXPERT MODE user interfaces. EASY MODE will assure automated functions to start the system, calibration (with NORM), background measurements (setting alarm thresholds) and will display the live status of the system and separated alarms (also audio) for gamma ray and neutrons. Source identification button. Source localization function in mobile operations. Automated recording of all parameters and results in the Electronic Log Book. EXPERT MODE full access to the system: electronic front-end configuration file, direct view on the energy spectra, possible calibration with radioactive sources, configuration of the Wi-Fi hotspot, transfer of the data from the Electronic Log Book to other computers. Possible use of local key board and monitor.
