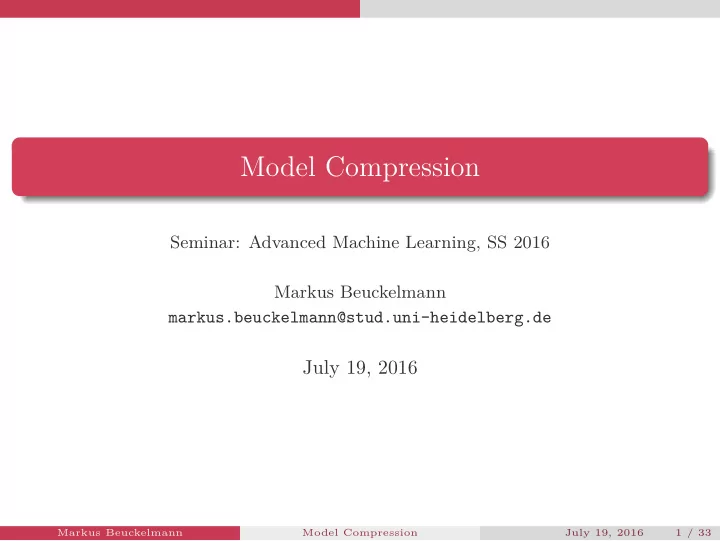

Model Compression

Seminar: Advanced Machine Learning, SS 2016 Markus Beuckelmann markus.beuckelmann@stud.uni-heidelberg.de

July 19, 2016

Markus Beuckelmann Model Compression July 19, 2016 1 / 33

Introduction Outline

Outline

1 Overview & Motivation

◇ Why do we need model compression? ◇ Embedded & Mobile devices ◇ DRAM vs. SRAM

2 Recap: Neural Networks for Prediction 3 Neural Network Compression & Model Compression

◇ Neural Network Pruning: OBD and OBS ◇ Knowledge Distillation ◇ Deep Compression

4 Summary

Markus Beuckelmann Model Compression July 19, 2016 2 / 33

Introduction Overview & Motivation

1 Overview & Motivation

Markus Beuckelmann Model Compression July 19, 2016 3 / 33

Introduction Overview & Motivation

Success of Neural Networks

• Image recognition
• Image classification
• Speech recognition
• Natural Language Processing

(Han et al., 2015) (Tensorflow) Markus Beuckelmann Model Compression July 19, 2016 4 / 33

Introduction Overview & Motivation

Problem: Predictive Performance is Not Enough

• There a different metrics when it comes to evaluating a model
• Usually there is some kind of trade–off, so the choice is governed by

deployment requirements

How good is your model in terms of...?

• Predictive performance
• Speed (time complexity) in training/testing
• Memory complexity in training/testing
• Energy consumption in training/testing

Markus Beuckelmann Model Compression July 19, 2016 5 / 33

Introduction Overview & Motivation

AlexNet: Millions of Parameters

AlexNet (Krizhevsky et al., 2012)

• Trained on ImageNet (15 · 106 training images, 22 · 103 categories)
• Number of neurons: 650 · 103
• Number of free parameters: 61 · 106
• ≈ 233 MiB (32-bit float)

(Krizhevsky et al., 2012)

• Having this many parameters is expensive in memory, time and energy.

Markus Beuckelmann Model Compression July 19, 2016 6 / 33

Introduction Overview & Motivation

Mobile & Embedded Devices

• Smartphones
• Hearing implants
• Credit cards, etc. ...

Smartphone Hardware (2016)

• CPU: 2× 1.7 GHz
• DRAM: 2 GiB
• SRAM: MiB
• Battery: 2000 mAh

(Micriµm, Embedded Software)

• Limitations: storage, battery, computational power, network bandwidth

Model Compression: Find a minimum topology of the model.

Markus Beuckelmann Model Compression July 19, 2016 7 / 33

Introduction Overview & Motivation

Minimizing Energy Consumption: SRAM & DRAM

• DRAM: Slower, higher energy consumption, cheaper
• SRAM: Faster, less energy consumption, more expensive, usually used as

cache memory

(Han et al., 2015) Markus Beuckelmann Model Compression July 19, 2016 8 / 33

Introduction Overview & Motivation

Minimizing Energy Consumption: SRAM & DRAM

• DRAM: Slower, higher energy consumption, cheaper
• SRAM: Faster, less energy consumption, more expensive, usually used as

cache memory

(Han et al., 2015)

• If we can fit the whole model into SRAM, we will consume drastically less

energy and gain significant speedups!

Markus Beuckelmann Model Compression July 19, 2016 8 / 33

Neural Networks

2 Neural Networks

Markus Beuckelmann Model Compression July 19, 2016 9 / 33

Neural Networks Neural Networks

Neural Networks: Basics

Feed–Forward Networks

• a(i+1) = (W(i+1))

⊤z(i), z(0) := x

• z(i+1) = 𝑔 (i+1)(a(i+1))
• 𝜚(x) = 𝑔 (N)⎞

· · · )︄ 𝑔 1(W(1)x) [︄ · · · ⎡

• ˆ

𝑧 = arg max )︄ 𝜚(x) [︄

• Training: GD, Backpropagation
• Powerful, (non–linear)

classification/regression

• Keep in mind: there are more

complex architectures!

(Rajesh Rai, AI lecture) (http: // deepdish. io ) Markus Beuckelmann Model Compression July 19, 2016 10 / 33

Neural Networks Neural Networks

Neural Networks: Prediction

(Zeiler, 2013)

Loss functions

• Regression: L(𝜄 | X, y) =

1 2𝑂

N

√︂

i=1

(𝑧i − ˆ 𝑧i)2

• Multiclass classification: L(𝜄 | X, y) = −

N

√︂

i=1 K

√︂

k=1

⎞ 𝑧ik · log (P(ˆ 𝑧ik)) ⎡

• Last layer is usually a softmax layer: p = z(l) = exp(a(l))

⨂︂ K √︂

k=1

exp(𝑏(l)

k )

• In the end, we will get posterior probability distribution over the classes

Markus Beuckelmann Model Compression July 19, 2016 11 / 33

Model Compression Methods

3 Neural Network Compression & Model Compression

Markus Beuckelmann Model Compression July 19, 2016 12 / 33

Model Compression Methods Pruning

Pruning: Overview

• Selectively removing

weights / neurons

• Compression: 2× to 4×
• Usually combined with

retraining

(Ben Lorica, O’Reilly Media) Markus Beuckelmann Model Compression July 19, 2016 13 / 33

Model Compression Methods Pruning

Pruning: Overview

• Selectively removing

weights / neurons

• Compression: 2× to 4×
• Usually combined with

retraining

(Ben Lorica, O’Reilly Media)

Important Questions

• Which weights should we remove first?
• How many weights can we remove?
• What about the order of removal?

Markus Beuckelmann Model Compression July 19, 2016 13 / 33

Model Compression Methods Pruning

Motivation: Synaptic Pruning

• In Humans we have synaptic pruning
• This removes redundant connections in the brain

(Seeman et al., 1987) Markus Beuckelmann Model Compression July 19, 2016 14 / 33

Model Compression Methods Pruning

Pruning: How do we find the least important weight(s)?

• Brute–force Pruning

◇ 𝒫(𝑁𝑋 2) with 𝑋 weights and 𝑁 training samples ◇ Not feasible for large neural networks

Markus Beuckelmann Model Compression July 19, 2016 15 / 33

Model Compression Methods Pruning

Pruning: How do we find the least important weight(s)?

• Brute–force Pruning

◇ 𝒫(𝑁𝑋 2) with 𝑋 weights and 𝑁 training samples ◇ Not feasible for large neural networks

• Simple Heuristics

◇ Magnitude–Based Damage: Look at ♣♣w♣♣p ◇ Variance–Based Damage

Markus Beuckelmann Model Compression July 19, 2016 15 / 33

Model Compression Methods Pruning

Pruning: How do we find the least important weight(s)?

• Brute–force Pruning

◇ 𝒫(𝑁𝑋 2) with 𝑋 weights and 𝑁 training samples ◇ Not feasible for large neural networks

• Simple Heuristics

◇ Magnitude–Based Damage: Look at ♣♣w♣♣p ◇ Variance–Based Damage

• More Rigorous Approaches

◇ Optimal Brain Damage (OBD) (LeCun et al., 1990) ◇ Optimal Brain Surgeon (OBS) (Hassibi et al., 1993)

Markus Beuckelmann Model Compression July 19, 2016 15 / 33

Model Compression Methods Pruning

Optimal Brain Damage (OBD)

• Small perturbation: δw ⇒ δL = L(w + δw) − L(w)
• Taylor expansion:

δL ≈ ⎞ 𝜖L 𝜖w ⎡⊤ · δw + 1 2δw⊤ · H · δw + O(||δw||3) ⇒ δL ≈ ∑︂

i

⎞ 𝜖L 𝜖𝑥i ⎡ δ𝑥i + 1 2 ∑︂

(i,j)

δ𝑥i(H)ijδ𝑥j + O(||δw||3)

• With Hessian: (H)ij =

∂2ℒ ∂wi∂wj

Markus Beuckelmann Model Compression July 19, 2016 16 / 33

Model Compression Methods Pruning

Optimal Brain Damage (OBD)

• We need to deal with:

⇒ δL ≈ ∑︂

i

⎞ 𝜖L 𝜖𝑥i ⎡ δ𝑥i + 1 2 ∑︂

(i,j)

δ𝑥i(H)ijδ𝑥j ⏟ ⏞

1 2

√︂

i

(H)iiδw2

i + 1 2

√︂

i̸=j

δwi(H)ijδwj

+ O(||δw||3)

Approximations

• Extremal assumption: local optimum (training has converged)
• Diagonal assumption: H is diagonal
• Quadratic approximation: L is approximately quadratic

Markus Beuckelmann Model Compression July 19, 2016 17 / 33

Model Compression Methods Pruning

Optimal Brain Damage (OBD)

• We need to deal with:

⇒ δL ≈ ∑︂

i

⎞ 𝜖L 𝜖𝑥i ⎡ δ𝑥i + 1 2 ∑︂

(i,j)

δ𝑥i(H)ijδ𝑥j ⏟ ⏞

1 2

√︂

i

(H)iiδw2

i + 1 2

√︂

i̸=j

δwi(H)ijδwj

+ O(||δw||3)

Approximations

• Extremal assumption: local optimum (training has converged)
• Diagonal assumption: H is diagonal
• Quadratic approximation: L is approximately quadratic
• Now we are left with:

δL ≈ 1 2 ∑︂

i

(H)iiδ𝑥2

i → 𝑇k = 1

2(H)kk𝑥2

k

Markus Beuckelmann Model Compression July 19, 2016 17 / 33

Model Compression Methods Pruning

OBD: The Algorithm

1 Choose a reasonable network architecture 2 Train the network until a reasonable local minimum is obtained 3 Compute the diagonal of the Hessian, i.e. (H)kk 4 Compute the saliencies given by 𝑇k = 1

2(H)kk𝑥2

k for each parameter 5 Sort the parameters by 𝑇k 6 Delete parameters with low–saliency 7 (Optional: Iterate to step 2)

Markus Beuckelmann Model Compression July 19, 2016 18 / 33

Model Compression Methods Pruning

OBD: Experimental Results

• Data: MNIST (handwritten digits recognition)
• Left panel (a): Comparison to magnitude–based pruning
• Right panel(b): Comparison to saliencies

(Le Cun et al., 1990) Markus Beuckelmann Model Compression July 19, 2016 19 / 33

Model Compression Methods Pruning

OBD: Experimental Results – With Retraining

• This is what it looks with retraining.
• Left panel (a): Retraining (training data)
• Right panel (a): Retraining (test data)

(Le Cun et al., 1990) Markus Beuckelmann Model Compression July 19, 2016 20 / 33

Model Compression Methods Pruning

Optimal Brain Surgeon (OBS)

• Now: Use the full Hessian H
• We want to set one of the weights to zero: (δwk)⊤ · ˆ

ek ⏟ ⏞

δwk

+𝑥k = 0

• Solve the optimization problem

min

k

∮︂ min

δW

⎞1 2(δw)⊤ · H · δw ⎡ | (δwk)⊤ · ˆ ek + 𝑥k = 0 ⨀︁ .

• Lagrangian:

Λ = 1 2δw⊤ + λ ⎞ (δwk)⊤ · ˆ ek + 𝑥k ⎡ .

Markus Beuckelmann Model Compression July 19, 2016 21 / 33

Model Compression Methods Pruning

OBS: Solving the optimization problem

• Generalized saliency:

𝑇k = 1 2 𝑥2

k

(H⊗1)kk

• Note: If H⊗1 is diagonal: (H⊗1)kk =

)︄ (H)kk [︄⊗1 ⇒ 𝑇k = 1 2(H)kk𝑥2

k

• Optimal weight change:

δw = − 𝑥k (H⊗1)kk · H⊗1 · ˆ ek

The obvious drawback...

• However: We need H⊗1
• Fortunately: It is possible to recursively calculate H⊗1

(see Hassibi et al., 1993)

Markus Beuckelmann Model Compression July 19, 2016 22 / 33

Model Compression Methods Knowledge Distillation

Knowledge Distillation: General Idea

• Try to approximate bigger/more complex neural nets (models) with

smaller neural nets (models) of similar generalization performance.

• General Idea of Distillation: Have a student model model the teacher’s

function directly.

Motivation: An Analogy to Insects

• Larval form: Optimized for extracting energy and nutrients
• Adult form: Optimized for traveling and reproduction

Similarly: There are different requirements for training and testing

• Training: extract knowledge from training data, non time–critical
• Testing: fast (real–time) prediction, energy efficiency

Markus Beuckelmann Model Compression July 19, 2016 23 / 33

Model Compression Methods Knowledge Distillation

Caruana et al. (2006) — Model Compression

• Transfer learning: Try to match the logits

produced by the teacher net

• Logit: The input to the softmax layer
• This is just a regression problem (regressing

logit with ℓ2-loss)!

(Yangyang, 2014)

The Algorithm

1 Feed teacher with data 2 Obtain logits from teacher (transfer training set) 3 Train student on these logits (ℓ2-regression)

• Note that we can use unlabeled data now to train the student!

Markus Beuckelmann Model Compression July 19, 2016 24 / 33

Model Compression Methods Knowledge Distillation

Hinton et al. (2015) — Dark Knowledge

• Transfer learning: Try to match soft targets

produced by the teacher net

• Softmax layer:

p = z(l) = exp( a(l)

T )

⨂︂ K √︂

k=1

exp(

a(l)

k

T )

• This will soften the posterior distribution
• For 𝑈 → ∞, this is equivalent to the Caruana

approach (assuming logits are zero–meaned)

(Yangyang, 2014)

The Algorithm

1 Feed teacher with data (𝑈1) 2 Obtain soft targets from teacher (𝑈1) (transfer training set) 3 Train student on soft targets (𝑈1) with cross–entropy loss 4 Use student with 𝑈 < 𝑈1

Markus Beuckelmann Model Compression July 19, 2016 25 / 33

Model Compression Methods Knowledge Distillation

Knowledge Distillation: Dark Knowledge

Why does this work?

• Dark Knowledge (Geoffrey Hinton)

◇ Knowledge Distillation works, because most of the knowledge in the learned model is in the relative probabilities of extremely improbable wrong answers.

Markus Beuckelmann Model Compression July 19, 2016 26 / 33

Model Compression Methods Knowledge Distillation

Knowledge Distillation: Dark Knowledge

Why does this work?

• Dark Knowledge (Geoffrey Hinton)

◇ Knowledge Distillation works, because most of the knowledge in the learned model is in the relative probabilities of extremely improbable wrong answers.

• Lets look at an example:

◇ Truth: y =

)︄

1 0[︄⊤

⏟ ⏞ )︄

Pcow Pdog Pcat Pboat

[︄⊤

◇ Teacher output: ˆ y = )︄ 10⊗6 0.9 0.1 10⊗9[︄⊤ ◇ Softened output: ˜ y = )︄ 0.05 0.4 0.3 10⊗3[︄⊤

Markus Beuckelmann Model Compression July 19, 2016 26 / 33

Model Compression Methods Deep Compression

Deep Compression: Overview

• Overall compression: up to 49×
• More focused on reducing memory and battery footprint
• EIE: Efficient Inference Engine on Compressed Deep Neural Network

(Han et al., 2015) Markus Beuckelmann Model Compression July 19, 2016 27 / 33

Model Compression Methods Deep Compression

Deep Compression: Weight Quantization / Sharing

(Han et al., 2015) (Han et al., 2015) (Han et al., 2015) Markus Beuckelmann Model Compression July 19, 2016 28 / 33

Model Compression Methods Deep Compression

Deep Compression: Huffman Coding

• Lossless compression:

Optimal prefix code

• General idea: Represent more common

symbols with fewer bits than less common symbols.

(Han et al., 2015) (Han et al., 2015) Markus Beuckelmann Model Compression July 19, 2016 29 / 33

Model Compression Methods Deep Compression

Deep Compression: Experimental Results

(Han et al., 2015)

• Deep Compression on AlexNet:

(Han et al., 2015) Markus Beuckelmann Model Compression July 19, 2016 30 / 33

4 Summary

Markus Beuckelmann Model Compression July 19, 2016 31 / 33

Summary

Summary

Model Compression: Why?

• We can improve speed in training/testing
• We can reduce the memory footprint
• We can reduce energy consumption
• We can (sometimes) improve predictive performance

Model Compression: Different Approaches

1 Pruning: Selectively removing weights (by saliency for OBD & OBS) 2 Knowledge Distillation: Try to distill the model’s function 𝜚(x) directly 3 Deep Compression: Pruning – Quantization – Encoding

Markus Beuckelmann Model Compression July 19, 2016 32 / 33

Summary Resources

Reading / Resources

• Knowledge Distillation

◇ [1] Distilling the Knowledge in a Neural Network, Hinton et al. (2015) ◇ [2] Model Compression, Caruana et al. (2006) ◇ [3] Do Deep Nets Really Need to be Deep?, Caruana et al. (2014)

• Pruning

◇ Overview: [4] Pruning algorithms-a survey, Reed (1993) ◇ [5] Optimal Brain Damage, Le Cun et al. (1990) ◇ [6] Optimal Brain Surgeon, Hassibi et al. (1993) ◇ [7] Learning both Weights and Connections for Efficient Neural Networks, Han et al. (2015)

• Deep Compression

◇ [8] Deep Compression, Han et al. (2016) ◇ [9] Efficient Inference Engine, Han et al. (2016)

Markus Beuckelmann Model Compression July 19, 2016 33 / 33

Summary Resources

Reading / Resources

• Knowledge Distillation

◇ [1] Distilling the Knowledge in a Neural Network, Hinton et al. (2015) ◇ [2] Model Compression, Caruana et al. (2006) ◇ [3] Do Deep Nets Really Need to be Deep?, Caruana et al. (2014)

• Pruning

◇ Overview: [4] Pruning algorithms-a survey, Reed (1993) ◇ [5] Optimal Brain Damage, Le Cun et al. (1990) ◇ [6] Optimal Brain Surgeon, Hassibi et al. (1993) ◇ [7] Learning both Weights and Connections for Efficient Neural Networks, Han et al. (2015)

• Deep Compression

◇ [8] Deep Compression, Han et al. (2016) ◇ [9] Efficient Inference Engine, Han et al. (2016)

Thank you!

Markus Beuckelmann Model Compression July 19, 2016 33 / 33

5 Extra slides

Markus Beuckelmann Model Compression July 19, 2016 1 / 3

Caruana vs. Hinton

• What’s the connection between matching logits and minimizing

cross–entropy with soft targets?

• Note: eε ≈ 1 + 𝜁 for small 𝜁
• 𝑈 𝜖L

𝜖𝑨i = 𝑞i − 𝑢i = e

zi T

√︂

j

e

zj T

− e

vi T

√︂

j

e

vj T

• 𝑈 𝜖L

𝜖𝑨i ≈ 1 + zi

T

𝐿 + √︂

j zj T

− 1 + vi

T

𝐿 + √︂

j vj T

= 1 𝐿𝑈 (𝑨i − 𝑤i)

• ...assuming that both sets of logits are zero–meaned. Here 𝐿 is the

number of classes.

• ⇒ Matching the logits of the cumbersome model is a special case of

distillation.

Markus Beuckelmann Model Compression July 19, 2016 2 / 3

OBD: How to compute second derivative?

• This can be done similar to backpropagation
• In general: 𝑦i = 𝑔(𝑏i), 𝑏i = √︂

j

𝑥ij𝑦j

• Diagonal of Hessian:

ℎkk = (H)kk = ∑︂

(i,j)

𝜖2L 𝜖𝑥2

ij

= ∑︂

(i,j)

𝜖2L 𝜖𝑏2

i

𝑦2

j

• Then:

𝜖2L 𝜖𝑏2

i

= 𝑔 ′(𝑏i)2 ∑︂

l

𝑥2

li

𝜖2L 𝜖𝑏2

l

+ 𝑔 ′′(𝑏i) 𝜖L 𝜖𝑦i

Markus Beuckelmann Model Compression July 19, 2016 3 / 3
