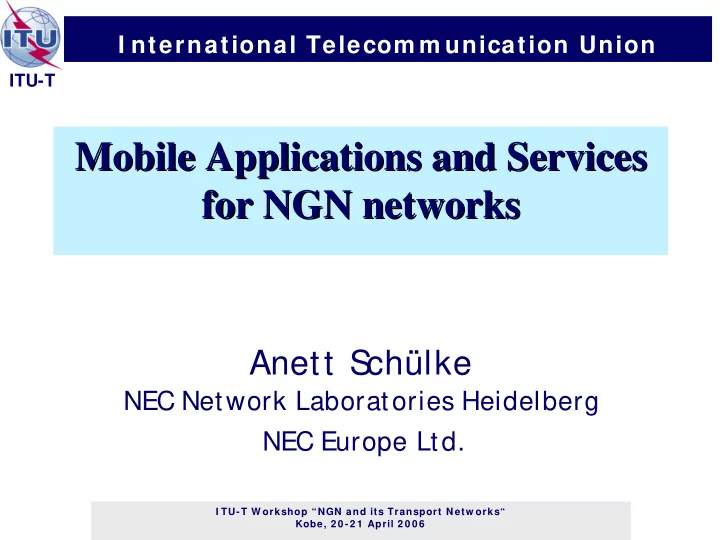

Mobile Applications and Services Mobile Applications and Services for NGN networks for NGN networks

Anett S chülke

NEC Network Laboratories Heidelberg NEC Europe Ltd.

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 2

ITU-T

Content

• Trends for Mobile Application and S

ervices

• OMA architecture (OS

E)

• Mobile S

ervices evolving from OMA

• Over IMS

— Push-to-talk Over Cellular, — Presence, — Group Management

• S

elective other services

• NEC’ s view on OS

E Model for S ervice Integration

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 3

ITU-T

Trends for Service Revenue

Services Trends Shaping Evolution

• Multimedia
• S

ervices are becoming more visual as the phones will be able to capture and display pictures, graphics and video

• Rich S

ervice Creation

• Contextual and Personal
• communication networks ! know more about users !

influence the services users receive

• gather more information about others ! share more

information about ourselves with others

• Context awareness leads to higher degree of personalization !

requirement for successful new services

• S
• cial and Community Focused
• People are social animals. We build social networks
• Modern networks and services offer the chance to build services

that allow users to interact in groups, as they do in the “real world”

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 4

ITU-T

Grouping, Presence, Context

Drivers for Enhanced Com m unication

• 3G and Internet

Technologies enable many new services

• How to provide

applications & services while taking advantage

• f the new network

capabilities efficiently?

IMS IMS

PoC Chat IM Gaming

. . .

Address Book

Context Service (e.g. Location) Context Service (e.g. Location)

Enterprise Database Enterprise Database

Enterprise Applications

Group Mgmt Presence Context

Basic IMS applications Driver for enhanced application generation

Presence / Context / Group Communication are the drivers for advanced application scenarios

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 5

ITU-T

Open Mobile Alliance ( OMA)

The Leading Standardization Organization for Mobile Service

• Brief history
• formed in June 2002 by 200 companies (now over 400 memberships)
• maj or parent body was WAP Forum
• The Mission of OMA is to grow the market for the entire mobile

industry by removing barriers for global user adoption, ensuring seamless application interoperability, while allowing business to compete through innovation and differentiation.

• OMA aims for a uniform service architecture for:
• Compelling new mobile services
• Interoperability between infrastructure, devices and services
• Healthy competition
• Less market fragmentation
• Lower cost in service development
• Faster global service deployment
• Enriched user experience across service providers

Source: http://www.openmobilealliance.org;

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 6

ITU-T

OMA Organization Chart

Board

Technical Plenary Browser & Content Device Mgmt. Data Synchronization Developers Interests Operations & Processes Requirements Architecture Security Interoperability Games services Location Messaging Mobile Commerce & Charging Release Planning & Mgmt. Mobile Web Services Presence & Availability Push to Talk Over Cellular

Committee Working Group

Legend

Secretariat OMA Staff

OMA Office OMA Office DSO DSO

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 7

ITU-T

OMA Service Environm ent ( OSE)

New Service Platform Paradigm in Standardization

• The OMA specifies service enablers.
• The OMA enablers ! the decomposition

into these components and the interactions between them.

• OMA is defining a new paradigm for an

integrated service architecture: OS E (OMA S ervice Environment)

RPC CORBA/ Java Web Services

IN/ CSE platform IP GPRS / UMTS GSM ISDN Parlay X

SIP Interface INAP/CAP Interface OSA / Parlay Interface

OMA OSE OSA /Parlay gateway IMS platform

Service Enabler Service Enabler Service Enabler Execution Environment (Software Life Cycle Mgmt, Load balancing, caching, etc.) Execution Environment (Software Life Cycle Mgmt, Load balancing, caching, etc.) Application Application to resources in operator’s networks, terminals, service provides Service Bindings Service Bindings Service Bindings Service Provider Domain Policy Enforcer Third-Party Domain

OMA analysis how OSE and Parlay/OSA architectures could be integrated and how components implementation/ realizations coexist for OSA/Parlay, Parlay X Web Service and OSE.

time Application Application Application

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 8

ITU-T

OMA Service Environm ent ( OSE)

Logical Architecture

Service Enabler Service Enabler Service Enabler Execution Environment (Software Life Cycle Mgmt, Load balancing, caching, etc.) Execution Environment (Software Life Cycle Mgmt, Load balancing, caching, etc.) Application Application to resources in operator’s networks, terminals, service provides Service Bindings Service Bindings Service Bindings Service Provider Domain Policy Enforcer Third-Party Domain

Source: http://www.openmobilealliance.org; OSE Architecture

Policy Policy

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 9

ITU-T

Service Enabler Service Enabler Service Enabler Execution Environment (Software Life Cycle Mgmt, Load balancing, caching, etc.) Execution Environment (Software Life Cycle Mgmt, Load balancing, caching, etc.) Application Application to resources in operator’s networks, terminals, service provides Service Bindings Service Bindings Service Bindings Service Provider Domain Policy Enforcer Third-Party Domain

OMA Service Environm ent ( OSE)

I MS in OSE Context

IMS interfaces are I2 interfaces in the OSE context

Source: http://www.openmobilealliance.org; IMS in OMA

I0+P I1 ISC Sh Ut Rf Gm Mb Ro I2

Non- IMS

I0

OSE Context

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 1 0

ITU-T

Future Attractive Services

Mobile Services built over I MS

• IMS

provides an integration environment for all communication media, such as Voice, Video & Text.

• IMS

realizes t he Rich Communication:

• Real-time Multi-media,
• Group and community centered services
• Example IMS

S ervices:

• Instant Messaging, Presence List
• Rich Voice Call (Presence based call forwarding & barring,

voice enabled games, bearer change, etc.)

• Group Text Chatting
• Live Goals: Video S

treaming S ervice (let your phone watch..)

• Phone trader: Automatic call set up when stocks hit their sell

price

• Push-to-Talk
• Multimedia Multiparty Conferencing (e.g. Multiparty Games)
• Personalized Information S

ervices

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 1 1

ITU-T

Presence Service

OMA Presence SI MPLE V1 .0 Architecture

Aggregation Proxy SIP / IP Core XDM Client Resource List Server Presence Server Presence XDMS Shared XDMS XDM-3 XDM-1 PRS-5 PRS-6 PRS-7 PRS-8 PRS-10 PRS-9 PRS-4 PRS-3 RLS XDMS PRS-11 PRS-12 Presence Source PRS-1 PRS-2 Watcher Remote Presence Network (based on SIP/IP Core) IP-1 DMC DMS DM 1 XDM-2 XDM-4 Content Server PRS-13 PRS-14 PRS-15

Status: January 2006 Presence V1.0: Candidate: Mar 2005 Presence V2.0: approx. Jan 2007

Presence Source

Resource List Srv Presence Server

Presence XDMS RLS XDMS XDM Client

Content Server

Source: http://www.openmobilealliance.org; OMA Presence SIMPLE AD

DM-1

Watcher

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 1 2

ITU-T

Group Managem ent

OMA XML Docum ent Managem ent V1 .0 Architecture

• XDM V1.0
• Candidate status since

February 2005

• XDM V2.0
• Requirements: expected to

be completed by June 2006

• Enabler package: expected

to be completed for candidacy by January 2007

Status: January 2006

Aggregation Proxy XDM client Shared XDMS

Source: http://www.openmobilealliance.org; OMA XDM AD

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 1 3

ITU-T

Push-to-Talk over Cellular

W hat is it ?

A form of communication that allows users to engage in immediate communication with one or more users, providing a “ walkie- talkie” like P2P and group service.

• The communication is half-duplex
• Right-to-S

peak amongst different participants is controlled

• The receiving participants hear the sender's voice either by Auto

Answer without any action on their part, or by Manual Answer, i.e.

being prompted/ alerted and accepting the call before hearing the sender's voice.

• PoC utilizes the Group Management and Presence enablers to

support Group List, Access Lists, and Presence.

Member A Member B Member C Member D Member E

Wireless Network

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 1 4

ITU-T

Push-to-Talk over Cellular

OMA Push-to-Talk over Cellular V1 .0 Architecture

contains the same network elements and reference points as

SIP XCAP RTP/ RTCP

Not defined in PoC Not standardized

GMS GM -3 POC -1 ACCESS NETWORK SIP / IP Core (based on IMS/MMD capabilities) Presence Server GM -5 PRS -2 Remote PoC Network IP -1 POC -4

GLMS Management/Administration

GM -4 GM -2

PoC Client

Presence Client Group Mgmt Client

PRS -1 GM -1 UE POC -2 POC -3 GM -7

DM Server DM Client

DM -1

PoC Server

• PoC V1.0
• Candidate

status since February 2005

• PoC V2.0
• planned to be

completed for candidacy by October 2006

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 1 5

ITU-T

Ongoing Service Developm ents in OMA

• ver I MS and beyond ( selection)
• Messaging
• Ideas to bring IM, PoC, and other messaging enablers together
• Content-related
• Content S

creening

—Terminal-based framework —Categorized content screening on server and terminal side

• Dynamic Content Delivery

—Periodic/ on-demand content push

• Digital rights Management
• Delivery Mechanism
• Mobile Broadcast
• For more interesting aspects coming from OMA see:

http:/ / openmobilealliance.org

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 1 6

ITU-T

NEC’s view on OSE Model for Service I ntegration

Service I ntegration for Advanced Applications

Communication services Content services Group and Context support

CSCF HSS IMS Service Enabler

Service Integration Environment

IMS Value-added Services Additional services

SMS Email CMS … … Conferencing

Presence XDMS

POC IP Telefony Location … DCD New Services for Users

Entertainment Enterprise

Application Application Application

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 1 7

ITU-T

Future Ubiquitous Life

Personalization and Context-aw areness

• Group Communication over IMS

enlarges the possibilities of communication but requires more personalized and context-aware service.

• Individual participants have different preferences and can be in

different situations regarding time, location, activity etc., which must be taken into consideration.

• Personalization and Context-aware service are key technologies.
• E.g. based on IMS

user profile information.

• Context-awareness as a presence-enhanced service.
• Context, as background information, to adapt the service to the user’ s

situation can be fed by the IMS Presence S ervice, with emerging sets of sensors like GPS , RFID, etc.,.

• Application can be a watcher of its serving users to tailor services it
• ffers according to individual users’ presence information.

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 1 8

ITU-T

Source: http://www.ebrc.info/kuvat/2152_04p.pdf

Future Ubiquitous Life

The Evolution Path of Converged Services

I TU-T W orkshop “NGN and its Transport Netw orks“ Kobe, 2 0 -2 1 April 2 0 0 6 1 9

ITU-T
