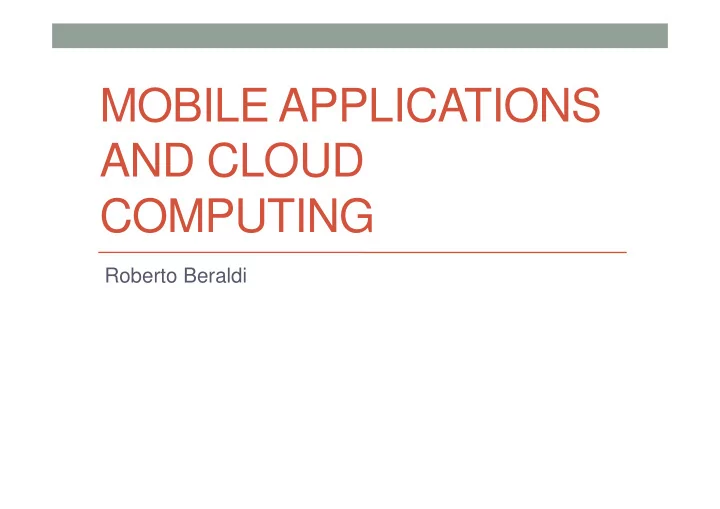

MOBILE APPLICATIONS AND CLOUD COMPUTING

Roberto Beraldi

Course Outline

• 6 CFUs
• Topics:
• Mobile application programming (Android)
• Cloud computing
• To pass the exam:
• Individual working and documented application in android (possibly

using cloud services)

• Answer to 3 of general questions

Key terms

• Cloud computing
• Delivery of remote virtual resources through internet (virtual machines,

storage space, software functions (web api) , data – e.g. open data, etc..)

• Mobile Applications
• app that runs on mobile devices smartphone
• App running on wearable devices, e.g., smartwatch
• Context-Awareness
• sensors
• Where (lat,lon) the device running the application is located
• Other Sensors, e.g., acceleration, orientation, etc
• Connection and synergy between Cloud and Mobile

devices/applications is possible

Cloud computing and mobile applications

• Cloud computing is an umbrella term to refer to a way to

access functionalities remotely (e.g., via Internet)

• There are different ‘delivery models’ of cloud computing
• Software as a Service (SaaS) or Web API
• Platform as a Service (PaaS)
• Infrastructure as a Service (Iaas) (virtualization)
• Cloud computing can be used ‘alone’, or…
• Cloud computing, or more simply ‘cloud’, can be exploited

by mobile apps. This can be done in different ways

• One simple possible way is to synchronize data views of different

devices (fixed or mobile)

• Dropbox is a free (up to 2GB), web-based cloud storage mechanism
• file backup service
• data sharing
• Data sync among different clients
• Mobile applications

iPhone iPad Windows Linux MAC

.mp3 .avi .jpg

Freemium business model REST / JSON calls

Dropbox

Security (SSL, AES-256 bit), scalabity (load balancer, server notification, data/metadata..)

Example: iCloud from Apple

• contacts
• photo
• messages

.. Phone backup

• iCloud drive

(store any kind of document) cloud

Amazon’s Cognito

https://aws.amazon.com/it/cognito/

Amazon’s Cognito

• Amazon Cognito gives you unique identifiers for your end

users and then lets you securely store and sync user app data in the AWS Cloud across multiple devices and OS platforms.

• You can do this with just a few lines of code, and your app

can work the same, regardless of whether a user’s devices are online or offline.

• When new data is available in the sync store, a user’s

devices can be alerted by a silent push notification so that your app can sync the new data automatically.

Characteristic of a cloud storage service

• Bundling
• When a batch of files is transferred, files could be bundled, so that

transmission latency and control overhead are reduced.

• For example, Dropbox use only few TCP connections to transfer

multiple files

• Chunking
• Large files can be either monolithically transmitted to the cloud or

chunked into smaller pieces. Chunking is advantageous because it simplifies recovery in case of failures

• Dropbox 4MB, Google Drive 8MB,…
• Compression
• data compressed before a transfer. Compression could, in general,

reduce traffic and storage requirements at the expense of local processing time.

Characteristic of a cloud storage service

• Deduplication
• Server data deduplication eliminates replicas on the storage server.
• Client-side deduplication instead extends the benefits to clients and

the network: In case a file is already present on servers, replicas in the client can be identified to save upload capacity

• This can be accomplished by calculating a file digest using the file

content, e.g., SHA256 is used by Dropbox

• The digest is sent to servers prior to submitting the complete file.
• Servers then check whether the digest is already stored in the

system and skip the upload of repeated content.

• Dropbox implements inter-user deduplication: this technique allows a

user to skip submitting files that are already stored by any other user.

Characteristic of a cloud storage service

• Delta encoding
• Delta encoding calculates the difference among file revisions,

allowing the transmission of only the modified portions.

• Indeed, delta encoding provides similar benefits as the combination
• f chunking and deduplication, but with a finer granularity
• P2P synchronization
• Devices hosting common files could be synchronized without

retrieving every content from the cloud, thus saving both network and server resources

• Dropbox is known for implementing a LAN Sync Protocol that allows

devices, possibly from different users, to exchange content using P2P communication when clients are connected to the same LAN.

Comparison among personal cloud storage(*)

(*)E. Bocchi, I. Drago, M. Mellia, “Personal Cloud Storage Benchmarks and Comparison”, IEEE Transactions on Cloud Computing 2015

Other example: Microsoft’s Intune

Microsoft Intune helps organizations provide their employees with access to corporate applications, data, and resources from virtually anywhere on almost any device, while helping to keep corporate information secure.

Intune can manage: Mobile devices (including phones and tablets running Android, iOS, Windows Phone and Windows RT operating systems). Computers running a professional edition of Windows Vista, Windows 7, Windows 8 or Windows 8.1.

Cloud and mobile apps

• Other ways to exploit cloud is by implementing a

notification service

Google Cloud Messaging (GCM)

push GCM allows to attach up to 1,000 recipients to a single message

• Broadcast

receiver

connection server app server …..

Amazon’s Simple Notification Service (SNS)

• It is a fast, flexible, fully managed push notification service

that lets you send individual messages or to fan-out messages to large numbers of recipients.

• Amazon SNS makes it simple and cost effective to send

push notifications to mobile device users, email recipients

• r even send messages to other distributed services.

Amazon’s SNS (features)

• Seamlessly scale from a handful of messages per day to

millions of messages or higher.

• With SNS you can publish a message once, and deliver it one
• r more times. So you can choose to direct unique messages

to individual Apple, Google or Amazon devices, or broadcast deliveries to many mobile devices with a single publish request.

• SNS allows you to group multiple recipients using topics.
• A topic is an “access point” for allowing recipients to

dynamically subscribe for identical copies of the same notification.

• When you publish once to a topic, SNS delivers appropriately

formatted copies of your message to each subscriber.

Mobile apps and Software as a Service

Cloud

• Cloud can play the role of

‘backend’

• provide access to resourses:
• Functionality (VM, storage)

using RPC-like calls)

• Data (open data)

req reply

Example

req reply

Cloud real time data on transportation available from ATAC via XML-RPC

http://www.agenziamobilita.roma.it/progetti/open-data/ http://www.agenziamobilita.roma.it/it/progetti/open-data/api-real-time.html

Mobile apps and web API (aka SaaS)

WEB-API INTERNET Client Application A Web API allows to design and develop an application that exploits software modules accessed via Internet via a simple wire protocol

Web API: example

Web API: programmatic point of view

Programmatic Service Access (many methods) Web URL (standard HTTP methods)

web brower

HTTP

Application

HTTP

Rest,XML-RPC,etc

(Web API)

Mashup applications

Provide A Provider B … API WEB CLIENT s=A.methodName(par1) … z=B.methodName(s,par2)

Mashup applications (1/2)

Client Server Web API

…

Server Web API … JSON-RPC Server Web API AJAX Python ..

Mashup applications (2/2)

HTTP

• Server Web
• ”mashupper”

(e.g.,dynamic pages Php) WEB API XML-RPC SOAP

Web API and Interoperability

WEB-API Client Application (Technology A) Client Application (Technology B) Client Application (Technology C) ….

Example: Google apis

Example: Tic Tac Toe

• Monolithic application
• All the logic is in a single program
• Client Server
• The server dynamically generates the page to

be displayed with the response

• Web API (cloud computing style)
• Provides primitive operations to an application

(that can run on a mobile device, for example) and let two players to play

solution1: monolithic app

• Monolithic

e.g., javaScript, or any language

Solution 2: client/server

http://game.org/ttt.php?move=7

• Client HTTP Server + php

HTML Put an X at position 7

Possible technological mapping … (1/3)

Client Server

HTTP HTML

User Agent

mod_php

TCP/IP connection 3306,…

…continued… (2/3)

Client Server

HTTP HTML

Embedded Objects

User Agent

mod_php

TCP/IP connection 3306,…

…continued(3/3)

Client Server

HTTP HTML

+JS

User Agent

mod_php

TCP/IP connection 3306,…

3rd solution: Web Api and mobile app

Web API (cloud) init

• Send the

current state

• Reply with the

new state Interface (remote functions) backend front end move

New trends: Mobile cloud computing

code/data offloading result

• wi-fi direct (comm. feature)
• reflection (language feature)
• security aspects
• application partitioning
• subtasks allocation
• DTN and social behavior
• voice recognition
• pattern recognition
• augmented reality
• games (e.g., chess)
• …

computation

• Goal: To reduce the execution time

Mobile cloud computing*

• Task offloading to other mobile device

(*) Mobile-to-Mobile Opportunistic Task Splitting and Offloading Beraldi et al., WiMob15

Mobile applications and QR code

QR-code QR-reader Internet URI

Example

Another examples: media are changing

Same applies to books, newspapers, encyclopedia, etc.

Example: Augmented reality

Wearable devices

Summary

• Cloud can be exploited in mobile apps in different ways
• Data synchronization among devices
• Data storage system
• Access functionalities provided via an interface (SaaS)
• Mobile cloud computing
• … but, cloud computing in itself is a set of technologies that

can be used alone (without connections to a mobile app)

• In addition, mobile apps can exploit new dimensions
• Social (e.g, who is near me with the same interests)
• Context-awareness (e.g., Google maps)
• Sensors (NFC,GPS,…)
• Augmented reality
• Moreover, mobile apps (as fixed apps) can exploit a lot of

public available data (open data) for their purpose
