Miscellaneous, input, collision detection, ... Simulation Engines 2008 Chalmers University of Technology Markus Larsson markus.larsson@slxgames.com 08-12-10 Simulation Engines 2008, Markus Larsson 1 Administrative stuff Collaborative

slide-1
SLIDE 1

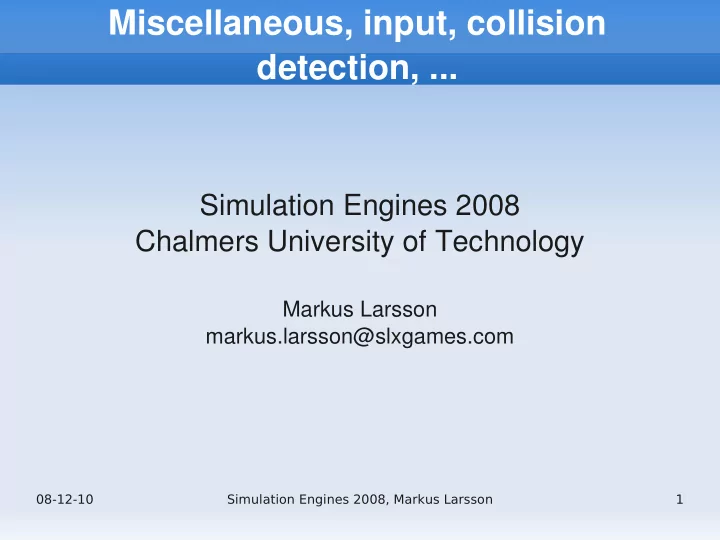

08-12-10 Simulation Engines 2008, Markus Larsson 1

Miscellaneous, input, collision detection, ...

Simulation Engines 2008 Chalmers University of Technology

Markus Larsson markus.larsson@slxgames.com

slide-2
SLIDE 2

08-12-10 Simulation Engines 2008, Markus Larsson 2

Administrative stuff

Collaborative project presentation Wednesday, 17 December at 13.00

 Presentation using i.e. Powerpoint  The extensions made by every member of the group  The simulation engine that has been put together  Tech demo  Use terms that make it easy for people from the outside to

understand your work

 Use plenty of screenshots  Diagram of system architecture  Show movie if applicable  Walkthrough of the tech demo  20 minutes including questions

slide-3
SLIDE 3

08-12-10 Simulation Engines 2008, Markus Larsson 3

Administrative stuff

 Group report

 The group report should describe the work done as

well as the final result

 14-18 pages in total  Filename

 groupreport_group_X.pdf

 Deadline

 Wednesday, 7 January 24.00

slide-4
SLIDE 4

08-12-10 Simulation Engines 2008, Markus Larsson 4

Administrative stuff: Contents of group report

Conclusion

Introduction

Purpose

Goals

Prestudy

How does the system look today?

What did you want to make better?

Project plan and division of themes

Specification of demands (for each extension)

Functional demands (functionality)

Non-functional demands (properties)

Analysis

Conceptual model

Architecture

Design (for each extension)

Classes

Interaction

Implementation (for each extension)

Integration and testing

Tech demo

Description

Design

Implementation

Results

Screenshots

Performance

Conclusions

List of sources

Appendixes: Extension proposals

slide-5
SLIDE 5

08-12-10 Simulation Engines 2008, Markus Larsson 5

Administrative stuff: Individual report

6-8 pages

Contents

Description of work tasks assigned to you and your role in the group's work

Description of your own contributions to the end result

Evaluation of your own work

Evaluation of the group's work

Description of the experiences and knowledge you have acquired in planning, designing, group dynamics and technical knowledge

Project diary as an appendix

File name

report_your_name.pdf

Deadline

Wednesday, 7 January 24.00

slide-6
SLIDE 6

08-12-10 Simulation Engines 2008, Markus Larsson 6

Administrative stuff: Other stuff to do

 Source code and data

 Make sure that this is available for the teachers  Attach a readme.txt

 How to compile your code  How to run your tech demo  Anything else you can think of to aid me in accessing

your work

 A video capture of your project is appreciated

 Using Fraps or something similar

slide-7
SLIDE 7

08-12-10 Simulation Engines 2008, Markus Larsson 7

Input management

 Input management is the process of accepting

input data from the player and transforming this into actions in the context of the game world

 The challenge of input management is the

plentitude of input devices that exist in the gaming market today

 Input management is not strictly about input

 Force feedback  Touch information  Etc

slide-8
SLIDE 8

08-12-10 Simulation Engines 2008, Markus Larsson 8

Virtual devices

Virtual devices (Wallace, 1976) comes from the field of human- computer interaction

 Not entirely relevant for us, but it is an interesting concept 

Each physical input devices supports one or several of

Button

 Binary indication of choice (example: joystick and mouse buttons) 

Keyboard

 Alphanumeric strings (example: keyboard and voice) 

Picker

 Selection of graphical objects (example: light pen) 

Locator

 Screen coordinate specification (example: mouse) 

Valuator

 Floating point generation (example: joystick throttle, analog joystick)

slide-9
SLIDE 9

08-12-10 Simulation Engines 2008, Markus Larsson 9

Input management

Input arrives in our engine in the form of input events

Records containing information about the input

A few examples of event data

Position

 Screen position (mouse) 

Delta

 Movement delta since last

update (mouse, joystick)

Button mask

 Button status (mouse buttons,

keyboard)

Value

 Floating-point value (joystick

throttle)

Events are triggered by i.e.

Button press/release

 A button or key was

pressed or released

Motion

 An input device was

moved

Update

 A value input device was

changed

slide-10
SLIDE 10

08-12-10 Simulation Engines 2008, Markus Larsson 10

Input events

 Input is usually handled by triggering discrete

input events

 Events are dispatched to an input handler

which translates input events into actions

 The event-class is usually abstract and

subclassed with specific functionality

 Joystick events  Mouse events  ...

slide-11
SLIDE 11

08-12-10 Simulation Engines 2008, Markus Larsson 11

DirectInput

DirectInput is the input management component of the DirextX SDK

Traditionally, input management in Windows has been done using the internal Windows message system in the event handling loop

 Incurs a lot of overhead 

DirectInput ignores the Windows event queue altogether and gives developers direct access to the input devices connected to the computer

DirectInput can be used more or less independently of the rest of DirectX

The structure of DirectInput usage will typically be the following:

  • 1. Initialize DirectInput
  • 2. Initialize each input device that is to be used
  • 3. Retrieve input data from each device every loop and modify the

game world accordingly

  • 4. Once done, clean up DirectInput
slide-12
SLIDE 12

08-12-10 Simulation Engines 2008, Markus Larsson 12

DirectInput: Cooperation and device state

 An important thing to note for DirectInput is the cooperative

level of the input devices we are configuring for our application

 Tells Windows how we want the input device to cooperate

with other concurrently running applications

 We do this with SetCooperativeLevel()  In many cases we need to acquire exclusive access to a

device in order to use it fully (i.e. for force feedback)

 Once every frame, we read the device state and act upon it  GetDeviceState() passes a pointer to a device-dependent

event structure depending on the device type

slide-13
SLIDE 13

08-12-10 Simulation Engines 2008, Markus Larsson 13

DirectInput: Force feedback

 Force feedback devices not only support user

input, but can also provide tactile output to the user

 Can create special effects like the stick vibrating,

shaking, jolting, etc.

 DirectInput contains rich functionality for

controlling force feedback devices and provides many kinds of effects

 Check the DirectX tutorials for more information

slide-14
SLIDE 14

08-12-10 Simulation Engines 2008, Markus Larsson 14

DirectInput vs XInput

 DirectInput has not seen any major changes

since DirectX8

 XInput was introduced in a late DirectX9 SDK  Neither had any major updates in DirectX10  XInput is slightly easier to use, but does not

work on legacy devices

 Primarily for XBOX 360 controllers

 Both APIs have features that the other does not

slide-15
SLIDE 15

08-12-10 Simulation Engines 2008, Markus Larsson 15

Collision detection

 Collision detection is the process of determining whether

  • bjects in the game world intersect with each other as well

as the static geometry of the world itself

 Collision detection can be seen as a special case of the

physical simulation we discussed in the previous lecture

 Note that collision detection is a purely geometric

problem and collision detection algorithms are

  • ptimized for this purpose
slide-16
SLIDE 16

08-12-10 Simulation Engines 2008, Markus Larsson 16

Whether, when and where

 In collision detection, we are interested in three questions  Whether two objects collided with each other  When in time the two objects collided  Where the surfaces of the two objects collided  These questions are increasingly more CPU intensive to

answer, and algorithms for collision detection are often

  • rganized into phases where the questions are answered

sequentially and only if necessary

 Performing a simple intersection test in a system of N

bodies naively (just answering the first question) is of order O(N2), which can be expensive for large values of N

slide-17
SLIDE 17

08-12-10 Simulation Engines 2008, Markus Larsson 17

Collision response

 When performing collision detection, we do not worry

about physics

 However, we must be able to interface with the physics

system to communicate collisions

 A common way is to use callback functions that are

supplied with parameters like contact point, time, surface normal, etc

slide-18
SLIDE 18

08-12-10 Simulation Engines 2008, Markus Larsson 18

Overview of collision detection algorithms

We will cover two different types of algorithms

Broad phase/narrow phase

 Two phases are used  One broad for culling away objects that can not possibly

collide

 One narrow for accurate collision detection  Pre-defined game-specific collision groups  Broad phase using OBB-trees (RAPID) 

Single phase

 Use the same partitioning scheme for both phases, i.e.

perform no initial broad culling

 BSP trees for collision detection

slide-19
SLIDE 19

08-12-10 Simulation Engines 2008, Markus Larsson 19

Representation

 Most collision detection algorithms deal with

convex polyhedra only

 Non-convex polyhedra are split into a set of convex

polyhedra

 In the culling phase, we use bounding volumes

as representations

slide-20
SLIDE 20

08-12-10 Simulation Engines 2008, Markus Larsson 20

Bounding volume hierarchies

To get the most benefit out of our bounding volumes, we superimpose them on top of the scene graph and build bounding volume hierarchies

 Leaf nodes have normal bounding volumes  Internal nodes are aggregations of the bounding volumes of

their children

Note that we use the same technique for view frustum culling

slide-21
SLIDE 21

08-12-10 Simulation Engines 2008, Markus Larsson 21

OBB-trees

The RAPID collision detection system is based on work done by Gottschalk et al in 1996, and which uses a data structure called a OBB-tree

In this approach, the object is recursively partitioned into two halfspaces, and an OBB is computed for each halfspace

The OBB is calculated by fitting triangles with a Gaussian distribution using principal component analysis (PCA)

slide-22
SLIDE 22

08-12-10 Simulation Engines 2008, Markus Larsson 22

Broad/narrow phase

Broad phase/narrow phase algorithms are based around two stages where we first cull away object pairs which cannot possibly collide and then using exact collision detection on the remaining pairs

 Different algorithms for the two phases for optimal

performance

The broad phase can use different strategies for culling object pairs, including time coherence, spatial partitioning, or simply the bounding volumes of the objects

The narrow phase performs exact collision detection on primitive-level (usually triangles or planes)

 There exists a number of algorithms and we will not go into

details on these

slide-23
SLIDE 23

08-12-10 Simulation Engines 2008, Markus Larsson 23

Broad Phase Collision Detection using OBB-Trees

Gottschalk (1996) use the OBB-trees defined earlier to implement a broad phase collision detection system (RAPID is an implementation of this)

Each object is represented by an OBB-tree

In order to check for intersection between two such trees, each tree is traversed recursively

 If our simple intersection test tells us that the OBBs in the respective

trees intersect, we recurse to the two children of each tree node

 Objects that do not intersect at all can be discarded quickly 

The intersection test is slightly more complex than usual

 Instead of naively performing edge-face tests for the two bounding

boxes (which would have resulted in 12 edges × 6 faces × 2 boxes = 144 tests), we project the boxes onto 15 different axes and check their intersection (i.e. only 15 intersection tests needed)

See the RAPID webpage for more information and downloads

http://www.cs.unc.edu/~geom/OBB/OBBT.html

slide-24
SLIDE 24

08-12-10 Simulation Engines 2008, Markus Larsson 24

Alternative libraries

 Opcode is popular for pure collision detection  Physics engines mostly have built in support for

collision detection

 The Bullet physics engine has a separable

collision detection library

slide-25
SLIDE 25

08-12-10 Simulation Engines 2008, Markus Larsson 25

Single phase

 Single phase collision detection discards the

notion of having two phases

 Instead, the same representation and strategy is

used for both stages and collision detection is done immediately

 The most common way of doing this is through

BSP trees

slide-26
SLIDE 26

08-12-10 Simulation Engines 2008, Markus Larsson 26

BSP trees for collision detection

 The BSP for an object can be seen as an iterative

bounding volume that shrinks the 3D space until it completely encloses the object

 To test intersection, we simply merge their BSP trees  The first object's BSP tree is used to partition the

second object

slide-27
SLIDE 27

08-12-10 Simulation Engines 2008, Markus Larsson 27

Break

15 minutes

slide-28
SLIDE 28

08-12-10 Simulation Engines 2008, Markus Larsson 28

Alternative platforms

In this course, we have focused on development for Windows

The reality of the game development industry is that the PC platform is a relatively small part of the market

Already in 2003, console games outsold computer games in the US by about 380%

Console games

Nintendo Gamecube & Wii

Sony Playstation 2 & 3

Sony PSP

Nintendo DS

Microsoft XBOX & XBOX 360

PDAs

Browser-based games

Mobile phones

slide-29
SLIDE 29

08-12-10 Simulation Engines 2008, Markus Larsson 29

Console games

 Console games are primarily created through

cross-platform development

 Not done on the console itself, but rather on a

development platform and then compiled for the console later on

 Gold describes cross-platform development in

Chapter 6

 Build tools can definitely be of use

 SCons is my personal favorite

slide-30
SLIDE 30

08-12-10 Simulation Engines 2008, Markus Larsson 30

Mobile games

 The extremely high availability of mobile

phones has made games on mobile phones an interesting business

 There are two primary APIs

 Java 2 Micro Edition (J2ME)

 A smaller version of the Java platform with very good

support on modern mobile phones

 Binary Runtime Environment for Wireless (BREW)

 A complete set of APIs that enable software development

and applications in C, C++ and Java, developed by Qualcomm

slide-31
SLIDE 31

08-12-10 Simulation Engines 2008, Markus Larsson 31

2D graphics

 Of particular interest to mobile platforms

 Mobile phones, Nintendo DS, PSP, etc

 Modern mobile phones have support for 3D, but

in practice, 2D is often better than 3D when used with limited input and display size

 Also used in plenty of Windows games  Suitable APIs

 OpenGL, DirectDraw, Java2D, etc

slide-32
SLIDE 32

08-12-10 Simulation Engines 2008, Markus Larsson 32

GUIs

 Practically all games need some kind of GUI  Since games are often meant to be a departure

from reality, we rarely want to use the standard Windows UI

 GUIs have traditionally been one of the main

research areas for object-orientation

 A lot of the design and architectural patterns we

talked about in an earlier lecture are inspired from this research

 Model-View-Controller, Composite, Decorator, Observer,

etc...

slide-33
SLIDE 33

08-12-10 Simulation Engines 2008, Markus Larsson 33

Example: CEGUI

Crazy Eddie’s GUI System (http://www.cegui.org.uk) is a free library providing windowing and widgets for graphics APIs / engines where such functionality is not natively available, or severely lacking

The library is object orientated, written in C++, and targeted at games developers who should be spending their time creating games, not building GUI sub-systems

slide-34
SLIDE 34

08-12-10 Simulation Engines 2008, Markus Larsson 34

CEGUI: Details

CEGUI is cross-platform and can thus be used on several different platforms

 Developed and released under the LGPL license 

In order to be able to support various kinds of platforms, CEGUI requires a renderer module which implements the necessary drawing

  • perations for the current platform

Currently, CEGUI supports both DirectX and OpenGL, and also has complete bindings for Ogre3D

CEGUI is often experienced by users to be quite complex and difficult to get working with Ogre

 In many cases, simple projects will not need the full functionality

that CEGUI provides, but instead can make do with the simple input management and overlays provided by Ogre

slide-35
SLIDE 35

08-12-10 Simulation Engines 2008, Markus Larsson 35

Resource management

Gold outlines a number of problems with the traditional use of file I/O in C/C++ applications

 Standard file I/O is too slow  Limitations on file naming  File I/O calls are blocking  No control over memory management 

We need a robust resource management system with the following properties

 Load files with little or no overhead  Load files in bulk with reduced overhead  Load files asynchronously to the game  Manage memory efficiently

slide-36
SLIDE 36

08-12-10 Simulation Engines 2008, Markus Larsson 36

Virtual file system

 One common solution for resource management is to

introduce a VFS

 Abstract away the real properties of whatever file

system that is running on the host machine

 Instead of littering the physical file system with a thousand

different files for our project, we can bundle all these together into a single, large file possibly zipped using zlib

 We design our VFS to handle these zip-files

transparently

 Our resource manager can be designed to keep track of

memory instances of objects and files and garbage collect them automatically when they are no longer used

slide-37
SLIDE 37

08-12-10 Simulation Engines 2008, Markus Larsson 37

Scripting

One of the most important tools of any game engine is the scripting language

A simple programming language on a higher abstraction level than the actual programming language used in the rest of the engine

Many attractive features

Decouples behavior and content from game code

Allows for rapid prototyping and testing, perhaps even dynamically

Simpler and more convenient programming features than a “real” programming language

Language bindings to in-game concepts such as characters, goals, missions, and levels instead of memory, files, triangles, and algorithms

Vital tool for design-driven control

slide-38
SLIDE 38

08-12-10 Simulation Engines 2008, Markus Larsson 38

Example: UnrealScript

UnrealScript is the internal scripting language of the Unreal engine

Runs on top of a virtual machine (the Unreal Virtual Machine)

Each script defines a class which inherits from another class or a superclass in the engine itself

 Methods are either pre-defined and called by the engine, or

called by other scripts

According to Tim Sweeney, the design goals of UnrealScript were

 To support the major concepts of time, state, properties, and

networking which traditional programming languages don’t address

 To provide Java-style programming simplicity, object-

  • rientation, and compile-time error checking
slide-39
SLIDE 39

08-12-10 Simulation Engines 2008, Markus Larsson 39

Example: UnrealScript

 A pointerless environment with automatic garbage

collection

 A simple single-inheritance class graph  strong compile-time type checking  A safe client-side execution ”sandbox”  The familiar look and feel of C/C++/Java code  To enable rich, high level programming in terms of

game objects and interactions rather than bits and pixels

slide-40
SLIDE 40

08-12-10 Simulation Engines 2008, Markus Larsson 40

Example: UnrealScript

class TriggerLight extends Light; var() float ChangeTime; // Time light takes to change from on to off. var() bool bInitiallyOn; // Whether it’s initially on. var() bool bDelayFullOn; // Delay then go full-on. .. function BeginPlay() { // Remember initial light type and set new one. Disable( ’Tick’ ); InitialType = LightType; InitialBrightness = LightBrightness; if( bInitiallyOn ) { Alpha = 1.0; Direction = 1.0; } else { LightType = LT_None; Alpha = 0.0; Direction = -1.0; } } ...

slide-41
SLIDE 41

08-12-10 Simulation Engines 2008, Markus Larsson 41

Existing languages

Perl

The mother of all scripting languages; certainly not the first scripting language, but probably one of the most “hardcore” scripting languages out there

Python

Object-oriented scripting language with a very clean and elegant design - relatively easy to embed into an existing application

Java

Not really a scripting language, but sufficiently high-level to be feasible to use with scripting

Lua

A powerful light-weight programming language designed for extending applications – fairly common in games

Ruby

A relatively modern object-oriented scripting language

Roll your own

You can always create your own in the tradition of UnrealScript

slide-42
SLIDE 42

08-12-10 Simulation Engines 2008, Markus Larsson 42

Functional paradigm

Regardless of which language we choose, we have to consider the functional paradigm of our scripting language

 C++ – used for performance-critical game code  Scripting language – intermediate and high-level game-

specific code

Gold describes three different execution models for our scripting engine

 Linear control – normal script code executed sequentially  Event-driven control – script code is executed upon certain

in-game events

 Task-based control – Concurrently executing tasks

(multitasking operating system)

slide-43
SLIDE 43

08-12-10 Simulation Engines 2008, Markus Larsson 43

Language bindings

The bindings in the language is the interface to the game engine that the scripting language exposes to the script programmer

 It is obviously not sufficient to simply provide a scripting language

inside our game engine if the inputs and outputs of the language are not connected to the actual inputs and outputs of the game engine

We have to consider the following

 File I/O – reading and writing files on the (real or virtual) file

system

 AI interface – maybe the scripting language should be used to

manipulate the AI subsystem?

 3D world – game scripts must be able to modify the 3D world

state

 Times and events – most game scripts will use time as a major

factor, and we need to provide functionality for this

slide-44
SLIDE 44

08-12-10 Simulation Engines 2008, Markus Larsson 44

Language bindings: SWIG

 In many cases, it is a good idea to take a look

at the SWIG (Simplified Wrapper and Interface Generator) project

 Standardized and easy way to embed standard

scripting languages

 Supports lots of languages

 Perl, PHP, Python, Tcl, Ruby, C#, Common Lisp,

Java, Modula-3, OCAML, etc...

 http://www.swig.org

slide-45
SLIDE 45

08-12-10 Simulation Engines 2008, Markus Larsson 45

Final words

Play games, build games and have fun! Project presentations next week. Good luck!
