Introduction Minimum Area Expansion Omitting the Empty Set Summary Minimum Area Venn Diagrams Bette Bultena, Matthew Klimesh, Frank Ruskey University of Victoria & California Institute of Technology June 12, 2013 CanaDAM, St. Johns

slide-1

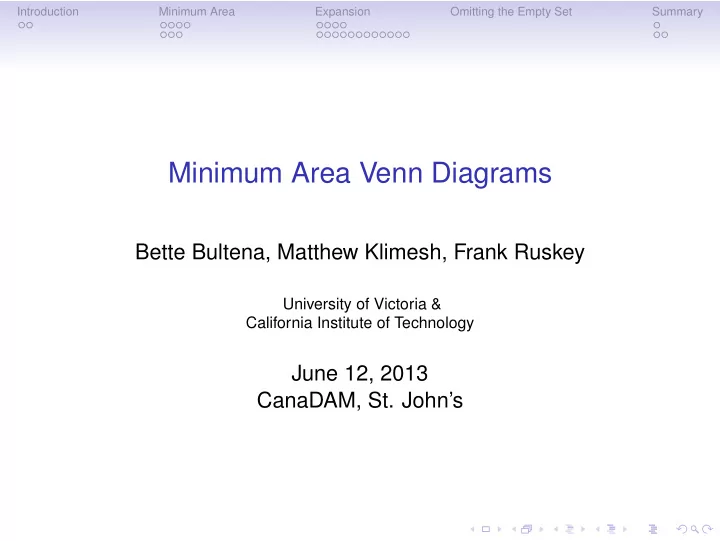

SLIDE 1

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Minimum Area Venn Diagrams

Bette Bultena, Matthew Klimesh, Frank Ruskey

University of Victoria & California Institute of Technology

June 12, 2013 CanaDAM, St. John’s

slide-2
SLIDE 2

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Outline

Introduction Venn diagrams Minimum Area Definition Small examples Expansion Sufficient conditions One by eight expansion Omitting the Empty Set Summary What we know What we don’t know

slide-3
SLIDE 3

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Types of curves

Venn diagrams as circles

slide-4
SLIDE 4

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Types of curves

Venn diagrams as ovals

slide-5
SLIDE 5

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Types of curves

Venn diagrams as triangles

slide-6
SLIDE 6

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Types of curves

$n = 4$ $n=2$ $n = 3$ $n = 5$ $n = 6$

Venn diagrams with minimum intersections

slide-7
SLIDE 7

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Types of curves

A B C A B A A B B C C C

A B C A A A B B B C C C

polyomino Venn diagrams

slide-8
SLIDE 8

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Venn diagram definition

  • A Venn diagram
  • is a collection of simple closed curves C = C1, C2, . . . , Cn

drawn on the plane

slide-9
SLIDE 9

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Venn diagram definition

  • A Venn diagram
  • is a collection of simple closed curves C = C1, C2, . . . , Cn

drawn on the plane

  • such that each of the 2n sets X1 ∩ X2 ∩ . . . ∩ Xn is a

nonempty and connected region where Xi is either the bounded interior or unbounded exterior of Ci.

slide-10
SLIDE 10

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Venn diagram definition

  • A Venn diagram
  • is a collection of simple closed curves C = C1, C2, . . . , Cn

drawn on the plane

  • such that each of the 2n sets X1 ∩ X2 ∩ . . . ∩ Xn is a

nonempty and connected region where Xi is either the bounded interior or unbounded exterior of Ci.

We call the second requirement of the statement the region property.

slide-11
SLIDE 11

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Minimum area

What is a minimum area polyomino Venn diagram?

  • A diagram
slide-12
SLIDE 12

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Minimum area

What is a minimum area polyomino Venn diagram?

  • A diagram
  • with polyominoes,
slide-13
SLIDE 13

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Minimum area

What is a minimum area polyomino Venn diagram?

  • A diagram
  • with polyominoes,
  • where each set
  • i∈I

interior(Pi) ∩

  • i /

∈I

exterior(Pi) together with a base region of unit squares, is a single unit square,

slide-14
SLIDE 14

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Minimum area

What is a minimum area polyomino Venn diagram?

  • A diagram
  • with polyominoes,
  • where each set
  • i∈I

interior(Pi) ∩

  • i /

∈I

exterior(Pi) together with a base region of unit squares, is a single unit square,

  • for all I ⊆ [n].
slide-15
SLIDE 15

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Base regions that are rectangles

  • A (r, c)-polyVenn is a minimum area polyomino Venn

diagram confined to a 2r × 2c base rectangle.

A B A A A A B B B

slide-16
SLIDE 16

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Base regions that are rectangles

  • A (r, c)-polyVenn is a minimum area polyomino Venn

diagram confined to a 2r × 2c base rectangle.

  • The number of polyominoes is n = r + c.

A B A A A A B B B

slide-17
SLIDE 17

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Base regions that are rectangles

  • A (r, c)-polyVenn is a minimum area polyomino Venn

diagram confined to a 2r × 2c base rectangle.

  • The number of polyominoes is n = r + c.
  • The number of unit squares on the grid is 2n.

A B A A A A B B B

slide-18
SLIDE 18

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Base regions that are rectangles

  • A (r, c)-polyVenn is a minimum area polyomino Venn

diagram confined to a 2r × 2c base rectangle.

  • The number of polyominoes is n = r + c.
  • The number of unit squares on the grid is 2n.

Example

little polyVenns:

A B A A A A B B B

slide-19
SLIDE 19

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Are there any more single row polyVenns?

slide-20
SLIDE 20

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Are there any more single row polyVenns?

Place the leftmost polyomino

A A A A

slide-21
SLIDE 21

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Are there any more single row polyVenns?

Only one choice for the second polyomino

B A A B B A A B

slide-22
SLIDE 22

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Are there any more single row polyVenns?

No place for the third

B A A B B A A B

slide-23
SLIDE 23

Introduction Minimum Area Expansion Omitting the Empty Set Summary

The known polyVenns

20 21 22 23 24 25 26 27 28 · · · 20 F F F × × × × × × · · · 21 F F ? ? ? ? ? ? · · · 22 ? ? ? ? ? ? ? · · · 23 ? ? ? ? ? ? · · · 24 ? ? ? ? ? · · · 25 ? ? ? ? · · · 26 ? ? ? · · · 27 ? ? · · · 28 ? · · · . . . ...

slide-24
SLIDE 24

Introduction Minimum Area Expansion Omitting the Empty Set Summary

A (1, 3)-polyVenn (symmetric)

D C B A D D D D D D D D C C C C C C C C B B B B B B B B A A A A A A A A

slide-25
SLIDE 25

Introduction Minimum Area Expansion Omitting the Empty Set Summary

A (1, 4)-polyVenn

A B C D E A A A BC A A A A A A A A A A A A A B B B B B B B B B B B B B B B C C C C C C C C C C C C C C C D D D D D D D D D D D D D D D D E E E E E E E E E E E E E E E E

slide-26
SLIDE 26

Introduction Minimum Area Expansion Omitting the Empty Set Summary

The known polyVenns

20 21 22 23 24 25 26 27 28 · · · 20 F F F × × × × × × · · · 21 F F F F ? ? ? ? · · · 22 ? ? ? ? ? ? ? · · · 23 ? ? ? ? ? ? · · · 24 ? ? ? ? ? · · · 25 ? ? ? ? · · · 26 ? ? ? · · · 27 ? ? · · · 28 ? · · · . . . ...

slide-27
SLIDE 27

Introduction Minimum Area Expansion Omitting the Empty Set Summary

We can expand when...

Suppose we have a 2r × 2c grid that holds an existing

  • polyVenn. Then we can expand this polyVenn to create one on

a 2r+r ′ × 2c+c′ grid if the following is true:

slide-28
SLIDE 28

Introduction Minimum Area Expansion Omitting the Empty Set Summary

We can expand when...

Suppose we have a 2r × 2c grid that holds an existing

  • polyVenn. Then we can expand this polyVenn to create one on

a 2r+r ′ × 2c+c′ grid if the following is true:

  • A non-empty set of mini-systems exist that meet the

required region property on small bounding rectangles of dimensions 2r ′ × 2c′.

slide-29
SLIDE 29

Introduction Minimum Area Expansion Omitting the Empty Set Summary

We can expand when...

Suppose we have a 2r × 2c grid that holds an existing

  • polyVenn. Then we can expand this polyVenn to create one on

a 2r+r ′ × 2c+c′ grid if the following is true:

  • A non-empty set of mini-systems exist that meet the

required region property on small bounding rectangles of dimensions 2r ′ × 2c′.

  • There is a way to connect elements of these mini-systems
  • n the large grid to create connected polyominoes.
slide-30
SLIDE 30

Introduction Minimum Area Expansion Omitting the Empty Set Summary

How it’s done

The first polyomino is created by expanding the existing polyVenn.

In this case each unit square is expanded into a 2 × 4 mini-grid.

slide-31
SLIDE 31

Introduction Minimum Area Expansion Omitting the Empty Set Summary

How it’s done

Then find a system that meets the region requirement on the mini-grid.

slide-32
SLIDE 32

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Then lay these out

slide-33
SLIDE 33

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Another known polyVenn

20 21 22 23 24 25 26 27 28 · · · 20 F F F × × × × × × · · · 21 F F F F ? ? ? ? · · · 22 E ? ? ? ? ? ? · · · 23 ? ? ? ? ? ? · · · 24 ? ? ? ? ? · · · 25 ? ? ? ? · · · 26 ? ? ? · · · 27 ? ? · · · 28 ? · · · . . . ...

slide-34
SLIDE 34

Introduction Minimum Area Expansion Omitting the Empty Set Summary

One by eight expansion

Theorem

If there is a (2, c)-polyVenn, then there is a (2, c + 3)-polyVenn.

slide-35
SLIDE 35

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Find the systems

( ❑❑❏❏ , ▼▲▼▲ , ❑❏❏❑ ), ( ❏❏❑❑ , ▼▲▼▲ , ❑❏❏❑ ), ( ❏▼❑▲ , ❑❏❑❏ , ▼▲▼▲ ), ( ▼❑▲❏ , ❏❑❏❑ , ▼▲▼▲ ), ( ❏❑❏❑ , ▼❑▲❏ , ▼▲▼▲ ), ( ❑❏❑❏ , ❏▼❑▲ , ▼▲▼▲ ), ( ▼▲▼▲ , ❏❏❑❑ , ❏❑❑❏ ), ( ▼▲▼▲ , ❑❑❏❏ , ❏❑❑❏ ).

slide-36
SLIDE 36

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Connect the mini-grids

slide-37
SLIDE 37

Introduction Minimum Area Expansion Omitting the Empty Set Summary

An expansion example

X(P3) X(P1) X(P4) X(P2) E1 E2 E3 P1 P2 P3 P4

slide-38
SLIDE 38

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Some more polyVenns

20 21 22 23 24 25 26 27 28 · · · 20 F F F × × × × × × · · · 21 F F F F ? ? ? ? · · · 22 E ? ? A ? ? A · · · 23 ? ? ? ? ? ? · · · 24 ? ? ? ? ? · · · 25 ? ? ? ? · · · 26 ? ? ? · · · 27 ? ? · · · 28 ? · · · . . . ...

slide-39
SLIDE 39

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Two by two expansion

Theorem

If there is a (r, c)-polyVenn, then there is a (r + 1, c + 1)-polyVenn.

slide-40
SLIDE 40

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Find the systems

Dominoes

{ ❊ , ● } { ● , ❉ } { ❋ , ❊ } { ❉ , ❋ }

slide-41
SLIDE 41

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Connect the minigrids

slide-42
SLIDE 42

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Connect the minigrids

slide-43
SLIDE 43

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Connect the minigrids

slide-44
SLIDE 44

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Connect the minigrids

slide-45
SLIDE 45

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Expand the original

  • Our existing polyVenn.
slide-46
SLIDE 46

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Expand the original

  • Expanded.
slide-47
SLIDE 47

Introduction Minimum Area Expansion Omitting the Empty Set Summary

From the beginning

slide-48
SLIDE 48

Introduction Minimum Area Expansion Omitting the Empty Set Summary

From the beginning

slide-49
SLIDE 49

Introduction Minimum Area Expansion Omitting the Empty Set Summary

From the beginning

slide-50
SLIDE 50

Introduction Minimum Area Expansion Omitting the Empty Set Summary

From the beginning

slide-51
SLIDE 51

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Another layout

slide-52
SLIDE 52

Introduction Minimum Area Expansion Omitting the Empty Set Summary

The known polyVenns

20 21 22 23 24 25 26 27 28 · · · 20 F F F × × × × × × · · · 21 F F F F ? ? ? ? · · · 22 E B B A A A A · · · 23 B B B B B B · · · 24 B B B B B · · · 25 B B B B · · · 26 B B B · · · 27 B B · · · 28 B · · · . . . ...

slide-53
SLIDE 53

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Grids With 2n−1 unit squares

Theorem

PolyVenn diagrams where the empty set does not exist within the bounding rectangle, exist when within a dimension 2n/2−1 × 2n/2+1.

slide-54
SLIDE 54

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Grids With 2n−1 unit squares

Theorem

PolyVenn diagrams where the empty set does not exist within the bounding rectangle, exist when within a dimension 2n/2−1 × 2n/2+1.

  • 1. Take the square version of the 2 × 2 expansion.
slide-55
SLIDE 55

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Grids With 2n−1 unit squares

Theorem

PolyVenn diagrams where the empty set does not exist within the bounding rectangle, exist when within a dimension 2n/2−1 × 2n/2+1.

  • 1. Take the square version of the 2 × 2 expansion.
  • 2. Strip the first row of grids.
slide-56
SLIDE 56

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Grids With 2n−1 unit squares

Theorem

PolyVenn diagrams where the empty set does not exist within the bounding rectangle, exist when within a dimension 2n/2−1 × 2n/2+1.

  • 1. Take the square version of the 2 × 2 expansion.
  • 2. Strip the first row of grids.
  • 3. Rotate it 90 degrees.
slide-57
SLIDE 57

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Grids With 2n−1 unit squares

Theorem

PolyVenn diagrams where the empty set does not exist within the bounding rectangle, exist when within a dimension 2n/2−1 × 2n/2+1.

  • 1. Take the square version of the 2 × 2 expansion.
  • 2. Strip the first row of grids.
  • 3. Rotate it 90 degrees.
  • 4. Glue it to the end of the last column.
slide-58
SLIDE 58

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Grids With 2n−1 unit squares

Theorem

PolyVenn diagrams where the empty set does not exist within the bounding rectangle, exist when within a dimension 2n/2−1 × 2n/2+1.

  • 1. Take the square version of the 2 × 2 expansion.
  • 2. Strip the first row of grids.
  • 3. Rotate it 90 degrees.
  • 4. Glue it to the end of the last column.
  • 5. Remove the top unit square, which is the square

representing the empty set.

slide-59
SLIDE 59

Introduction Minimum Area Expansion Omitting the Empty Set Summary

An example

slide-60
SLIDE 60

Introduction Minimum Area Expansion Omitting the Empty Set Summary

What we know

Lemma

A (0, c)-polyVenn does not exist for any c > 2.

slide-61
SLIDE 61

Introduction Minimum Area Expansion Omitting the Empty Set Summary

What we know

Lemma

A (0, c)-polyVenn does not exist for any c > 2.

Theorem

For every n > 0 and for every r, c > 2 where r + c = n, there exists a minimum area polyomino Venn diagram bound in a 2r × 2c bounding rectangle.

slide-62
SLIDE 62

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Open problems

Conjecture

A (1, c)-polyVenn does not exist for c > 4.

slide-63
SLIDE 63

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Open problems

Conjecture

A (1, c)-polyVenn does not exist for c > 4. Is there a construction for another infinite set of minimum area polyVenns where the empty set is omitted?

slide-64
SLIDE 64

Introduction Minimum Area Expansion Omitting the Empty Set Summary

Thank-you
