M OTIVATION S WITCHING N ETWORKS L ITERATURE M ATHEMATICAL M ODEL S OLUTION A PPROACH R ESULTS Minimizing Clos Networks Alexander Martin and Peter Lietz Darmstadt University of Technology Workshop on Combinatorial Optimization Aussois

slide-1
SLIDE 1

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

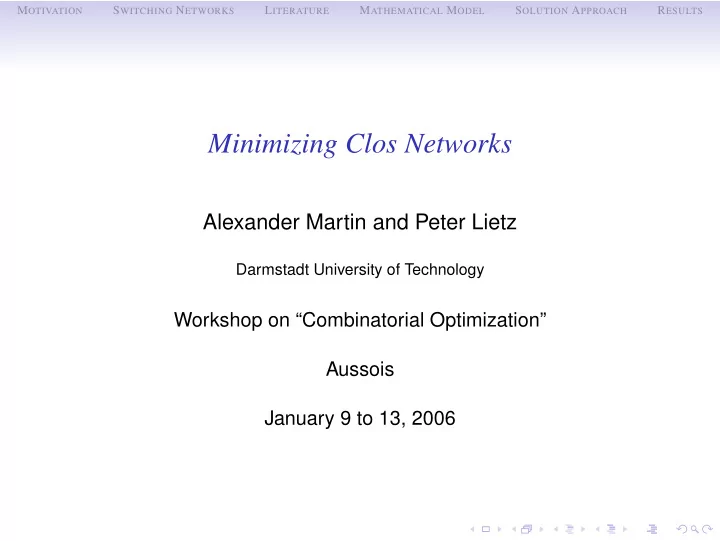

Minimizing Clos Networks

Alexander Martin and Peter Lietz

Darmstadt University of Technology

Workshop on “Combinatorial Optimization” Aussois January 9 to 13, 2006

slide-2
SLIDE 2

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Motivation

1 4 5 8 9 12 13 16

Problem Given a graph, decide whether all demand patterns are

  • routable. If yes, route each pattern within strict time limits.
slide-3
SLIDE 3

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Motivation

5 1 4 8 9 12 13 16 2 7 1 5 2 3 1 5 3 10 9 6 3 9 10 13

Problem Given a graph, decide whether all demand patterns are

  • routable. If yes, route each pattern within strict time limits.
slide-4
SLIDE 4

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Motivation

1 4 5 8 9 12 13 16 2 5 5 1 2 3 1 5 3 10 9 3 3 9 10 13

Problem Given a graph, decide whether all demand patterns are

  • routable. If yes, route each pattern within strict time limits.
slide-5
SLIDE 5

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Motivation

5 1 4 8 9 12 13 16 3 3 6 6 3 3 13 16 2 12 13

Problem Given a graph, decide whether all demand patterns are

  • routable. If yes, route each pattern within strict time limits.
slide-6
SLIDE 6

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Motivation

5 1 4 8 9 12 13 16 3 3 6 6 3 3 13 16 2 12 13

Problem Given a graph, decide whether all demand patterns are

  • routable. If yes, route each pattern within strict time limits.
slide-7
SLIDE 7

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Naive Approach

  • Enumerate all patterns
  • Use a MIP solver to determine each routing
  • Total running time

for a 16 × 16 network: 1616 · 0.01 seconds ≈ 5.85 · 109 years for a 32 × 32 network: 3232 · 0.05 seconds ≈ 2.31 · 1035 years

slide-8
SLIDE 8

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Naive Approach

  • Enumerate all patterns
  • Use a MIP solver to determine each routing
  • Total running time

for a 16 × 16 network: 1616 · 0.01 seconds ≈ 5.85 · 109 years for a 32 × 32 network: 3232 · 0.05 seconds ≈ 2.31 · 1035 years

slide-9
SLIDE 9

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Definitions

1 4 5 8 9 12 13 16

Switching Network An N × M switching network is a directed graph together with a distinguished set of N vertices called inlets and a distinguished set of M vertices called outlets.

slide-10
SLIDE 10

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Unicast Request

1 4 5 8 9 12 13 16 1 8 12 15 10 11 13 14 2 3 5 6 4 7 9 16

Definition A unicast request is a partial one-one function from the set of

  • utlets to the set of inlets.

Definition A routing for a unicast request a in a switching network G is a

slide-11
SLIDE 11

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Unicast Request

1 4 5 8 9 12 13 16 1 8 12 15 11 13 14 2 3 5 6 4 7 10 16 9

Definition A routing for a unicast request a in a switching network G is a set of directed, vertex-disjoint paths such that a(w) = v iff w is the end of a path with beginning v.

slide-12
SLIDE 12

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Multicast Request

5 1 4 8 9 12 13 16 2 7 1 5 2 3 1 5 3 10 9 6 3 9 10 13

Definition A multicast request is a partial function from the set of outlets to the set of inlets.

slide-13
SLIDE 13

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Multicast Routing

1 4 5 8 9 12 13 16 2 5 5 1 2 3 1 5 3 10 9 3 3 9 10 13

Definition A routing for a multicast request a in a switching network G is a set of vertex-disjoint directed Steiner trees such that a(w) = v iff w is a leaf of a tree with root v.

slide-14
SLIDE 14

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Objective Function

Components of the network Multiplexer Switch Objective function Minimize the number of components subject to guarantee routability.

slide-15
SLIDE 15

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Trivial Networks

Definition An N × M network is called trivial if each inlet is multiplexed into M nodes and each outlet is separately connected to N of these nodes belonging to mutually disjoint inlets. Number of Components N (M − 1) + M (N − 1)

slide-16
SLIDE 16

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

A 16 × 32 Trivial Network

c

  • DEV Systemtechnik GmbH
slide-17
SLIDE 17

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Trivial Network with Test Station

c

  • DEV Systemtechnik GmbH
slide-18
SLIDE 18

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Clos Networks

Definition A (symmetric) Clos network C(n, r, m) is a network composed of trivial networks (called crossbars) arranged in three stages such that

  • stage 1 consists of r many

n × m crossbar,

  • stage 2 consists of m many

r × r crossbar,

  • stage 3 consists of r many

m × n crossbar,

  • every crossbar in stage i is

connected to every crossbar in stage i + 1 by exactly one link.

1 n 1 n 1 n 1 n

1 r 1 m 1 r

1 n 1 n 1 n 1 n 1 1 1 m r r 1 m

slide-19
SLIDE 19

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Clos Networks

Definition A (symmetric) Clos network C(n, r, m) is a network composed of trivial networks (called crossbars) arranged in three stages such that

  • stage 1 consists of r many

n × m crossbar,

  • stage 2 consists of m many

r × r crossbar,

  • stage 3 consists of r many

m × n crossbar,

  • every crossbar in stage i is

connected to every crossbar in stage i + 1 by exactly one link.

C(4, 4, 4) C(4, 4, 5)

slide-20
SLIDE 20

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Clos Networks

Remarks

  • An N × N trivial network is a C(1, N, 1) Clos network
  • The number of components of a Clos network are

|C(n, r, m)| = 2r(n(m − 1) + m(n − 1)) + m(2r(r − 1)) = 2r(m(2n + r − 2) − n)

  • Objective: For given n and r minimize |C(n, r, m)|, that is m

1 n 1 n 1 n 1 n

1 r 1 m 1 r

1 n 1 n 1 n 1 n 1 1 1 m r r 1 m

slide-21
SLIDE 21

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Literature on Multicast Clos Networks

  • Charles Clos (1953)
  • Slepian-Duguid (1959)

m = n (unicast)

  • Masson & Jordan (1972)

m ≤ r · n

  • Hwang (1998)

m ≤ (n − 1)⌈log2 r⌉ + 2n − 1

For a 32 × 32 switching network: m ≤ 29

  • Hwang (2003): “A Survey on Nonblocking Multicast

Three-Stage Clos Networks” “... necessary and sufficient conditions for rearrangebly nonblocking are not known for model 0, ...”

slide-22
SLIDE 22

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Mathematical Model of Clos Networks

Model Every request for a Clos network can be described by a binary matrix with r rows (= output crossbars), n · r columns (= inlets), arranged into r blocks of n columns, such that the sum of each row is less than or equal to n.

r 1 1 r 1 n 1 n 1 n 1 n 1 1 n 1 n n 1 n

1 1

1 6 7 8 2 6 7 8 3 6 7 8 5 6 7 8

r r

slide-23
SLIDE 23

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Modelling Routability

Routability A given request is routable if and

  • nly if one can assign a color to

every nonzero entry of the matrix such that

  • 1. every color occurs at most
  • nce in each row,
  • 2. every color occurs in at most
  • ne column in each block.

1

r 1 r n 1 1 n 1 n 1 n n 1 n 1 n 1 n 1

m r r 1 1 1

1 6 7 8 2 6 7 8 3 6 7 8 5 6 7 8

slide-24
SLIDE 24

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Critical Requests

Reduce the number of requests to be checked by

  • 1. applying mathematical theorems
  • 2. ignoring requests which are implied by harder requests
  • 3. restricting to one representative of each symmetry class

with respect to permutations of rows, permutations of columns within one block, and permutations of entire blocks

slide-25
SLIDE 25

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Ad 1: Mathematical Theorems

K¨

  • nig’s edge coloring theorem

There must be one block that constains at least m + 1 nonzeros.

Proof Consider bipartite G = (A ∪ B, E) with A the set of rows and B the set of blocks. Each nonzero entry in the matrix yields one edge. A B We have

  • 1. deg(i) ≤ n for each i ∈ A,
  • 2. deg(j) ≤ m for each j ∈ B.

Then there exists an edge-coloring with at most m colors.

slide-26
SLIDE 26

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Ad 1: Mathematical Theorems

Hall’s theorem There must be at least three different rows.

Proof Let G = (A ∪ B, E) be bipartite. A B To show |Γ(X)| ≥ |X| for all X ⊆ A.

  • 1. X is split over at least two blocks ⇒ |Γ(X)| = n
  • 2. Otherwise let l be the number of nodes in B outside that block.

Then |Γ(X)| ≥ l + max{n − l + |X| − n, 0} ≥ |X|

slide-27
SLIDE 27

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Ad 2: Merge blocks

Merge blocks by matching columns of different blocks if the nonzeros do not intersect in some row.

  • ✁
✁ ✁ ✁ ✁ ✁ ✂ ✂ ✂ ✂ ✂ ✂ ✄ ✄ ✄ ✄ ✄ ✄ ☎ ☎ ☎ ☎ ☎ ☎ ✆ ✆ ✆ ✆ ✆ ✆ ✝ ✝ ✝ ✝ ✝ ✝ ✞ ✞ ✞ ✞ ✞ ✞ ✟ ✟ ✟ ✟ ✟ ✟ ✠ ✠ ✠ ✠ ✠ ✠ ✡ ✡ ✡ ✡ ✡ ✡ ☛ ☛ ☛ ☛ ☛ ☛ ☞ ☞ ☞ ☞ ☞ ☞ ✌ ✌ ✌ ✌ ✌ ✌ ✍ ✍ ✍ ✍ ✍ ✍ ✎ ✎ ✎ ✎ ✎ ✎
  • ✁
✁ ✁ ✁ ✁ ✁ ✂ ✂ ✂ ✂ ✂ ✂ ✄ ✄ ✄ ✄ ✄ ✄ ☎ ☎ ☎ ☎ ☎ ☎ ✆ ✆ ✆ ✆ ✆ ✆ ✝ ✝ ✝ ✝ ✝ ✝ ✞ ✞ ✞ ✞ ✞ ✞ ✟ ✟ ✟ ✟ ✟ ✟ ✠ ✠ ✠ ✠ ✠ ✠ ✡ ✡ ✡ ✡ ✡ ✡ ☛ ☛ ☛ ☛ ☛ ☛ ☞ ☞ ☞ ☞ ☞ ☞ ✌ ✌ ✌ ✌ ✌ ✌ ✍ ✍ ✍ ✍ ✍ ✍ ✎ ✎ ✎ ✎ ✎ ✎
slide-28
SLIDE 28

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Ad 3: Enumerate all critical requests

  • Define a lexicographical order on the set of binary matrices
  • Efficiently generate a set of minimal representatives of

each symmetry class with respect to permutations of rows, permutations of columns within one block, and permutations of entire blocks

  • Note: Properties 1 and 2 are invariant under the group

action Reduction for a 32 × 32 network 3232 = 2160 → 150346 critical instances in less than 2 hours.

slide-29
SLIDE 29

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Ad 3: Enumerate all critical requests

  • Define a lexicographical order on the set of binary matrices
  • Efficiently generate a set of minimal representatives of

each symmetry class with respect to permutations of rows, permutations of columns within one block, and permutations of entire blocks

  • Note: Properties 1 and 2 are invariant under the group

action Reduction for a 32 × 32 network 3232 = 2160 → 150346 critical instances in less than 2 hours.

slide-30
SLIDE 30

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

The Algorithm

Routing Algorithm

  • Backtracking

too slow

  • Formulating as a MIP (various models) and use CPLEX

in general fast with exceptions

  • Formulating as a SAT and use ZCHAFF

about 5 times faster than CPLEX

Overall Algorithm

  • Determine all critical cases
  • Store hard cases in a table
  • For the rest use SAT solver

       ⇒ fast routing time guaranteed

slide-31
SLIDE 31

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

The Algorithm

Routing Algorithm

  • Backtracking

too slow

  • Formulating as a MIP (various models) and use CPLEX

in general fast with exceptions

  • Formulating as a SAT and use ZCHAFF

about 5 times faster than CPLEX

Overall Algorithm

  • Determine all critical cases
  • Store hard cases in a table
  • For the rest use SAT solver

       ⇒ fast routing time guaranteed

slide-32
SLIDE 32

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

The Algorithm

Routing Algorithm

  • Backtracking

too slow

  • Formulating as a MIP (various models) and use CPLEX

in general fast with exceptions

  • Formulating as a SAT and use ZCHAFF

about 5 times faster than CPLEX

Overall Algorithm

  • Determine all critical cases
  • Store hard cases in a table
  • For the rest use SAT solver

       ⇒ fast routing time guaranteed

slide-33
SLIDE 33

MOTIVATION SWITCHING NETWORKS LITERATURE MATHEMATICAL MODEL SOLUTION APPROACH RESULTS

Results

Matrix n r m |C(n, r, m)| Remark 2 × 2 1 2 1 4 trivial 4 × 4 1 4 1 24 2 2 2 24 Hall 16 × 16 1 16 1 480 trivial 4 4 4 288 infeasible 4 5 4 420

  • pen

8 2 8 480 Hall 32 × 32 1 32 1 1984 trivial 8 4 10 1376 infeasible 8 4 11 1520 feasible 64 × 64 1 64 1 8064 trivial 32 2 32 8064 Hall ? ? ? ?
