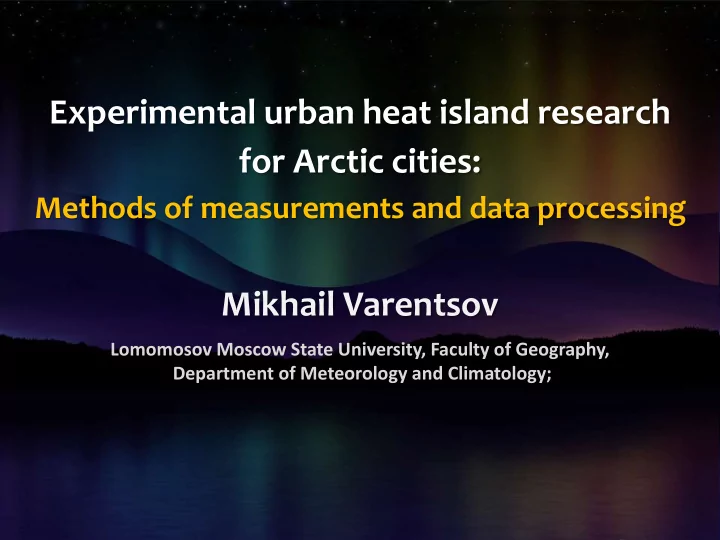

Experimental urban heat island research for Arctic cities: Methods of measurements and data processing Mikhail Varentsov Lomomosov Moscow State University, Faculty of Geography, Department of Meteorology and Climatology; Plan of presentation:

slide-1
SLIDE 1

Experimental urban heat island research for Arctic cities:

Methods of measurements and data processing

Mikhail Varentsov

Lomomosov Moscow State University, Faculty of Geography, Department of Meteorology and Climatology;

slide-2
SLIDE 2

Plan of presentation:

1. Measuring techniques & data processing 2. Geostatistical methods 3. Application for urban heating system 4. Remote sensing 5. Newest results for Apatity 2015

slide-3
SLIDE 3

Measuring methods

AWS

Mobile AWD

iButton sensors MTP-5 temperature profiler Joining the data, synchronizing, geostatistical modelling

Visualization and analisys

slide-4
SLIDE 4

Sensors location: Norisk

slide-5
SLIDE 5

Apatity Murmansk

АМС фон АМС центр ГМС ГМС АМС центр АМС фон

Sensors location: Murmans & Apatity

slide-6
SLIDE 6

Data processing

The problem: joining the data from AWS (relatively reliable) and iButtons (less reliable) Solution:

  • Verification of the iButtons before the

experiment – static correction for each sensor

  • In points with AWS we also install iButtons –

dynamic correction for control sensors

  • Spatial interpolation of the dynamic correction

for other sensors

𝑼 = 𝑼𝒕𝒔𝒅 + ∆𝑼 + ∆𝑼𝒆𝒛𝒐(𝒖, 𝒚)

slide-7
SLIDE 7

Verification by mobile AWS

Apatity 29 января, ночь Apatity 31 января, день Apatity 2 февраля, ночь Murmaks 30 января, вечер

slide-8
SLIDE 8

Verification by mobile AWS

Norilsk

slide-9
SLIDE 9

Measuring results: Murmansk and Apatity

  • 36
  • 34
  • 32
  • 30
  • 28
  • 26
  • 24
  • 22
  • 20
  • 18
  • 16
  • 14
  • 12
  • 10

18 6 12 18 6 12 18 6 12 18 6 12 18 6

Темрература, ⁰С Время суток, часы

Апатиты

Самая холодная точка (к западу от города) Фоновая АМС АМС в центре города Метеостанция "Апатиты"

  • 36
  • 34
  • 32
  • 30
  • 28
  • 26
  • 24
  • 22
  • 20
  • 18
  • 16
  • 14
  • 12
  • 10

18 6 12 18 6 12 18 6 12

Температура воздуха, ⁰С Время суток, часы

Мурманск

Фоновая АМС АМС в центре Самая холодная точка (к югу от города) Метеостанция "Мурманск"

slide-10
SLIDE 10
  • 36
  • 34
  • 32
  • 30
  • 28
  • 26
  • 24
  • 22
  • 20
  • 18
  • 16
  • 14
  • 12

21 3 9 15 21 3 9 15 21 3 9 15

Температура воздуха, ⁰С Время суток, часы

Норильск

Центр города Самая теплая точка (берег оз. Долгое) Метеостанция "Норильск" АМС на окраине города

Measuring results: Norilsk

slide-11
SLIDE 11

Plan of presentation:

1. Measuring techniques & data processing 2. Geostatistical methods 3. Application for urban heating system 4. Remote sensing 5. Newest results for Apatity 2015

slide-12
SLIDE 12

The question: how to provide spatial distribution

  • f the temperature in the city and surrounding?
slide-13
SLIDE 13

What is kriging?

𝒂∗ 𝒚 =

𝒋=𝟐 𝒐

𝝁𝒋𝒂 𝒚𝒋 Where:

𝑎∗ 𝑦 - prediction at unknown point 𝑦 𝑎 𝑦𝑗 - known value at point 𝑦𝑗 𝝁𝒋: depends on spatial self-correlation (variogram)

Features & Advantages:

  • Exact estimation
  • Best linear unbiased estimator
  • Also provide the field of estimation variance 𝜏2
slide-14
SLIDE 14

What is variogram?

Function describing the degree of spatial dependence of a spatial random field

  • f stochastic process:

𝜹 𝒊 = 𝟐 𝟑𝑶(𝒊)

𝒋=𝟐 𝑶(𝒊)

[𝒂 𝒚𝒋 − 𝒂(𝒚𝒋 + 𝒊)]𝟑

slide-15
SLIDE 15

Kriging algorithm

Building experimental variogram Fitting theoretical variogram model to experimental variogram Building estimation field Power-law Gaussian Exponential

slide-16
SLIDE 16

Apatity

Maps of the temperature anomaly

Mean Max UHI

9-10 ⁰С

острова тепла

2-3 ⁰С

slide-17
SLIDE 17

Mean Max UHI Max UHI

Murmansk

Maps of the temperature anomaly

slide-18
SLIDE 18

Method for heterogeneous terrain

𝑈 𝑦, 𝑧, 𝑢 = 𝑈0 ℎ 𝑦, 𝑧 , 𝑢 + ∆𝑈 (𝑦, 𝑧, 𝑢)

Atmosphere temperature at fixed height Correction for certain moment MTP-temperature Kriging

𝒊 𝒚, 𝒛 from ASTER DEM

slide-19
SLIDE 19

Norilsk

Mean Max

6-7 ⁰С ≈ 2 ⁰С

slide-20
SLIDE 20

Plan of presentation:

1. Measuring techniques & data processing 2. Geostatistical methods 3. Application for urban heating system 4. Remote sensing 5. Newest results for Apatity 2015

slide-21
SLIDE 21

Air temperature

Statistical model of heating station

Direct and reverse water temperature difference Heat production

Effect on urban economy

y = -0.9153x + 24.015

10 20 30 40 50

  • 30 -25 -20 -15 -10
  • 5

5

Разница температуры прямой и обратной воды, ⁰С Температура наружного воздуха, ⁰С

y = 154.65x + 1888.4

4000 5000 6000 7000 8000 9000 10000 20 30 40 50

Суточный отпуск тепла, ГКал

Разница температуры прямой и обратной воды, ⁰С

Apatity (power 590 Гкал/ч): 1 ⁰С → ≈ 33 т. tons of coal / day What is 1 ⁰С for the power station? Norilsk ТЭЦ-1 (power 2321 Гкал/ч):

1 ⁰С → ≈ 81 000 m3 of the nature gas / day примерно 85 тыс. рублей в день или

24 млн. руб. в год

(При стоимости угля 1300 руб. /т и продолжительность отопительного сезона 272 днея)

Potential effect of UHI 2 ⁰С:

примерно 600 тыс. рублей в день или

180 млн. руб. в год

(При стоимости газа 4.14 руб./м3 и продолжительность отопительного сезона 300 дней)

slide-22
SLIDE 22
  • 35
  • 30
  • 25
  • 20
  • 15

3 6 9 12 15 18 21 0 3 6 9 12 15 18 21 0 3 6 9 12 15

Температура, ⁰C

Время суток, ч

Средняя температура в городе Температура по данным ТЭЦ

Средняя ошибка:

0.4 ⁰С

≈ 37 млн. руб. в год

  • 22
  • 21
  • 20
  • 19
  • 18
  • 17
  • 16
  • 15
  • 14

29 января 30 января 31 января 1 февраля

Среднесуточная температура, ⁰С ТЭЦ Город

Apatity Norilsk

Средняя ошибка:

1.1 ⁰С Temperature, measured by power station VS real temperature in the city

≈ 11 млн. руб. в год

Эти средства можно сэкономить, если оптимизировать систему температуры воздуха в городе

Effect on urban economy

slide-23
SLIDE 23

Plan of presentation:

1. Measuring techniques & data processing 2. Geostatistical methods 3. Application for urban heating system 4. Remote sensing 5. Newest results for Apatity 2015

slide-24
SLIDE 24

Norilsk

Mean Max

6-7 ⁰С ≈ 2 ⁰С

slide-25
SLIDE 25

MODIS for Norilsk

TERRA 17 January 2014

slide-26
SLIDE 26

MODIS for Norilsk

Mean data (TERRA) for November 2013 – January 2014

slide-27
SLIDE 27

R² = 0,3036

  • 2

2 4 6 8

  • 2

2 4 6 8

∆T по данным спутника TERRA ∆T по данным метеорологических наблюдений

TERRA

R² = 0,1317

  • 2

2 4 6 8

  • 2

2 4 6 8

∆T по данным спутника AQUA ∆T по данным метеорологических наблюдений

AQUA

Connection between surface and ground UHI

UHI Intensity: ∆𝑼 = 𝑼город − 𝑼фон

Satellite observations Observations (Power station – observatory)

VS

slide-28
SLIDE 28

Plan of presentation:

1. Measuring techniques & data processing 2. Geostatistical methods 3. Application for urban heating system 4. Remote sensing 5. Newest results for Apatity 2015

slide-29
SLIDE 29

Sensors location: Apatity 2015

slide-30
SLIDE 30
  • 30
  • 25
  • 20
  • 15
  • 10
  • 5

6 12 18 6 12 18 6 12 18 6 12 18 6 12 18 6 12 18 6 12 18 6 12 А1 центр А5 ботсад ИФА Метео А4 - поле

AWS results: Apatity 2015

slide-31
SLIDE 31

Max UHI

slide-32
SLIDE 32

New ideas for experimental research & data processing

1. Longer measuring campaign (one season at least) 2. On-line UHI monitoring (not iButtons, but GSM temperature sensors) 3. 3D UHI structure investigation (but at least 2 MTP-5 is needed) 4. Application of the Kriging with external drift for more detailed

  • analysis. What use as drift: LES data,

REG CM data, MODIS data, urban landuse data? 5. More comprehensive research about UHI and energy consumption

6. UHI temperature anomaly → anthropogenic heat flux

slide-33
SLIDE 33
