Middlebury Station Presented by: Joshua Martineau, VTrans Jonathan Bruneau, Jacobs January 29, 2020 Middlebury Station Project Overview Support Extension of Ethan-Allen Service to Burlington Install 300-ft Platform and 200-ft Canopy

slide-1

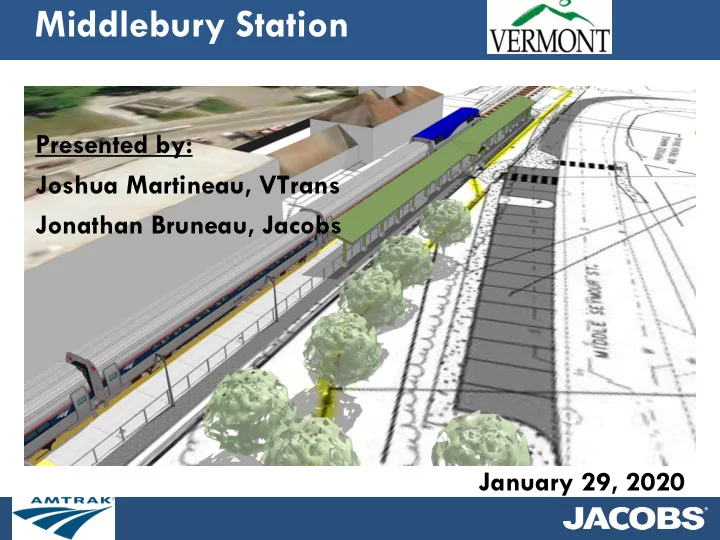

SLIDE 1

Presented by: Joshua Martineau, VTrans Jonathan Bruneau, Jacobs

Middlebury Station

January 29, 2020

slide-2
SLIDE 2

Project Overview

 Support Extension of Ethan-Allen Service to Burlington  Install 300-ft Platform and 200-ft Canopy with Lighting  Coordination with VTrans, Town, Amtrak, FRA, VRS, and Track/Tunnel Project and Station Parking Design Project  Anticipated Construction Schedule:

− Begin late 2020, Complete 2021

More Amtrak Extension Project Information here: https://vtrans.vermont.gov/rail/amtrak-burlington

Middlebury Station

slide-3
SLIDE 3

Middlebury Station ETHAN ALLEN EXT.

https://vtrans.vermont.gov/rail/amtrak-burlington

slide-4
SLIDE 4

Middlebury Station VTR WEST ROUTE

https://vtrans.vermont.gov/rail/amtrak-burlington

slide-5
SLIDE 5

Middlebury Station LOCATION MAP

N

slide-6
SLIDE 6

Middlebury Station HISTORY

The Rutland & Burlington Railroad first arrived on September 1, 1849 Until 1953 the Rutland Railroad ran passenger service on the Green Mountain Flyer (New York City - Montreal), making stops in the city WIKIPEDIA

slide-7
SLIDE 7

Middlebury Station PRESENT DAY

slide-8
SLIDE 8

Middlebury Station VHB CONCEPT STUDY

slide-9
SLIDE 9

Middlebury Station PROPOSED DESIGN

300-FOOT LOW LEVEL CONCRETE PLATFORM 200-FOOT CANOPY w/BENCHES & ADA LIFT PARKING, SIDEWALK & DROP-OFF BY TOWN

slide-10
SLIDE 10

Middlebury Station

  • LOOKING SOUTHEAST
slide-11
SLIDE 11

Middlebury Station PROPOSED DESIGN

  • LOOKING SOUTH
slide-12
SLIDE 12

Middlebury Station PROPOSED DESIGN

CONCRETE PLATFORM CORRUGATED METAL ROOFING HDG/PAINTED STEEL FRAME LED INDIRECT LIGHT FIXTURE

slide-13
SLIDE 13

Middlebury Station PROPOSED DESIGN

  • CANOPY FEATURES
slide-14
SLIDE 14

Middlebury Station PROPOSED DESIGN

  • CANOPY FEATURES
slide-15
SLIDE 15

Middlebury Station PROPOSED DESIGN

  • CANOPY FEATURES
slide-16
SLIDE 16

Middlebury Station PROPOSED DESIGN

  • LED LIGHT FIXTURES
slide-17
SLIDE 17

Middlebury Station

  • THE END, THANK YOU! QUESTIONS?
