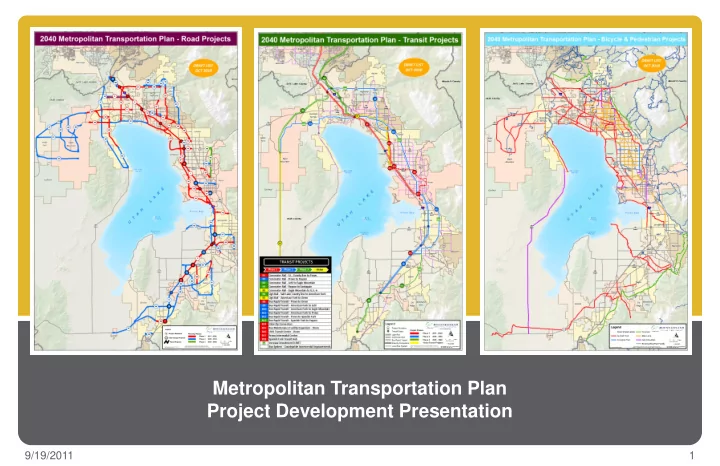

SLIDE 1
Metropolitan Transportation Plan Project Development Presentation
1 9/19/2011
Metropolitan Transportation Plan Project Development Presentation - - PowerPoint PPT Presentation
Metropolitan Transportation Plan Project Development Presentation - - PowerPoint PPT Presentation
Metropolitan Transportation Plan Project Development Presentation 9/19/2011 1 Draft Listing of Highway Projects Does Not Include Any New Freeways Have Reviewed with City Staff So Far Minor Changes Have Been Suggested Red = Needed
SLIDE 2
SLIDE 3
3 9/19/2011
Draft Listing of Highway Projects
- Does Not Include Any New Freeways
- Have Reviewed with City Staff
- So Far Minor Changes Have Been Suggested
- Red = Needed by 2020
- Blue = by 2030
- Green = by 2040
SLIDE 4
Notice the Choke Points (dashed black lines)
- Cedar Pass has 26k Trips per Day
- Lehi 35k
- Lindon 217k
- Springville 127k
4 9/19/2011
SLIDE 5
Phase 1 2020
5 9/19/2011
SLIDE 6
Phase 2 2030
6 9/19/2011
SLIDE 7
Phase 3 2040
Larger Facilities Need to be Explored by 2040
7 9/19/2011
SLIDE 8
Current Day…
- Buffalo, NY
- Hartford, CT
- New Orleans, LA
- Richmond, VA
- Oklahoma City, OK
Each have about 1 million population and have multiple freeways and expressways
Salt Lake County Today has 1.1 million people Utah County in 30 years is projected to be 1.1 million people What Will Become of our Highway System?
8 9/19/2011
SLIDE 9
- At 1.1m people in
30 years, Utah Co. lacks ideal freeway spacing
- Geography makes
choke points in Lehi, Santaquin, Lindon, and Springville
UT Co.
- With 1.1m people
today, SL Co. is close to ideal freeway spacing
- South area of county
needs better east/west connectivity
SL Co.
ITE Ideal Highway Spacing
9 9/19/2011
SLIDE 10
134k 102k 52k
Metropolitan Transportation Plan
West Side Vision Corridors
Lehi CP Cedar Pass CP
145k 127k 156k 37k 32k 28k
Lindon CP
V2 V1
−Pony Exp PKWY Fails −S Pass RD not used −N Pass RD not used −Pioneer Crossing Fails −No relief to Choke Point −I-15 Fails −No relief to Choke Point −Pony Exp PKWY Fails −HWY 73 Fails, has FWY traffic level, 67k −N Pass RD not used −Pioneer Crossing Fails −No relief to Choke Point −I-15 Fails −No relief to Choke Point −Pony Exp PKWY Fails −South Pass RD is Minor Arterial −Pioneer Crossing is Congested −No relief to Choke Point −I-15 Fails −No relief to Choke Point
Cedar Pass Choke Point Conditions Lehi Choke Point Conditions Lindon Choke Point Conditions
2040 Traffic 2007 I-15 Traffic 126k
1st West Side Freeways Were Modeled
The Question is Always Asked… “Why Not Build A Bypass to I-15 on the West Side of the Lake?”
- 3 Scenarios Were Modeled, All Do Well
Eagle Mountain to Lehi
- South of Eagle Mountain to Santaquin is
a Corridor Preservation Project
- None of the Scenarios Help Relieve
Congestion in the Lindon or Lehi Areas
10 9/19/2011
SLIDE 11
Metropolitan Transportation Plan
Countywide Vision Corridors
145k 127k 156k 134k 102k 52k 37k 32k 28k
Cedar Pass Choke Point Conditions Lehi Choke Point Conditions Lindon Choke Point Conditions
V5 V4
−Pony Exp PKWY Congested −S Pass RD M.ART −N Pass RD not used −All Corridors Good −Relieves Choke Point −Reduces I-15 by 20k −Blue Corridor adds 20k to Vineyard Connector −Pony Exp PKWY Fails −HWY 73 Fails, has FWY traffic level, 67k −Pioneer Crossing Fails −Congestion in central and southern Lehi −Reduces I-15 by 40k −Blue Corridor adds 20k to Vineyard Connector −Pony Exp PKWY Fails −South Pass RD is Minor Arterial −All Corridors Good −Relieves Choke Point −Reduces I-15 by 20k −Blue Corridor adds 20k to Vineyard Connector
Lehi CP Cedar Pass CP Lindon CP
Next East and West Side Freeways Were Modeled to Create a Grid Network
- The 3 Scenarios Through Cedar Pass
Do Well from Eagle Mountain to Lehi
- Mountain View FWY with Utah Lake
Bridge Relieves Lindon and Lehi Areas
- Payson to Provo FWY Relieves
Springville Choke Point and Provo I-15
11 9/19/2011
2040 Traffic 2007 I-15 Traffic 126k
SLIDE 12
N Cedar Pass to Santaquin FWY | 6 Lanes Point of Mtn FWY | 8 Lanes Mtn View FWY to HWY 73 | 8 Lanes Mtn View FWY to Foothill | 6 Lanes Lake Crossing FWY | 6 Lanes I-15 FWY | 12 Lanes Payson to Provo FWY | 6 Lanes HWY 73 | 6 Lanes Pony Express PKWY/Lehi 1900 S | 4 Lanes Redwood RD | 4 Lanes
FREEWAYS ARTERIALS
To Be Modeled - Soon
NW Cities Preferred Scenario
(Expressways)
V-7
2040 Traffic 2007 I-15 Traffic
126k
15
Lehi 2100 N
12 9/19/2011
Pony Exp PKWY
EXPRESSWAYS
Lehi 2100 N EXPWY | 6 Lanes Hidden Valley EXPWY | 6 Lanes Pioneer Crossing EXPWY | 6 Lanes Foothill EXPWY | 4 Lanes Vineyard Connector EXPWY | 6 Lanes
SLIDE 13
N Cedar Pass to Santaquin FWY | 6 Lanes Lehi 2100 N FWY | 10 Lanes Mtn View FWY to HWY 73 | 8 Lanes Mtn View FWY to Lake Crossing | 6 Lanes Lake Crossing FWY | 6 Lanes Payson to Provo FWY | 6 Lanes Lindon | 12 Lanes
Lehi | 12 Lanes
Point of the Mtn | 12 Lanes Orem | 12 Lanes Provo | 10 Lanes HWY 73 | 6 Lanes Pony Express PKWY | 4 Lanes Hidden Valley ART | 6 Lanes Pioneer Crossing | 6 Lanes Lehi 1900 South | 4 Lanes Vineyard Connector | 6 Lanes Redwood RD | 4 Lanes
15
FREEWAYS ARTERIALS
Provides Balanced Relief for all Areas I-15 Lindon and Point Congested
Congestion Starts at… FREEWAYS 6 Lane 105+ 8 Lane 140+ 10 Lane 175+ 12 Lane 210+ ARTERIALS 4 Lane 40k+ 6 Lane 55k+
Preferred Scenario
(Freeway Grid Network)
145k 127k 134k
V-8
2040 Traffic 2007 I-15 Traffic
126k
FWY Arterial
15
Pony Exp PKWY
156k 84k 36k 54k 28k 58k 199k 258k 42k 79k 20k 167k 66k 75k 30k 19k 237k 267k 173k 246k 104k
15 15 15 15
13 9/19/2011
Extreme Congestion Congestion Constrained Flow Free Flow
Lehi CP
Cedar Pass CP
Lindon CP
Pioneer Crossing Lehi 2100 N
SLIDE 14
Metropolitan Transportation Plan
FWY Preferred Scenario
Overall Best Modeled Network of Major Facilities
- Travel Through Lehi Runs Well
- Lindon and Point of the Mountain Choke
Points Still Experience Congestion
- Payson to Provo FWY Relieves
Springville Choke Point and Provo I-15
- West Side FWY in Goshen Area Not
Needed as a Freeway in 30 Years- Corridor Preservation
14 9/19/2011
Orange = I-15 FWY Green = West Side FWY Red = Mountain View/Lake Crossing FWY Blue = Payson to Provo FWY
