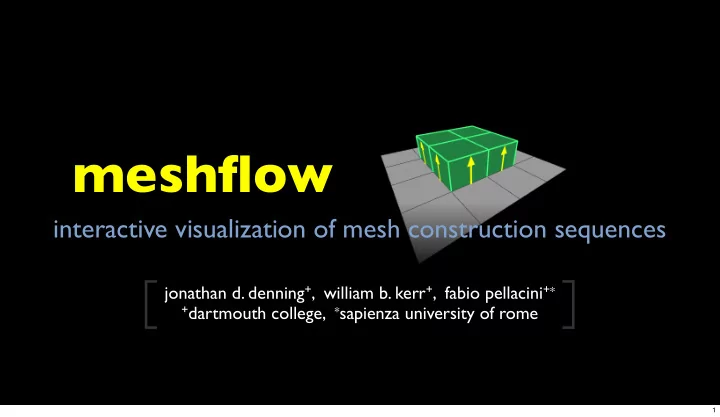

SLIDE 1
[ ] meshflow
jonathan d. denning+, william b. kerr+, fabio pellacini+*
+dartmouth college, *sapienza university of rome
interactive visualization of mesh construction sequences
1
biped
1012 faces 3:10 hrs 5759 ops
2
meshflow interactive visualization of mesh construction sequences [ - - PowerPoint PPT Presentation
meshflow interactive visualization of mesh construction sequences [ - - PowerPoint PPT Presentation
meshflow interactive visualization of mesh construction sequences [ ] jonathan d. denning + , william b. kerr + , fabio pellacini +* + dartmouth college, * sapienza university of rome 1 biped 1012 faces 3:10 hrs
SLIDE 2
SLIDE 3
60x
3
SLIDE 4
4
SLIDE 5
5
SLIDE 6
6
SLIDE 7
helmet
1867 faces 5:05 hrs 8510 ops
shark
1796 faces 3:30 hrs 8350 ops
hydrant
10808 faces 2:30 hrs 4609 ops
biped
1012 faces 3:10 hrs 5759 ops
robot
15580 faces 9:40 hrs 13478 ops
7
SLIDE 8
⋮ select select view view view view topo trans trans select trans trans trans ⋮ ⋮ select view topo trans select trans ⋮
clustered raw seq
8
SLIDE 9
top 4 bigrams
cam, cam select, trans trans, select cam, select select, trans trans, select cam, select select, select select, trans trans, select trans, cam cam, select trans, trans trans, cam cam, trans cam, topoa trans, cam cam, topoa cam, trans topoa, trans .33 .15 .11 .09 .22 .16 .13 .13 .27 .20 .15 .14 .40 .26 .25 .02 .20 .17 .16 .12 5759 3781 3118 1843 225
9
SLIDE 10
2 (cam)+ (cam)◇ ↦ (cam)◇ 3 (view) (view)+ ↦ (view) 4 (select) (view | select)* (select)◇ ↦ (select)◇ 5 (select) (view)* (topo | trans)◇ ↦ (.)◇ 6 (trans) (view | trans)* (trans)◇ ↦ (.)◇ 7 (.)◇ (view | (.)◇)* (.)◇ ↦ (.)◇ 8 (topo)◇ (view | trans)* (trans) ↦ (.)◇ 9 (topoa)◇ (view | topob)* (topob) ↦ (.)◇ 10 (.)◇ (view | (.)◇)* (.)◇ ↦ (.)◇ clustering by substituting regexs
10
SLIDE 11
⋮ topo trans trans trans trans trans ⋮ ⋮ select select view view view view topo trans trans select trans trans trans ⋮ ⋮ select select view topo trans trans select trans trans trans ⋮ ⋮ select view topo trans trans select trans trans trans ⋮ ⋮ topo trans ⋮ ⋮ topo ⋮ 2 4 5 6 8
levels of detail
11
SLIDE 12
9 10
12
SLIDE 13
13
SLIDE 14
9 5 7
14
SLIDE 15
15
SLIDE 16
16
SLIDE 17
8 college students modeling class followed tutorial case study
17
SLIDE 18
meshflow video images
tutorial ratings
- verview
detail avg ratings 5 tutorial rankings
1st 2nd 3rd
subjects 8 meshflow video images
18
SLIDE 19
19
SLIDE 20
sequential regexs tag-based polygonal meshes
- ut-of-order clustering
geometric analysis nurbs, sculpting / / / future work
20
SLIDE 21
hierarchical clustering annotations filtering details on demand / overview illustrate operations focus : : : summary
21
SLIDE 22
support: nsf, intel, sloan foundation tutorials: [culum ‘09; drinic ‘04; jack ‘11; tate ‘09; williamson ‘10]
22
SLIDE 23
fin
23
