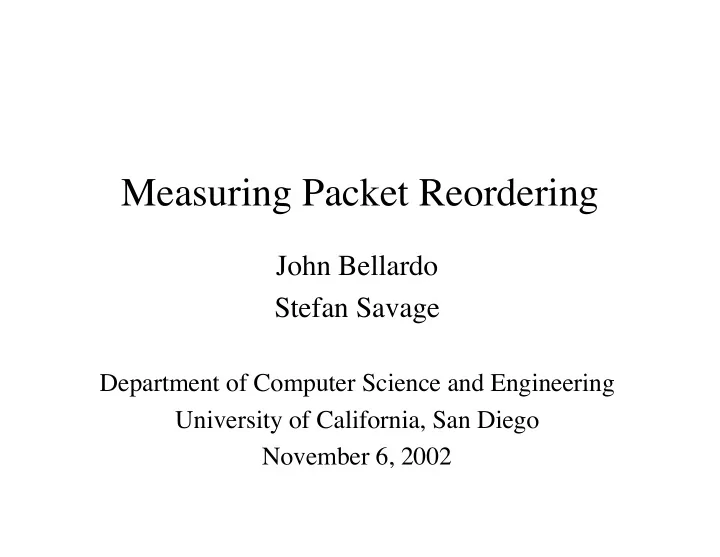

Measuring Packet Reordering

John Bellardo Stefan Savage

Department of Computer Science and Engineering University of California, San Diego November 6, 2002

SLIDE 2

Motivation

Why is reordering important?

– Performance (TCP fast retransmit) – Race conditions (bad protocols)

What is hard about measuring it?

– [Bennett et al 99]: active ICMP probing (ping)

Round-trip only; ICMP filtering/rate limiting bias

– [Paxson 99]: pair-wise TCP endpoint analysis

Scale issues (need software at each endpoint)

– [Jaiswal et al 02]: passive TCP analysis in net

Significant infrastructure requirement

SLIDE 3

Our contributions

Unidirectional measurement techniques

– Active approach

Send packet pairs and check for reordering

– Code runs only at sender

Leverage TCP/IP protocol/implementation features
Infer if reordering is outbound or on return path
Implementation of same
Early experiences

SLIDE 4

First attempt: Single Connection Test

Leverage TCP’s error control mechanisms

– Every packet is labeled w/sequence number – Latest in-order sequence number acknowledged – Idea: Craft packets so ACKs reveal reordering

Assumption

– ACK parity: ACK generated for each packet

SLIDE 5

Single Connection Test

Fully establish a TCP session

– Sequence space starts at 1

Probing Host Remote Host

SLIDE 6

D a t a 2

Single Connection Test

Fully establish a TCP session

– Sequence space starts at 1

Create a gap in sequence space

Probing Host Remote Host

SLIDE 7

D a t a 2 ACK 1

Single Connection Test

Fully establish a TCP session

– Sequence space starts at 1

Create a gap in sequence space

– Wait for remote host to ACK the gap

Probing Host Remote Host

SLIDE 8

D a t a 2 ACK 1 Data 1

Single Connection Test

Fully establish a TCP session

– Sequence space starts at 1

Create a gap in sequence space

– Wait for remote host to ACK the gap

Send two sample packets that

straddle the previous packet

Data 3 Probing Host Remote Host

SLIDE 9

D a t a 2 ACK 1 Data 1 ACK 3 Data 3

Single Connection Test

Fully establish a TCP session

– Sequence space starts at 1

Create a gap in sequence space

– Wait for remote host to ACK the gap

Send two sample packets that

straddle the previous packet

If there is no reordering

– First ACK should be for the gap

Probing Host Remote Host

SLIDE 10

D a t a 2 ACK 1 Data 1 ACK 3 Data 3 A C K 4

Single Connection Test

Fully establish a TCP session

– Sequence space starts at 1

Create a gap in sequence space

– Wait for remote host to ACK the gap

Send two sample packets that

straddle the previous packet

If there is no reordering

– First ACK should be for the gap – Second ACK is for the whole sequence

Probing Host Remote Host

SLIDE 11

D a t a 2 ACK 1 Data 1 ACK 3 Data 3 A C K 4

Single Connection Test

D a t a 2 ACK 1 Data 1 ACK 1 Data 3 A C K 4 D a t a 2 ACK 1 Data 1 ACK 3 Data 3 ACK 4 D a t a 2 ACK 1 No Reordering Forward Reordering Reverse Reordering Forward and Reverse Reordering D a t a 1 ACK 1 Data 3 ACK 4

SLIDE 12

Single Connection Test Pitfalls

Packet loss results in unusable

samples (general limitation)

ACK parity assumption fails

– Delayed acknowledgements – Need both ACKs to reveal order

D a t a 2 ACK 1 Data 1 Data 3 A C K 4 ACK 3 gets delayed and subsequently is never sent

SLIDE 13

Dual Connection Test

Need two samples to be reliable returned

– Send all packets out of order (ACK not delayed) – ACK value useless, so infer order from other fields

Use two connections to differentiate samples
IPID – “unique” identifier for each datagram in a flow
New assumptions

– IPID is strictly increasing per host

Dominant implementations do this

– Both connections are made to the same machine

SLIDE 14

Dual Connection Test

Fully establish two TCP sessions

(red and black)

Probing Host Remote Host

SLIDE 15

Dual Connection Test

Fully establish two TCP sessions

(red and black)

Send two sample packets: one in

each connection

Probing Host Remote Host

SLIDE 16

IPID n

Dual Connection Test

Fully establish two TCP sessions

(red and black)

Send two sample packets: one in

each connection

If no reordering

– IPID of first response packet…

Probing Host Remote Host

SLIDE 17

IPID n

Dual Connection Test

IPID > n

Fully establish two TCP sessions

(red and black)

Send two sample packets: one in

each connection

If no reordering

– IPID of first response packet, is strictly less than IPID of response packet

Probing Host Remote Host

SLIDE 18

Dual Connection Test Pitfalls

Connection assumption violations

– Load balancer can direct two connections to different hosts

IPID assumption violations

– Random IPID values (e.g., OpenBSD) – Zero IPID after MTU discovery (e.g., Linux)

SLIDE 19

SYN Test

Trick load balancers by starting “identical”

connections

– Appear to belong to same flow (but different seq #’s)

Use TCP connection state machine to infer order

– No assumptions about IPID

Assumptions

– Duplicate SYN’s with different seq cause ACK or RST packets

SLIDE 20

SYN Test

Probing Host Remote Host

Uses no pre-established sessions

SLIDE 21

S Y N 1 SYN 10

SYN Test

Probing Host Remote Host

Uses no pre-established sessions
Send two SYN packets to remote

host

– Different starting sequence number – Other than that, identical

SLIDE 22

S Y N 1 SYN+ACK 1 SYN 10

SYN Test

Probing Host Remote Host

Uses no pre-established sessions
Send two SYN packets to remote

host

– Different starting sequence number – Other than that, identical

First received packet will generate

a SYN+ACK

SLIDE 23

S Y N 1 SYN 10 RST/ACK

SYN Test

Probing Host Remote Host

Uses no pre-established sessions
Send two SYN packets to remote

host

– Different starting sequence number – Other than that, identical

First received packet will generate

a SYN+ACK

Other packet causes a RST or ACK

SYN+ACK 1

SLIDE 24

SYN Test Pitfalls

SYN behavior assumption violations

– Poorly understood/implemented part of spec. – Some TCP stacks send SYN+ACK or nothing in response to a bad duplicate SYN

A series of SYN-based probes may be

interpreted as a DoS attack

– Implementation is good about cleaning up state

SLIDE 25

Implementation

User-level subset of TCP stack

– Shared origin w/Sting, TBit, Sprobe and Alpine – Raw socket for sending frames – Packet filters (via libpcap) to capture response – Firewall filters to prevent host OS from seeing response – Detect assumption failures

Runs on stock FreeBSD and Linux

SLIDE 26

Validation

Controlled

– Added reordering to FreeBSD Dummynet – Independently varied forward and reverse reordering – Match between network trace and reports from tool

Experimental

– Probed 50 hosts over 20 days with all tests – Each host probed approx. every 30 minutes – Probe results similar for hosts across tests (where different tests were compatible)

SLIDE 27

Observations (1)

Significant reordering seen on some paths

www.apple.com

5 10 15 20 25 30 22 10 22 10 22 10 22 10 22 10 22 10 hour

% reordering

forward

SLIDE 28

Observations (2)

Reordering can be highly asymmetric

www.apple.com

5 10 15 20 25 30 22 10 22 10 22 10 22 10 22 10 22 10 hour

% reordering

forward reverse

SLIDE 29

Observations (3)

Small changes in packet spacing can have

large changes on reordering (on same path)

2 4 6 8 10 12 50 100 150 200 250 300 usec % reordering

SLIDE 30

Conclusion

We can measure unidirectional reordering from a

single endpoint

This matters

– Reordering does happen – Asymmetry is common on reordered paths

We still need a precise metric for reordering

– Results currently not comparable between studies

Source code will be available shortly at:
