Measurement Equipment Calmet Ltd. Zielona Gora ul. Kukulcza 18 1 Poland www.calmet.com.pl Calmets Customer Support Mesurement Equipment in problems solving Presentation since 1989 Service Power network analysers, Voltage, Current,

slide-1

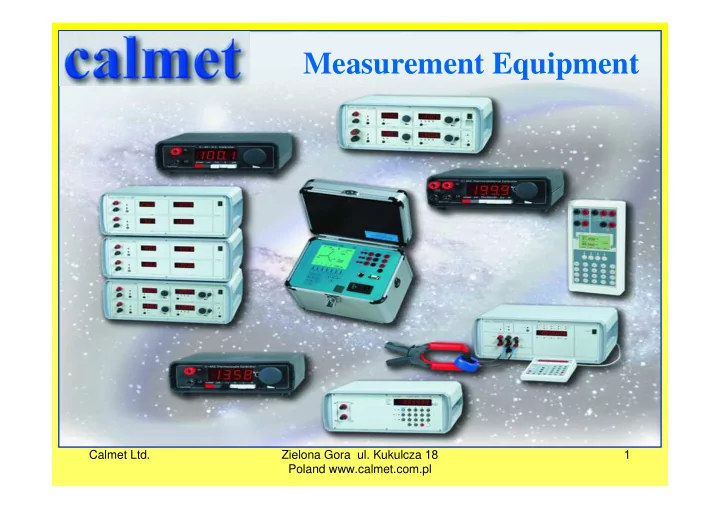

SLIDE 1

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 1

Measurement Equipment

slide-2
SLIDE 2

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 2

Calmet’s Presentation

Mesurement Equipment since 1989 Power network analysers, Watt – hour meter testers, Current Transformers testers, Power quality analysers Voltage, Current, Power & Resistance Calibrators Control Software for measurement equipment Customer Support in problems solving Service

1 phase 3 phase 3 phase 0,05% Power Quality

° ° ° °C

Resistance GΩ Ω Ω Ω =,~,U,I 1 phase U,I,ϕ ϕ ϕ ϕ 3 phase U,I,ϕ ϕ ϕ ϕ 3 phaseU,I,ϕ ϕ ϕ ϕ,P,Q,S,E

slide-3
SLIDE 3

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 3

POWER NETWORK ANALYSER AND ENERGY METER TESTER

Type Calport 100 Plus

Calport 100 Plus – Portable Tester of 3 – phase Watt – hour meters and Current Transformers

multifunction:

  • Connection verification – vector

diagram,

  • Power network parameters

measurement,

  • Harmonics analysis – U, I, P, Q,
  • Energy meter testing
  • CT & PT ratio & burden testing in 3-

phase circuits accuracy 0,1% (or 0,2%) wide range of currents 0,005...3000A data output:

  • Graphic LCD display,
  • Internal memory for results,
  • Local printing,
  • PC Software for data analysis
slide-4
SLIDE 4

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 4

POWER NETWORK ANALYSER AND ENERGY METER TESTER

type Caltest 10 Caltest 10 single phase energy meter tester

accuracy 0,5% or 0,2% current range 0,01…100A (10A)(1000A)(3000A) with current clamp input enables connection without break in circuit power up from measurement circuit dummy load function graphic LCD display, internal memory for results, local results printing, PC Software for data analyzis

slide-5
SLIDE 5

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 5

Power network parameters & power quality analyser NSQ

Power network parameters recording for many weeks.

Measurement of 4 voltagaes:

U1,U2,U3,Un

& 5 currents: I1,I2,I3,In,Ie

Harmonics U, I, P, Q The source of disturbances can be pointed out! Automatic Report generation for compliance with the standards (EN50160) Frequency, THD, flicker, dips, interruptions, swells & overvoltage, asymmetry ……..

slide-6
SLIDE 6

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 6

POWER NETWORK ANALYSER, ENERGY METER TESTER & CURRENT AND VOLTAGE TRANSFORMER TESTER

type Caltest 300

Portable Analyzer Caltest 300

three devices in one case:

  • Energy meter tester,
  • CT & PT tester in low & medium voltage

networks,

  • Power quality analyzer

high accuracy 0,05% (or 0,1%) wide range of input currents 0,005...3000A

slide-7
SLIDE 7

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 7

Power Calibrator & measurement instruments Tester C300

3-phase Calibrator

3x [0…500V, 0...100A] Accuracy: 0.05% Possibility to set any phase angle between voltages and currents Programmable harmonics up to 31

Automatic testing:

  • energy meters (0.05%);
  • protective relays;
  • current transformers;
  • current clamps;
  • Measurement transducers
slide-8
SLIDE 8

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 8

Power Calibrator & measurement instruments Tester type C300

slide-9
SLIDE 9

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 9

POWER NETWORK ANALYSE AND ENERGY METERS TESTER type Calport 100A The analyser Calport 100A (version with 10A direct current range) is a portable electronic device

multifunction:

  • verification of power network wiring –

vector chart,

  • measure of power network wiring,
  • harmonics analysis,
  • checking of energy meters

high accuracy 0,1% or 0,2% wide current range 0,001...3000A multi-variant data entering:

  • digital and graphical display,
  • internal memory,
  • local printing,
  • transmission by interface and analysis on

PC computer.

slide-10
SLIDE 10

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 10

P 12:15:37 wy U1 U2 U3 I1 I2 I3 200 V 1.00 A

L

123 P 12:15:37 wy U1 U2 U3 I1 I3 200 V 1.00 A

L

123 P 12:15:37 U1: 230.1 V U2: 230.0 V U3: 229.9 V I1: 1.120 A I2: 1.127 A I3: 1.071 A wy

ϕ1: 1.2 ϕ3: 3.7 ϕ2: 0.9 cos ϕ: 0.99 sin ϕ : 0.01

f : 50.0Hz UI ϕ PQS P 12:15:37 wy par

  • 2%

+2% 3s 10s 0s

ε : -0.72% P: 345.2 W

P 12:15:37 P1: 230.5 W P2: 240.7 W P3: 229.3 W P : 700.5 W Q : 0.323 var S : 700.5 VA Σ Σ Σ wy

cos ϕ: 1.00

f: 50.0Hz UI ϕ PQS P 12:15:37 exit

P L1

  • 3%-

±0,1%- 1 5 10 15 20 100%-

  • 100%-

3%-

1 2

P 12:15:37 exit reset start

tmax

E: 1234.5 kWh : 123456.78 kWh : 124688.44 kWh ε ε ε ε: - 0.23 % Pinst: 234.5 kW ti: 12 min tm: 15_ min Pmax: 934.5 kW time: 12:45 08.06.99 1 2

Verification of power network wiring in "star" and "delta" connection – graphical display of three phase voltage and current vector. Testing of active and reactive energy meters directly on site – functions of computing meter error directly in percentages with method of setting time of measurements or number of

  • impulses. Input in S0 standard is used for testing energy meters with impulse output.

Photo head CF101 is used for automatic counting of meter rotor turns for testing induction

  • meters. Photo head CF100 is used for automating testing of meters with LED.

Full harmonics analysis of phase voltages and currents as well as up to 20th harmonic analysis of active and reactive power for diagnostic of distortion sources. Graphical and numerical presentation of results. Measure of active and reactive energy with method of setting time periods for verification

  • f energy meter counters and testing of maximum power meters as well as measure

maximum powers. Measure of three phase power network parameters – digital measure of voltages, currents, active, reactive and apparent power in one and three phase, phase shifts and cosφ, active and reactive energy,

  • frequency. Programming of voltage and current transformers ratios.

P 12:15:37 exit

U L1 data 1: 230,1V 100,0% 2: 0,2V 0,1% 3: 13,7V 6,0% 4: 0,1V 0,0% 5: 6,5V 2,8% THD: 9,45%

FUNCTIONS OF THE ANALYSER Calport 100A

slide-11
SLIDE 11

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 11

EQUIPMENT OF THE ANALYSER Calport 100A

Transportation case Clamps 100A, 3pcs. Photo head for inductive meters Portable printer S0 cord, photo head for meters with LED, adapters, crocodiles Calsoft 100 programme for PC

slide-12
SLIDE 12

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 12

ADDITIONAL EQUIPMENT OF THE ANALYSER Calport 100A Electronic compensated clamps for current measurement up to 1000A in class 0,5 Electronic compensated flexible clamps with converter for current measurement in ranges 30/300/3000A

slide-13
SLIDE 13

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 13

FRONT PLATE OF THE ANALYSER Calport 100A

Graphic Liquid Crystal Display Keyboard and function keys Supply switch Power cord’s socket Photo head’s socket Printer’s and PC computer’s socket Voltage sockets: U1, U2, U3, U0 Current sockets: I1, I01 I2, I02 I3, I03 Sockets of the Clamps up to 100A: I1, I2, I3

slide-14
SLIDE 14

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 14

PC SOFTWARE FOR ANALYSER Calport 100A

slide-15
SLIDE 15

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 15

CHECKING THE ERROR OF THE ONE PHASE METER WITH USING ANALYSER Calport 100A

1 2 3 4 5 6 L N

Checked meter

Photo head L1 To power socket To printer Current clamp up to 100A

slide-16
SLIDE 16

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 16

CHECKING THE ERROR OF THE THREE PHASE METER WITH USING ANALYSER Calport 100A

Connecting of the Analyser Calport 100A to three phase meter directly connected

N

1 3 4 6

Checking meter

7 9 10 12

Photo head

L1 L2 L3 L1 L2 L3 To printer

slide-17
SLIDE 17

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 17

CHECKING THE ERROR OF THE THREE PHASE METER WITH USING ANALYSER Calport 100A

Connecting of the Analyser Calport 100A to three phase meter connected with CT

1 2 3 4 5 6

Checking meter

7 8 9 11

Photo head

To printer

S1 S1 S1 P1 P1 P1 S2 S2 S2 P2 P2 P2

N

L1 L2 L3

slide-18
SLIDE 18

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 18

MEASUREMENT OF THE ERROR OF METER CONNECTED WITH CT AND TRANSFORMER WITH USING ANALYSER Calport 100A

(meter and transformer error) = (meter error) + (transformer error) (transformer error) = (meter and transformer error) – (meter error)

Photo head

Checking meter

To printer

slide-19
SLIDE 19

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 19

MEASUREMENT OF THE ERROR OF METER CONNECTED WITH CT AND TRANSFORMER WITH USING ANALYSER Calport 100A

Measurement of the error of meter and transformer ratio Connecting of the Analyser Calport 100A to the three phase meter connected with CT:

  • CT100A current clamps are connected on the primary side for monitoring

all measuring system together with a ratio of the current transformer,

  • the current transformer has a ratio with nominal value K=100A/5A,
  • the meter has the impulse constant CL=4000imp/kWh – in this constant is

not taken into account a ratio of the transformer,

  • in menu we are choosing the function of measurement by clamps 100A –

– the sign 100A,

  • in menu we are choosing the function of lack of the ratio – the sign

,

  • we are entering the impulse constant C = CL / K = 4000 / (100/5) = 200,
  • we are entering the number of impulses or the time of error measure,

for example T=20s,

  • after pressing the key "exit" Calport shows the error of meter and

transformer.

rr

P 12:15:37 exit

100A

εmin εmax C/R imp Imp/kWh: 375 Wh/imp: 2.6667

rr

P 12:15:37 para exit

100A

  • 2.0%

2.0%

ε: -0.93%

P: 839.1 W 5 [N] 2

slide-20
SLIDE 20

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 20

MEASUREMENT OF THE ERROR OF METER CONNECTED WITH CT WITH USING ANALYSER Calport 100A

1 2 3 4 5 6

Checking meter

7 8 9 11 Photo head To printer

S1 S1 S1 P1 P1 P1 S2 S2 S2 P2 P2 P2

N

L1 L2 L3 L1 L2 L3

(meter and transformer error) = (meter error) + (transformer error) (transformer error) = (meter and transformer error) – (meter error)

slide-21
SLIDE 21

Calmet Ltd. Zielona Gora ul. Kukulcza 18 Poland www.calmet.com.pl 21

MEASUREMENT OF THE ERROR OF METER CONNECTED WITH CT WITH USING ANALYSER Calport 100A

Measurement of the error of meter Connecting of the Analyser Calport 100A to the three phase meter connected with CT:

  • CT100A current clamps are connected on the secondary side for

monitoring the measuring system of meter connected with CT,

  • the current transformer has a ratio with nominal value K=100A/5A,
  • the meter has the impulse constant CL=4000imp/kWh – in this constant is

not taken into account a ratio of the transformer,

  • in menu we are choosing the function of measurement by clamps 100A –

– the sign 100A,

  • in menu we are choosing the function of lack of the ratio – the sign ,
  • we are entering the impulse constant C = CL = 4000 ,
  • we are entering the number of impulses or the time of error measure,

for example T=20s,

  • after pressing the key "exit" Calport shows the error of meter.

rr

P 12:15:37 exit

100A

εmin εmax C/R imp Imp/kWh: 375 Wh/imp: 2.6667

rr

P 12:15:37 para exit

100A

  • 2.0%

2.0%

ε: -0.93%

P: 839.1 W 5 [N] 2

WHY THIS MEASURE IS VERY IMPORTANT? Because only in this case we can identify the wrong energy counting caused by wrong connection of the meter with transformer. Because, a good meter and a good transformer can wrongly count an energy if they are connected in a wrong way. Because the separate checking of the meter and separate checking

  • f the transformer does not find this defect.
