slide-1

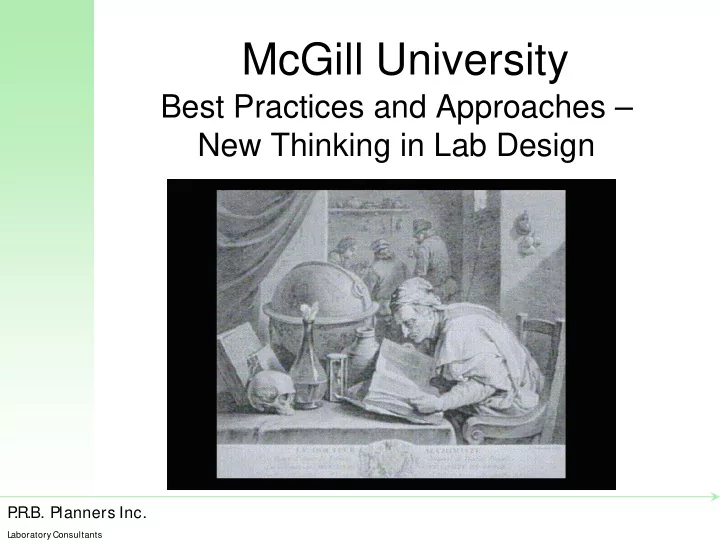

SLIDE 1

P .R.B. Planners Inc.

Laboratory Consultants

McGill University

Best Practices and Approaches – New Thinking in Lab Design

slide-2
SLIDE 2

P .R.B. Planners Inc.

Laboratory Consultants

What makes a good laboratory? Consider the following -

  • The Program
  • The People (Culture)
  • The Infrastructure
  • Health and Safety
  • Risk Management
  • Sustainability
  • Technology Integration
slide-3
SLIDE 3

P .R.B. Planners Inc.

Laboratory Consultants

And, for Undergraduate Labs …

  • Pedagogy?
  • Demand on resources
  • Adaptability of infrastructure to new

teaching methods and new ideas

What makes a good laboratory? Consider the following -

slide-4
SLIDE 4

P .R.B. Planners Inc.

Laboratory Consultants

What makes a GREAT laboratory?

Paying attention to each of the previous points and finding the right balance between each of them.

slide-5
SLIDE 5

P .R.B. Planners Inc.

Laboratory Consultants

Getting with the Program

slide-6
SLIDE 6

P .R.B. Planners Inc.

Laboratory Consultants

Getting with the Program

slide-7
SLIDE 7

P .R.B. Planners Inc.

Laboratory Consultants

Getting with the Program

  • Time consuming initially
  • Must be taken seriously
  • Everyone must be involved
  • Saves time and money

LABS THAT USE A DETAILED PROGRAM ARE CONSISTENTLY BETTER LABS !

slide-8
SLIDE 8

P .R.B. Planners Inc.

Laboratory Consultants

Culture

  • Every Institution/Organization has its
  • wn unique ‘flavour’.
  • Labs should be designed around the

culture of the organization.

  • If you force people to adopt a new

culture against their will, the labs will not work.

Paying attention to Culture will make people feel comfortable in their new environment

slide-9
SLIDE 9

P .R.B. Planners Inc.

Laboratory Consultants

Infrastructure

slide-10
SLIDE 10

P .R.B. Planners Inc.

Laboratory Consultants

Infrastructure

  • Determine from program services/utilities

and special situations that will determine what goes into the lab.

  • Ensure that services are delivered

‘everywhere’, within reason

  • Handle unique cases separately
  • Simple choices can vastly affect future
  • utcome – side-mount services vs. floor

penetration

slide-11
SLIDE 11

P .R.B. Planners Inc.

Laboratory Consultants

The Infrastructure

Intelligent service delivery improves flexibility and adaptability – cheaper now and much cheaper when renovations occur !

adapt·abil·i·ty /noun The ability of the

  • wner to modify

space with a minimum amount of disruption flex·i·bil·i·ty /noun The ability of the researcher/student to move from one area to another and continue to work churn /noun The cyclical rate at which labs are reconfigured

slide-12
SLIDE 12

P .R.B. Planners Inc.

Laboratory Consultants

Infrastructure

The best labs are labs that are designed to grow and change in concert with changes in pedagogy, research and culture and do not impose barriers to that growth.

slide-13
SLIDE 13

P .R.B. Planners Inc.

Laboratory Consultants

Health and Safety

slide-14
SLIDE 14

P .R.B. Planners Inc.

Laboratory Consultants

Health and Safety

  • Related to risk management
  • Legislated requirements for your facility
  • Provincial, Federal EH&S policy as well

as workers compensation board, CSA, Hydro requirements, Fire code etc., not to mention municipal codes.

slide-15
SLIDE 15

P .R.B. Planners Inc.

Laboratory Consultants

Health and Safety

  • Best approach is to incorporate as a

philosophy into design

  • Make safety showers, eyewash stations and

emergency stations a part of the lab

  • Solvent and chemical storage integrated into

lab design

  • Unique opportunity with U/G labs to re-work

dispensing and distribution methods

The best labs make health and safety highly visible and turn it into part of the culture!

slide-16
SLIDE 16

P .R.B. Planners Inc.

Laboratory Consultants

Risk Management

  • Start each scenario by saying “what

could happen?”

  • Object is to send everyone home with all
  • f their parts.
  • By adopting simple strategies, risk is

managed and liability is reduced

slide-17
SLIDE 17

P .R.B. Planners Inc.

Laboratory Consultants

Risk Management

slide-18
SLIDE 18

P .R.B. Planners Inc.

Laboratory Consultants

Risk Management

slide-19
SLIDE 19

P .R.B. Planners Inc.

Laboratory Consultants

Risk Management

  • Consider Traffic movement for all

activities

  • Especially critical for U/G activities
slide-20
SLIDE 20

P .R.B. Planners Inc.

Laboratory Consultants

Risk Management

slide-21
SLIDE 21

P .R.B. Planners Inc.

Laboratory Consultants

Risk Management

slide-22
SLIDE 22

P .R.B. Planners Inc.

Laboratory Consultants

Risk Management

  • Plays a critical role in lab design
  • Can be applied to almost all lab activities
  • Can be used as a tool to help achieve, in

a natural way, compliance with all applicable legislation (solvent & chem storage for example) The best labs incorporate risk management strategies in an almost subconscious manner !

slide-23
SLIDE 23

P .R.B. Planners Inc.

Laboratory Consultants

Sustainability

  • Labs are traditionally energy intensive

buildings

  • The last decade has witnessed the

emergence of a number of bodies to help lab designers plan for more efficient facilities i.e. EPA, US DOE, etc through LEEDS and Labs for the 21st Century.

slide-24
SLIDE 24

P .R.B. Planners Inc.

Laboratory Consultants

Sustainability

  • Attempt to achieve transparency to user
  • Creates many more choices for design
  • ptions:

– Ventilation – Lighting – Systems (gas vs. electric; water vs. vacuum, ultra pure water vs. filtered, etc.) – Materials for construction – Architectural considerations

slide-25
SLIDE 25

P .R.B. Planners Inc.

Laboratory Consultants

Sustainability

  • Sustainable labs are:

– Brighter – Quieter – More efficient in terms of space and movement – Nicer environments to work in – Marketable

The best labs are sustainable and incorporate energy and environmental design practices.

slide-26
SLIDE 26

P .R.B. Planners Inc.

Laboratory Consultants

Technology Integration

  • A subset of infrastructure, but much

more ambiguous

  • Must be viewed on a discipline by

discipline level

  • Can be comprised of :

– Instrumentation advances – Computing advances – Directions in science (nanotech, combinatorial, micro-sizing, etc.)

slide-27
SLIDE 27

P .R.B. Planners Inc.

Laboratory Consultants

Technology Integration

slide-28
SLIDE 28

P .R.B. Planners Inc.

Laboratory Consultants

Technology Integration

  • Must be able to ‘predict’ directions (new

instrumentation, new grants, new faculty)

  • Must have an accurate feel for the progression of the

discipline

  • Must be able to accommodate changes
  • Can be as simple as accessible cable trays
  • Can be as speculative as gambling against the

emergence of wireless tech and installing data ports

The best labs incorporate the infrastructure necessary to allow technological advances to

  • ccur naturally and without barriers.
slide-29
SLIDE 29

P .R.B. Planners Inc.

Laboratory Consultants

Undergraduate Considerations

  • U/G labs must consider all of the

preceding points AND

  • Must take into account parameters that

increase the complexity of design

slide-30
SLIDE 30

P .R.B. Planners Inc.

Laboratory Consultants

Right-Sizing an Undergraduate Laboratory

Sectioning Teaching Methods Density Compatibility Schedule Enrolment LAB SIZE

slide-31
SLIDE 31

P .R.B. Planners Inc.

Laboratory Consultants

Enrolment

  • Does past activity indicate future activity?
  • Are there proposed changes to programs?
  • Are there changes to departments for whom

you deliver service teaching?

  • Are there provincial changes to

funding/support?

  • Try to predict future growth for 5 & 10 yrs

Current trends are to build in some room for growth, but to have contingency plans in the event of blips and balloons

slide-32
SLIDE 32

P .R.B. Planners Inc.

Laboratory Consultants

Teaching Methods (Teaching Culture)

  • Does Faculty teach? TAs?
  • Who does lab setup/teardown – cleanup?
  • individual student lockers or communal

glassware?

  • Demonstration benches ? Prep areas? Pre-lab

demos?

  • Set weekly experiments or rotate through set

experiments

  • If pre-lab lecture, in lab or classroom – traffic?
slide-33
SLIDE 33

P .R.B. Planners Inc.

Laboratory Consultants

Teaching Methods

Current trends are:

  • provide small breakout space ( a chalk

board/white board per TA group)

  • avoid the expense of Demo Benches and full

A/V set ups.

  • Pre taped demos delivered either via monitor
  • r computer – saves time, reduces liability, and

is consistent in its information to all students.

slide-34
SLIDE 34

P .R.B. Planners Inc.

Laboratory Consultants

Density

  • How many students / lab?
  • How many students / teaching assistants?
  • Comfort level – more students/lab and more

students/TA increases risk factor Current trends are to have 17-23 students/TA; Labs should be sized for 50-100 students

slide-35
SLIDE 35

P .R.B. Planners Inc.

Laboratory Consultants

Scheduling

slide-36
SLIDE 36

P .R.B. Planners Inc.

Laboratory Consultants

Scheduling

  • Does your timetable have flexibility
  • Occupancy Rates?
  • Room capacity?

Current trends are to have occupancy rates of > 50% (8-5)

slide-37
SLIDE 37

P .R.B. Planners Inc.

Laboratory Consultants

Sectioning

  • Enrolment of 150 in BIO 101
  • Size lab for 150? 75? 50? 30?

– Depends on resources – Teaching style – Lab size

slide-38
SLIDE 38

P .R.B. Planners Inc.

Laboratory Consultants

Compatibility

  • Can labs be blended?

– Phys & Analytical – General & BioChem – Biology & General – Etc. Current trends are to have labs that can serve as wide a purpose as possible by being as generic as possible.

slide-39
SLIDE 39

P .R.B. Planners Inc.

Laboratory Consultants

McGill University

Lab Design Issues Primer

slide-40
SLIDE 40

P .R.B. Planners Inc.

Laboratory Consultants

ISSUES AFFECTING DESIGN

  • Money
  • Code Requirements
  • EH&S Concerns
  • Pedagogy
  • Culture
  • Technology
  • Churn
  • Sustainability
  • Physical Lab Elements
  • Etc.
slide-41
SLIDE 41

P .R.B. Planners Inc.

Laboratory Consultants

Physical Lab Elements

  • Approach is to tend toward ‘modules’
  • A replicated pattern throughout the lab
  • Space gets dense with services
  • All of the other elements will directly

affect this

  • Cannot be approached in isolation
  • Is where the greatest compromises get

made

slide-42
SLIDE 42

P .R.B. Planners Inc.

Laboratory Consultants

Build A Lab …

Layout the grid …

slide-43
SLIDE 43

P .R.B. Planners Inc.

Laboratory Consultants

Build A Lab …

Add some structure …

slide-44
SLIDE 44

P .R.B. Planners Inc.

Laboratory Consultants

Build A Lab …

Add some walls …

slide-45
SLIDE 45

P .R.B. Planners Inc.

Laboratory Consultants

Build A Lab …

Casework & Fumehoods …

slide-46
SLIDE 46

P .R.B. Planners Inc.

Laboratory Consultants

Build A Lab …

Loose furniture …

slide-47
SLIDE 47

P .R.B. Planners Inc.

Laboratory Consultants

Build A Lab …

Light It Up …

slide-48
SLIDE 48

P .R.B. Planners Inc.

Laboratory Consultants

Build A Lab …

Fire Protection …

slide-49
SLIDE 49

P .R.B. Planners Inc.

Laboratory Consultants

Build A Lab …

Perimeter Heat …

slide-50
SLIDE 50

P .R.B. Planners Inc.

Laboratory Consultants

Build A Lab …

Cable Trays …

slide-51
SLIDE 51

P .R.B. Planners Inc.

Laboratory Consultants

Build A Lab …

And finally, add some ventilation …

slide-52
SLIDE 52

P .R.B. Planners Inc.

Laboratory Consultants

Build A Lab …

Now test it …

ONE PE RS ON N O THROU GH TRA FFIC 9 75 - 1200 mm

7 6 2 2 83 2 BE NCH F UM E HOOD 1 2 00 97 5 ISL AND BEN CH 1 52 4 4

TYP ICAL B ENC H & HOOD DIME SION S

13 5 1 5 00 13 5 1 05

ON E P ER SO N PLU S P AS SA GE W AY 1050 - 135 0 mm TWO PE OPLE BA CK TO B ACK NO TH ROUG H TRA FFIC 1350 - 15 00 mm TWO PE OPLE BA CK TO B ACK PLU S P AS SA GE W AY 1650 - 1 950 mm

1 65 1 95

slide-53
SLIDE 53

P .R.B. Planners Inc.

Laboratory Consultants

Build A Lab …

Validate it on paper …

slide-54
SLIDE 54

P .R.B. Planners Inc.

Laboratory Consultants

Build A Lab …

Validate it in the real world …

slide-55
SLIDE 55

P .R.B. Planners Inc.

Laboratory Consultants

Build A Lab …

Validate some assumptions …

slide-56
SLIDE 56

P .R.B. Planners Inc.

Laboratory Consultants

Some Thoughts on Sustainability

LEED (Leadership in Energy and Environmental Design)

slide-57
SLIDE 57

P .R.B. Planners Inc.

Laboratory Consultants

Choices, Choices ….
