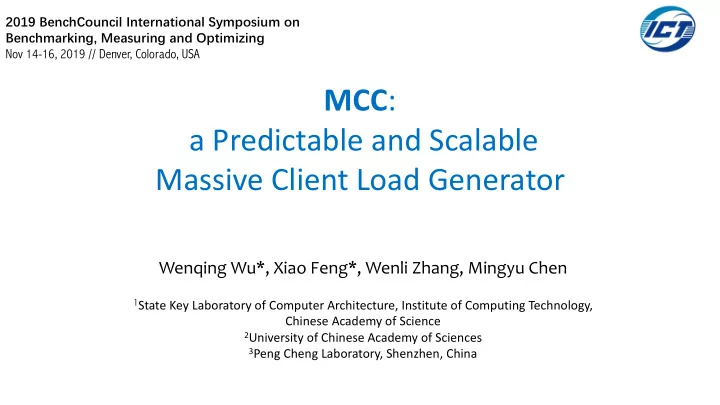

MCC: a Predictable and Scalable Massive Client Load Generator

Wenqing Wu*, Xiao Feng*, Wenli Zhang, Mingyu Chen

1State Key Laboratory of Computer Architecture, Institute of Computing Technology,

Chinese Academy of Science

2University of Chinese Academy of Sciences 3Peng Cheng Laboratory, Shenzhen, China

• Nov 14-16, 2019 // Denver, Colorado, USA

Outline

I. Background/Motivation II. Design

• III. Evaluation
• IV. Conclusion

Background

• Ø Network load to simulate

Data Center Load generator DUT

1 2

Stateless

• No connections
• Uni-directional
• Supported:

Bandwidth test Packet loss test

1

Stateful

• TCP connection oriented
• Bi-directional
• Supported:

Bandwidth test Packet loss test Latency analysis NAT/Firewall test Application interaction

2

ü Stateful ü Tremendous ü Various distributions

IoT

(Device under Test)

State of the Art

• ØHardware-based load Generators

Ixia (Specialized device, > $100,000 ) OSNT (NetFPGA, $ 2,000) Sprient (Specialized device)

Precise & accurate High throughput Stateless Inflexible（firm, not open source） Expensive

✓ ✓ ✘ ✘ ✘

4

ØSoftware-based load Generators

Load Generators Description Stateful Comments trafgen Packet generator based on AF_PACKET

• MoonGen

Packet generator fueled-by DPDK

• D-ITG

Distributed framework

• A multiplatform tool

Iperf Bandwidth and jitter analysis ✓ Close-loop, No concurrency support wrk HTTP benchmarking tool ✓ Limited throughput, poor scalability

Cheap (Run on cheap commodity hardware ) Some are flexible (Open source, easy to add new features) Stateful generators can not achieve microsecond precision Stateful generators show poor scalability

✘ ✓ ✓ ✘

State of the Art

Imprecision in stateful load generation

• Ø Why software-based stateful load generators are less precise?

ü Scheduling policies in Operating System (OS)

• E.g. , sleep() does not guarantee one microsecond precision.

ü POSIX blocking I/O interface

• E.g. , select() introduces at least 20 µs deviation to timed tasks.

ü Heavy kernel protocol stack

• Uncertain stack processing time poisons the precision of timed operations running

in application layer.

MCC (Massive Client Connections)

• Ø Design goal:
• A predictable and scalable massive client load generator

ü Stateful

• TCP connection oriented

ü Predictable load generation

• Two-stage time mechanism achieves one microsecond precision

ü High throughput while preforming flow-level simulation

• Lightweight protocol stack based to simplify packet processing
• High-speed I/O with kernel-bypass technique

ü Scalability in multi-core systems

• Shared-nothing multi-threaded model

MCC Overview

• I/O Layer

Application Layer

Connection Manager Load Modeling Reactor Model Data Modeling

App Timer I/O Timer TCP/IP Stack Device Driver

Control Logic Data Path 1 2

Ø Load generation model of MCC ü Load modeling

Adjust packet size, add timestamp Adjust packets inter departure time

ü Reactor NIO pattern ü User-level stack based ü Customized I/O layer

Controllable I/O

ü Two-stage timer mechanism

Control packet I/O precisely

1 2

User-level load generator

Ø MCC runs fully in user space ü We are able to optimize the full path of load generation

• An I/O Thread is added to achieve precise control
• Stack thread

LoadGen Thread I/O thread DPDK I/O library Kernel stack LoadGen Application Packet I/O Device driver Device driver

User Kernel

Socket API Socket-like API

Stateful Customized I/O layer Kernel-based solutions MCC’s approach Fully in user space

Stateless

Two-stage timer

Ø Two-stage timer helps to generate predictable load

• Register

queue (RQ)

xmit()

App Timer Connection manager

send() encapsulation

I/O Timer I/O Thread Stack Thread LoadGen Thread DPDK IO library

xmit()

Data with timestamp

1 2 4 5 3

• App Timer

ü Flow-level ü Control send operation

• IO Timer

ü Packet-level ü Control xmit operation according to timestamp added in application layer

• Step
• Initialize Load Generation thread
• Initialize I/O thread
• Send data according to the App timer
• Encapsulate packet and enqueue it to RQ
• Xmit packet according to the I/O timer

1 2 3 4 5

ü Avoid the imprecision resulting from scheduling policies in OS

• Structures
• Timed task: 2-tuple (timestamp, function)
• Task set: RB-tree (fast insertion/deletion)
• Steps

I. Register (Add timed task) II. Trigger timeout (Polling check) III. Execute (Run callback function)

Ø Polling-based application layer timer

Non-blocking event loop Task Set sched(ts, func)

Add timed task

P

• l

l i n g c h e c k Execute

Store with RB-tree

User APIs

3 Microsecond precision

• App timer

Ø Novel I/O timer added in customized I/O layer 1 Microsecond precision

• NIC

DPDK I/O Thread Stack Thread

RQ IO Timer

sndbuf ring queue

ü Eliminate timing error introduced by protocol stack (tens of microseconds )

• I/O layer (I/O thread)
• Dedicated I/O thread
• Lockless Register queue (RQ)
• Steps

I. Insert encapsulated packet into RQ II. Polling check RQ III. Send packet out at specific time

I/O timer

Scalable Multi-threaded Model

Ø Shared-nothing multi-threaded Model

• Per-core threading

ü Per-core listening queue ü Per-core file descriptors ü Run-to-completion model

• Core affinity
• RSS (Receive-Side Scaling)
• Distributor thread

ü Parse/distribute configuration ü Aggregate statistics

Scalability

• worker

DPDK Stack Thread Stack Thread Stack Thread LoadGen Thread LoadGen Thread LoadGen Thread

core0 core1 core2 Distributor thread

queue1

…

NIC queue0 queue2 RSS

Ø Message passing model between Distributor and Workers ü Avoid synchronization primitives (lock, memory barrier, atomic operations, …) ü Easy to extend for multiple Workers Worker Distributor

pull pull push push Task queue Result queue (statistics, state) 13

Scalable Multi-threaded Model

Evaluation

Experimental Setup

ü Machines(client/server ):

• CPU: Intel(R) Xeon(R) CPU E5645 12 cores @ 2.40GHz
• Memory: 96 GB
• NIC: Intel 82599ES 10Gb Ethernet Adapter

ü Experiments:

• Microbenchmark:
• Precision with different timers
• Predictable load generation
• Throughput & Scalability

Precision with different timers

Precision of the load generator when generating constant bit rate (CBR) traffic ü Timers in MCC bring one microsecond precision.

• Baseline: sleep() + Linux kernel stack

(“Linux” in the table indicates “Linux kernel stack”)

Predictable Load Generation

ü MCC is able to generate traffic following the analytical Poisson distribution. Poisson Traffic Generation

• Packet interval (µs)

20 40 60 80 100 120 0.175 0.150 0.125 0.100 0.075 0.050 0.025 0.000 Probability Density App timer vs. analytic App timer + IO timer vs. analytic

Throughput & Scalability

ü 2.4x ~ 3.5x higher throughput than wrk (A kernel-based HTTP benchmark) ü Almost linear scalability before reaching line rate HTTP load generation

(File size: 64B)

• 1.5

2.4 4.75 6.3 7.65 8.6 3.56 6.96 13.87 19.27 28.57 30.83

5 10 15 20 25 30 35 1 2 4 6 8 10

Requests per Second (x105) Number of CPU cores

wrk MCC

Conclusion

Ø MCC：A predictable and scalable massive client load generator ü Predictable load generation

• Two-stage timer mechanism

ü High throughput

• Lightweight user-level stack
• Kernel-bypass

ü Scalability in multi-core systems

• Shared-nothing multi-threaded model

• Please feel free to email us at wuwenqing@ict.ac.cn

if you have any questions.
