MAXCESS MAXCESS SLIDE SYSTEM Full access, soft-close slide. An economical undermount that ofgers a high degree of convenience and satisfaction. www.grassusa.com Maxcess 16, Full access slide, Face Frame Integrated Soft-close for 16mm (5/8 "

slide-1

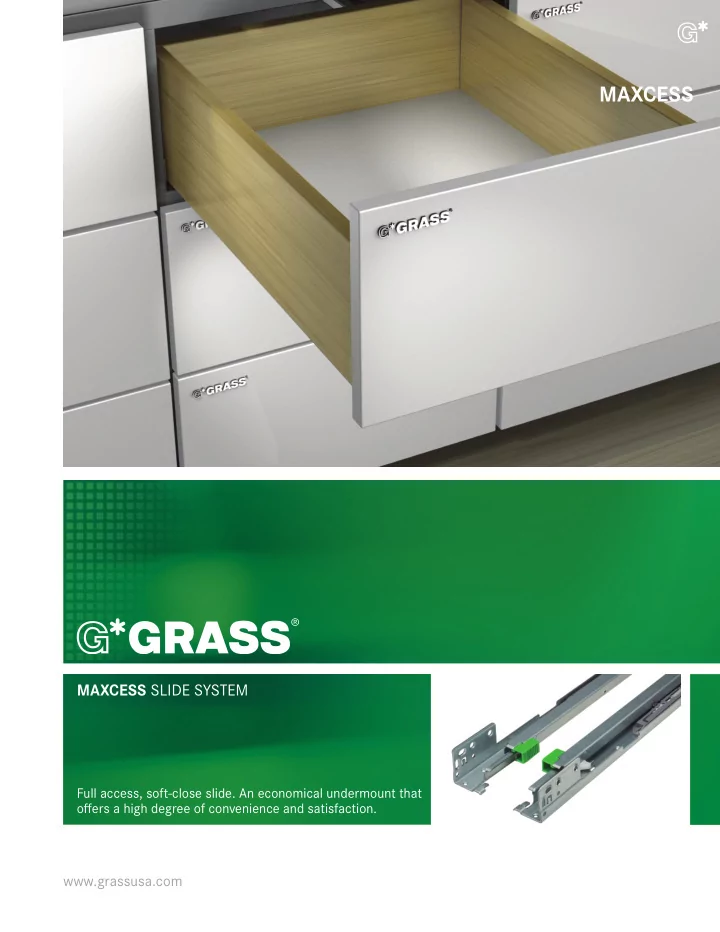

SLIDE 1

MAXCESS SLIDE SYSTEM

Full access, soft-close slide. An economical undermount that

  • fgers a high degree of convenience and satisfaction.

www.grassusa.com

MAXCESS

slide-2
SLIDE 2

www.grassusa.com

Dimensions in millimeters, fractional inch equivalents as noted. PU - Packaging unit Patent Pending

Maxcess 16, Full access slide, Face Frame Integrated Soft-close for 16mm (5/8") drawer material

  • Slides mount underneath to give a full view of fjnely crafted drawers
  • Zinc plated, roll formed steel components
  • Precision, smooth-running synthetic roller carriages
  • Liquid damper softly glides drawers to a stop
  • Self-latching front locking devices have easy release levers

for drawer removal

  • Front locking device height adjustable 2.5mm (3/32")
  • Weight capacity: 75 lbs
  • Meets and exceeds ANSI/BHMA 156.9, Grade 1

Maxcess 16, Face Frame Locking Devices and Rear Mounting Socket Drawer Length Cab Mem Length Min Installation Depth Max Installation Depth Item No. PU 229 (9") 256 (10 3/32") 273 (10 3/4") 300 (11 13/16") 13301-03 5 305 (12") 316 (12 7/16") 349 (13 3/4") 360 (14 3/16") 13302-03 5 381 (15") 392 (15 7/16") 426 (16 25/32") 436 (17 5/32") 13303-03 5 457 (18") 468 (18 7/16") 502 (19 3/4") 512 (20 5/32") 13304-03 5 533 (21") 545 (21 15/32") 578 (22 3/4") 589 (23 3/16") 13305-03 5 381 (15") 392 (15 7/16") 426 (16 25/32") 436 (17 5/32") 13303-12 200 457 (18") 468 (18 7/16") 502 (19 3/4") 512 (20 5/32") 13304-12 200 533 (21") 545 (21 15/32") 578 (22 3/4") 589 (23 3/16") 13305-12 200 Description Item No. PU (Please order separately) 7523 Front locking device, kit* 02500-03 5 7523 Front Locking device, left 02498-12 200 7523 Front Locking device, right 02499-12 200 7523 Front locking device with flange, kit* 02497-12 200 7523 Locking device with flange, left 02495-12 200 7523 Locking device with flange, right 02496-12 200 7523 Universal rear mount bracket 7950.VE20 20 7523 Universal rear mount bracket 7950.VE300 300 *Kit: left/right locking device, (4) #6 x 1/2" phillips screws

1a 1b 2 2 1

1b 2 1

slide-3
SLIDE 3

Subject to technical modifications without notice Dimensions in millimeters, fractional inch equivalents as noted.

Drawer Installation Dimensions Drawer Measurements

13mm (1/2") Length Of Drawer 9" - 12" - 15" - 18" - 21"

  • Min. 35mm

(1 3/8") 7mm (9/32") 11mm (7/16") Hole - Ø6mm (1/4") 10mm (3/8") deep 4th Side Drawer Front Drawer Back 32 (1 1/4") 16 (5/8") 17.5 (11/16") 21 (13/16") 9 (11/32")

Frame Rail Frame Stile

229 (9")

Drawer Length

Cabinet Depth 305 (12") 305 (12") 381 (15") 381 (15") 457 (18") 457 (18") 533 (21") 533 (21") 610 (24") 4 (5/32") Setback

Rear Socket for Face Frame Cabinet Boring Specifications

35 (1 3/8") Rear Notch 21 (13/16")

  • 20 (13/16")

=MAX. Drawer Height 6 (1/4")

  • Min. Top

Clearance Interior Cabinet Width (ICW)

  • Max. Drawer Side

16 (5/8") 7 (9/32") 13 (1/2") Recess Interior Drawer Width Formula ICW-42 (1 5/8") 11 (7/16") 25.5 (1") 36.5 (1 7/16") Opening Height 14 (9/16") Bottom Clearance #7 Wood Screw Location At Face Fame Euro screw Ø5 x 13mm or #7 x 5/8" flat head wood screw location on panel cabinets

For face frame applications only. Use minimum of 3 screws per bracket, #6 x 1/2” truss head screws.

slide-4
SLIDE 4

Features and Benefits Maxcess

Features

  • Slides mount underneath to give full view of fjnely crafted drawers
  • Liquid dampening for continuous smooth closing action
  • Weight capacity: 75 lbs dynamic
  • Available for 16mm (5/8") drawer side thickness
  • For face frame construction
  • Patented load bearing support roller

Frame stop tab quickly locates the slide on the face frame at the correct setback. Multiple cleats for secure front locking. Depth adjustment 4mm (5/32") allows perfect alignment for the drawer front. Front locking device with flange with height adjustment This front locking device features a lip for easy mounting to the bottom of the

  • drawer. The height of the drawer can

be adjusted by 2.5mm (3/32") via the green adjustment plate. Front locking device with height adjustment The front locking device allows aligning the height of the drawer. A 2.5mm (3/32") upwards adjustment is achieved via the green adjustment plate by moving it forward and back.

slide-5
SLIDE 5

Features

  • The repositioned liquid damper provides:
  • Narrower drawer widths (9" inside width)
  • Easier insertion and removal of drawer
  • More compact and appealing design
  • No protruding parts inside cabinet
  • Basic proven slide concept has not changed

Unique and integrated liquid damper no protruding parts inside cabinet Optional bottom mount attachment Stabilizer wheel to reduce deflection when fully extended Self-aligning rear mount socket Sockets self-align the drawer when cabinets are out of square, ± 2mm (3/32") adjustment range. New damper technology provides continuous smooth closing action

slide-6
SLIDE 6

GRASS America Inc. 1202 NC Highway 66 South Kernersville, NC 27284 Phone: 1-800-334-3512 Fax: 1-800-525-8406 Website: www.grassusa.com E-mail: info@grassusa.com GRASS Canada Inc. 10 Newgale Gate, Unit 7 Toronto, ON M1X 1C5 Phone: 1-800-461-4975 Fax: 1-416-335-5907 Internet: www.grasscanada.com E-Mail: info@grasscanada.com

www.grassusa.com

Item #80172-MAX-1M-LPA-12/16
