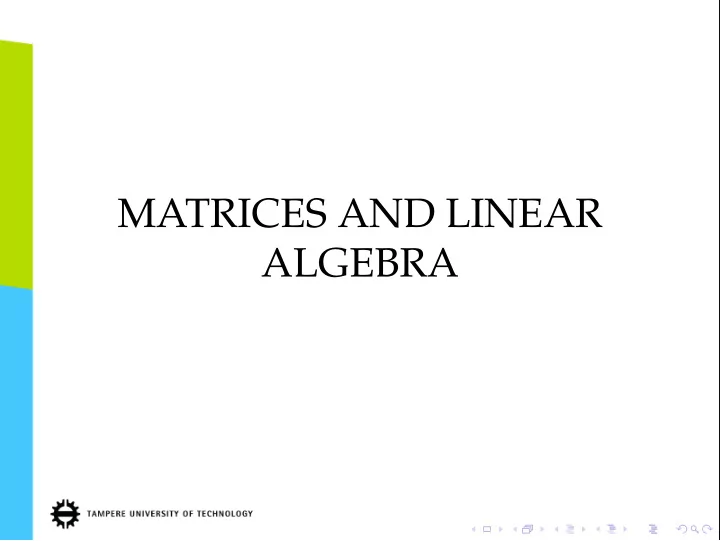

MATRICES AND LINEAR ALGEBRA

slide-2
SLIDE 2

Linear Algebra

  • Matrix manipulation is the original essence of Matlab;

hence the name MATrix LABoratory.

  • In this section we will cover the basics of linear algebra, the

ways of using Matlab in this context, and also look into a few applications.

slide-3
SLIDE 3

Vectors, Matrices and ND-arrays

>> x = [1,2,3] % vector x = 1 2 3 >> X = [1,2,3; 4,5,6] % matrix X = 1 2 3 4 5 6 >> X3 = cat(3, X, X) % 3D array X3(:,:,1) = 1 2 3 4 5 6 X3(:,:,2) = 1 2 3 4 5 6 >> size(X3) ans = 2 3 2

  • We have already seen how

vectors and matrices can be defined; either by tabulating the values or by using functions such as ones, zeros, rand, eye.

  • Matlab also supports tables of

higher dimensions; ND-arrays.

  • In the example, we define a

3-dimensional table using cat, which catenates the matrices along the specified dimension (here 3).

slide-4
SLIDE 4

Matrix Product

>> x = [1, 2, 3, 4]’; % 4-D vector >> T = [1, 0, -1, 0;... 0, 1, 0, 2]; % Projection matrix >> y = T * x y =

  • 2

10

−6 −4 −2 2 4 6 8 10 12 −4 −2 2 4 6 8 x1 x2

  • Matrix multiplication is the

basic building block of all linear algebra.

  • Matrix product is able to

model different kinds of geometric transformations: affine, projective, rotation, shearing, etc.

  • Also multitude of algebraic

transformations are most conveniently represented via matrices, e.g., Fourier and Haar.

slide-5
SLIDE 5

Example: Fourier Transform

  • The Fourier transform is used for detection of frequencies

contained in a signal (e.g., audio).

  • The transform is defined as a matrix product Fx, where x is

the signal and the matrix F is         w0

N

w0

N

w0

N

. . . w0

N

w0

N

w−1

N

w−2

N

. . . w−(N−1)

N

w0

N

w−2

N

w−4

N

. . . w−2(N−1)

N

. . . . . . . . . ... . . . w0

N

w−(N−1)

N

w−2(N−1)

N

. . . w−(N−1)2

N

        , with wN = e−2πi/N.

slide-6
SLIDE 6

Example: Fourier Transform

  • For example, a length N = 4 Fourier transform matrix

becomes:

    e0 e0 e0 e0 e0 e−2πi/4 e−4πi/4 e−6πi/4 e0 e−4πi/4 e−8πi/4 e−12πi/4 e0 e−6πi/4 e−12πi/4 e−18πi/4     =     1 1 1 1 1 i −1 −i 1 −1 1 −1 1 −i −1 i    

  • The transform of x = (1, 2, 3, 4) is computed by

    1 1 1 1 1 i −1 −i 1 −1 1 −1 1 −i −1 i         1 2 3 4     =     10 −2 + 2i −2 −2 + 2i    

slide-7
SLIDE 7

Fourier Transform in Matlab

% Prepare FT matrix: >> x = cos(2*pi*0.1*(1:N)’); >> powers = (0:N-1)’ * (0:N-1); >> F = exp(-2*pi*i * powers / N); % Transform and plot: >> X = F*x; >> plot(abs(X))

10 20 30 40 50 60 70 80 90 100 −1 −0.5 0.5 1 Time An oscillating signal x 10 20 30 40 50 60 70 80 90 100 10 20 30 40 50 60 Frequency Fourier transform of x

  • The attached code prepares the

Fourier transform matrix and computes the multiplication.

  • The changing thing in the matrix

is the exponent, so we first create a matrix of exponents; then pass it through the exp function.

  • The frequency of oscillation in

easily measured. The FT in fact produces a shadow component

  • n the right, which can be

ignored.

  • Note: The command fft is the

proper way to do FT.

slide-8
SLIDE 8

Matrix Inversion

>> X = rand(3) X = 0.2348 0.8669 0.3692 0.7350 0.0862 0.6850 0.9706 0.3664 0.5979 >> iX = inv(X) iX =

  • 0.9186
  • 1.7644

2.5886 1.0383

  • 1.0037

0.5089 0.8549 3.4791

  • 2.8413

>> X*iX ans = 1.0000

  • 0.0000

1.0000

  • 0.0000

1.0000

  • Matrix inversion attempts to find

the matrix that multiplies the

  • riginal matrix to identity.
  • "Given matrix X, find Y such that

XY = I."

slide-9
SLIDE 9

Eigenvalues and -vectors

6 7 8 9 10 11 12 13 14 15 2 3 4 5 6 7 8 9

  • Eigenvalue decomposition is

an advanced matrix algebra topic, that appears in many applications.

  • Although the detailed

description is not a topic of this course, the left panel illustrates how eigenvalues are used to characterize high dimensional data.

  • The eigenvectors describe the

directions that have the highest variation.

slide-10
SLIDE 10

Eigenvalues and -vectors

% Suppose we have data points in X with % size = [200, 2]. % Compute the mean of the point cloud: >> m = mean(X, 1) m = 10.3992 5.7508 % Subtract the mean. We need to extend % the vector m into a 200x2 matrix first % (i.e., copy it 200 times vertically). >> M = repmat(m, [200,1]); % Compute the direction of max. variance % using eig [V,D] = eig(cov(X - M)) V =

  • 0.6969

0.7172 0.7172 0.6969 % The max variation is now along direction (x,y) = (0.7172, 0.6969).

  • The direction of maximum

variation can be calculated as shown here.

  • Note that the mean of the

points has to be subtracted first.

  • After that, the axes are solved

by finding the eigenvectors of the covariance matrix of the data.

  • This algorithm is called the

principal component analysis (PCA).

slide-11
SLIDE 11

Example: Least Squares

  • As an example of a typical linear algebra procedure in

Matlab, let us consider least squares fitting of data.

  • The Least Squares method is a curve fitting method that
  • riginates from 1795, when Gauss invented the method (at

the time he was only 18 years old).

  • The method became widely known as Gauss was the only
  • ne able to describe the orbit of Ceres, a minor planet in

the asteroid belt between Mars and Jupiter that was discovered in 1801.

slide-12
SLIDE 12

Example: Least Squares

5 10 15 20 25 5 10 15 y(n) x(n) LS minimizes the total length of vertical distances

  • Least squares minimizes

the distance between the data and the model.

  • For example: Find the line

that passes closest to these data points.

  • More specifically: Which

line has the smallest average distance to these points.

slide-13
SLIDE 13

Example: LS Theory (very briefly)

  • Suppose we would like to fit the function f(x) = ax + b

into the data points (x1, y1), (x2, y2), . . . (xN, yN).

  • Task is to find best a, b and c.
  • This is done by minimizing the sum of distances:

minimize

N

  • n=1

(yn − f(xn))2

  • In other words

minimize

N

  • n=1

(yn − axn − b)2

slide-14
SLIDE 14

Example: LS Theory (very briefly)

  • In Matlab, we represent the problem with matrices as

follows.

  • Minimize the distance between these two vectors:

       ax1 + b ax2 + b ax3 + b . . . axN + b        and        y1 y2 y3 . . . yN       

slide-15
SLIDE 15

Example: LS Theory (very briefly)

  • The coefficients a and b repeat at each row, so we can write

the task more compactly as follows

  • Minimize the distance between these two vectors:

       x1 1 x2 1 x3 1 . . . . . . xN 1       

  • X

a b

  • c

and        y1 y2 y3 . . . yN       

  • y
slide-16
SLIDE 16

LS in Matlab

% Prepare matrix X (add the constant term) >> X = [x, ones(size(x))]; % Compute coefficients a and b >> c = inv(X’ * X) * X’ * y c = 0.5372 0.1311 % Compute coefficients a and b % using the shortcut >> c = X \ y c = 0.5372 0.1311

1 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 Data Best linear fit Best quadratic fit

  • It can be shown that the best

coefficients are given by c = (XTX)−1XTy

  • This appears so often, that

there is a shortcut in Matlab: c = X \ y.

  • In fact, there are also other

shortcuts for this:

  • pinv(X) * y
  • y’ / X’
  • One can also add higher order

terms to fit other polynomials:

X = [x.^3, x.^2, x, x.^0];

slide-17
SLIDE 17

Application: Remove Uneven Illumination

Original image Illumination effect Illumination effect removed
  • As an application example of the LS,

consider the attached microscope images.

  • The illumination is uneven, which

prevents automatic extraction of cells.

  • What we do, is to model the illumination

component using a LS model.

  • The model attempts to predict the

brightness from the X-Y-coordinates.

  • The model can only predict large scale

variations (slowly changing illumination), and not the small details (cells).

  • We choose the 2nd order model because

the illumination looks like a paraboloid.

slide-18
SLIDE 18

Application: Remove Uneven Illumination

  • Target is to create a model f to predict brightness z from

location (x, y); i.e., z ≈ f(x, y).

  • The complete model is now

     z1 z2 . . . zN      =      x2

1

y2

1

x1y1 x1 y1 1 x2

2

y2

2

x2y2 x2 y2 1 . . . . . . . . . . . . . . . . . . x2

N

y2

N

xNyN xN yN 1           c1 c2 . . . c6     

  • Above, z1, z2, . . . , zN denote the brightness at coordinates

(x1, y1), (x2, y2), . . . , (xN, yN).

  • Total 1.3 million points in each vector x, y and z.
slide-19
SLIDE 19

How to do it in Matlab

% Load image img = imread(’unevenIllumination.jpg’); img = double(img); % We need all x and y coordinate combinations [y, x] = meshgrid(1:size(img, 1), 1:size(img, 2)); % Vectorize x and y: 1030 x 1300 -> 1339000 x 1 x = x(:); y = y(:); % Try to predict the illumination from X and Y z = img(:); % Prepare the observation matrix X = [x.^2, y.^2, x.*y, x, y, ones(size(x))]; % Calculate coefficients for each component c = X \ z; % Compute the prediction result zHat = X * c; zHat = reshape(zHat, size(img)); % <-- Illumination result = img - zHat; % <-- Details

  • Meshgrid is used to

produce all x-y combinations.

  • The observation matrix

X contains 6 terms:

  • 2nd order terms:

x2, y2, xy.

  • 1st order terms: x, y.
  • Constant:
  • nes(size(x)).
  • But you can throw in

whatever components you think will help in prediction: x3, y3, √xy.

slide-20
SLIDE 20

Other Linear Algebra Functions in Matlab

det % Determinant svd % Singular value decomposition lu % LU decomposition qr % QR decomposition cholesky % Cholesky decomposition rref % Reduced row echelon form norm % Matrix or vector norm cond % Matrix condition number rank % Matrix rank trace % Sum over the diagonal diag % Extract/create diagonal fliplr % Flip horizontally flipud % Flip vertically transpose % Transpose horzcat % Append matrices left-right vertcat % Append matrices top-down

  • The linear algebra

functions in Matlab are too many to list here.

  • The list shows some

functions you may have seen in math classes.

  • A rule of thumb: Before

you implement, check if the function exists in Matlab or at Mathworks file exchange.1

1http://www.mathworks.com/matlabcentral/fileexchange/

slide-21
SLIDE 21

TOOLBOXES

slide-22
SLIDE 22

Toolboxes in Matlab

  • Toolboxes extend the basic

functionalities of Matlab, and are purchased separately from base Matlab.

  • TUT has an extensive license
  • f about 50 toolboxes.
  • Command ver shows the

installed toolboxes.

  • Each toolbox has a general

help of its contents; e.g., help stats lists all functions

  • f the Statistics toolbox.
  • A list of all helps is given by

help with no arguments.

slide-23
SLIDE 23

Signal Processing Toolbox

1000 2000 3000 4000 5000 6000 7000 8000 200 400 600 800 Frequency / Hz Power Signal Before Filtering 1000 2000 3000 4000 5000 6000 7000 8000 0.2 0.4 0.6 0.8 1 Frequency / Hz Attenuation Frequency Response of the Filter Coefficient about zero Coefficient about one 1000 2000 3000 4000 5000 6000 7000 8000 200 400 600 800 Frequency / Hz Power Signal After Filtering Removed Frequencies Removed Frequencies Removed Frequencies

  • As time does not allow

in-depth study of many toolboxes, let’s make an excursion to one: The Signal Processing Toolbox.

  • Traditional tasks in signal

processing are related to filter design: How to remove certain frequencies from a discrete time signal.

  • This can be achieved by

designing a filter, whose frequency response acts as a multiplier for different frequencies.

slide-24
SLIDE 24

Convolution

20 40 60 80 100 120 140 160 180 −0.6 −0.4 −0.2 0.2 0.4 0.6 0.8 n (samples) Amplitude Signal Before Filtering 5 10 15 20 25 30 −0.4 −0.2 0.2 0.4 0.6 0.8 1 n (samples) Amplitude Impulse Response 20 40 60 80 100 120 140 160 180 −0.15 −0.1 −0.05 0.05 0.1 n (samples) Amplitude Signal After Filtering

  • The actual filtering operation

is called convolution.

  • The filter is defined by an

impulse response h(n).

  • Convolution of signal x(n)

with impulse response h(n) is defined as y(n) =

N

  • k=0

h(k)x(n − k)

  • In other words, the most

recent inputs are weighted by coefficients h(0), . . . , h(N) and summed together.

slide-25
SLIDE 25

Filtering in Matlab

% Load example signal. % This imports signal to y and % sample rate to Fs. >> load handel; % Design a filter with max delay 30, and % frequencies above 0.4 * Fs removed >> h = fir1(30, 0.4, ’high’); % Filter: >> z = conv(h, y); % Listen. >> soundsc(z, Fs); % (Command ’sound’ just plays the sound, % but ’soundsc ’ scales to max volume % first).

  • Matlab SP toolbox has several

functions for easy design of digital filters, including:

  • fir1: Windowed filter design
  • fir2: Filter design with

arbitrary response

  • firls: Least squares design
  • firpm: Equiripple filter design
  • All frequencies are relative to

sample rate. In the example, Fs = 8192.

  • Thus, the designed filter removes

all energy below 0.4 × 8192 = 3277 Hz.

slide-26
SLIDE 26

Image Filtering

  • The presented methods can be extended to 2-dimensional

data.

  • Below, we compute the 2D FFT of the test image, zero all

low frequencies and apply the inverse 2D FFT.

50 100 150 200 250 300 350 400 450 500 50 100 150 200 250 300 350 400 450 500 50 100 150 200 250 300 350 400 450 500 50 100 150 200 250 300 350 400 450 500 50 100 150 200 250 300 350 400 450 500 50 100 150 200 250 300 350 400 450 500 50 100 150 200 250 300 350 400 450 500 50 100 150 200 250 300 350 400 450 500
slide-27
SLIDE 27

Image Filtering: Matlab Code

% Load image img = imread(’karpanen.bmp’); % Compute the FFT. The fftshift command % moves the interesting area to the center. X = fftshift(fft2(img)); % Zero a circular region near center % First compute the indices of points near the center. y0 = size(img, 1) / 2; % y coordinate of the center x0 = size(img, 2) / 2; % x coordinate of the center r = 30; % Radius of the area to be zeroed [x, y] = meshgrid(1:size(img,1)); % All xy-coordinate pairs idx = (abs(hypot(x-x0, y-y0)) <= r); % Indices of near-center points X(idx) = 0; % Revert from FFT space to normal space: X = fftshift(X); % Undo the fftshift filtered = real(ifft2(X)); % Take inverse FFT. % The imaginary part may have % very small values, so ignore those.

slide-28
SLIDE 28

Other SP Tools

% Plot the spectrogram of an example signal >> [x, Fs] = audioread(’seiska.wav’); >> spectrogram(x, 256, 128, 256, Fs, ’yaxis’);

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1000 2000 3000 4000 5000 6000 7000 8000 Time (s) Frequency (Hz)

  • spectrogram: Energy

heatmap on time-frequency axes.

  • fft: Fast Fourier Transform
  • fft2: Fast Fourier Transform

for images

  • dct: Discrete cosine

transform

  • decimate: Decrease sample

rate by integer factor

  • interp: Increase sample rate
