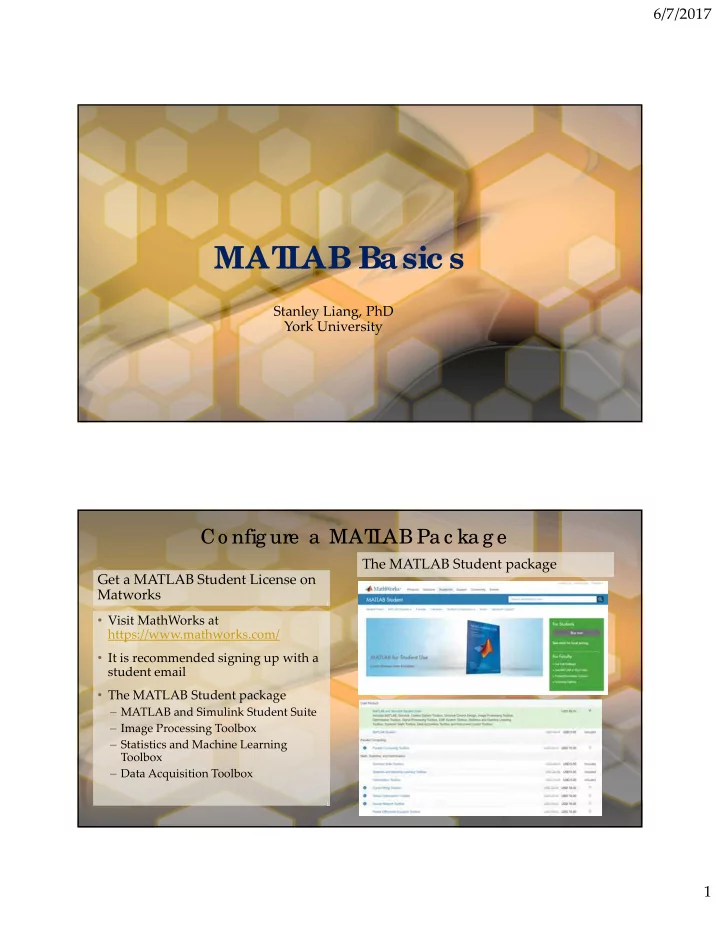

MAT L AB Basic s

Stanley Liang, PhD York University

Co nfig ure a MAT L AB Pa c ka g e

Get a MATLAB Student License on Matworks

• Visit MathWorks at

https://www.mathworks.com/

• It is recommended signing up with a

student email

• The MATLAB Student package

– MATLAB and Simulink Student Suite – Image Processing Toolbox – Statistics and Machine Learning Toolbox – Data Acquisition Toolbox

The MATLAB Student package

6/7/2017 2

MAT L AB Use r I nte rfa c e

File manager

Data structure in the selected .mat file

Script editor Interactive command window

Variables in memory

• Provide interactive UI to implement machine learning

MAT L AB Use r I nte rfa c e

Comment / uncomment code

6/7/2017 3

Ba sic MAT L AB Co ding

• use the interactive commands

– The result stored in “ans”

• Initiate variable and assign a

value

• The equals sign (=) in MATLAB

is the assignment operator

– Value goes from the right to the left

• = is NOT the equal sign
• Use the semicolon to suppress

the output

• Recall the previous commands

by the Up arrow key

• When you enter just a variable

name, MATLAB returns the current value of that variable

• MATLAB does not use

reference, so changing one variable does not affect another

• ne

Go to: http://www.machinelearninghellix.site/ Download “day one exercise”

Sto ring Da ta in Va ria b le s

• A MATLAB variable starts with a

letter and contain only letters, numbers, and underscores(_)

• Use: clear <variable name> to clear

the values in the variable

• Entering clear only will clean all

variable

• Use clc to clears the Command

Window

• MATLAB constants: pi, i
• We can use a script to define a set of

MATLAB constants (MATLAB class

• n Day 2)
• MATLAB contains a wide variety of

built‐in functions, such as abs (absolute value), trigonometry functions, and eig (calculate eigenvalues)

• MATLAB uses parentheses to pass

inputs to functions, similar to standard mathematical notation.

MAT L AB Built-in F unc tio ns & Co nsta nts

6/7/2017 4

Ve c to rs a nd Ma tric e s

• All MATLAB variables are arrays: each

variable can contain multiple elements

• A single number, called a scalar, is

actually a 1‐by‐1 array

• When you separate numbers by spaces

(or commas), MATLAB combines the numbers into a row vector (1‐by‐n)

• When you separate them by semicolons,

MATLAB creates a column vector (n‐by‐ 1)

• You can combine spaces and semicolons

to create matrices

• Computation in a matrix
• use the “:” operator and specify only the

start and end points

• The : operator uses a default spacing of

1.

– You can specify your own spacing – Start : spacing : end

• If you know the number of elements you

want in a vector, use the linspace function

– linspace(start,end,# of element)

• Use the transpose operator (ʹ) to convert

a row vector into a column vector, or vise versa

• create column vectors in a single

command

Cre a ting E ve nly-Spa c e d Ve c to rs

Arra y Cre a tio n F unc tio ns

• MATLAB functions to create commonly

used matrices

• matrices of random numbers: rand
• a matrix of all zeros: zeros
• A single number, called a scalar, is actually

a 1-by-1 array

• When you separate numbers by spaces (or

commas), MATLAB combines the numbers into a row vector (1-by-n)

• When you separate them by semicolons,

MATLAB creates a column vector (n-by-1)

• You can combine spaces and semicolons to

create matrices

• Computation in a matrix

Sa ve a nd lo a d va ria b le s to a .ma t file

• Save variables in the workspace

to a MAT‐file

• use import tool

6/7/2017 5

Inde xing into and Modifying Ar r ays

• extract values from an array using row, column indexing

– Var = mat(row, col)

• use the MATLAB keyword ‘end’ to refer the last element

– Var = mat(end,2)

• use arithmetic with the keyword end

– Var = mat(end‐1,end‐2) – the 2nd last row and the 3rd last column

• To extract multiple elements, use the colon operator (:) specifies all the elements in

that dimension.

– x = A(2,:) – A row vector containing all of the elements from the second row of A

• The colon operator can refer to a range
• Use a single index to reference vector elements

Changing Value s in Ar r ays

• use the colon ( : ) character to extract entire

columns of data

–The first row of a matrix: mat(1, end) –The lost column of a matrix: mat(:, end) –A single element with known index: mat(2, 3)

6/7/2017 6

Ar r ay Ope r ations

• MATLAB is designed to work naturally

with arrays

• Addition

– You can add together any two arrays of the same size – Do NOT add a row vector to a column vector

• multiply or divide all of the elements of an

array by a scalar.

• Basic statistical functions in MATLAB can

be applied to a vector to produce a single

• utput
• MATLAB has functions that perform

mathematical operations on an entire vector or array of values in a single command

• The asterisk (*) operator performs matrix

multiplication – dot product

• if you use * to multiply two equally

sized vectors, since the inner dimensions do not agree, you will get an error message

• The .* operator performs elementwise

multiplication

Calling F unc tions

• size( )

– apply to an array to produce a single output variable containing the array size

• max( )

– the maximum value of a vector and its corresponding index value can be determined using the max function – the first output from the max function is the maximum value of the input vector – the second output is the index value – if the input is a matrix, the max function will do column‐wise comparison

• min( )
• mean( )
• Enter: doc fcnName

– to get information on any MATLAB function

• The MATLAB documentation contains a

lot of good examples and information that can help you when working on your

• wn problems
• Visit mathworks.com

Obtaining He lp

6/7/2017 7

Plotting Data

• plot(x‐axis, y‐axis)
• The plot function accepts an additional argument

that allows you to specify the color, line style, and marker style using different symbols in single quotes.

• Use: doc plot for more information
• use the “hold on” command to hold the previous

plot and add more plots on the same figure

• use the hold off command to return to the default

behavior

• Use “close all” to close all figure windows
• When you plot a single vector by itself, MATLAB

uses the vector values as

• % the y‐axis data and sets the x‐axis data to range

from 1 to n

• The plot function accepts optional additional

inputs consisting of a property name and an associated value.

Annotating Plots

• Labels can be added to plots using plot

annotation functions

• The input to these functions is a string
• Strings in MATLAB are enclosed in

single quotes (ʹ)

• Use the PLOTS menu

L

• gic al Ope r

ations and Var iable s

• Relational operators such as >, <, ==, and ~= perform comparisons between two
• values. The outcome of a comparison for equality or inequality is either 1 (true) or 0

(false).

• Note that in MATLAB Not equal is: ~=, Do NOT use: !=, <>
• You can compare a vector or matrix to a single scalar value using relational operators
• The result is a logical array of the same size as the original array
• Corresponding elements of two arrays can be compared using relational operators.

The two arrays must be the same size and the result is a logical array of the same size.

6/7/2017 8

Combining L

• gic al Conditions
• You can use a logical array as an array

index, in which case MATLAB extracts the array elements where the index is true

• You can use logical indexing to

reassign values in an array

• MATLAB contains logical operators

which combine multiple logical conditions such as

– AND (&) – OR (|)

• The & operator returns true (1) if both

elements are true, and false (0)

• therwise
• The | operator returns true (1) if

either element is true L

• gic al Inde xing
