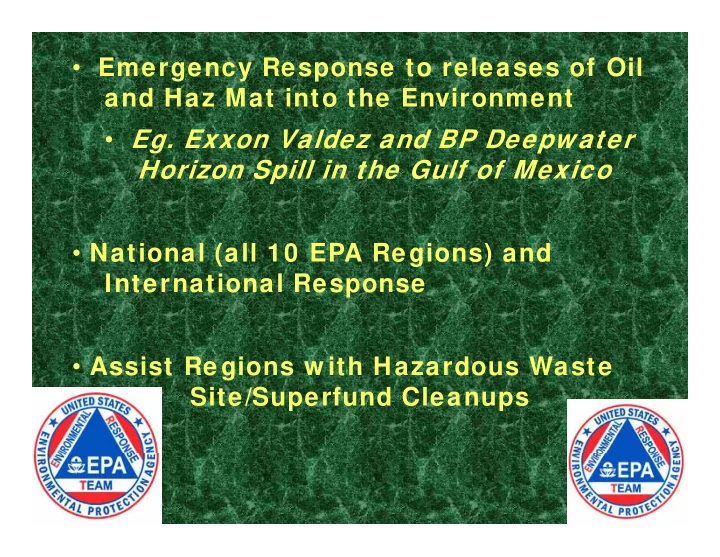

SLIDE 1
- Emergency Response to releases of Oil
and Haz Mat into the Environment and Haz Mat into the Environment
- Eg. Exxon Valdez and BP Deepw ater
Horizon Spill in the Gulf of Mexico Horizon Spill in the Gulf of Mexico
- National (all 10 EPA Regions) and
International Response
- Assist Regions w ith Hazardous Waste
Site/Superfund Cleanups
SLIDE 2
Phyto-Remediation (1990’s): Phyto Remediation (1990 s): The use of Trees and Plants to Mitigate Releases of Chemicals from Hazardous Waste Sites
SLIDE 3 I. Removal of Ground Water/Soil Contaminants VOC and Metals VOC and Metals Ed Sears property Kauffman and Minteer Site O P l Sit Oregon Poplar Site
- II. Hydraulic Control of Ground w ater
y Aberdeen Proving Ground, J-Field Bridgeport Rental and Oil Services Site King of Prussia Site King of Prussia Site
- III. Reclamation of Mine Spoils/Tailings, Slag
- III. Reclamation of Mine Spoils/Tailings, Slag
Vermont Asbestos Group Sharon Steel R bli St l Roebling Steel
SLIDE 4 Ed d S P t Sit Edw ards Sears Property Site
Jack of all trades operation, Removal Action early 1990’s
SLIDE 5 Direct Push Well Points Installed 1994
SLIDE 6
- Contamination (PCE, TCT, BTEX, DCM, Methyl
benzene) trapped in sandy clay lense 5 to 18’ BGS 18’ BGS
- Shallow w ater table at 9 feet BGS
- Hybrid Poplars (Populas charkow iensis x
P.incrassata, NE 308) chosen for pilot study
- 125 Planted in 11/95 over 1 acre site
SLIDE 7
SLIDE 8
BareRootHybridpoplar
SLIDE 9
AlmostOneY earLater 97%Survival!!
SLIDE 10 MonitoringandMaintenance g
- Annual ground water sampling (August)
- Annualgroundwatersampling(August)
- Transpirationgassampling
- Sapflowratemeasurements
- Treegrowthrateandhealthevaluation
g
- Soilsamples(agronomic)
- Fertilization of the trees
- Fertilizationofthetrees
- Mowingandpruning
- Controlpests(Deer,caterpillars)
SLIDE 11
1996 Trichloroethylene– 390ppb
SLIDE 12
2007 TCE 36 PPB TCE – 36 PPB
SLIDE 13 Trichloroethylenevs.Time (Micrograms/ Liter)
500 600 300 400 100 200 1 9 9 5 1 9 9 6 1 9 9 7 1 9 9 8 1 9 9 9 2 2 1 2 2 2 3 2 4
SLIDE 14 Ed S P t M 2011
510 308
Ed Sears Property, May 2011 > 55’ tall 30 gal/tree/day
SLIDE 15
Roebling Steel, Isolated Parcel April 2010 April 2010 Revitalize Former Steel Cable M f t i Pl t Manufacturing Plant Stabilize Soil Cap and Containment
SLIDE 16
SLIDE 17 All Native Trees, shrubs, forbs
Red Oak S f White Pine Sassafras Service Berry Tulip Poplar Willow Oak
White Dogwood Red Tw ig Dogwood Inkberry holly Willow Oak Red Cedar Black Willow River Birch G A h Inkberry holly Native grass mix Rhododendron Mountain laurel Ch i t f Green Ash Sycamore Black Gum Christmas fern Winterberry holly Viburnum’s
SLIDE 18
Planting April 2010
SLIDE 19
Roebling Fall 2010
SLIDE 20 Kauffman and Minteer, Kauffman and Minteer, Jobstow n, NJ site
- Approx. 300 trees planted 1996
pp p
- More added three – four years later
- Hybrid Poplar and Black Willow (native species)
SLIDE 21
SLIDE 22
SLIDE 23
Treating Bagworm infestation
SLIDE 24
May 2011 - 30 gal./tree/day 12” diameter
SLIDE 25
ISCO – 2004 to Date ISCO – 2004 to Date Aggressive Trt. / Deeper Contamination
SLIDE 26
Damage to Willow s & Poplars Due to ISCO injections
SLIDE 27
Kauffman & Minteer Site May 2011 Willow s 25’ tall and Poplars >55’ tall
SLIDE 28
Bridgeport Rental and Oil Services Site February 1979
SLIDE 29
Native Species Test Plots 2006 2006
SLIDE 30
Liliodendron Tulipifera
SLIDE 31
Bridgeport Rental and Oil Services, May 2011 > 12 000 Hybrid Poplars Planted Nov – Dec 2008 > 12,000 Hybrid Poplars Planted Nov – Dec 2008
SLIDE 32
BROS May 2011
