Mandatory Access Control in Linux CMPSC 443 - Spring 2012 Introduction Computer and Network Security Professor Jaeger www.cse.psu.edu/~tjaeger/cse443-s12/ CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

slide-1

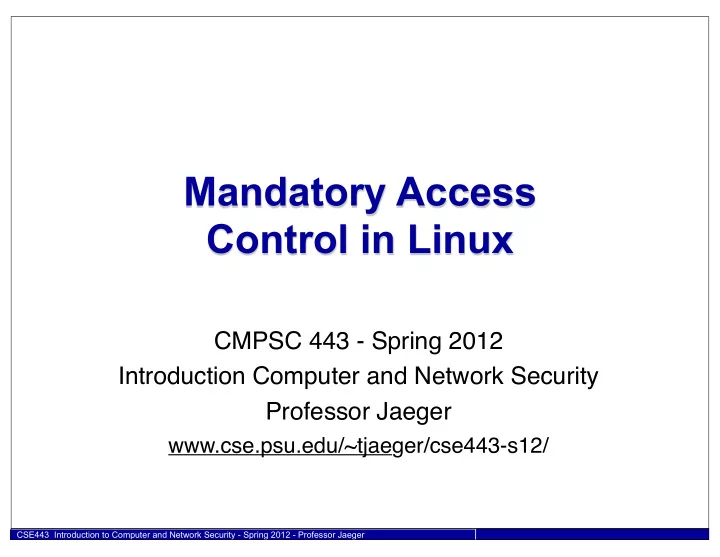

SLIDE 1

CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Mandatory Access Control in Linux

CMPSC 443 - Spring 2012 Introduction Computer and Network Security Professor Jaeger

www.cse.psu.edu/~tjaeger/cse443-s12/

slide-2
SLIDE 2

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

In the early 2000s

  • Root and administrator

– Many programs needed privilege, so they ran will full system permissions

  • Consider a network-facing daemon

– Services requests at a well-known port – Low-numbered, so needs root access – But, also accessible to adversaries – A bad combination...

  • What should we do?

2

slide-3
SLIDE 3

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Confining Network-Facing Daemons

  • Limit permissions of network-facing daemons

–“Confine” them

  • Keep them confined

–Cannot change their permissions

  • How do we do that?

–Short answer & a long story...

3

slide-4
SLIDE 4

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Mandatory Access Control

  • System-Defined Policy

– Fixed Set of Subject and Object Labels – Fixed Permission Assignments – Fixed Label Assignments: (e.g., file to object label) – Fixed Transitions (e.g., setuid)

4

O1 O2 O3 J R R W R W S2 N R R W S3 N R R W

slide-5
SLIDE 5

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Multi-Level Security is MAC

Access is allowed if

subject clearance level >= object access class and

  • bject categories subset-of subject categories (read down)

Q: What would write-up be?

Hence,

Bob: CONF., {INTEL}) Trent: TS, {CRYPTO, NUC, INTEL}) Alice: (SEC., {CRYTPO, NUC}) DocA: (CONFIDENTIAL, {INTEL}) DocB: (SECRET, {CRYPTO}) DocC: (UNCLASSIFIED , {NUC})

5

slide-6
SLIDE 6

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Why MLS Won’t Work

  • Lots of information flows that violate MLS

– For secrecy – And integrity

  • Have to manage manually

– No way...

  • So, what do we do?

– LOMAC – MIC – Others

  • Type Enforcement

6

slide-7
SLIDE 7

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

MAC in Linux

  • In 2001, Linus Torvalds authorized the development of

a reference monitor for Linux

– So, he didn’t have to choose a single security approach

  • Linux Security Modules framework was born

– LSM defines an interface for reference monitoring modules – Anybody could build an LSM!

  • Introduced in Linux 2.6

– Version built for FreeBSD – Underway for MAC OS X – Also, implemented in a variety of user-space programs (X)

  • MAC has been in Trusted Solaris for years...

– But, only one MLS approach (now includes more)

7

slide-8
SLIDE 8

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Linux Security Modules Approach

  • Reference monitor interface, module, policy

8

System System Inte Interface rface En Entry y Po Points nts Mon Monitor itor Po Policy cy Access Access Ho Hook Access Access Ho Hook Access Access Ho Hook Secu Security-sen rity-sensitiv sitive Operat Operation ion Secu Security-sen rity-sensitiv sitive Operat Operation ion Secu Security-sen rity-sensitiv sitive Operat Operation ion

Authorize Request? Yes/No

slide-9
SLIDE 9

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Where Do Hooks Go?

  • What property must an authorization hook placement

satisfy?

– Think reference monitor

  • How do you know when you have satisfied this

property?

– Not easy – Several missing placements were later identified

  • Still looking for an automated method to place

authorization hooks in legacy code

9

slide-10
SLIDE 10

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

MAC and Systems

  • What is necessary to be a system that enforces MAC

policies?

– Specify: Mandatory Protection System – Enforce: Reference Monitor

  • Plus, others

– Management: Policy development tools – Services: MAC-aware services – Applications: Work with MAC limitations

  • What do these systems look like?

– We’ll examine SELinux

10

slide-11
SLIDE 11

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

SELinux

  • LSM + much more

11

Linux Kernel SELinux LSM SELinuxfs System Processes SELinux-aware Services SELinux Bootstrap

(1) Load Policy (2) Authenticate (3) Syscalls

slide-12
SLIDE 12

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

SELinux uses Type Enforcement

  • MAC Policy

– Subjects and Objects Labeled

  • Access Matrix Policy

– Processes with subject label – Can access object of object label – If operations in matrix cell allow

  • Focus: Least Privilege

– Just permissions necessary

12

O1 O2 O3 S1 Y Y N S2 N Y N S3 N Y Y

slide-13
SLIDE 13

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

SELinux Protection State

  • The permissions in an SELinux system are produced

by a runtime analysis (same with AppArmor)

  • Step 1: Run programs

– In a controlled (no attacker) environment – No enforcement is on

  • Step 2: Audit all permissions used
  • Step 3: Generate policy file

– Give the subject label associated with that program – All the permissions in the audit file

  • Why does this satisfy confidentiality or integrity?

13

slide-14
SLIDE 14

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

SELinux Labeling State

  • Files and users known to the system at boot-time must

be associated with their MAC policy labels

– Map file paths to labels (regular expressions) – Map users to labels (by name)

  • These labels are assigned to their initial processes
  • How are new files/processes labeled?
  • How does “setuid” work?

14

slide-15
SLIDE 15

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

SELinux Transition State

  • Run the privileged passwd program
  • Simplified view -- takes 4 policy rules to do this

15

User Proc user_t User Proc user_t Root Proc passwd_t

Fork Exec passwd_t

slide-16
SLIDE 16

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

SELinux Mandatory Protection System

  • How many rules are necessary for a Linux distribution?

– Labeling State - every file and process – Protection State - every subject, object, operation – Transition State - every process and file transition on access

16

slide-17
SLIDE 17

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Configuring Secure Systems

  • How do administrators manage MAC systems?
  • Step 1: Choose an OS distribution

– Has a MAC policy already

  • Step 2: Configure a firewall policy

– Connects MAC processes with network access to network – Most processes are given network access

  • Step 3: Track vulnerabilities

– Pick your favorite site - CERT, CVE, BugTraq, SANS, ...

  • Step 4: Run vulnerability scanners on your system

– See if you are vulnerable – If so, remove/update that program or change network

  • NOTE: Do not change the MAC policy

17

slide-18
SLIDE 18

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

MAC Upsides

  • Security

– Limits access of root processes – Controls network-facing daemons – Protects system processes – Protects kernel

  • Usability

– Default configuration with OS Distros – Mostly enables system to run – Does not require any effort for admins

  • Bottom line: MAC is here, but in a more limited way

than people expected

18

slide-19
SLIDE 19

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

(Commodity) MAC Myths

  • Security

– MAC protects one of your processes from another – MAC protects one of your processes from another user’s processes – MAC controls processes use of network – MAC ensures that system processes only receive trusted data – MAC makes the adversary compromise several processes to access the kernel – MAC enforces confidentiality and integrity

19

slide-20
SLIDE 20

Page CSE443 Introduction to Computer and Network Security - Spring 2012 - Professor Jaeger

Take Away

  • In the early part of the last decade adversaries were

taking advantage of weak access protections

  • MAC was introduced into commodity systems to

prevent this

  • MAC threat model is network attacks

– Network-facing daemons

  • MAC and code hardening of these daemons have

improved the situation

– but now escalation from untrusted clients through local exploits is common

  • Could SELinux prevent Stuxnet?

20
