Making the invisible visible S. Faily, I. Flchais Introduction Making the invisible visible Method Results A theory of security culture for secure and usable grids Cases What is Security Culture? Guidelines Future work S. Faily I.

slide-1
SLIDE 1

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

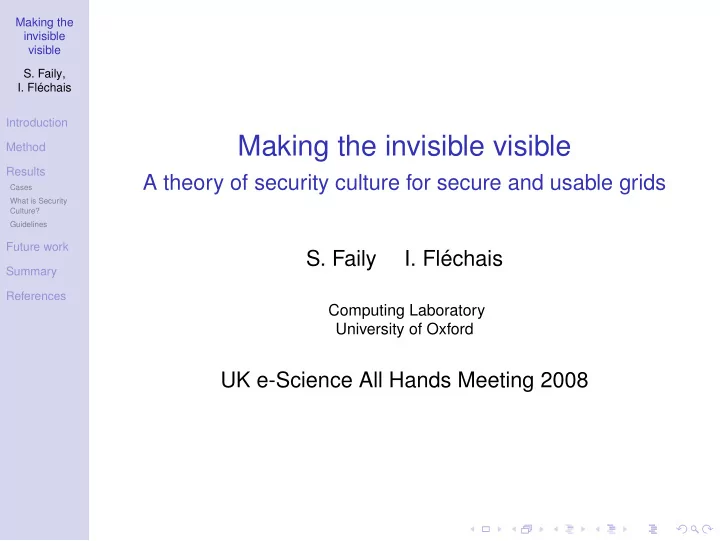

Making the invisible visible

A theory of security culture for secure and usable grids

  • S. Faily
  • I. Fléchais

Computing Laboratory University of Oxford

UK e-Science All Hands Meeting 2008

slide-2
SLIDE 2

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

Introduction

Why Security Culture

  • Values conflict.
  • Existing understanding based on inappropriate

contexts.

  • Tools are value-free and not contextualised.
slide-3
SLIDE 3

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

Method

1 Grounded Theory [Corbin and Strauss, 2008] analysis

from existing literature.

2 Comparative model derived from empirical data. 3 Theoretical and empirical models applied to a secure

design process.

slide-4
SLIDE 4

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

Case Studies

NeuroGrid

  • A grid based collaborative research environment

[Geddes et al, 2006].

  • 3 clinical exemplars : Stroke, Dementia and Psychosis.
  • Data both sensitive and distributed.
slide-5
SLIDE 5

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

Case Studies

Security Development Lifecycle

  • A software development process for developing secure

software [Howard and Lipner, 2006, Microsoft Corporation, 2008].

  • Pragmatic : based on Microsoft’s experience securing

Windows 2000, .NET and Windows Server 2003.

  • Prescriptive: guidance for all stages of the secure

software development lifecycle.

slide-6
SLIDE 6

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

What is Security Culture?

A combination of tangible and intangible factors within both an organisation’s culture and its subcultures.

Tangible Factors Socio- Technical Measures Procedural Controls Technical Controls Security Policy Intangible Factors Sub- Cultures Socialisation Compliant Behaviour Security Perception Responsibility [] [] [] => [] => [] => [] => [] [] == == Sub-culture norms => [] Visible Invisible Label Relation == C is-associated-with C2 [] => C1 is-part-of C2 C1 is-cause-of C2

slide-7
SLIDE 7

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

Guideline 1

Have a single, visible, security policy

  • Statements of

management intent.

  • Multiple forms of

procedural control lead to multiple security perspectives.

  • Reliance on social

networks in lieu of visible policies.

Tangible Factors Socio- Technical Measures Procedural Controls Technical Controls Security Policy Intangible Factors Sub- Cultures Socialisation Compliant Behaviour Security Perception Responsibility [] [] [] => [] => [] => [] => [] [] == == Sub-culture norms => [] Visible Invisible

slide-8
SLIDE 8

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

Guideline 2

Leverage socialisation

  • Socialisation is the

process of developing culturally acceptable beliefs, values and behaviours [Brown, 1998].

  • Certificate installation as

a rite of passage.

  • Compliance and

socialisation synonymous in the SDL.

Tangible Factors Socio- Technical Measures Procedural Controls Technical Controls Security Policy Intangible Factors Sub- Cultures Socialisation Compliant Behaviour Security Perception Responsibility [] [] [] => [] => [] => [] => [] [] == == Sub-culture norms => [] Visible Invisible

slide-9
SLIDE 9

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

Guideline 3

Model lines of responsibility

  • Literature :
  • rganisational and moral

responsibility.

  • NeuroGrid : various and

split between technical controls and assets.

  • Ambiguity identified by

modelling lines of responsibility before implementing a security policy.

Tangible Factors Socio- Technical Measures Procedural Controls Technical Controls Security Policy Intangible Factors Sub- Cultures Socialisation Compliant Behaviour Security Perception Responsibility [] [] [] => [] => [] => [] => [] [] == == Sub-culture norms => [] Visible Invisible

slide-10
SLIDE 10

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

Guideline 4

Know your subcultures

  • Evident in NeuroGrid

when asking users to describe how data was handled.

  • Diffusion of

Responsibility [Darley and Latané, 1970].

  • Understanding values

helps to determine whether security will be sacrificed for operational goals.

Tangible Factors Socio- Technical Measures Procedural Controls Technical Controls Security Policy Intangible Factors Sub- Cultures Socialisation Compliant Behaviour Security Perception Responsibility [] [] [] => [] => [] => [] => [] [] == == Sub-culture norms => [] Visible Invisible

slide-11
SLIDE 11

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

Future work

Value Sensitive Design and the design process

  • Identifies impacting

human values and integrates them into the design process.

  • Conceptual, Empirical

and Technical Investigation.

  • Supplements existing

design processes.

  • Precedents in secure

and usable design [Friedman et al., 2002, Friedman et al., 2005, Friedman et al., 2006]

Conceptual Investigation Technical Investigation Empirical Investigation Artifact Values Contexts Direct & Indirect Stakeholder Values Core Values

slide-12
SLIDE 12

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

Future work

Augmenting Value Sensitive Design

  • Conceptual Investigation.
  • Augment with additional values.
  • Empirical Investigation.
  • Responsibility modelling.
  • Technical Investigation.
  • Implications of augmenting the approach.

Guideline Value

Have a single, visible security policy Compliant Behaviour Leverage socialisation Socialisation Model lines of responsibility Responsibility Understand your subcultures Sub-culture norms

slide-13
SLIDE 13

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

Summary

Contributions

  • Security Culture : what is it and why do we need it.
  • Guidelines for a healthy security culture.
  • An agenda for incorporating insights into the secure

design process.

slide-14
SLIDE 14

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

References I

Brown, A. (1998). Organisational Culture. Prentice Hall, 2nd edition. Corbin, J. M. and Strauss, A. L. (2008). Basics of qualitative research : techniques and procedures for developing grounded theory. Sage Publications, Inc., 3rd edition. Darley, J. M. and Latané, B. (1970). Norms and normative behaviour: field studies of social interdependence. In Berkowitz, L. and Macaulay, J., editors, Altruism and Helping Behaviour. Academic Press.

slide-15
SLIDE 15

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

References II

Friedman, B., Howe, D., and Felten, E. (2002). Informed consent in the mozilla browser: implementing value-sensitive design. System Sciences, 2002. HICSS. Proceedings of the 35th Annual Hawaii International Conference on, pages 10 pp.–. Friedman, B., Lin, P ., and Miller, J. K. (2005). Informed consent by design. In Cranor, L. F . and Garfinkel, S., editors, Security and Usability: Designing Secure Systems that People Can

  • Use. O’Reilly Media.
slide-16
SLIDE 16

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

References III

Friedman, B., Smith, I., Kahn Jr., P . H., Consolvo, S., and Selawski, J. (2006). Development of a privacy addendum for open source licenses: Value sensitive design in industry. In Dourish, P . and Friday, A., editors, Ubicomp 2006, LNSC 2006, pages 194–211. Springer-Verlag Berlin Heidelberg. Geddes et al (2006). The challenges of developing a collaborative data and compute grid for neurosciences. Computer-Based Medical Systems, 2006. CBMS 2006. 19th IEEE International Symposium on, pages 81–86.

slide-17
SLIDE 17

Making the invisible visible

  • S. Faily,
  • I. Fléchais

Introduction Method Results

Cases What is Security Culture? Guidelines

Future work Summary References

References IV

Howard, M. and Lipner, S. (2006). The security development lifecycle: SDL, a process for developing demonstrably more secure software. Microsoft Press, Redmond, Wash. Microsoft Corporation (2008). Microsoft Security Development Lifecycle (SDL) - version 3.2. http://msdn.microsoft.com/en-gb/library/cc307748.aspx.
