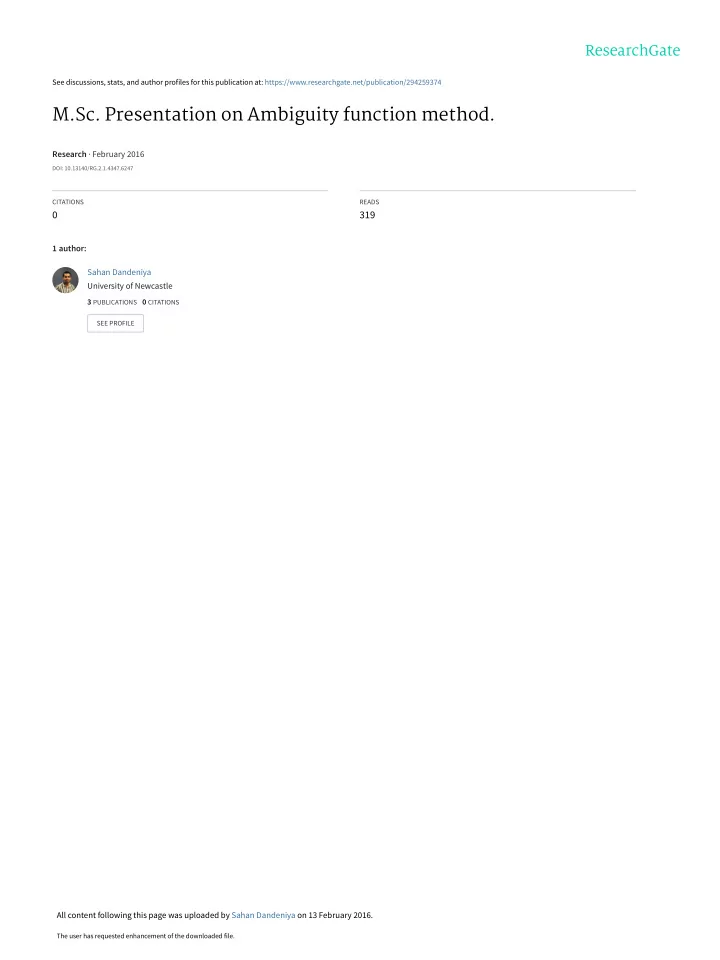

SLIDE 1

See discussions, stats, and author profiles for this publication at: https://www.researchgate.net/publication/294259374

M.Sc. Presentation on Ambiguity function method.

Research · February 2016

DOI: 10.13140/RG.2.1.4347.6247

CITATIONS READS

319

1 author: Sahan Dandeniya University of Newcastle

3 PUBLICATIONS 0 CITATIONS

SEE PROFILE

All content following this page was uploaded by Sahan Dandeniya on 13 February 2016.

The user has requested enhancement of the downloaded file.

slide-2
SLIDE 2

ADVANCED STUDIES ON AMBIGUITY FUNCTION METHOD AND IM IMPLEMENTATION IN IN THE RTKLIB

Master Thesis Sahan Dandeniya

Referee :

  • Prof. Dr.-Ing. Reiner Jager

Co Referee :

  • Prof. Dr.-Ing. Tilman Müller

Supervised by : Dipl.-Ing. Julia Diekert

Institute of Geomatics Karlsruhe University of Applied Sciences Germany January 2015

slide-3
SLIDE 3
  • Introduction
  • Theoretical Back Ground
  • GPSLAB/RTKLIB overview
  • Results and Analysis
  • Conclusion
  • Future Work
  • Questions

Outline

1/16/2015 Master Thesis 2

slide-4
SLIDE 4
  • The key to GNSS positioning is ambiguity resolution
  • Losses of Lock (Cycle slip) ask new ambiguity resolution
  • Duration of ambiguity resolution is of particular

importance

1/16/2015 Master Thesis 3

Introduction

slide-5
SLIDE 5

1/16/2015 Master Thesis 4

Cycle Slip

Phases time ti ti+1 ti+2 Graphical representation of cycle slip

slide-6
SLIDE 6

1/16/2015 Master Thesis 5

Problem Identification

INTRODUCTION

Reference: Jaeger, Reiner, Andreas Hoscislawski, and Julia Diekert (2014). \Smart Phone RTK and Mobile GIS"

  • Bullet III is a low-cost antenna while 3G+C is a Geodetice grade antenna
  • Need significant time span to fix the ambiguity
  • Lose the fixed solution soon

Suggestion: Applicability of Ambiguity Function Method

slide-7
SLIDE 7
  • Implement the AFM algorithm in RTKLIB
  • Analyze the behavior of AFM through observations
  • f:
  • Varying baseline lengths
  • Single vs dual frequencies
  • Different number of epochs/Satellites
  • Compare the solution of AFM-RTKLIB with the

solution of AFM-GPSLAB and MLAMBDA-RTKLIB

1/16/2015 Master Thesis 6

Objectives

slide-8
SLIDE 8

1/16/2015 Master Thesis 7

Carrier - Phase

slide-9
SLIDE 9
  • Code observation: dm precision
  • Phase observation: mm precision
  • But receiver-satellite geometry has to be changed

considerably (long observation time) to solve the position with mm-cm accuracy

  • If DD observations are resolved to integer within short

time, position can be solved with mm-cm accuracy

1/16/2015 Master Thesis 8

Why Phase measurements?

RELATIVE POSITIONING

slide-10
SLIDE 10

1/16/2015 Master Thesis 9

Precision code vs Phase observation

RELATIVE POSITIONING

Reference: Sandra Verhagen,” Carrier Phase Integer Ambiguity Resolution – Recent results and open issues “, 2010, Delft University of Technology .

Code observation Phase observation Both are from relative positioning Phase: Provided that the integer ambiguity is KNOWN

slide-11
SLIDE 11

1/16/2015 Master Thesis 10

Integer Estimation

Estimate position and carrier ambiguity Estimate integer ambiguity Estimate position

(ambiguity fixed)

Validate float solution Validate integer ambiguity

‚float‘ Solution Integer map ‚Fixed‘ solution

slide-12
SLIDE 12

1/16/2015 Master Thesis 11

Integer Estimation

Ambiguities not fixed Ambiguities fixed

Reference: Sandra Verhagen,” Carrier Phase Integer Ambiguity Resolution – Recent results and open issues “, 2010, Delft University of Technology .

slide-13
SLIDE 13

1/16/2015 Master Thesis 12

Pseudo-range Model

Reference: Gps-Rtklib-Seminor-1

slide-14
SLIDE 14

Light time correction –

  • Due to celestial object motion (satellite) during signal transmission
  • Can be solved iteratively based on GNSS time ti and orbit Oj and

good position of Xr

1/16/2015 Master Thesis 13

Further Improvements

PSEUDORANGE MODEL

Pseudorange Modeling in ECEF and GNSS-time

Reference: Prof. Reiner Jäger (2014) , „ GNSS/MEMS/MOEMS-Multisensor-Navigation (NAVKA)“,Riga Technical University

slide-15
SLIDE 15
  • Additional corrections –

 Sagnac effect (incorporate earth rotation effect to Geo. range)  Relativistic effect (GPS:Up to 13 m on horizontal position and 20 m

  • n vertical position/ GLONASS: include in GONASS clock parameters)

 Geo dynamic corrections (Earth Tide Correction, Ocean Loading,

Earth Orientation)

1/16/2015 Master Thesis 14

Further Improvements

PSEUDORANGE MODEL

Complete model No Geo dynamics corrections added

Sagnac Effect Satellite time offset

slide-16
SLIDE 16

1/16/2015 Master Thesis 15

Phase Measurement Model

Reference: Prof. Reiner Jäger (2014) , „ GNSS/MEMS/MOEMS-Multisensor-Navigation (NAVKA)“,Riga Technical University

= Phase obs.

slide-17
SLIDE 17
  • For viewing and processing

GNSS data

  • Development – MATLAB

5/Windows

  • Examination of a baseline
  • absolute and relative GPS

positioning (SPP/DGPS/CDGPS)

  • Uses broadcast ephemeris
  • Processing of static observed

data

  • Short baselines, especially at

the carrier phase evaluation

1/16/2015 Master Thesis 17

GPSLAB

Zebhauzer (2000) Technical University of Munich (IAPG).

slide-18
SLIDE 18

GPSLAB Data Structure

M files/data files/text files

1/16/2015 18 Reference: Zebhauser, B. (2000). Ein MatLab-Toolkit zur Analyse von GPS-Beobachtungen mit Modulen für die Ambiguity Function Methode".

slide-19
SLIDE 19
  • An open source program

package for GNSS positioning

  • Distributed under BSD 2-clause

license

  • Has been developed by T. Takasu

since 2006

  • Latest version 2.4.2 (official) and

2.4.3 (beta)

  • Portable library and useful

positioning APPs

  • GUI APPs on Windows
  • CUI APPS on Linux

1/16/2015 Master Thesis 19

RTKLIB - overview

http://www.rtklib.com https://github.com/tomojitakasu/RTKLIB

slide-20
SLIDE 20
  • standard and precise positioning algorithms with:

GPS, GLONASS, Galileo, QZSS, BeiDou and SBAS

  • GNSS for both real-time and post-processing:

Single, DGPS/DGNSS, Kinematic, Static, Moving-Baseline, PPP

  • supports many standard formats and protocols for

GNSS:

RINEX, RTCM, BINEX, NTRIP, IONEX, sp3

  • It provides many library functions and APIs for GNSS

data processing

1/16/2015 Master Thesis 20

Features

RTKLIB - overview

slide-21
SLIDE 21

1/16/2015 Master Thesis 21

Package Structure

RTKLIB - overview

slide-22
SLIDE 22

Function GUI APs CUI APs Real-Time Positioning RTKNAVI RTKRCV Communication Server STRSVR STR2STR Post-Processing Analysis RTKPOST RNX2RTKP RINEX Converter RTKCONV CONVBIN Plot Solutions and Observation Data RTKPLOT

  • Downloader of GNSS Data

RTKGET

  • NTRIP Browser

SRCTBLBROWS

  • 1/16/2015

Master Thesis 22

GUI/CUI APs on Windows

RTKLIB - overview

slide-23
SLIDE 23

1/16/2015 Master Thesis 23

GUI Aps on Windows

RTKLIB - overview

slide-24
SLIDE 24

1/16/2015 Master Thesis 24

RTKLIB APIs

RTKLIB - overview

  • Matrix and vector functions
  • Time and string functions
  • Coordinate functions
  • Input/output functions
  • Positioning models
  • Atmosphere models
  • Antenna models
  • Geoid model/Datum transformation
  • RINEX functions…….etc.
slide-25
SLIDE 25
  • Programming Language
  • API, CUI AP

: ANSI C (C 89)

  • GUI AP

: C++

  • Underlying Libraries
  • TCP/IP Stack

: Standard socket or WINSOCK

  • Thread

: WIN32 thread or POSIX (pthread)

  • GUI Widget

: Borland VCL on Windows

  • Build Environment
  • CUI AP

: GCC, MS VS, Borland c, ...

  • GUI AP

: Embarcadero C++ (VCL from c++ builder) on

Windows

1/16/2015 Master Thesis 25

Portability

RTKLIB - overview

slide-26
SLIDE 26
  • Eliminate receiver clock errors
  • Eliminate initial receiver phase offsets
  • DD phase ambiguity is an integer number

1/16/2015 Master Thesis 26

Double Differencing

RELATIVE POSITIONING

1 2 3 1 2

slide-27
SLIDE 27

1/16/2015 Master Thesis 27

Ambiguity Resolution

Integer ambiguities are derived from stochastic observations Integer ambiguities are not deterministic but stochastic

Input (Stochastic) Output (Stochastic)

Reference: Sandra Verhagen,” Carrier Phase Integer Ambiguity Resolution – Recent results and open issues “, 2010, Delft University of Technology .

slide-28
SLIDE 28

LAMBDA Method (Teunissen, PJG(1995))

  • Most popular / practically at top level
  • Cycle-slip correction required

1/16/2015 Master Thesis 28

Ambiguity Resolution Methods

Reference: P.Joosten, C. Tiberius (2002). “LAMBDA: FAQs".

slide-29
SLIDE 29

1/16/2015 Master Thesis 29

Ambiguity Resolution Methods

Ambiguity Function Method (AFM) (Remondi B, 1984)

  • Search in the 3-dimensional position space

(Currently not popular)

  • Cycle slip invariant
slide-30
SLIDE 30

1/16/2015 Master Thesis 30

Ambiguity Function Method

Phasor Diagram

Reference: http://commons.wikimedia.org/wiki/File:Euler%27s_formula.svg

Euler‘s-function Single difference phase model

e

slide-31
SLIDE 31

1/16/2015 Master Thesis 31

AMBIGUITY FUNCTION METHOD

Single difference of observations Calculated range difference

slide-32
SLIDE 32

1/16/2015 Master Thesis 32

Ambiguity Function Method (AFM)

THEORETICAL BACKGROUND .

slide-33
SLIDE 33
  • Laboratory for GNSS and Navigation at Karlsruhe

University of Applied Sciences (HsKA) and near by IGS station KARL (Location – Pillars on rooftop of B building )

1/16/2015 Master Thesis 33

Data set / Measurements

Pillars on rooftop of B building

  • Data set used in GPSLAB (Zebhauser 2000)
slide-34
SLIDE 34
  • Zero baseline (Rover Reference) (from Zebhauser 2000)

GPS, RINEX 2.0, 2 xTrimble SSI, 22 min, rate of 1sec

  • Short baseline (<2km) (from Zebhauser 2000/ NAVKA-HsKA)
  • 1. GPS, RINEX 2.0, 2 x Trimble SSI, 36 min, rate of 5 sec
  • 2. GPS, RINEX 2.10, Rover: Trimble R8/B building,

Base: KARL (IGS station Karlsruhe), 20 min, rate of 1 sec

  • Long baseline (> 8km) (from Zebhauser 2000)

8km – baseline GPS, RINEX 2.0, 2 x Trimble SSI, 65min, rate of 5 sec 50 km – baseline GPS, RINEX 2.0, 2 x Leica, 60 min, rate of 5 sec

1/16/2015 Master Thesis 34

Sample data set

≈

slide-35
SLIDE 35

AFM Algorithm

35

Initial Position Search Grid Rover position RINEX observations: code/phase RINEX navigation data Average Single point positioning (SPP)

slide-36
SLIDE 36

1/16/2015 Master Thesis 36

Maximum AFV

Search resolution and Maximum AFV Influence of number of satellites on AFM

slide-37
SLIDE 37

1/16/2015 Master Thesis 37

SW Development

INPUT RINEX obs/nav Position of Ref.sta Initial parameters Output DAT file of AFVs for test points APIs – RTKLIB readobsnav() antpos() rtkinit() inputobs() zres() selsat() geodist() tropmodel() Ionomodel() ddres() matcpy() Graphical interpretation MATLAB script > rnx2rtkp -p 3 -f 1 -e –r X Y Z 07590920.05o 30400920.05o 30400920.05n Static Positioning, L1, output X/Y/Z‐ECEF positions, reference sta.

slide-38
SLIDE 38

RESULTS AND ANALYSIS

slide-39
SLIDE 39

1/16/2015 Master Thesis 39

GPSLAB solution for zero baseline

GPSLAB Output

  • Used RINEX header position for

initial position

  • Search resolution – 1cm
  • Search grid size – 21 x 21 x 21
slide-40
SLIDE 40

1/16/2015 Master Thesis 40

GPSLAB solution for zero baseline

Rinex header Solution of MLAMDA Rover x 4177105.1044 4177079.7496 y 854991.1165 854973.6283 z 4728431.1402 4728457.8303 Ref: Station x 4177096.2981 4177079.7496 y 854990.3836 854973.6284 z 4728415.8815 4728457.8304

  • Ambiguity is fixed for the solution from MLAMBDA
  • This difference forces to use initial position from relative positioning
slide-41
SLIDE 41

1/16/2015 Master Thesis 41

Zero baseline

L1(1cm) L1L2 (1cm) L1(1mm) L1L2 (1mm) Frequency /resolution

RTKLIB % GPSLAB %

L1 –1cm 99.81 L1 – 1mm 99.81 L1L2-1cm 99.86 99.90 L1L2-1mm 99.86 99.90

slide-42
SLIDE 42

1/16/2015 Master Thesis 42

Short baseline (< 2km)

RESULTS

Frequency /resolution

RTKLIB % GPSLAB %

L1 –1cm 95.85 L1 – 1mm 95.91 L1L2-1cm 97.14 97.10 L1L2-1mm 97.17 97.12

L1(1cm) L1L2 (1cm) L1(1mm) L1L2 (1mm)

Solution of AFM deviates about 2 mm from solution

  • f LAMBDA
slide-43
SLIDE 43
  • RESULTS

1/16/2015 Master Thesis 43

Long baseline (~ 8km)

RESULTS

Frequency /resolution

RTKLIB % GPSLAB %

L1 –1cm 86.42 L1 – 1mm 86.45 L1L2-1cm 88.35 74.71 L1L2-1mm 88.42 74.56

L1(1cm) L1L2 (1cm) L1(1mm) L1L2 (1mm)

  • LAMBDA method failed to

fix the ambiguity

  • Solution of AFM deviates

about 1.4 cm from GeoGenius solution

slide-44
SLIDE 44

1/16/2015 Master Thesis 44

Long baseline ( 50km)

RESULTS

~

L1L2 (1cm) RTKLIB 58.57% GPSLAB 51.04% RTKLIB – 1cm resolution GPSLAB 1cm resolution

  • GPSLAB solution deviates about 5 cm from

LAMBDA ambiguity fixed solution.

  • RTKLIB-AFM solution deviates about 3 cm

from LAMBDA ambiguity fixed solution.

slide-45
SLIDE 45

1/16/2015 Master Thesis 45

Summary

RESULTS

50 55 60 65 70 75 80 85 90 95 100 0km 2km 8km 50km AFVS AS A PERCENTAGE BASELINE LENGTH

1 cm search resolution

GPSLAB (L1L2) RTKLIB (L1L2) RTKLIB (L1)

slide-46
SLIDE 46

1/16/2015 Master Thesis 47

  • No. of satellites & grid size

1.4 km baseline length|single epoch 4 9

  • No. of satellites

Description x y z AFV MLAMBDA 4146282.5788 611663.8480 4791922.2624

  • 4 satellites

4146282.5788 611663.7980 4791922.2624 99.53% 9 satellites 4146282.5788 611663.8480 4791922.2124 99.21%

  • In Fig (a), the maximum

AFV is 99.53% while second maximum AFV is 90.12%. (a) (b)

slide-47
SLIDE 47

1/16/2015 Master Thesis 48

Epochs

No of epochs 1 6 32

  • 8 km baseline length
  • Observations from 8 satellites/ L1L2
slide-48
SLIDE 48
  • No. Of

epochs Satellites /epoch AFV x y z 1 8 Max1 89.85% 4155029.1700 816405.7726 4754338.9800 Max2 89.25% 4155029.2200 816405.7726 4754338.9800 6 8 Max1 90.34% 4155029.1700 816405.7726 4754338.9800 Max2 89.13% 4155029.2200 816405.7726 4754338.9800 32 8 Max1 84.76% 4155029.1700 816405.7726 4754338.9300 Max2 81.00% 4155029.1700 816405.7726 4754338.9800

1/16/2015 Master Thesis 49

GeoGeneius solution: X = 4155029.1700 Y = 816405.772 Z = 4754338.9300

slide-49
SLIDE 49
  • DD technique is sufficient for short baselines (< 8km)
  • AFM generates many possible solutions for single

frequency / single epoch. But still maximum AFV matches to the true point (< 2km).

  • Longer the baseline higher the observation period

required to isolate the true position

  • Initial position must be from relative positioning
  • Sophisticated models for atmospheric errors must be

introduced for long baselines

  • LAMBDA method is much faster than AMF

1/16/2015 Master Thesis 50

CONCLUSIONS

slide-50
SLIDE 50
  • Formulate the mathematical relationship between

number of possible solutions and number of satellites, epochs and observables

  • Analyze the results of AFM with other GNSS

constellations (GLONASS, Galileo)

  • Analyze the wide-lane and narrow-lane impact on

results

  • Apply parallel programming technique in searching

process

  • In order to provide a statistical interpretation for the

AFM and to speed up the process, the Modified Ambiguity Function Method will be a robust approach

1/16/2015 Master Thesis 51

Future work

slide-51
SLIDE 51
  • Prof. Dr.-Ing. Reiner Jager
  • Prof. Dr.-Ing. Tilman Müller
  • Dipl.-Ing. Julia Diekert
  • M.Sc. Andreas Hoscislawski

1/16/2015 Master Thesis 52

Acknowledgment

slide-52
SLIDE 52

1/16/2015 Master Thesis 53

Thank you!

View publication stats View publication stats
