M.Sc. in Meteorology Physical Meteorology Prof Peter Lynch Mathematical Computation Laboratory Dept. of Maths. Physics, UCD, Belfield. Part 3 Radiative Transfer in the Atmopshere 2 Outline of Material Headings follow Wallace & Hobbs.

slide-1
SLIDE 1

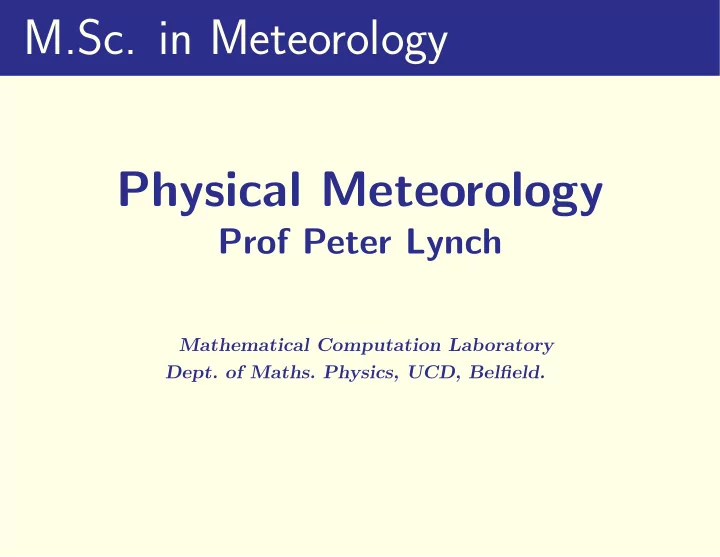

M.Sc. in Meteorology Physical Meteorology

Prof Peter Lynch

Mathematical Computation Laboratory

  • Dept. of Maths. Physics, UCD, Belfield.
slide-2
SLIDE 2

Part 3 Radiative Transfer in the Atmopshere

2

slide-3
SLIDE 3

Outline of Material

Headings follow Wallace & Hobbs. We will not cover everything!

3

slide-4
SLIDE 4

Outline of Material

Headings follow Wallace & Hobbs. We will not cover everything!

  • 0. Introduction
  • 1. The Spectrum of Radiation
  • 2. Quantitative Description of Radiation
  • 3. Blackbody Radiation
  • 4. Scattering and Absorption
  • 5. Radiative transfer in planetary atmospheres
  • 6. Radiation balance at the top of the atmosphere

3

slide-5
SLIDE 5

4

slide-6
SLIDE 6

A Grook by Piet Hein (1905–1996)

5

slide-7
SLIDE 7

A Grook by Piet Hein (1905–1996)

Sun, that givest all things birth, shine on everything on Earth.

5

slide-8
SLIDE 8

A Grook by Piet Hein (1905–1996)

Sun, that givest all things birth, shine on everything on Earth. But if that’s too much to demand, shine, at least, on this our land.

5

slide-9
SLIDE 9

A Grook by Piet Hein (1905–1996)

Sun, that givest all things birth, shine on everything on Earth. But if that’s too much to demand, shine, at least, on this our land. If even that’s too much for thee, shine, at any rate, on me.

5

slide-10
SLIDE 10

Introduction

Earth receives energy from the Sun in the form of radiant energy.

6

slide-11
SLIDE 11

Introduction

Earth receives energy from the Sun in the form of radiant energy. Solar energy has wavelengths between 0.2 µm and 4 µm, with a maximum at about 0.5 µm.

6

slide-12
SLIDE 12

Introduction

Earth receives energy from the Sun in the form of radiant energy. Solar energy has wavelengths between 0.2 µm and 4 µm, with a maximum at about 0.5 µm. We call this solar radiation or short-wave radiation.

6

slide-13
SLIDE 13

Introduction

Earth receives energy from the Sun in the form of radiant energy. Solar energy has wavelengths between 0.2 µm and 4 µm, with a maximum at about 0.5 µm. We call this solar radiation or short-wave radiation. The Earth also radiates energy, with wavelengths between 4 µm and 100 µm, with a maximum at about 10 µm.

6

slide-14
SLIDE 14

Introduction

Earth receives energy from the Sun in the form of radiant energy. Solar energy has wavelengths between 0.2 µm and 4 µm, with a maximum at about 0.5 µm. We call this solar radiation or short-wave radiation. The Earth also radiates energy, with wavelengths between 4 µm and 100 µm, with a maximum at about 10 µm. We call this terrestrial radiation or long-wave radiation.

6

slide-15
SLIDE 15

Introduction

Earth receives energy from the Sun in the form of radiant energy. Solar energy has wavelengths between 0.2 µm and 4 µm, with a maximum at about 0.5 µm. We call this solar radiation or short-wave radiation. The Earth also radiates energy, with wavelengths between 4 µm and 100 µm, with a maximum at about 10 µm. We call this terrestrial radiation or long-wave radiation. It is extremely convenient that the overlap between solar radiation and terrestrial radiation is very small, so that we can consider them separately.

6

slide-16
SLIDE 16

Review of the parameters describing a wave

7

slide-17
SLIDE 17

Radiation and Matter

Review of the fundamentals of

  • Wave-particle duality
  • Energy levels in atoms
  • Absorbtion and emission
  • Atomic spectra
  • Molecular vibrations
  • QED

8

slide-18
SLIDE 18

The Electromagnetic Spectrum

Electromagnetic energy spans a vast spectrum of wavelengths:

9

slide-19
SLIDE 19

The Electromagnetic Spectrum

Electromagnetic energy spans a vast spectrum of wavelengths:

  • gamma rays: Wavelengths below 10−12m

9

slide-20
SLIDE 20

The Electromagnetic Spectrum

Electromagnetic energy spans a vast spectrum of wavelengths:

  • gamma rays: Wavelengths below 10−12m
  • X rays: Wavelengths about 10−10m

9

slide-21
SLIDE 21

The Electromagnetic Spectrum

Electromagnetic energy spans a vast spectrum of wavelengths:

  • gamma rays: Wavelengths below 10−12m
  • X rays: Wavelengths about 10−10m
  • Ultraviolet rays: Wavelengths about 10−8m

9

slide-22
SLIDE 22

The Electromagnetic Spectrum

Electromagnetic energy spans a vast spectrum of wavelengths:

  • gamma rays: Wavelengths below 10−12m
  • X rays: Wavelengths about 10−10m
  • Ultraviolet rays: Wavelengths about 10−8m
  • Visible light: Wavelengths about 0.5 × 10−6m

9

slide-23
SLIDE 23

The Electromagnetic Spectrum

Electromagnetic energy spans a vast spectrum of wavelengths:

  • gamma rays: Wavelengths below 10−12m
  • X rays: Wavelengths about 10−10m
  • Ultraviolet rays: Wavelengths about 10−8m
  • Visible light: Wavelengths about 0.5 × 10−6m
  • Infrared rays: Wavelengths about 10−5m

9

slide-24
SLIDE 24

The Electromagnetic Spectrum

Electromagnetic energy spans a vast spectrum of wavelengths:

  • gamma rays: Wavelengths below 10−12m
  • X rays: Wavelengths about 10−10m
  • Ultraviolet rays: Wavelengths about 10−8m
  • Visible light: Wavelengths about 0.5 × 10−6m
  • Infrared rays: Wavelengths about 10−5m
  • Microwave radiation: Wavelengths about 10−2m

9

slide-25
SLIDE 25

The Electromagnetic Spectrum

Electromagnetic energy spans a vast spectrum of wavelengths:

  • gamma rays: Wavelengths below 10−12m
  • X rays: Wavelengths about 10−10m
  • Ultraviolet rays: Wavelengths about 10−8m
  • Visible light: Wavelengths about 0.5 × 10−6m
  • Infrared rays: Wavelengths about 10−5m
  • Microwave radiation: Wavelengths about 10−2m
  • Radio waves: Wavelengths about 10−2–104m

9

slide-26
SLIDE 26

The Electromagnetic Spectrum

10

slide-27
SLIDE 27

The Electromagnetic Spectrum.

11

slide-28
SLIDE 28

12

slide-29
SLIDE 29

The Stefan-Boltzmann Law

All objects emit radiation.

13

slide-30
SLIDE 30

The Stefan-Boltzmann Law

All objects emit radiation. The amount of energy emited depends on the temperature.

13

slide-31
SLIDE 31

The Stefan-Boltzmann Law

All objects emit radiation. The amount of energy emited depends on the temperature. The Stefan-Boltzmann Law states that the energy emitted is proportional to the fourth power of the temperature.

13

slide-32
SLIDE 32

The Stefan-Boltzmann Law

All objects emit radiation. The amount of energy emited depends on the temperature. The Stefan-Boltzmann Law states that the energy emitted is proportional to the fourth power of the temperature. Therefore, a warm object emits much more radiation than a cold one.

13

slide-33
SLIDE 33

The Stefan-Boltzmann Law

All objects emit radiation. The amount of energy emited depends on the temperature. The Stefan-Boltzmann Law states that the energy emitted is proportional to the fourth power of the temperature. Therefore, a warm object emits much more radiation than a cold one. For example, the Sun is about 5800 K. The Earth about 290 K. So, the radiation per unit area for the Sun is about 5800 290 4 = 204 = 160, 000 times greater than fof the Earth.

13

slide-34
SLIDE 34

The Stefan-Boltzmann Law

All objects emit radiation. The amount of energy emited depends on the temperature. The Stefan-Boltzmann Law states that the energy emitted is proportional to the fourth power of the temperature. Therefore, a warm object emits much more radiation than a cold one. For example, the Sun is about 5800 K. The Earth about 290 K. So, the radiation per unit area for the Sun is about 5800 290 4 = 204 = 160, 000 times greater than fof the Earth. The area of the Sun is about 10,000 times larger than that

  • f the Earth, so the ratio of the total radiation emitted is

about 160, 000 × 10, 000 = 1.6 × 109, or more than one billion.

13

slide-35
SLIDE 35

Wien’s Displacement Law

14

slide-36
SLIDE 36

Wien’s Displacement Law

The wavelength or frequency of maximum radiated energy depends on the temperature.

14

slide-37
SLIDE 37

Wien’s Displacement Law

The wavelength or frequency of maximum radiated energy depends on the temperature. This is described by Wien’s Law: Wavelength of maximum emitted radiation (µm)

  • =

2900 Temperature (K)

14

slide-38
SLIDE 38

Wien’s Displacement Law

The wavelength or frequency of maximum radiated energy depends on the temperature. This is described by Wien’s Law: Wavelength of maximum emitted radiation (µm)

  • =

2900 Temperature (K) For example, the Earth’s temperature is (about) 290 K, so the wavelength of maximum emitted radiation is about 10 µm.

14

slide-39
SLIDE 39

Wien’s Displacement Law

The wavelength or frequency of maximum radiated energy depends on the temperature. This is described by Wien’s Law: Wavelength of maximum emitted radiation (µm)

  • =

2900 Temperature (K) For example, the Earth’s temperature is (about) 290 K, so the wavelength of maximum emitted radiation is about 10 µm. The temperature of the Sun is (about) 5800 K, so the wave- length of maximum emitted radiation is about 0.5 µm.

14

slide-40
SLIDE 40

15

slide-41
SLIDE 41

Infra-red photograph of a man holding a burning match

16

slide-42
SLIDE 42

Infra-red photograph of a man holding a burning match It’s true: shades make you cool!

16

slide-43
SLIDE 43

17

slide-44
SLIDE 44

18

slide-45
SLIDE 45

19

slide-46
SLIDE 46

Images from Ackerman & Knox Meteorology: Understanding the Atmosphere

20

slide-47
SLIDE 47

21

slide-48
SLIDE 48

22

slide-49
SLIDE 49

Solar energy reaching the top of the atmosphere at four latitudes

23

slide-50
SLIDE 50

24

slide-51
SLIDE 51

Absorbtion of Solar and Terrestrial Radiation.

25

slide-52
SLIDE 52

Energy budget as a function of latitude

26

slide-53
SLIDE 53

27

slide-54
SLIDE 54

28

slide-55
SLIDE 55

29

slide-56
SLIDE 56

Energy budget of the atmosphere

30

slide-57
SLIDE 57

End of Introduction.

31
