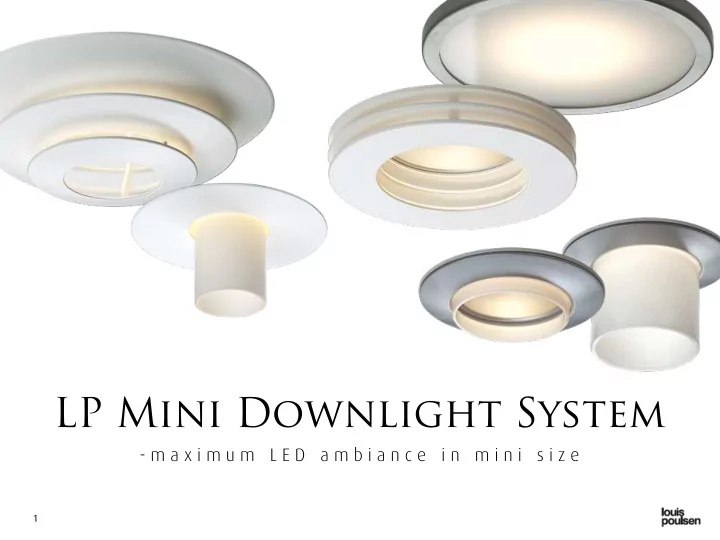

LP Mini Downlight System

• m a x i m u m L E D a m b i a n c e i n m i n i s i z e

2

LP Mini Downlight Unit LDP – Light Distribution Parts

3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Less is more

• Louis Poulsen has been known for offering product families in various

iterations of the same design idiom

• Specifying large to small sizes of a given design allows professionals to
• vercome aesthetic challenges
• We took the smallest versions of some of our iconic fixtures and

harnessed into them the power of the latest LED technology

• These are LP MINI DOWNLIGHTS.

Great Court, British Museum, London. Hearst Tower, New York

4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Respectful Ambiance

Louis Poulsen’s goal of avoiding direct glare is included in every one of

• ur designs.

Our philosophy leads us to craft a delicate balance of energy consumption, performance, and lighting comfort. Light is essential for atmosphere and should in no way interfere with it. This philosophy creates the ambiance.

5

Maximum LED Performance

The LP MINI DOWNLIGHT is a new generation of LED lighting solutions that are big on light output, comfort and functionality, while embracing a minimal appearance. With the latest technology in LED light sources, your installation will remain well into the future. With the variety of iconic LDPs, you have a myriad of

• pportunities to create lighting experiences that benefit

both humans as well as architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Key Features

• 7 Interchangeable LDPs with tool-less installation
• Powerful Chip On Board LED light source
• Dimmable
• Most LDPs provide ceiling illumination
• Iconic design families seamlessly integrate with larger

versions

• Ideal for rooms with low ceilings
• Architectural versatility
• Ideal for repetitive installations

7

Galvanized steel junction box Electronic driver Aluminum heat sink

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

One Powerful LED Unit

LEDs: COB (Chip on Board) Driver: Electronic Driver Light Source: 17W LED 3000K / 3500K Light Control: DIM 0-10V Materials Mounting pan: Galvanized steel sheet metal. Housing: Die cast aluminum. Heat sink: Aluminum Measurement of ceiling cutout: 4.125” Weight: Max. 3.8 lbs. Label: cULus, Damp location. IBEW.

¡

COB LED Illustration of ceiling - not included

8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Install & Remove Trims ¡

To remove trim: Turn over sample and press in on clips (highlighted in green for clarity). Align trim clips with the channels

• n the inside of housing and press

trim until it snaps in place. Clip Channel

9

Oslo Mini Ah Mini Short AH Mini Tall

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The Designs Basic Mini Ballerup Mini Munkegaard Mini Strata Mini

10

Basic Mini

• Designed by Louis Poulsen
• Symmetric and downward directed light
• Optimal LED light distribution
• Suitable for repetitive installations

Finish: White, powder coated. LDP Trim: Die cast aluminum Measurement of trim: Ø 4.9” Specifications Light Source: 17W LED 3000K / 3500K Dimming: 0-10V Power Consumption: 17W Delivered Lumen: 1335 lm Efficacy: 78 lm/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9”

11

AH Mini Short

• Designed by Alfred Homann
• Functional and decorative lighting
• Short glass maximizes light output
• Three-layer handblown glass provides a soft and comfortable light

Finish: Satin matte aluminum / White powder coated LDP Trim: Handblown white opal glass Measurement of trim: Ø 4.7” Specifications Light Source: 17W LED 3000K / 3500K Dimming: 0-10V Power Consumption: 17W Delivered Lumen: 1242 lm Efficacy: 73 lm/W Product Family AH Tall Ø 4.7” – Recessed, Indoor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.7”

12

AH Mini Tall

• Designed by Alfred Homann
• Symmetric and downward directed light
• Functional and decorative lighting
• Long glass cylinder reduces angle of glare
• Three-layer handblown glass provides a soft and comfortable light

Finish: Satin matte aluminum / White powder coated LDP Trim: Handblown white opal glass Measurement of trim: Ø 4.7” Specifications Light Source: 17W LED 3000K / 3500K Dimming: 0-10V Power Consumption: 17W Delivered Lumen: 1073 lm Efficacy: 63 lm/W Product Family AH Short Ø 4.7” – Recessed, Indoor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.7”

13

Ballerup Mini

• Designed by P. Hougaard Nielsen and C. J. Nørgaard Pedersen in 1963
• Clean and simple structure
• Reduced glare for passers-by
• Architectural versatility
• Three-layer handblown glass provides a soft and comfortable light

Finish: White, powder coated LDP Trim: Handblown white opal glass Measurement of trim: Ø 4.8” Specifications Light Source: 17W LED 3000K / 3500K Dimming: 0-10V Power Consumption: 17W Delivered Lumen: 516 lm Efficacy: 30 lm/W Product Family Ballerup Ø 6.6” – Recessed, Indoor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8”

14

15

Munkegaard Mini

• Designed by Arne Jacobsen
• Diffuses the LED light through an opal shield
• Appears to hover below the ceiling
• Minimalistic design

Finish: Satin chrome plated. White opal acrylic. LDP Trim: Injection molded opal polycarbonate. Trim ring stainless steel. Measurement of trim: Ø 5.6” Specifications Light Source: 17W LED 3000K / 3500K Dimming: 0-10V Power Consumption: 17W Delivered Lumen: 799 lm Efficacy: 47 lm/W Product Family Munkegaard Ø 10.4” / 18.1” / 20.7” – Recessed, Indoor Munkegaard Mega Ø 29.9” – Recessed, Indoor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.6”

16

Strata Mini

• Designed by Alfred Homann
• Ring design provides smooth ceiling illumination
• Emits comfortable light through its characteristic three rings
• Ideal for rooms with low ceilings

Finish: White, powder coated. LDP Trim: Die cut steel Measurement of trim: Ø 4.8” Specifications Light Source: 17W LED 3000K / 3500K Dimming: 0-10V Power Consumption: 17W Delivered Lumen: 1133 lm Efficacy: 67 lm/W Product Family Strata Maxi Ø 10.6” – Recessed, Indoor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8”

17

18

Oslo Mini

• Designed by Kurt Nørregaard
• Symmetric light distribution also illuminating the

ceiling surface

• Emits a narrow band of light directed downwards
• Reflector rings reduce the angle of glare

Finish: White, powder coated. LDP Trim: Shade: Spun aluminum. Struts: Steel. Measurement of trim: Ø 6.4” Specifications Light Source: 17W LED 3000K / 3500K Dimming: 0-10V Power Consumption: 17W Delivered Lumen: 734 lm Efficacy: 43 lm/W Product Family Oslo Ø 16.7” – Recessed, Indoor Oslo Uplight Ø 20.3” – Wall, Indoor Oslo Pendant Ø 23.6” – Pendant, Indoor Olso Round Ceiling/Wall Ø 16.6” - Surface Mounted, Indoor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.4”

19

31

Power Consumption 17W Delivered Lumen 1335 lm Efficacy Lm/W 78 lm/W Dimming Option 0-10 Trim Measurement Ø 4.9” Finish White Power Consumption 17W Delivered Lumen 516 lm Efficacy Lm/W 30 lm/W Dimming Option 0-10 Trim Measurement Ø 4.8” Finish White Power Consumption 17W Delivered Lumen 799 lm Efficacy Lm/W 47 lm/W Dimming Option 0-10 Trim Measurement Ø 5.6” Finish Satin CHR Power Consumption 17W Delivered Lumen 1133 lm Efficacy Lm/W 67 lm/W Dimming Option 0-10 Trim Measurement Ø 4.8” Finish White Power Consumption 17W Delivered Lumen 734 lm Efficacy Lm/W 43 lm/W Dimming Option 0-10 Trim Measurement Ø 6.4” Finish White Power Consumption 17W Delivered Lumen 1242 lm Efficacy Lm/W 73 lm/W Dimming Option 0-10 Trim Measurement Ø 4.7” Finish Matte Power Consumption 17W Delivered Lumen 1073 lm Efficacy Lm/W 63 lm/W Dimming Option 0-10 Trim Measurement Ø 4.7” Finish Matte

BASIC MINI BALLERUP MINI MUNKEGAARD MINI STRATA MINI OSLO MINI AH MINI SHORT AH MINI TALL
